Digitální tester izolačního odporu, megohmetr, rozsah 1000 V 2500 V 200 G Ohm

SKU: 1005006770457874-2500V
Color
€115,16
-33% €172,74 €115,16

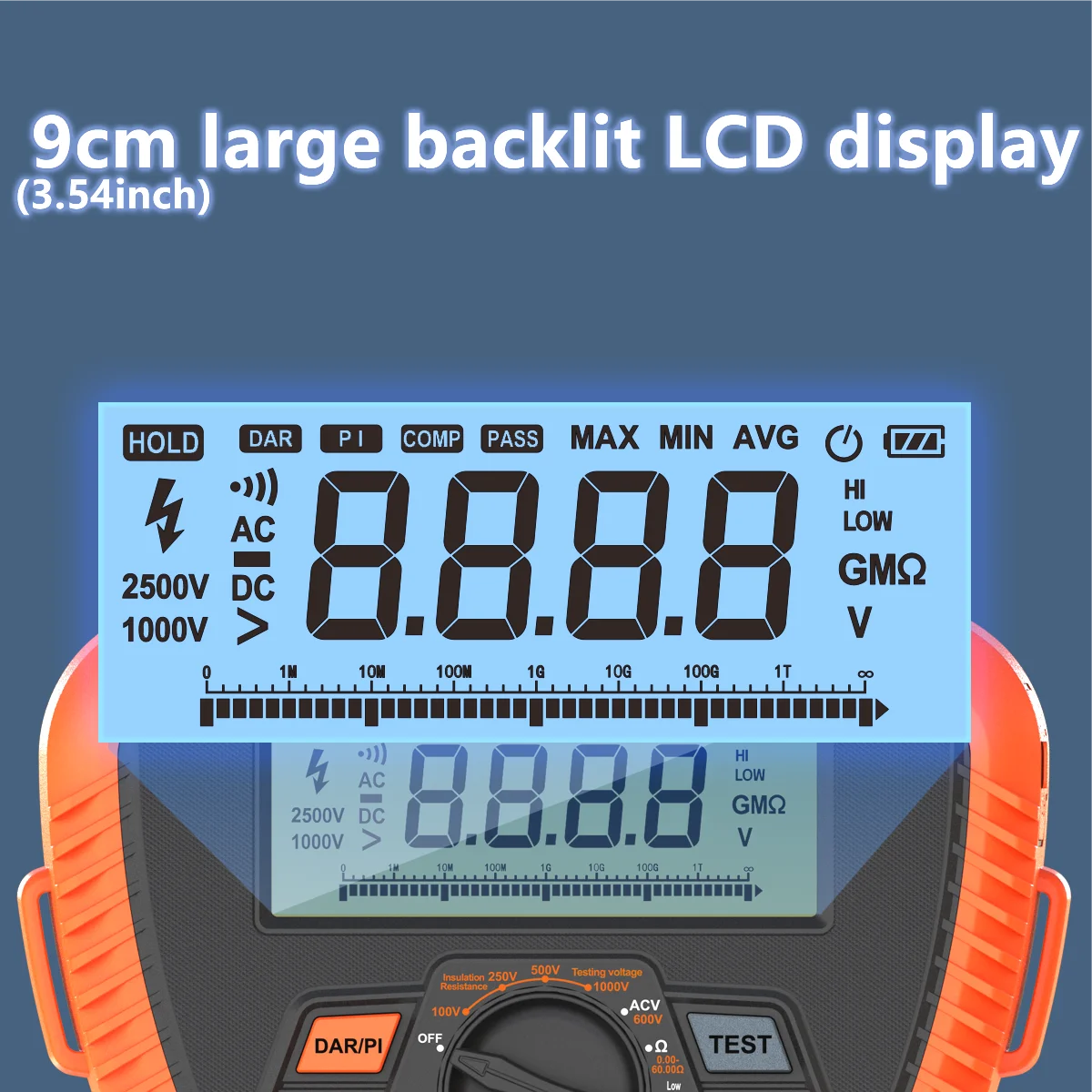

Diagnose wire degradation and motor health with the NJTY Digital Insulation Resistance Tester. This megohmmeter provides stable readings for cables, transformers, and industrial machinery. You select from five DC test voltages up to 2500V to apply exactly what each component requires. The backlit LCD panel keeps numbers visible even inside shadowy switchgear enclosures. An automatic discharge function removes residual charge instantly, keeping you protected during follow-up handling. Measuring just 179mm across, the rugged form factor slips easily into bags for portable field inspections.

Smart uses and helpful advice

  • Deep diagnostics: Activate the absorption ratio setting to uncover moisture accumulation in large capacitors or long underground runs.
  • Secure connections: Apply test leads firmly to conductive surfaces before starting to prevent flickering readings during crucial measurements.
  • Job-site ready: Transport the device in its included carry bag to shield the screen and controls from bumps and dust.

Key specifications

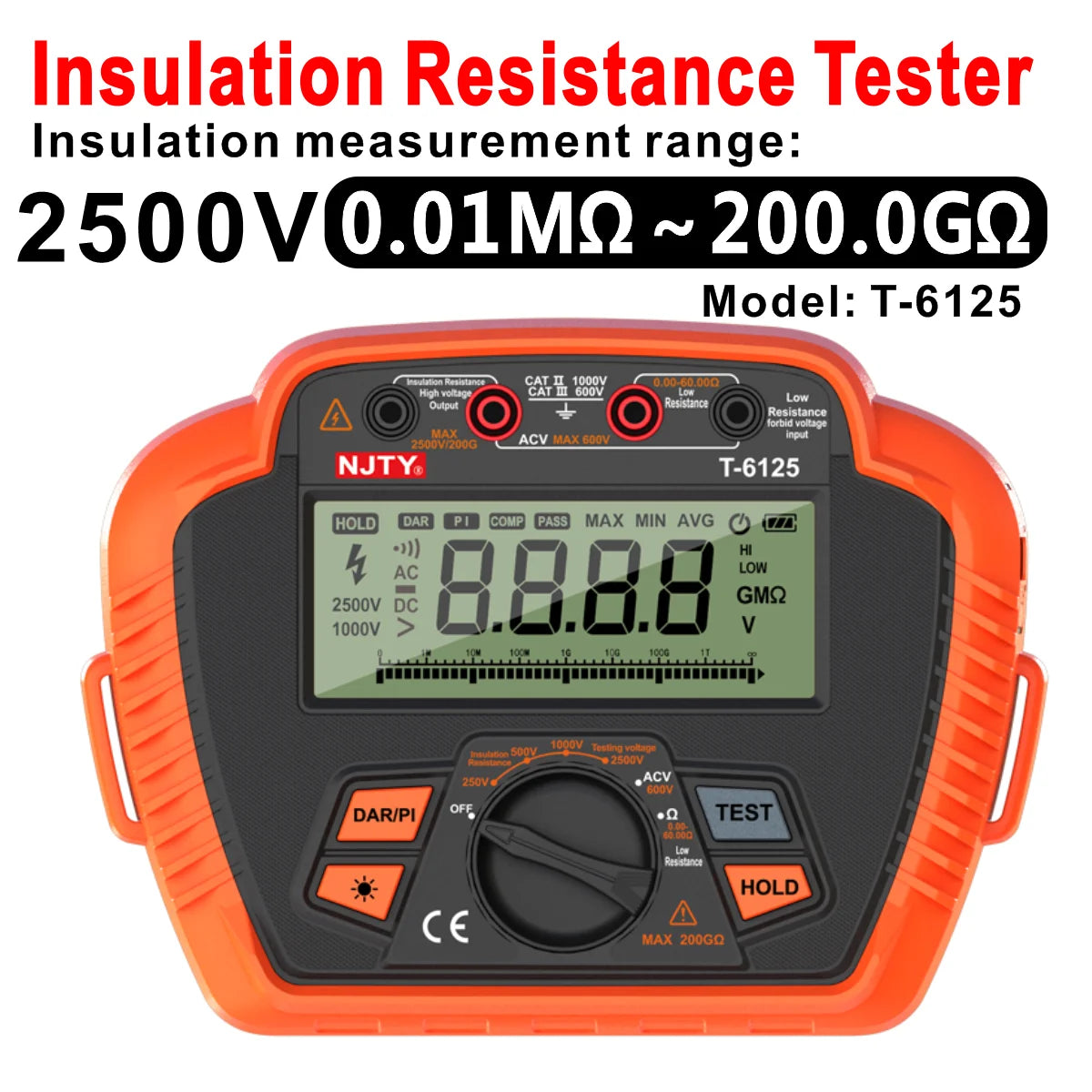

  • High-capacity measurement: Resolves low resistance from 0.00 Ω and tracks insulation values up to 200.0 GΩ with 0.01 MΩ clarity.
  • Flexible voltage options: Delivers precise outputs at 100V, 250V, 500V, 1000V, and 2500V for versatile system testing.
  • Procedural modes: Calculates absorption ratio and polarization index automatically to support thorough equipment assessments.
  • Safety standards: Certified to IEC/EN 61010-1 with 1000V CAT III and 600V CAT IV overvoltage protection grades.
  • Compact footprint: Dimensions of 179 mm × 133 mm × 70 mm suit one-handed operation and weigh roughly 570 g empty.
  • Controlled output: Limits short-circuit current to approximately 2 mA for safer interaction during accidental contact events.

Operating reminders

Achieve peak accuracy when the surrounding air temperature remains between 0°C and 40°C during use.

Store the instrument within a range of -20°C to 60°C to maintain long-term performance of internal parts.

Plan to obtain eight independent 1.5V AA batteries, as the pack ships without any power cells installed.

Climb up to an altitude of 2000 m for reliable environmental ratings; performance may vary beyond this elevation.

Package includes:

NJTY Digital Insulation Resistance Tester, portable carrying case.
