Domov » 15W 450nm Laser Module With Protective Eyewear For CNC Router Machine

15W 450nm Laser Module With Protective Eyewear For CNC Router Machine

SKU: 1005013099551110-15W optical power
Color
€266,23
-36% €416,23 €266,23

Upgrade your CNC router with a laser module that balances power and agility. This device delivers crisp blue beams via a fixed-focus dot shape, making it ideal for detailed engraving tasks. The 15W optical output handles materials like wood effectively.

You gain precise depth control thanks to full compatibility with both TTL and PWM modulation signals. Adjust brightness instantly without swapping hardware. The adjustable intensity gives you versatility across different project requirements.

The module weighs only 202g because a lighter mass reduces moving inertia. Your machine's axes respond faster to commands, resulting in smoother motion and reduced vibration. This performance boost comes directly from the efficient design.

Reliability matters for long runs. A robust aircraft aluminum heatsink pairs with intelligent temperature sensors to keep the device safe below 60°C. A built-in 40mm fan spins at 10,000 rpm to circulate air constantly. Expect a service life between 10,000 and 20,000 hours.

Benefits & Tips

  • Air Assist Improves Quality: Use a nozzle with an air pump during wood cutting to blow smoke away from the lens. This prevents residue buildup and maintains a clear focal point.
  • Lens Care Routine: Clean the lens regularly using alcohol wipes. Smoke pollution degrades engraving results over time, so fresh optics ensure sharp performance.
  • Wiring Clarity: Hook up cables carefully. The red wire connects to positive, black to negative, and yellow carries the PWM signal at DC 0-5/12V.

Product Specifications

  • Wavelength: 450nm blue luminous color for effective material interaction.
  • Input Power: Requires DC12V input drawing 3-4A; supports DC 12V to 24V operation.

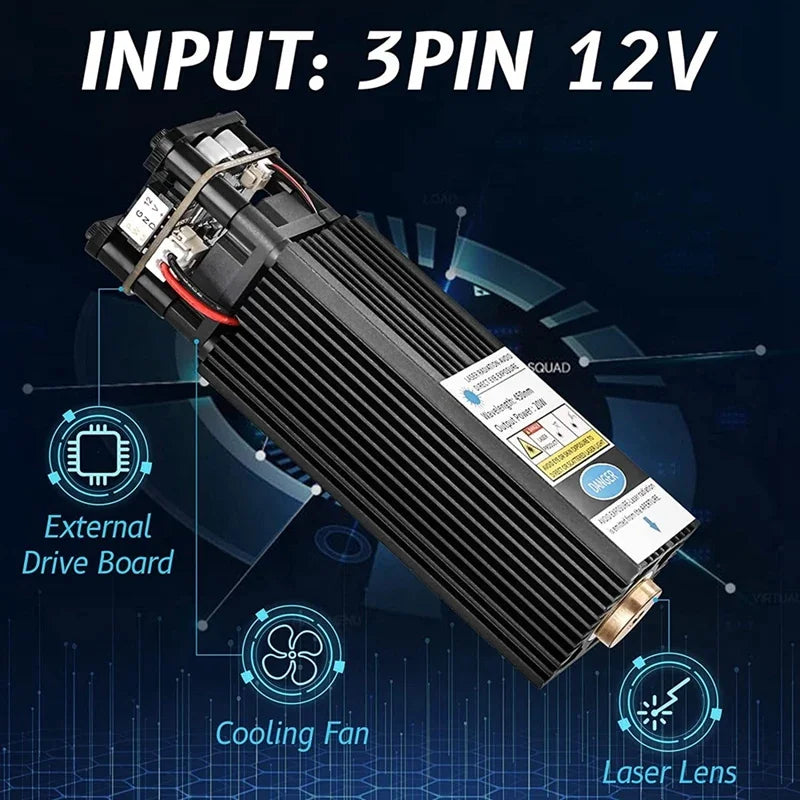

  • Interface: Features a convenient 3-pin connector layout for easy integration.
  • Modulation: Supports both TTL and PWM signals for flexible controller pairing.
  • Cooling System: Active cooling with a high-speed fan and smart thermal protection.

Package Includes:

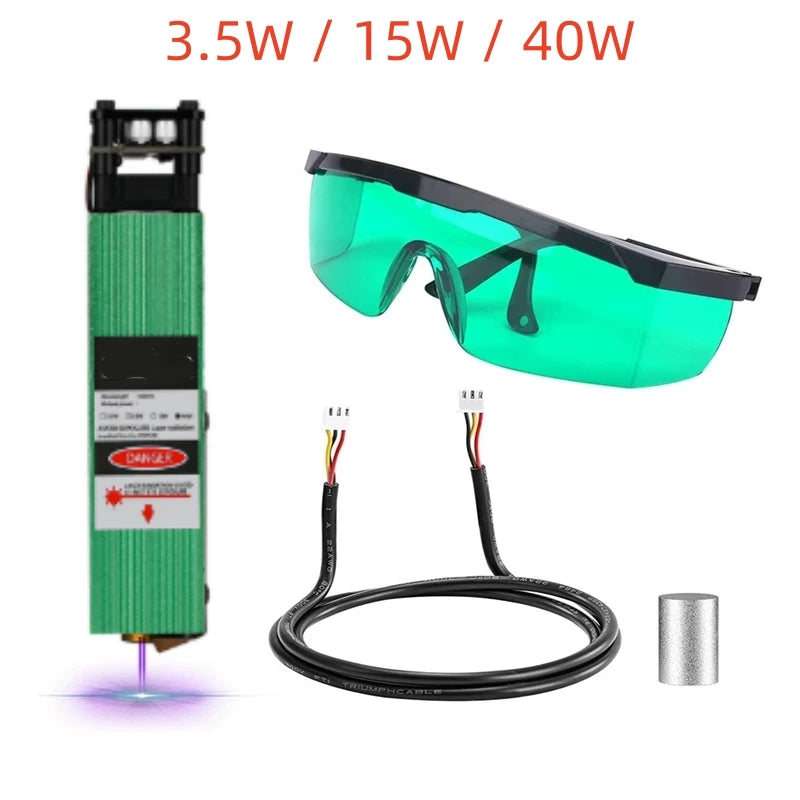

• 1x 15W 450nm Laser Module
• 1x Pair of Protective Eyewear

Important Reminders

Cut through wood varieties like pine or basswood to establish baseline performance before tackling denser timbers. Maximum thickness varies significantly depending on material density. Ensure your control board PWM supply stays strictly within 0-5V or 0-12V limits. Exceeding these voltages will prevent the laser from responding to modulation controls.

All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.

Trusted sourcing for electronics and reliable parts since 2002 is our promise at intercyprus.com.
