Silicone Turbo Coupler Elbow Hose 4 Inch 102mm 90 Degree for Intake Pipe

SKU: 1005010382532264-Default Title
Default Title
€58,19
-37% €93,10 €58,19

Upgrade your turbo intake routing with the Silicone Turbo Coupler Elbow Hose. This 4" (102 mm) 90-degree silicone elbow is designed to connect front-mounted intake pipes and keep boost leaks at bay. Its robust silicone construction handles heat, boost, and harsh under-hood conditions, delivering a secure, long-lasting seal.

With a 4.5 mm wall thickness and a 3-ply design, this hose resists collapse under boost while remaining flexible enough to accommodate tight routing around engine components. Operating specifications include -40°C to +260°C (-40°F to +500°F) and a working pressure of 0.3–0.9 MPa, with a bursting pressure of 245 PSI, making it suitable for high-performance street and track use.

The part is black, intended for front placement on the vehicle and connects using a 102 mm (4") diameter. Interchange Part Number is air intake pipe; OEM No. is /. The product is manufactured in Mainland China under the no-brand designation "NONE" and is listed as a Turbo Coupler Intake Pipe.

All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.

Benefits & Tips

  • Replace a worn or cracked turbo intake elbow to restore a tight seal and reliable boost delivery in front-mounted piping.
  • Plan your routing around the 90-degree bend to minimize kinks and ensure smooth airflow from the turbo to the intake pipe.
  • When installing, secure with high-quality clamps and verify the 102 mm connection matches your piping for a leak-free boost path.

Product specifications

  • Brand: NONE
  • Origin: Mainland China
  • Country/Region of Manufacture: China
  • Interchange Part Number: air intake pipe
  • Other Part Number: air intake pipe
  • OEM No.: /
  • Material: Silicone
  • Color: Black
  • Length / Size: 102 mm (4")
  • Design: 90 Degree Elbow, Turbo Coupler Intake Pipe
  • Placement on Vehicle: Front
  • Application: 4" hose for turbo intake piping
  • Working Temperature: -40°C to +260°C (-40°F to +500°F)
  • Working Pressure: 0.3 to 0.9 MPa
  • Bursting Pressure: 245 PSI
  • Thickness: 4.5 mm, 3 ply
  • Size Tolerance: ±0.5 mm
  • Special Features: Turbo Coupler Intake Pipe

Package includes

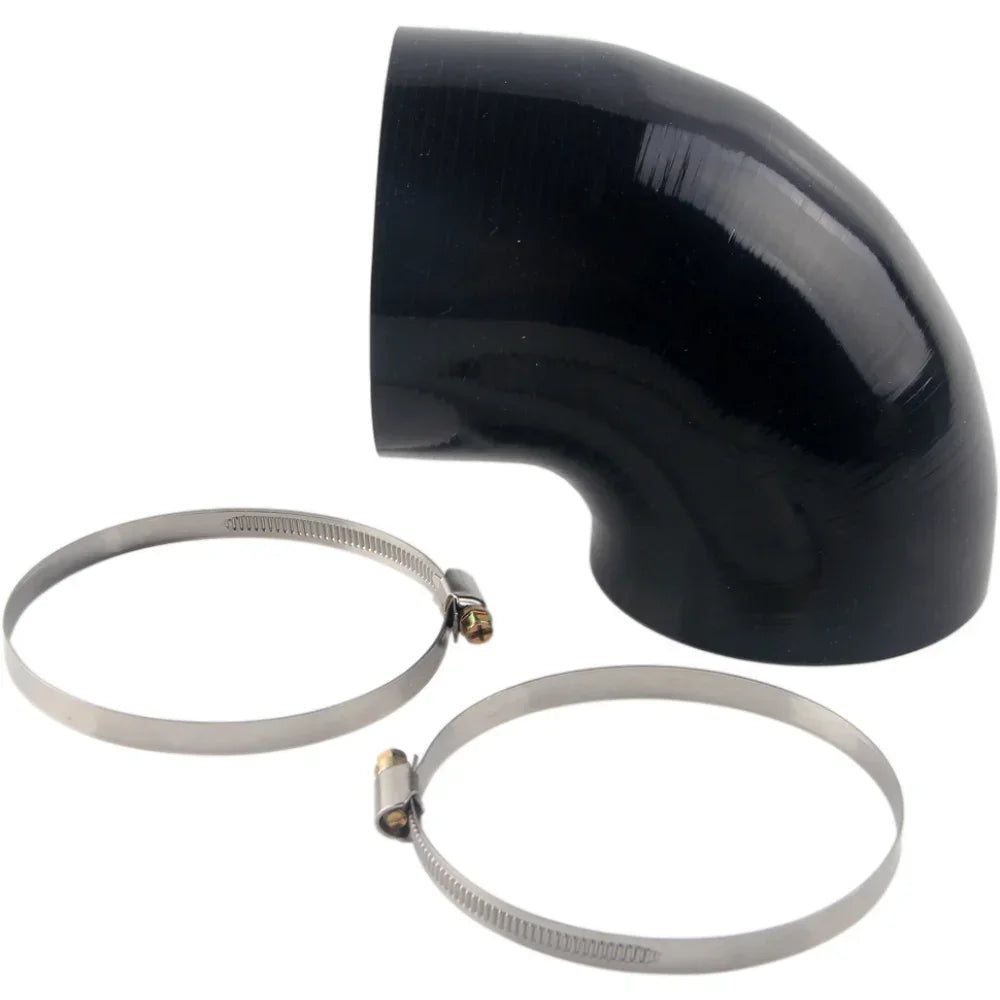

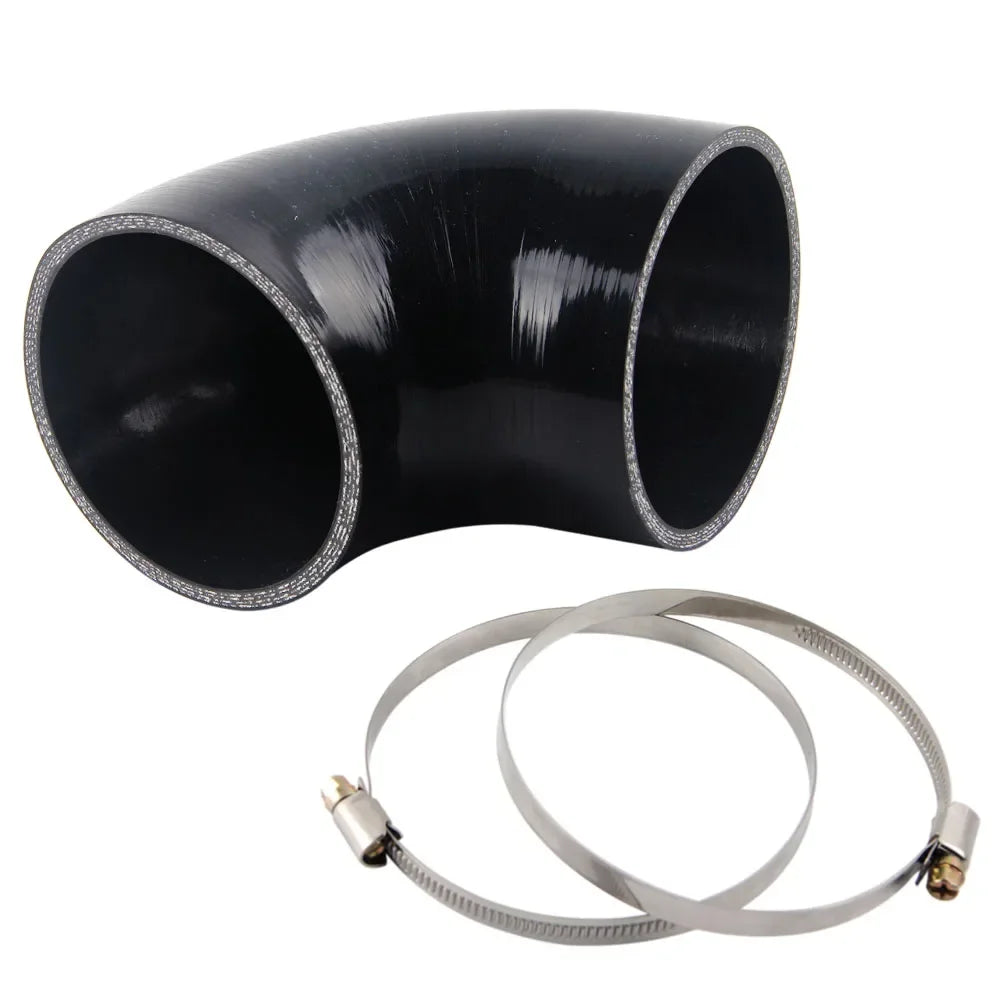

  • All hose kit as shown in the picture
