Prismatic LiFePO4 aku rakud 280Ah 3.2V päikeseenergia salvestamiseks, skaleeritavad 12V/24V/48V süsteemid, 7500 tsüklit

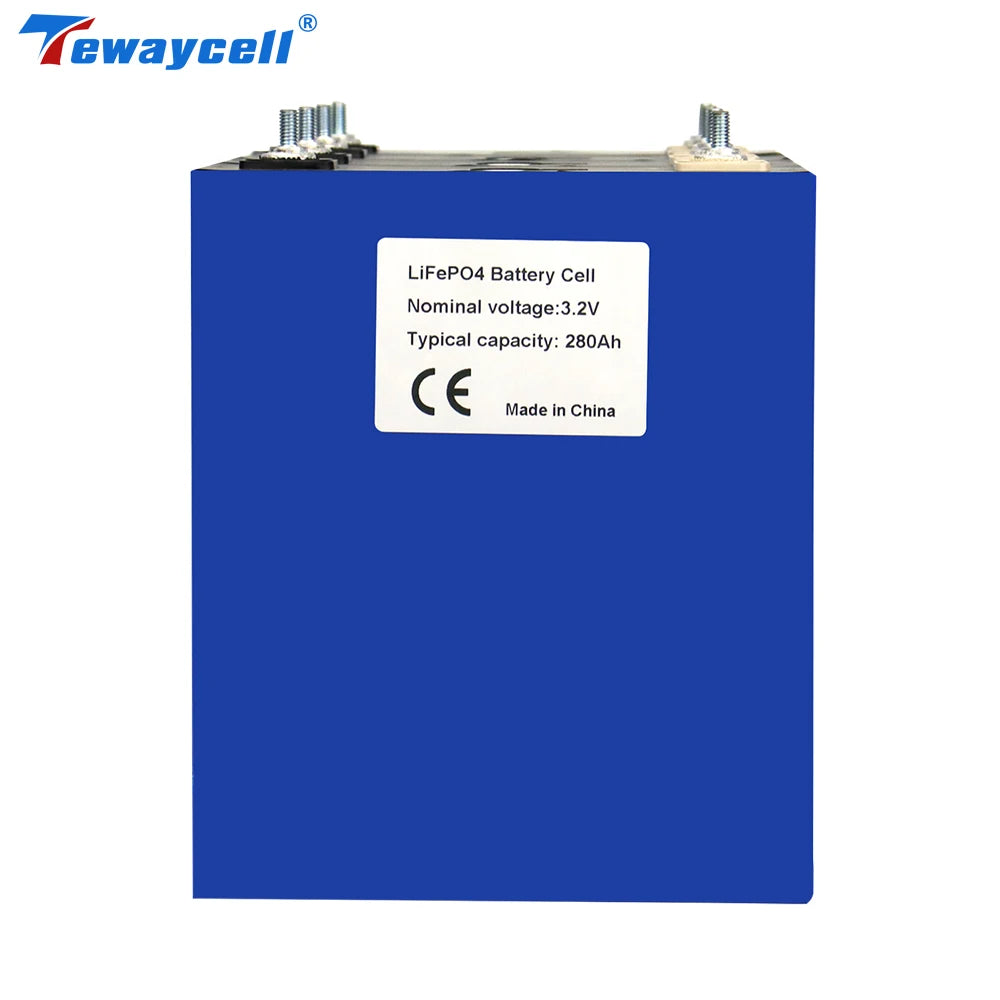

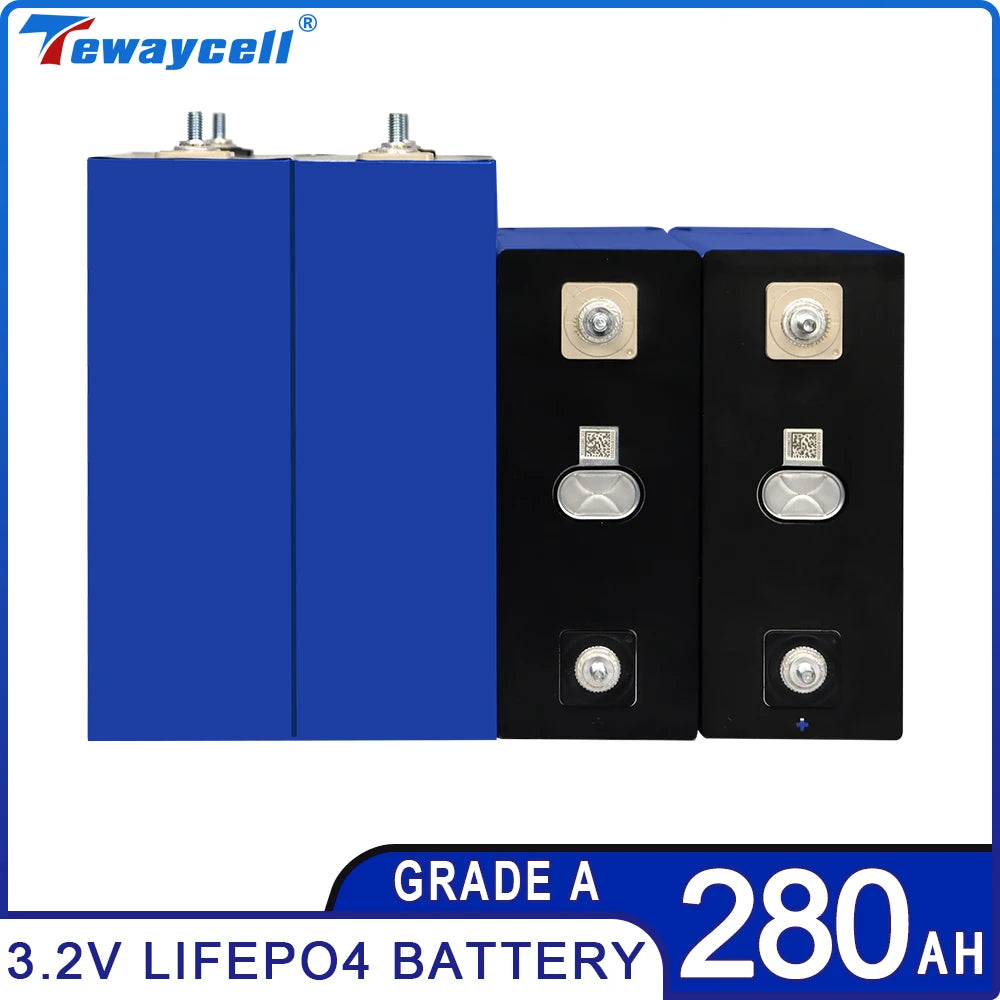

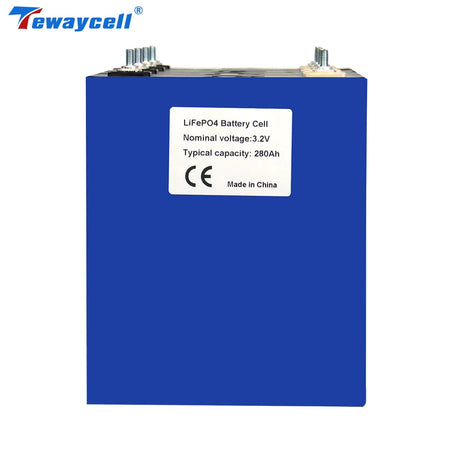

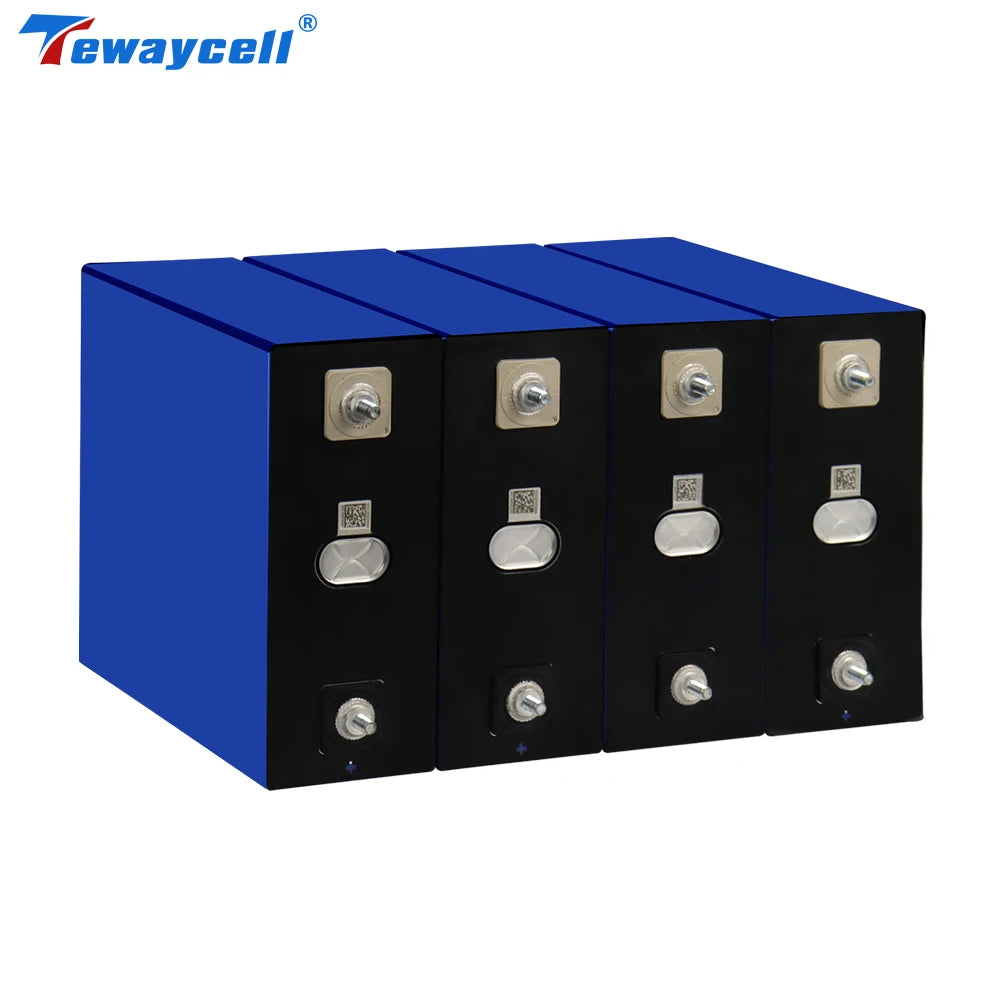

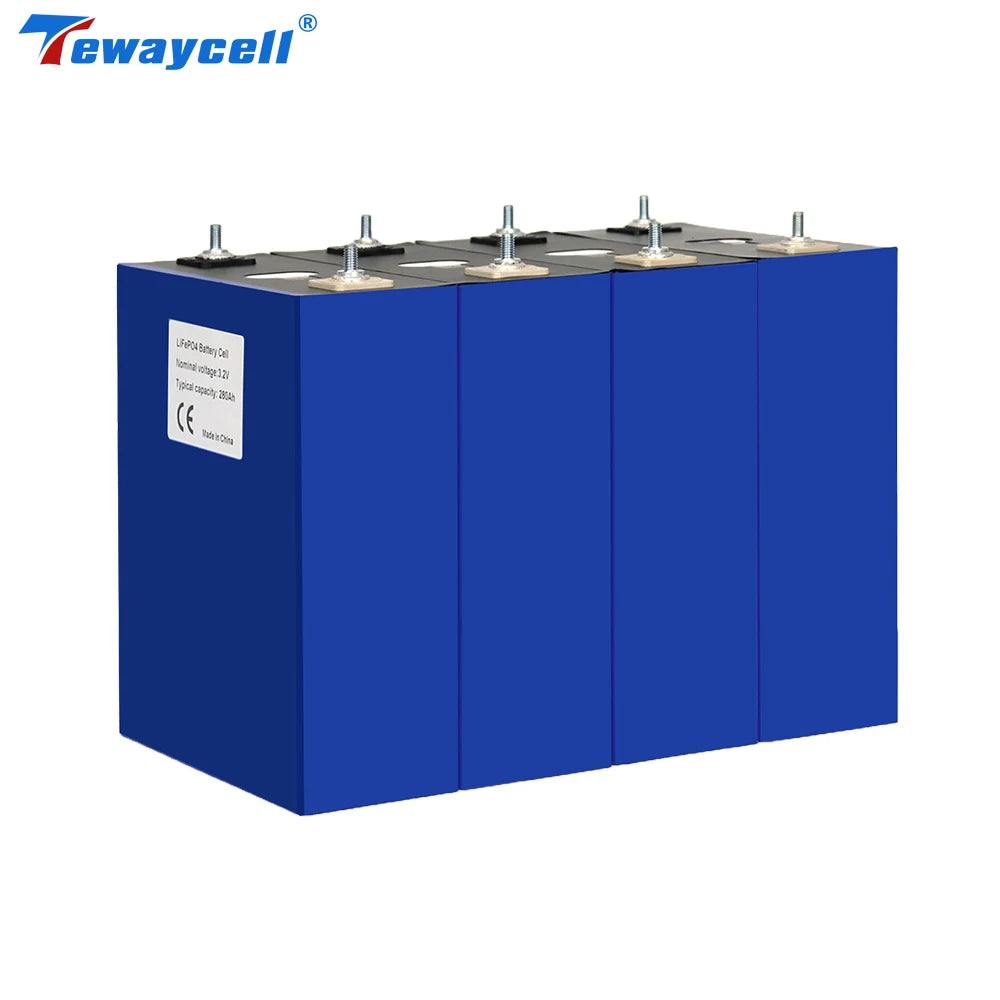

Meet the Tewaycell 3.2V 280Ah LiFePO4 battery prismatic cells, engineered for scalable solar energy storage in 12V, 24V, and 48V systems. Each cell is Grade A with CE certification, delivering a nominal 3.2V and 280Ah capacity with an impressive life of up to 7500 cycles. Built on LiFePO4 chemistry for safety, stability, and wide operating temperature, these modules minimize maintenance while delivering reliable energy for off‑grid homes, microgrids, and solar installations. The compact prismatic form (174 × 72 × 203 mm) and light weight (~5.3 kg) simplify rack mounting and wiring. Set Type: Batteries Only, with options for 4/8/16/32 pieces; busbars and M6 screws are included per battery for quick assembly. They are designed to perform reliably across climates from -20 to 60°C.
Benefits & Tips

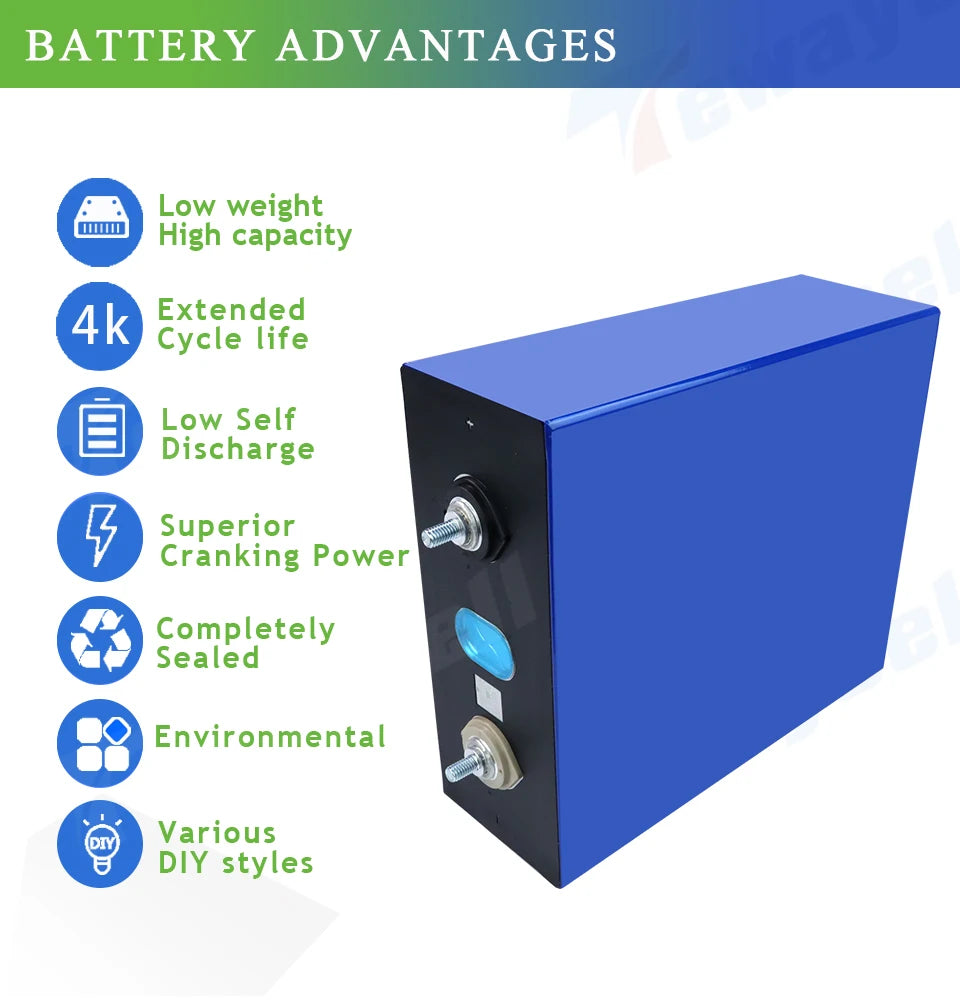

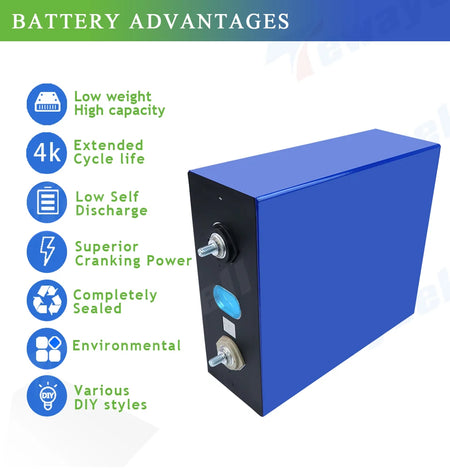

- Long-lasting, safe LiFePO4 chemistry provides stable voltage, excellent cycle life, and lower risk of thermal runaway—ideal for continuous solar storage and backup power.
- Modular design makes it easy to scale a solar or off‑grid system from 12V to 24V or 48V by wiring cells in series/parallel, while keeping a compact footprint.
- Operate within recommended temp range and follow charging/discharging guidelines: charging voltage 3.65V, maximum continuous discharge 280A (1C), and a discharge end voltage of 2.5V to protect longevity.
Product specifications
- Model: LFP-3.2V-280AH
- Brand: Tewaycell
- Chemistry: LiFePO4 (Lithium Iron Phosphate)
- Nominal voltage: 3.2V
- Nominal capacity: 280Ah
- Minimum capacity: 289Ah
- Internal impedance: 0.1–0.2 mΩ

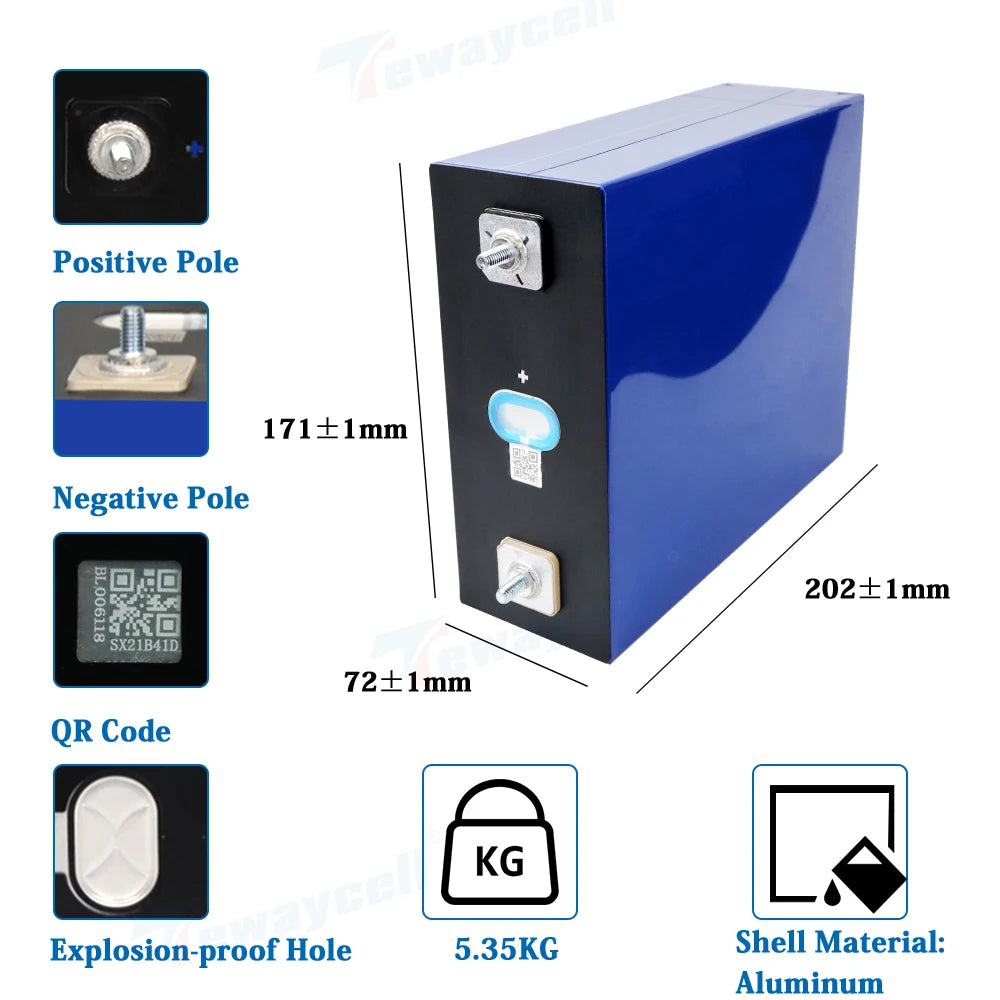

- Dimensions (L×W×H): 174 × 72 × 203 mm
- Shell material: Aluminum
- Weight: 5.3 ± 0.1 kg
- Recommended constant current: 280A (1C)
- Discharge end voltage: 2.5V
- Charging voltage: 3.65V
- Maximum continuous discharge current: 280A (1C)
- Life cycle (80% DoD): ≥7500 cycles at 25°C (0.5C/0.5C)
- Life cycle (70% DoD): ≥8000 cycles
- Standard charge temperature: 25 ± 2°C
- Absolute charging temperature: 0–55°C
- Absolute discharge temperature: -20–55°C
- Operating temperature: -20–60°C
- Origin: Mainland China
- Set Type: Batteries Only
- Certification: CE

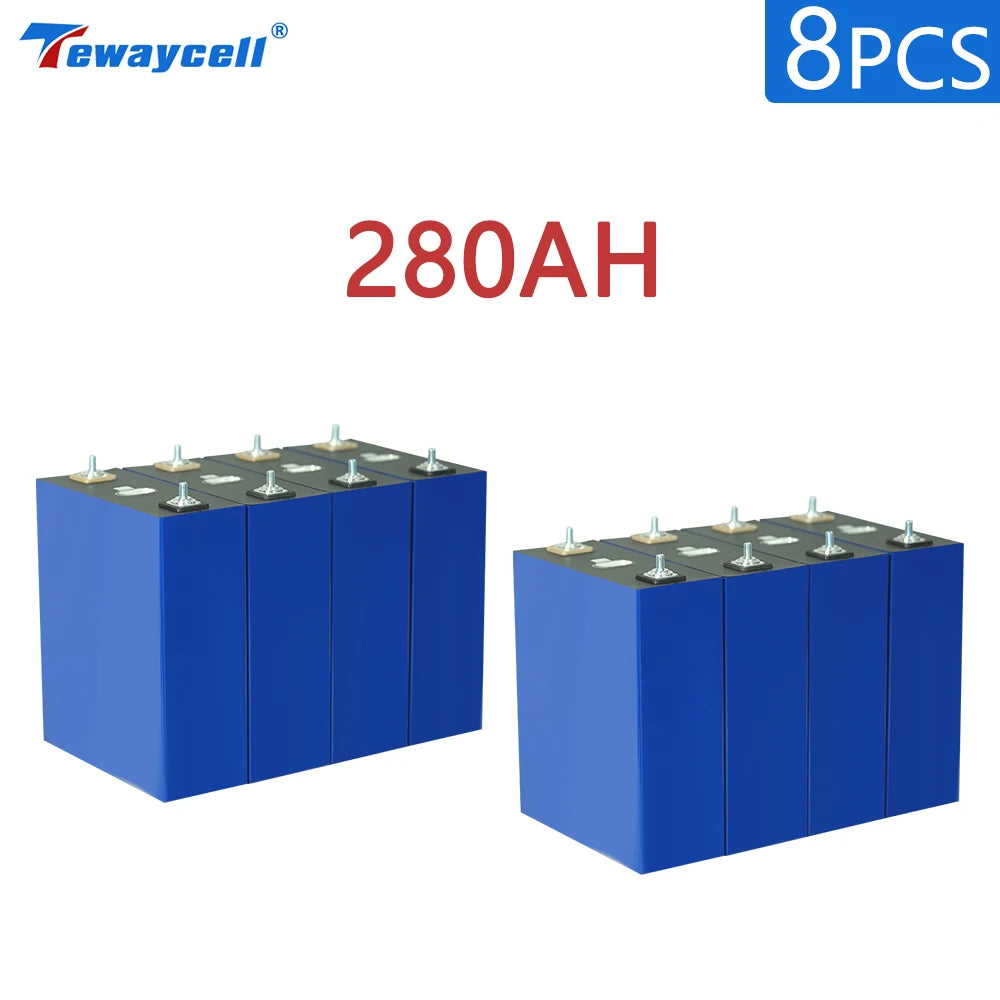

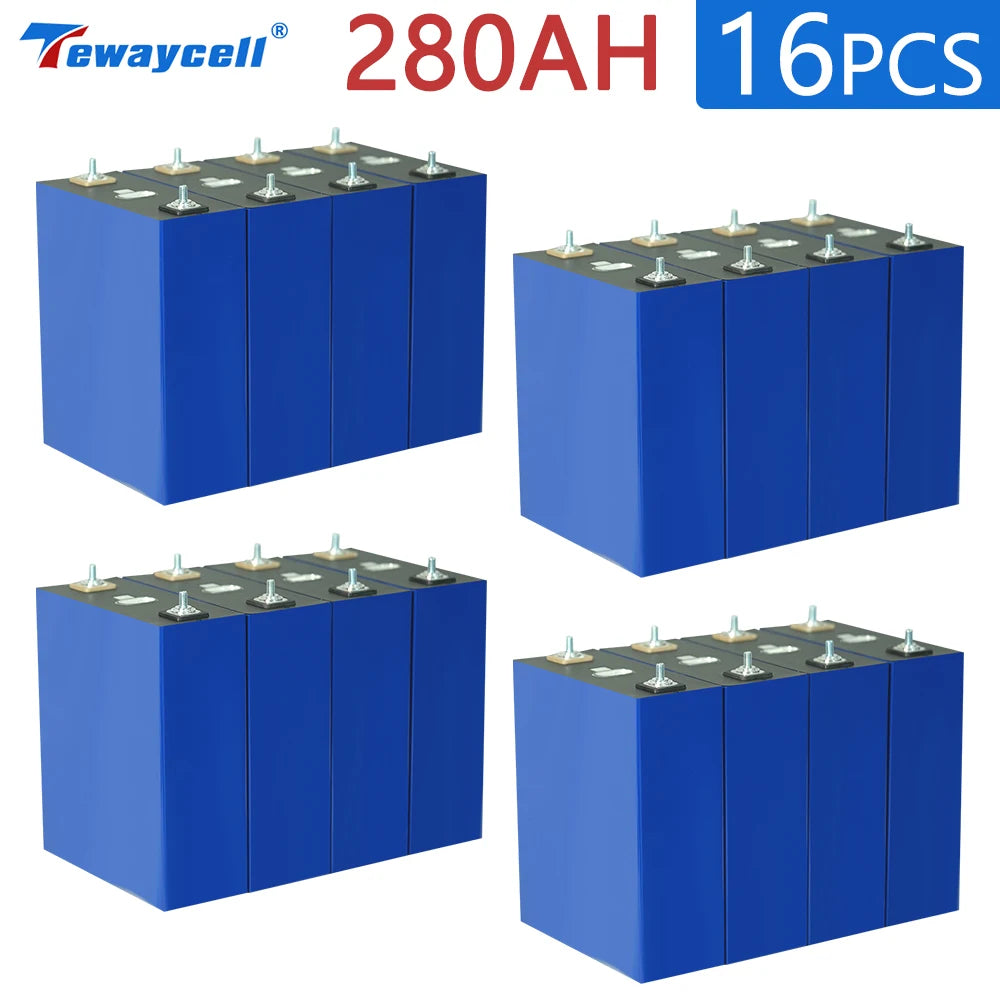

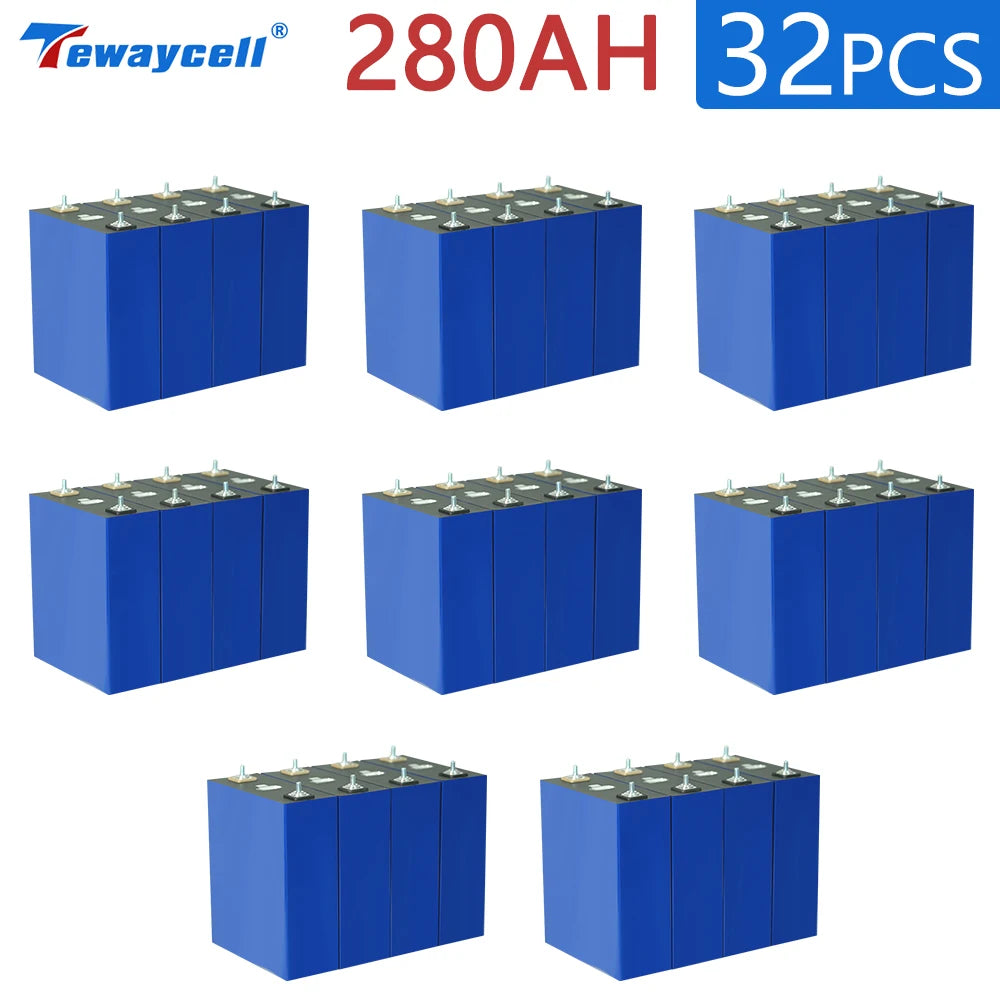

- Battery Number options: 4/8/16/32 pcs
Package includes:

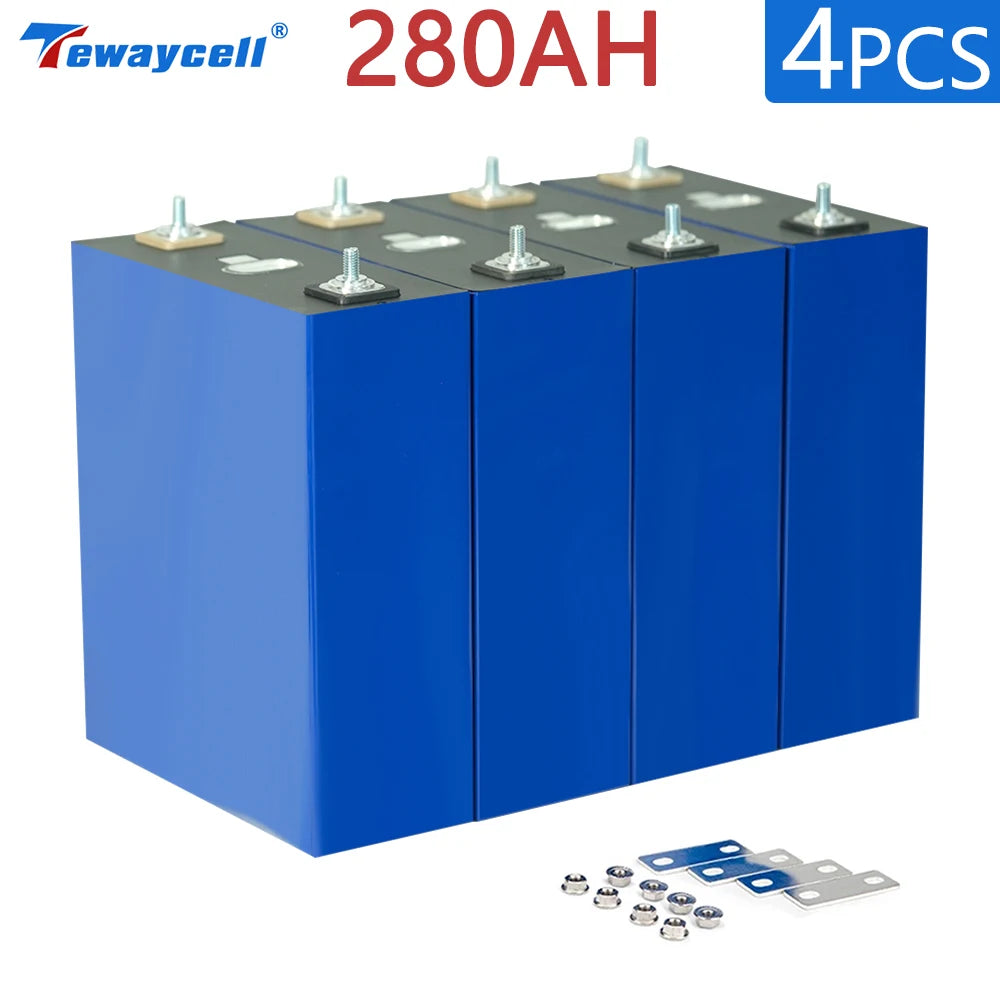

- One set busbar and M6 screws included per battery (for quick assembly).
- Note: If you buy 4 pieces, you will receive 4 sets of busbars and bolts.
Warnings / Reminders
- Do not immerse cells in water.
- During operation, ensure cell temperature does not exceed 55°C; systems should be shut down by the BMS if temperatures rise too high.
- Transport and delivery: this high-power battery is subject to strict handling rules. Delivery can take 30–45 working days; logistics providers may require special arrangements. We provide customs clearance support where possible.
- Duties & Taxes: EU member countries have duties and customs clearance expenses included. For some other regions, duties and taxes may apply.
