Blind Spot Radar Warning System For Isuzu D-Max RT 2011-Present With 700m Detection

Introducing the Isuzu D Max Blind Spot Radar Warning System with 700m Detection — a smart safety upgrade designed to help you stay aware of traffic in your rear blind spots. Built for Isuzu D-Max RT 2011–present and related models, this dual-sensor system uses advanced radar to monitor objects behind and beside your vehicle, giving you clear alerts when danger approaches.

Main Description

Two mmWave radar sensors (24 GHz / 72 GHz) are mounted on the rear bumper to continuously scan the blind zones. When a moving object enters the set warning area behind the vehicle, the LED indicators illuminate and the system issues a visual and audible alert. If the object is detected during a lane-change scenario, the system can engage the same-side turn signal, flash the LED rapidly, and emit a three-tone warning to prompt a safe response. The standard warning range is 3 to 10 meters behind the side, giving you crucial seconds to react and avoid a potential collision.

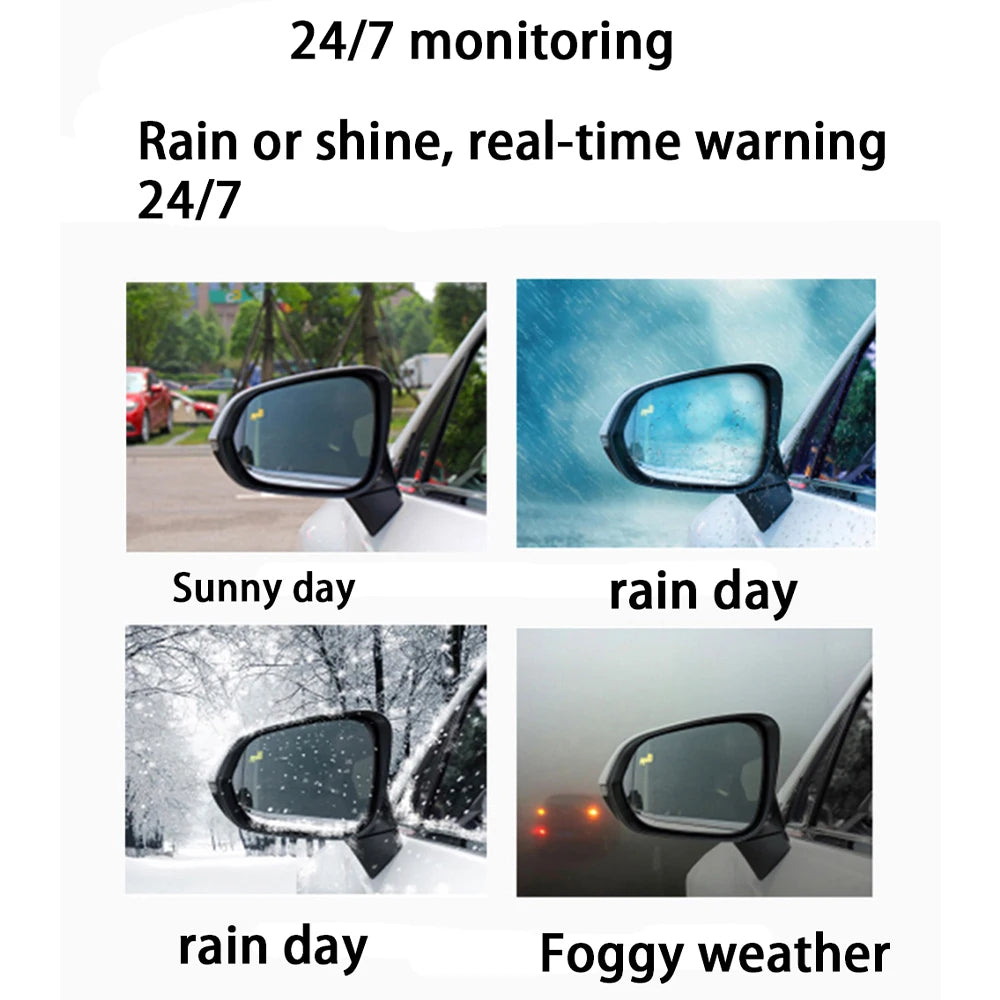

Choose from two mainstream display options to suit your interior: a lens display with the prompt light integrated on the lens, or a car-internal display shown on the triangular window inside the cabin. The setup supports customization for a seamless look — you can send your original mirrors to our factory and engineers will tailor the laser warning light pattern to match your mirrors, with no change to the price.

Designed for real-world reliability, this BSD (blind spot) system supports Isuzu D-Max RT 2011–present, Isuzu KB 2011–present, Chevrolet D-Max 2011–present, Chevrolet T-Series 2011–present, JIM Ruimai (Remax) 2011–present, and JIM Ruimai S (Remax S) 2011–present. If you need broader compatibility, our team can customize for other car models by providing the original mirrors for calibration. The system operates on DC 9–16V with typical current around 430 mA at 12V and is engineered to function from −30°C to +80°C, making it resilient across climates. It carries CE certification and is designed to withstand demanding conditions with IP66 protection and a speed adaptation range up to ±120 km/h. Optional DOW (door opening warning) can be added for extra protection when doors swing open into traffic.

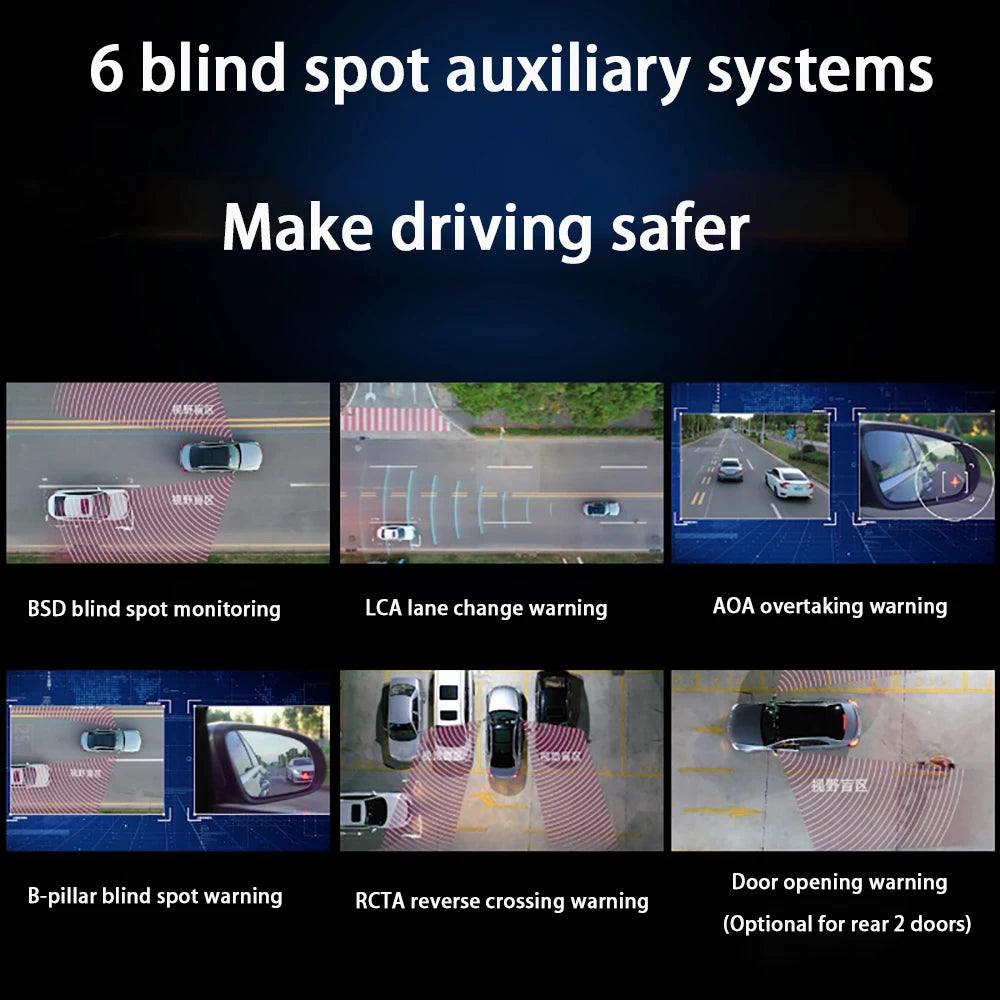

Two display methods are supported again for flexibility: lens display with the prompt light on the lens itself, or a car-embedded display visible inside the cabin’s triangular window. With clear LED cues and audible alerts, you’ll gain heightened awareness during lane changes and reversing maneuvers, reducing the risk of lane-change accidents and rear-cross traffic incidents.

Benefits & Tips

• Improve lane-change safety on busy highways by getting early warnings of vehicles encroaching on your blind spots.
• Enhance rear awareness in crowded parking lots or when backing out of tight spaces where cross traffic is hard to judge.
• Tip: If you opt for customized mirrors, have your installation follow the factory-calibrated light pattern for a cohesive aesthetic and optimal visibility.

Product Specifications

• Working voltage: DC 9–16V
• Working current: DC 12V, 430 mA ± 10 mA
• Operating temperature: −30°C to +80°C
• Static current consumption: ≤ 1 mA
• Waterproof rating: IP66
• Speed adaptation range: ±120 km/h
• Warning range: 3–10 meters behind the side
• Warning method: sound and LED lighting
• Startup mode: start with ACC
• Radar: two mmWave radars (24 GHz / 72 GHz) mounted on rear bumper
• OSD Language: English
• Origin: Mainland China
• Certification: CE

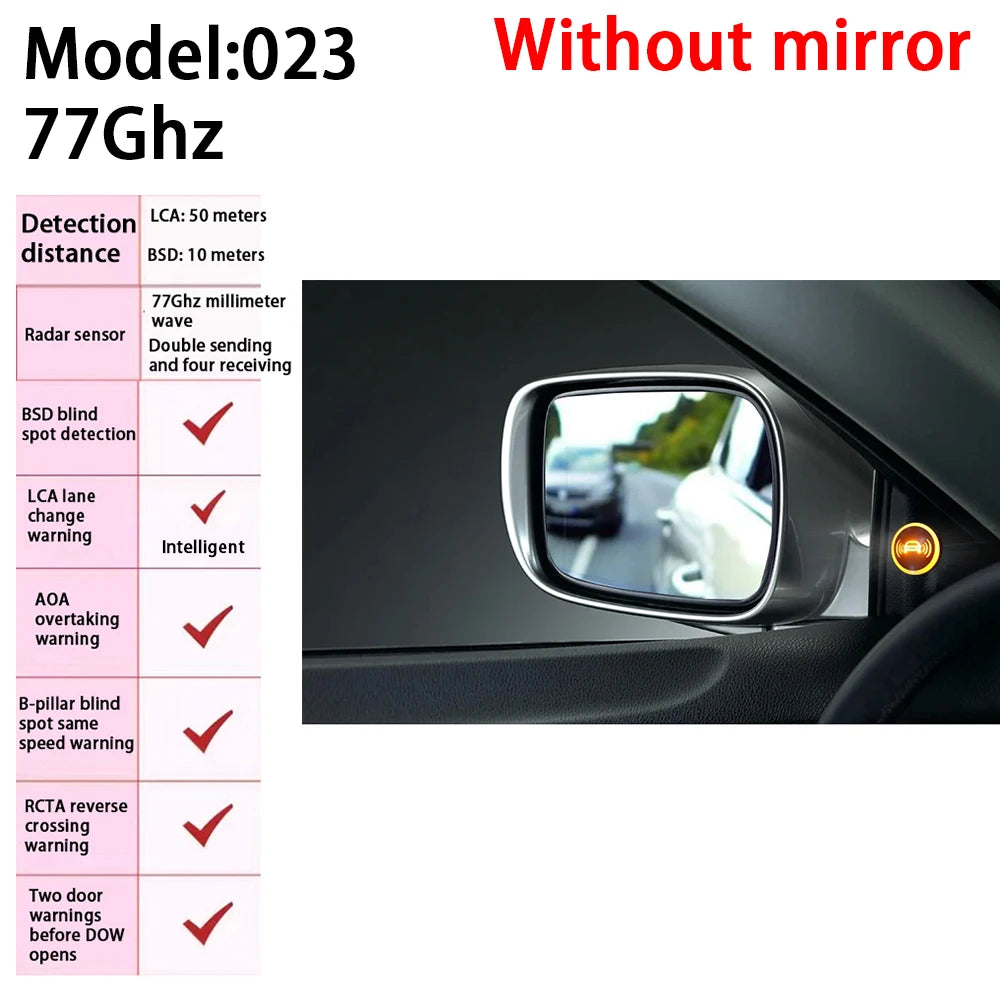

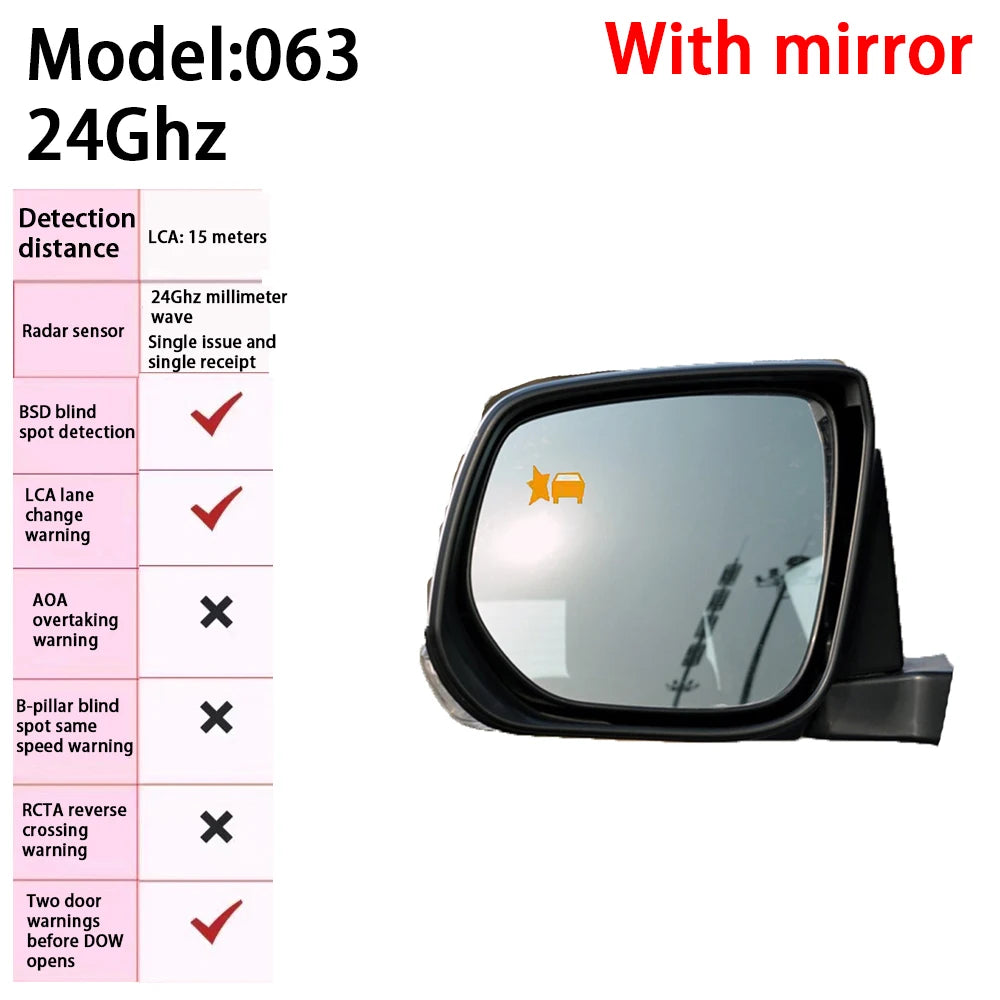

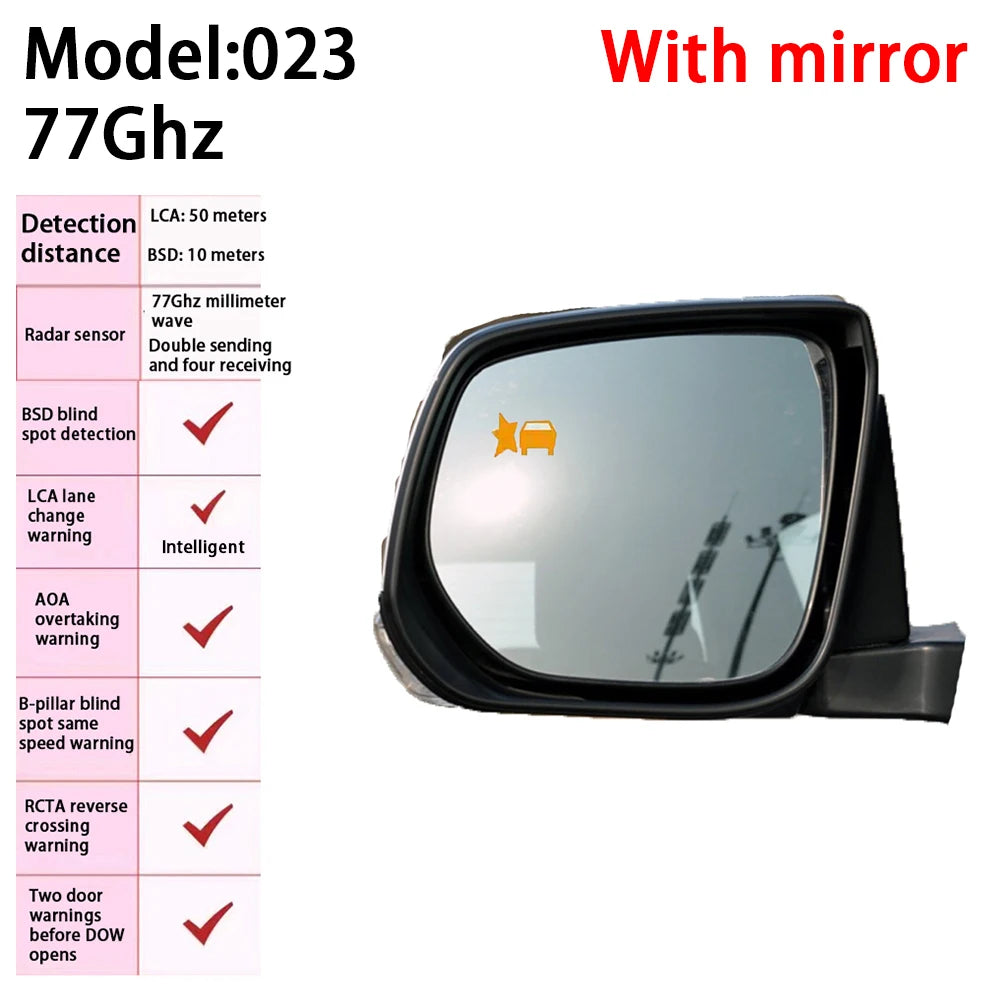

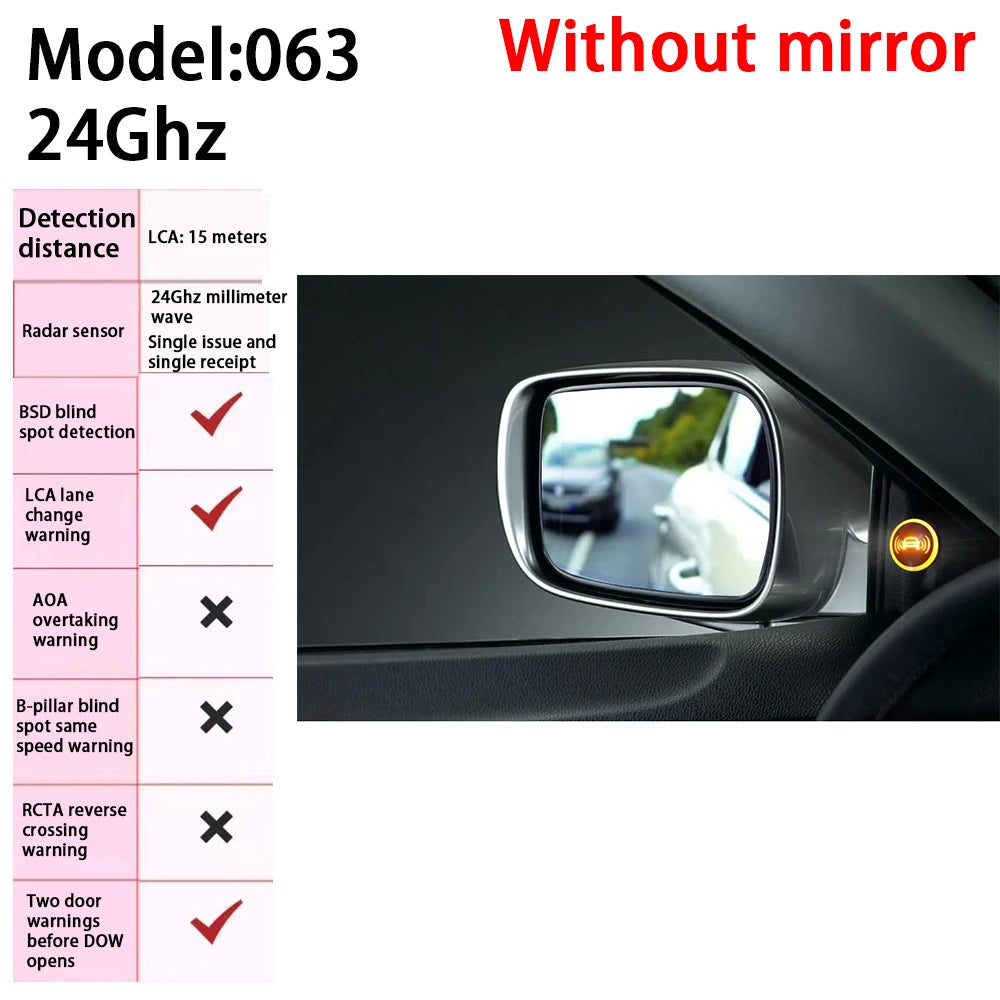

• Two mainstream display types: lens display on the device or car display inside the triangular window
• Optional DOW (Door Opening Warning) available

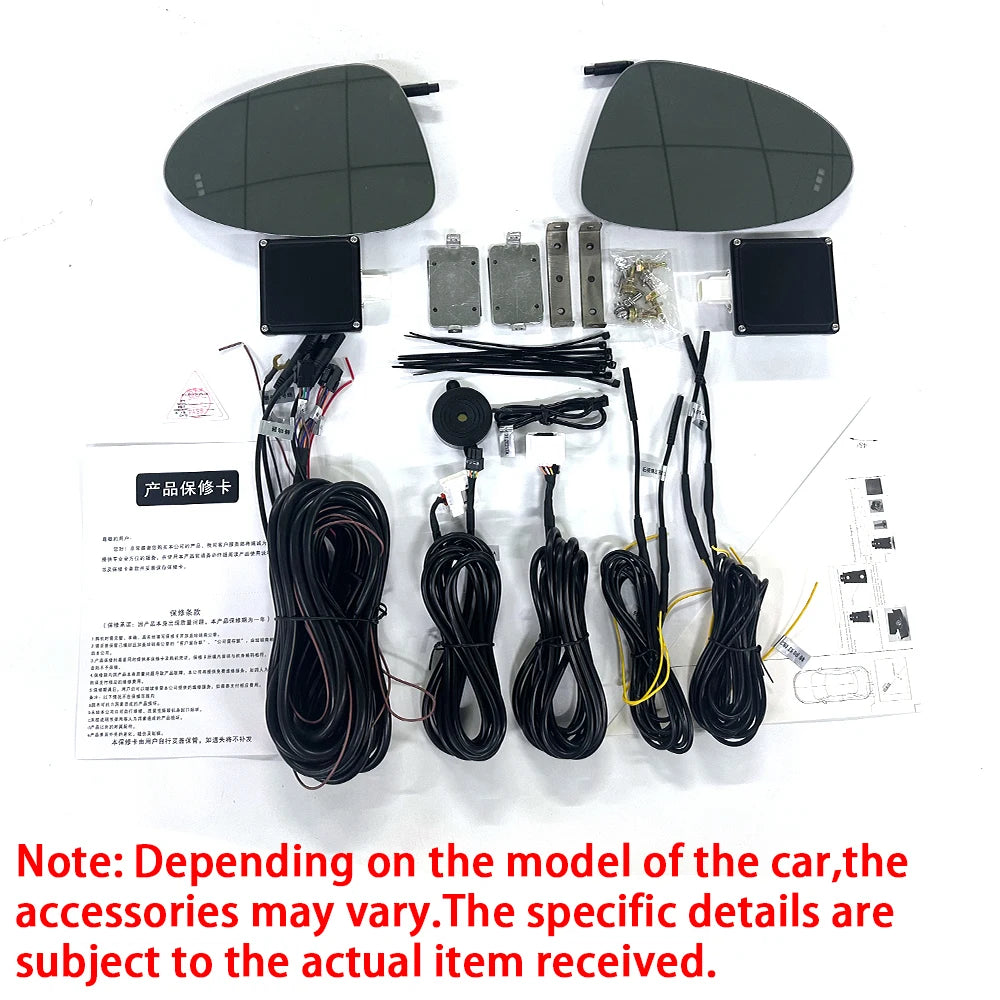

Package includes:

• Radar sensor
• Power cord
• LED transconnection
• LED indicator light
• Blind area rear view lens
• Steering and reversing inspection line
• Calibration card
• Radar bracket
• Screw
• Buzzer
• Instructions

Warnings / Reminders

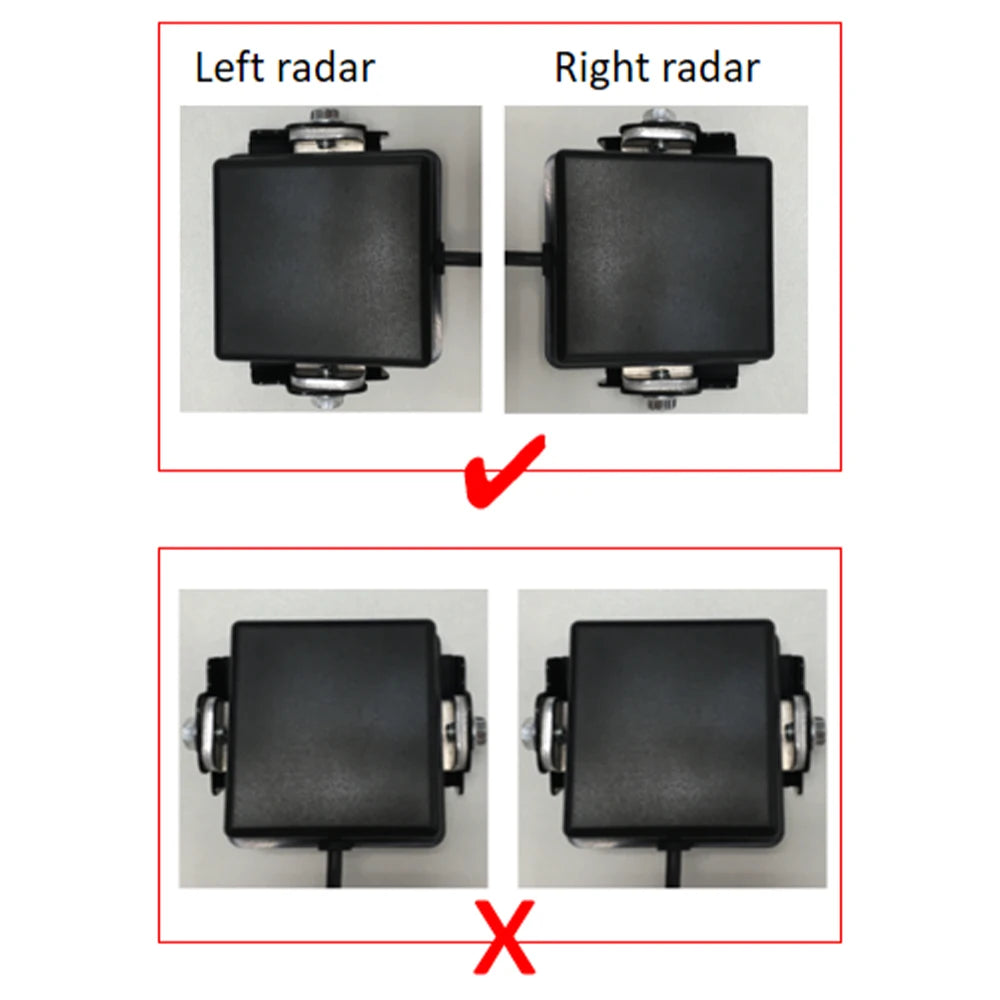

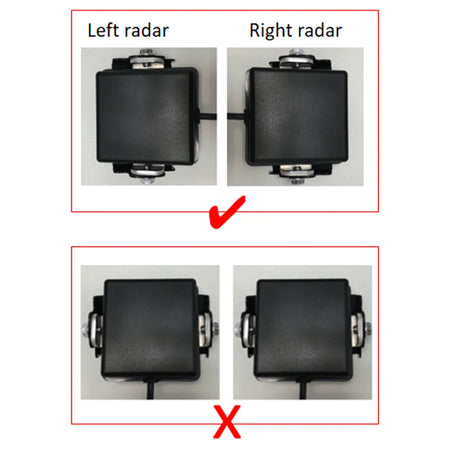

• Radar signals cannot penetrate metal and are easily interfered by fluorescent lights. Confirm during installation that the rear bumper is plastic and there is no metal interference directly in front of the radar sensor’s emission surface.
• The radar emission surface must not be installed facing fluorescent lamps.

Language support: English
