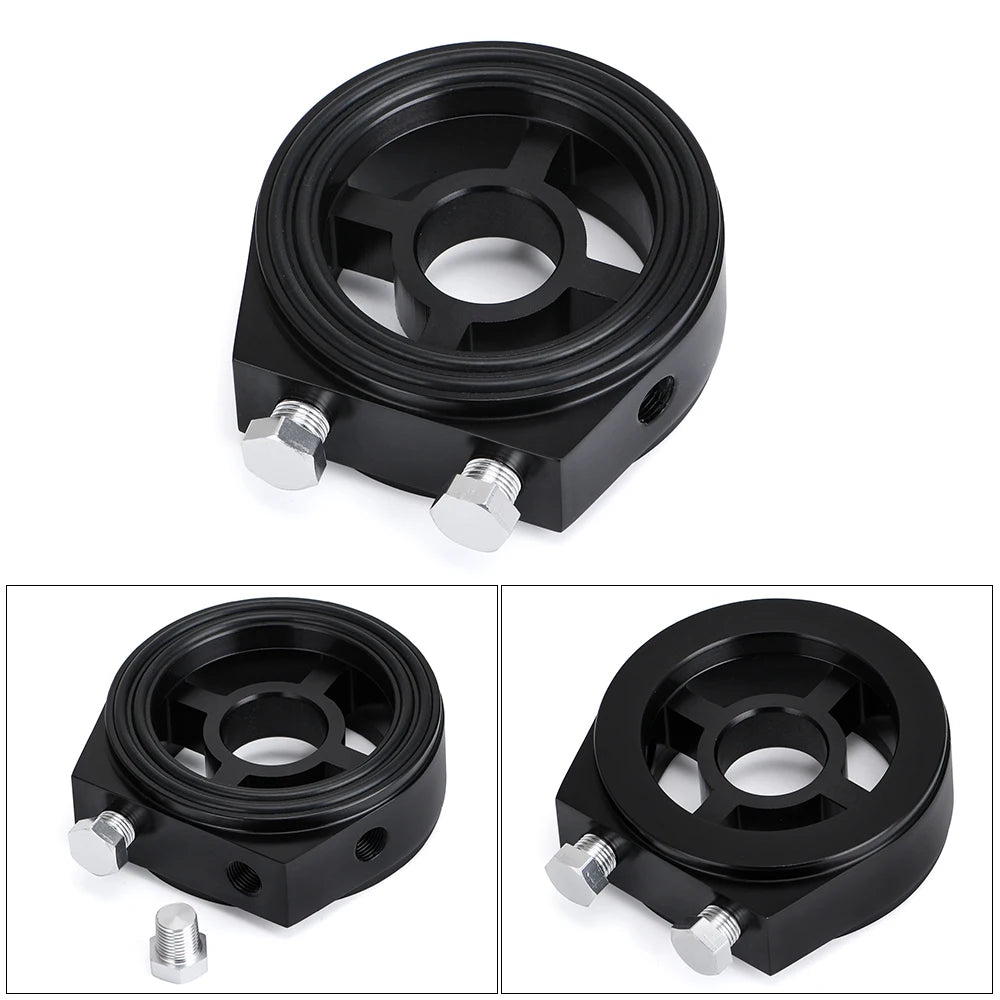

PQY Universal Oil Filter Cooler Sandwich Plate Adapter

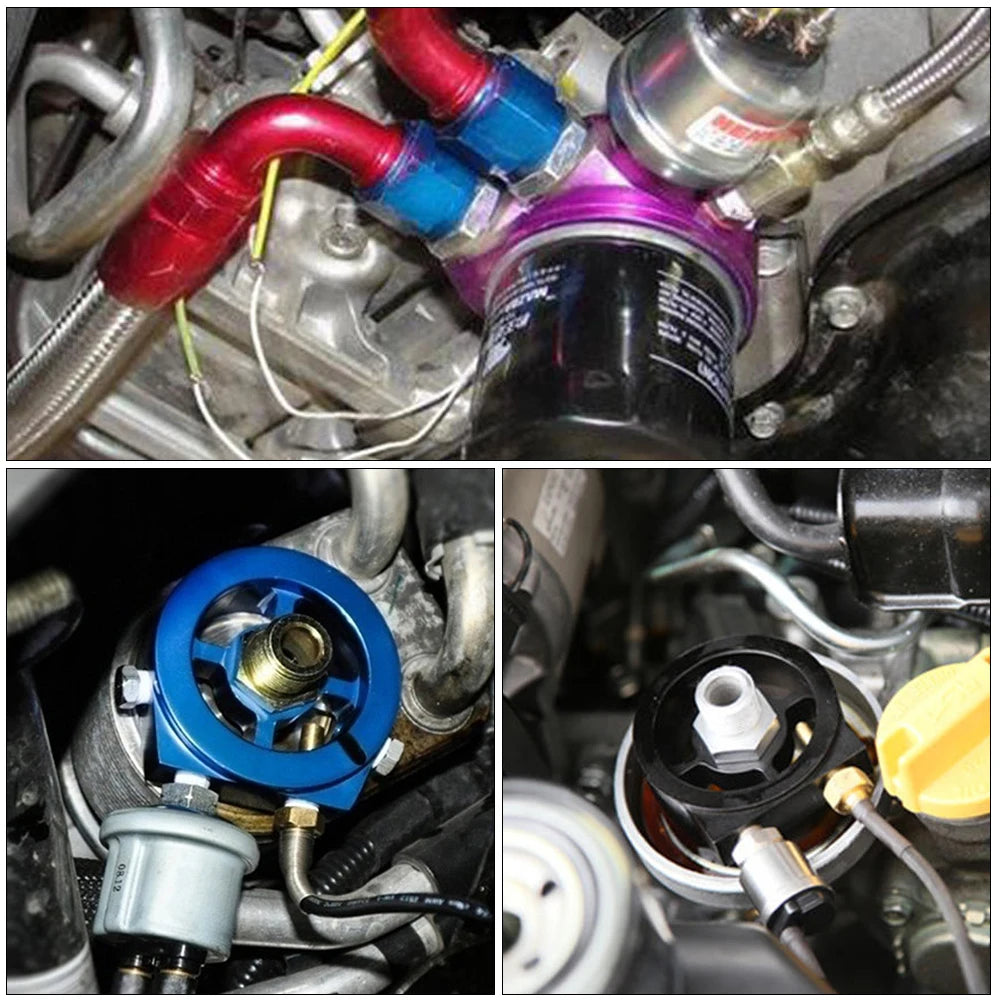

The PQY Universal Oil Filter Cooler Sandwich Plate Adapter is an all-in-one upgrade that lets you add oil cooling, temperature sensing, or pressure sensing without costly engine work. Placed between the oil cooler and the oil filter, this adapter eliminates the need to drill or relocate engine components while delivering reliable cooling and monitoring capabilities. Built from weapons-grade aluminum alloy, it stands up to heat, vibration, and demanding driving conditions while maintaining a tight seal with double O-rings for leak-free operation.

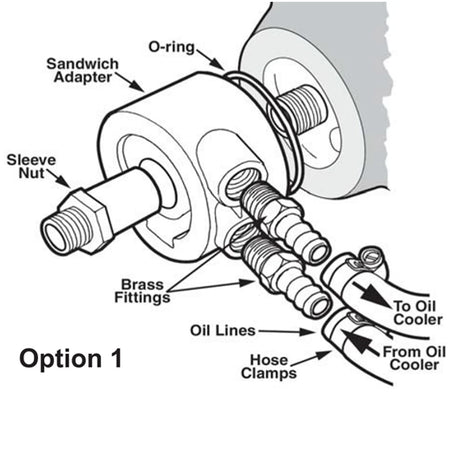

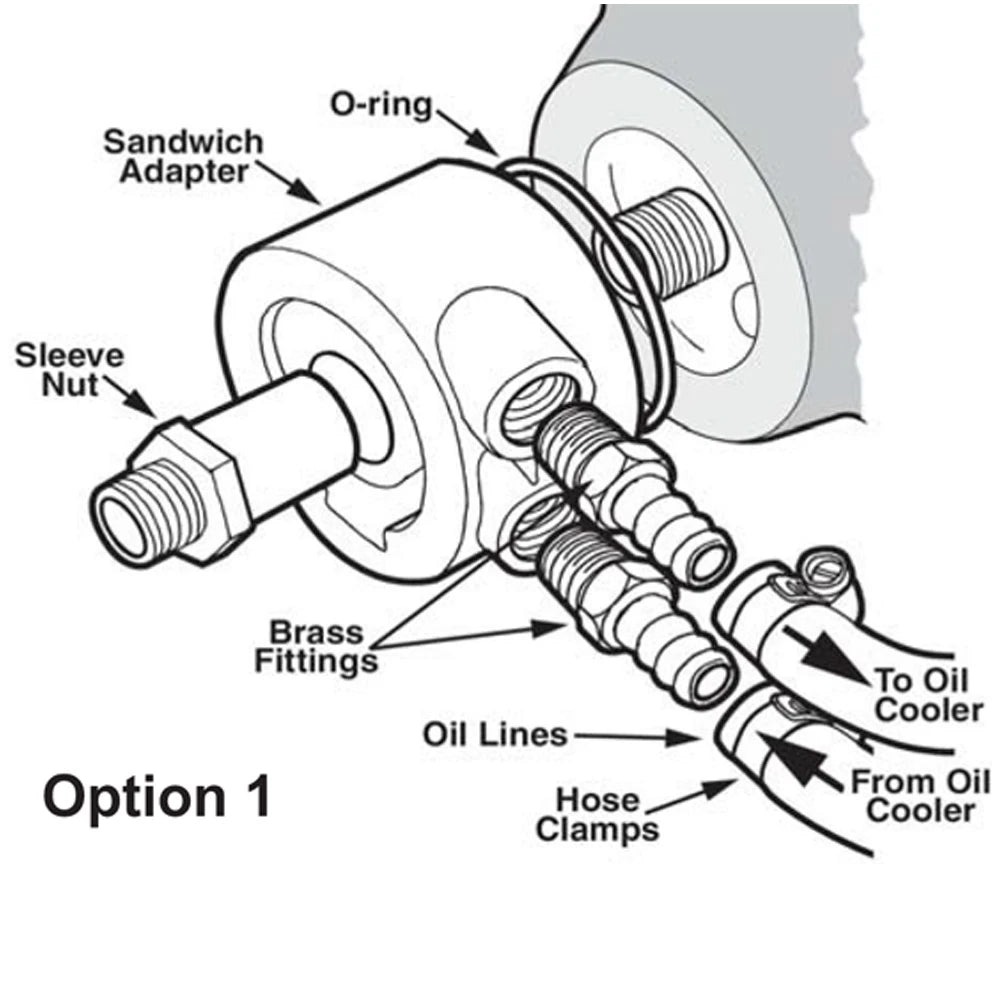

Designed for universal compatibility, it installs between the oil filter and the engine using four adapters that cover common thread sizes. The plate features 10AN inlet and outlet ports for strong oil flow and includes sensor insertion points at 1/8 NPT for oil temperature and oil pressure monitoring. With an overall diameter of 3.06 inches and a thickness of 1.28 inches, it provides a compact, space-saving solution that fits neatly in the engine bay. Choose from finishes in Silver, Blue, Black, Gold, Purple, or Red to match your build aesthetic.
Benefits & Tips
- Easy upgrade without drilling: Install an oil cooler or sensors directly between the filter and engine, preserving factory locations and reducing installation complexity.
- Sensor-ready design: Built-in sensor insertions support oil temperature and pressure monitoring for real-time feedback during daily driving or spirited sessions.

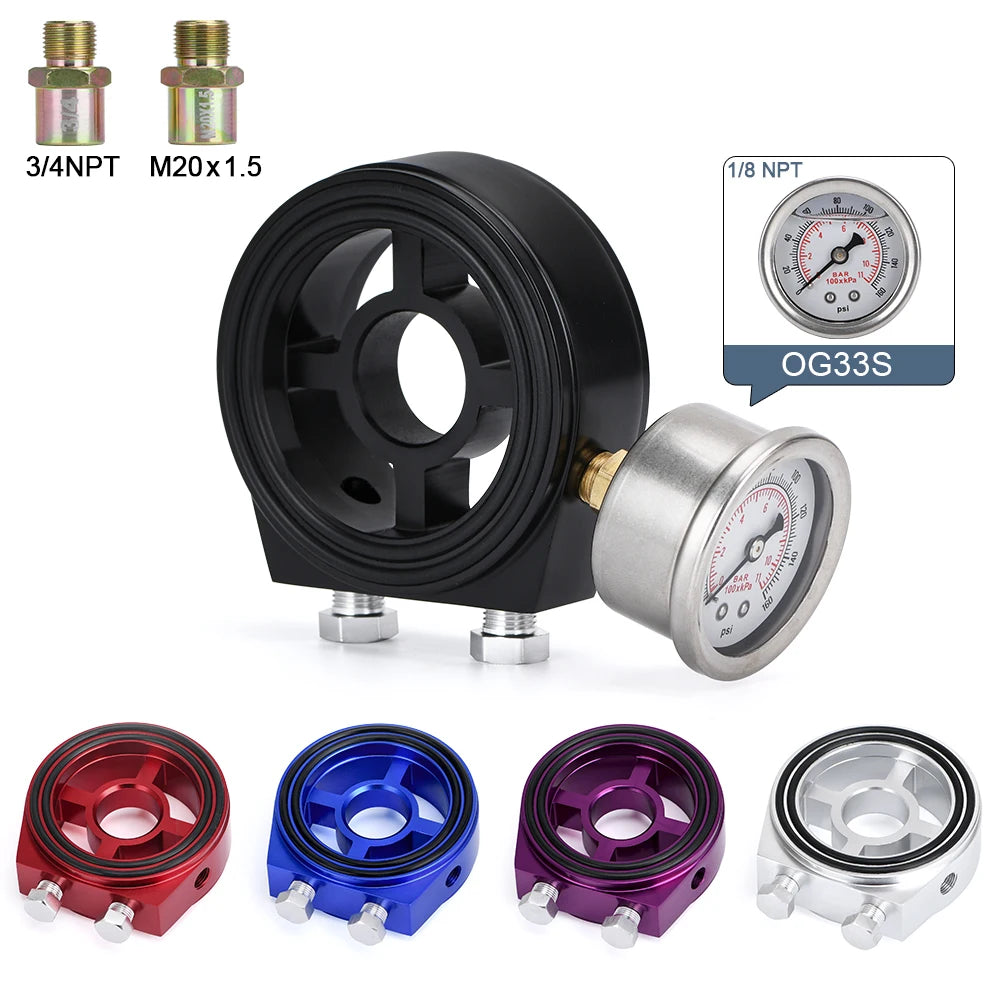

- Wide compatibility: Includes 4 adapters to fit a variety of cars, including 3/4-16 UNF and M20x1.5 thread configurations, reducing the need for custom hardware.
Product specifications
- Brand: PQY
- Model: UNIVERSAL
- Type: Oil Filter Sandwich Plate Adapter
- Material: Weapons-grade aluminum alloy

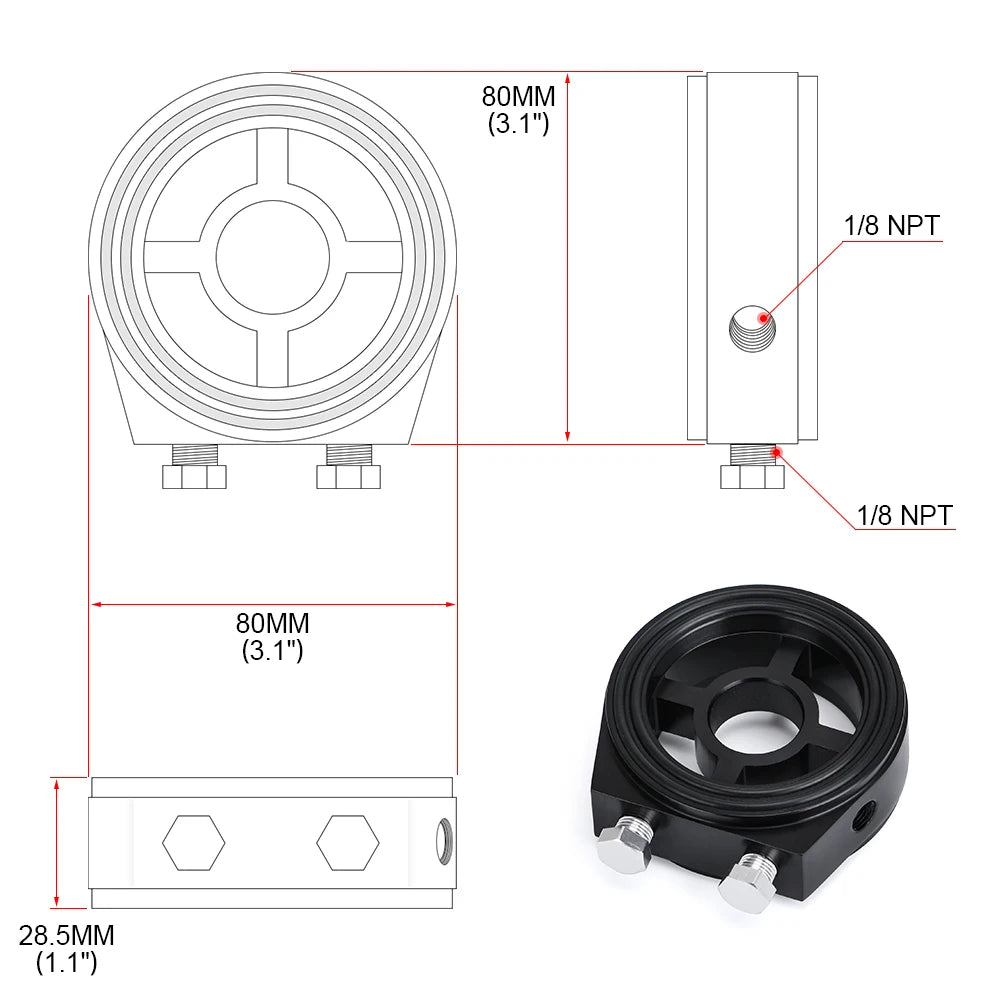

- Overall dimensions: 3.06 in diameter x 1.28 in thick
- Inlet: 10AN
- Outlet: 10AN
- Bypass port mounting nuts: 3/4-16 UNF or M20 x 1.5
- Sensor insertion thread: 1/8 NPT

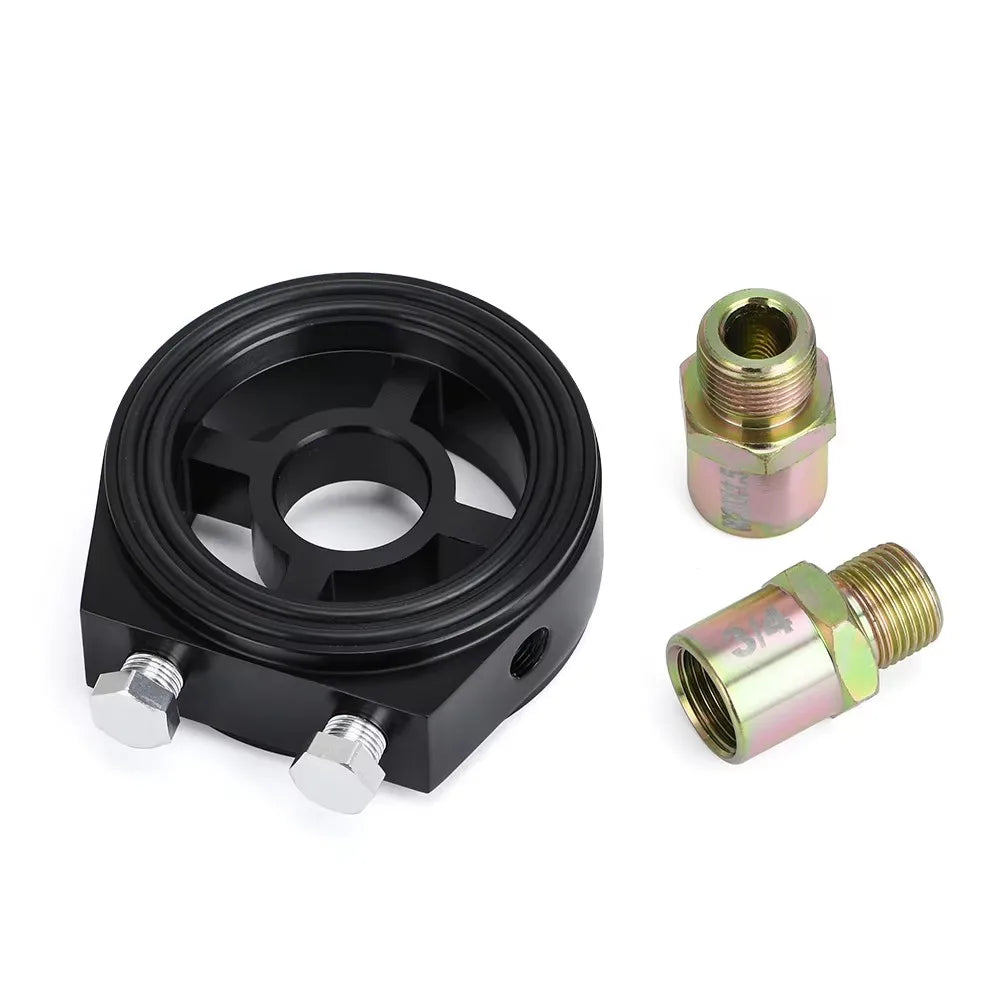

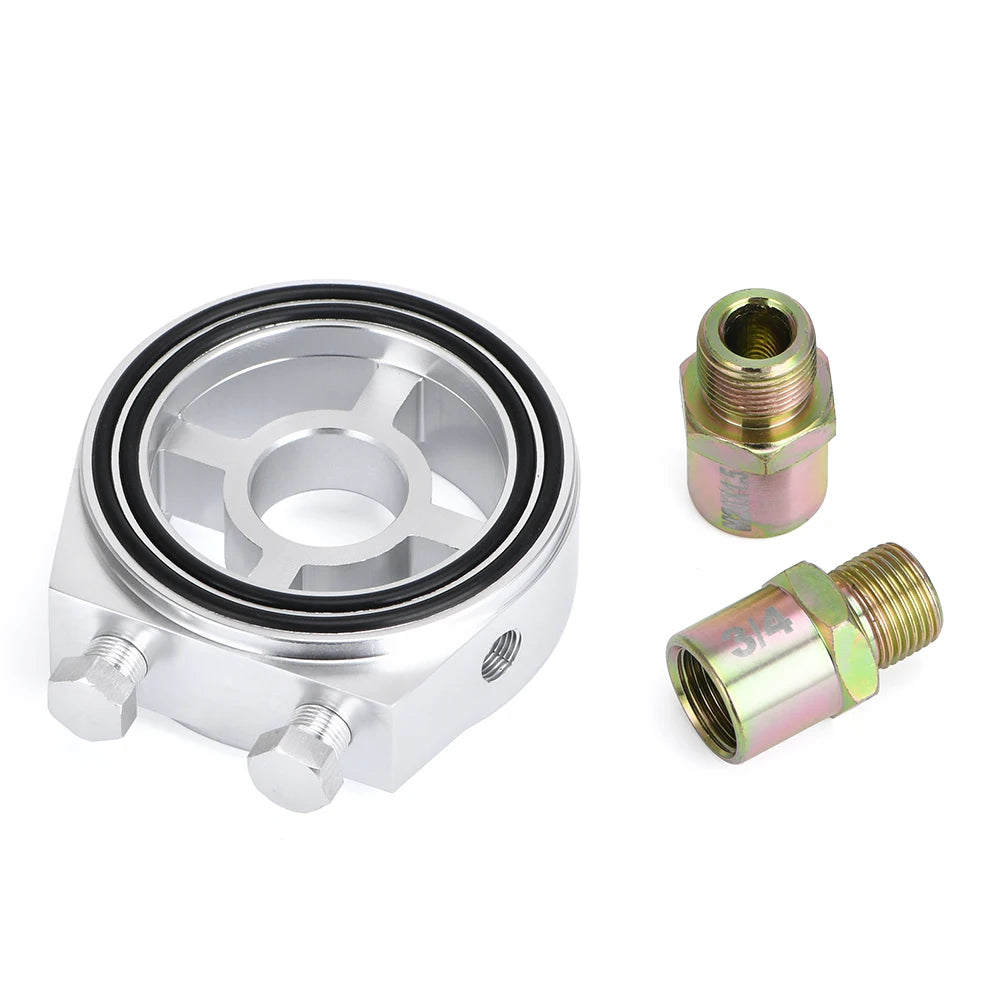

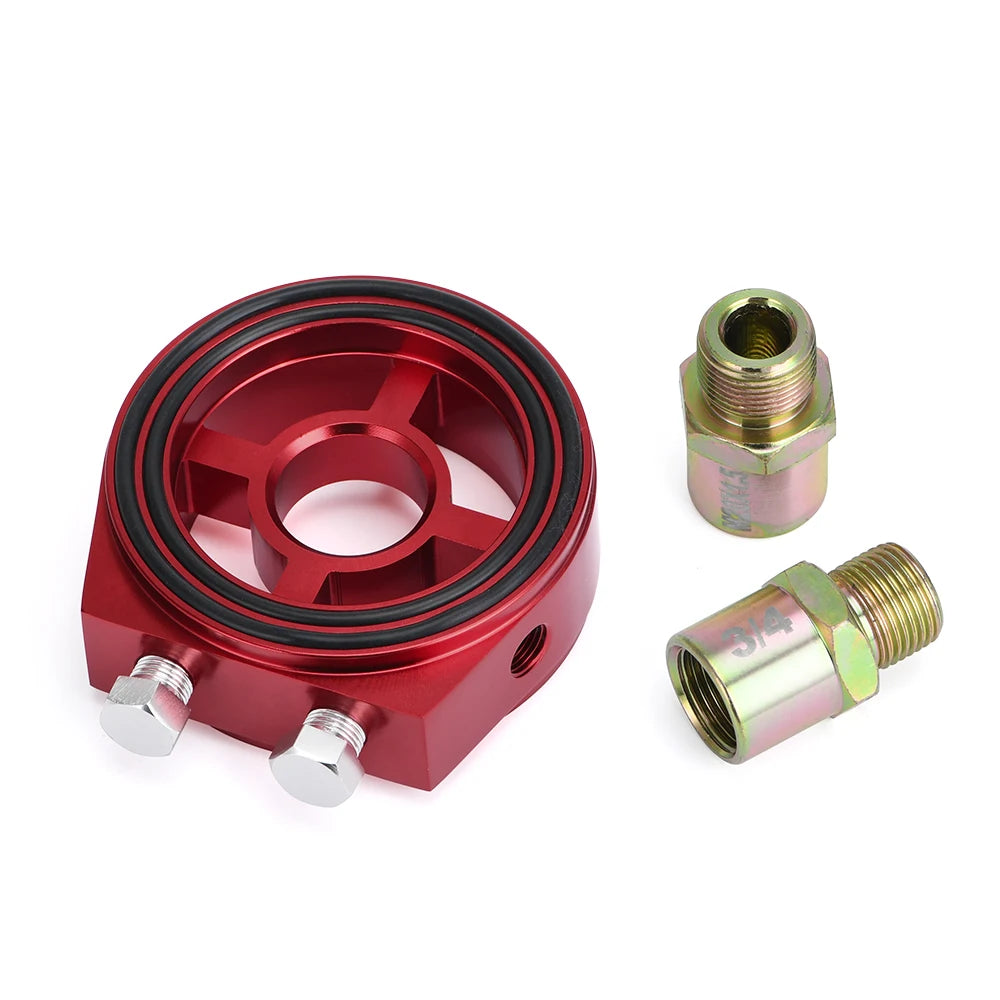

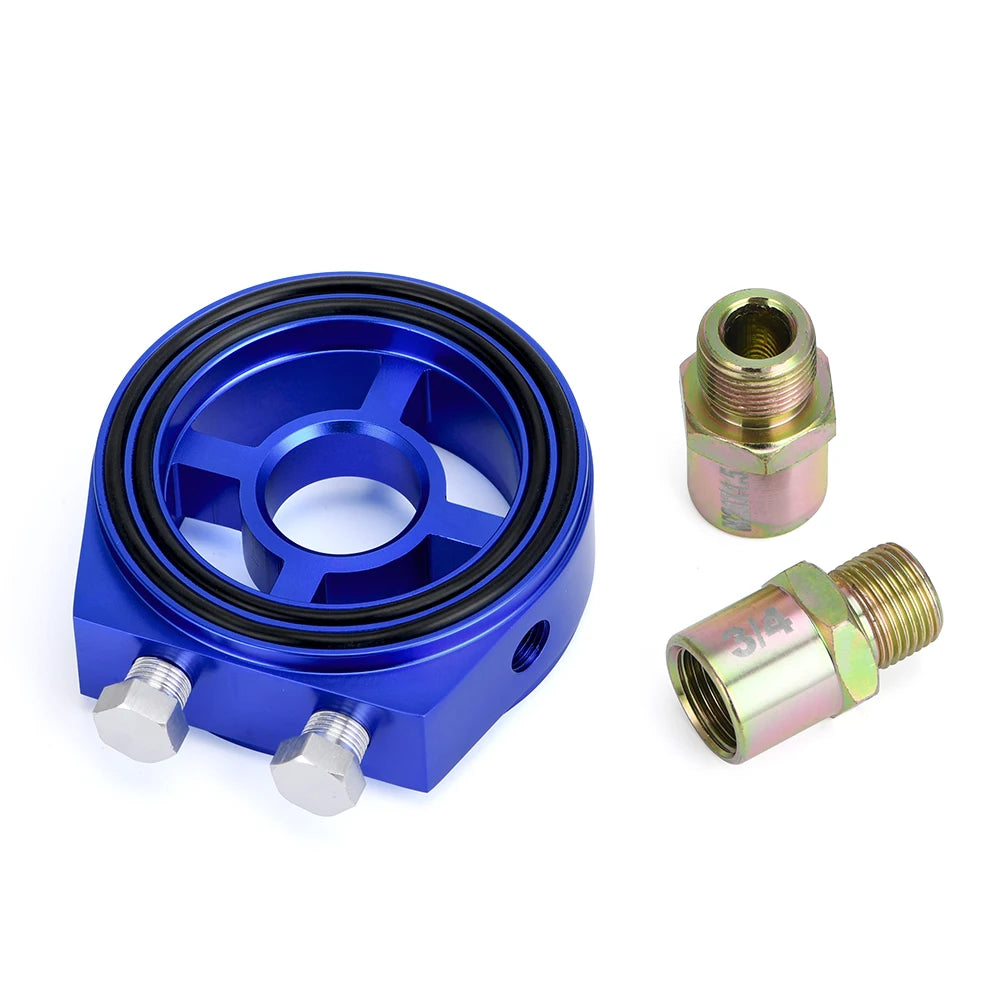

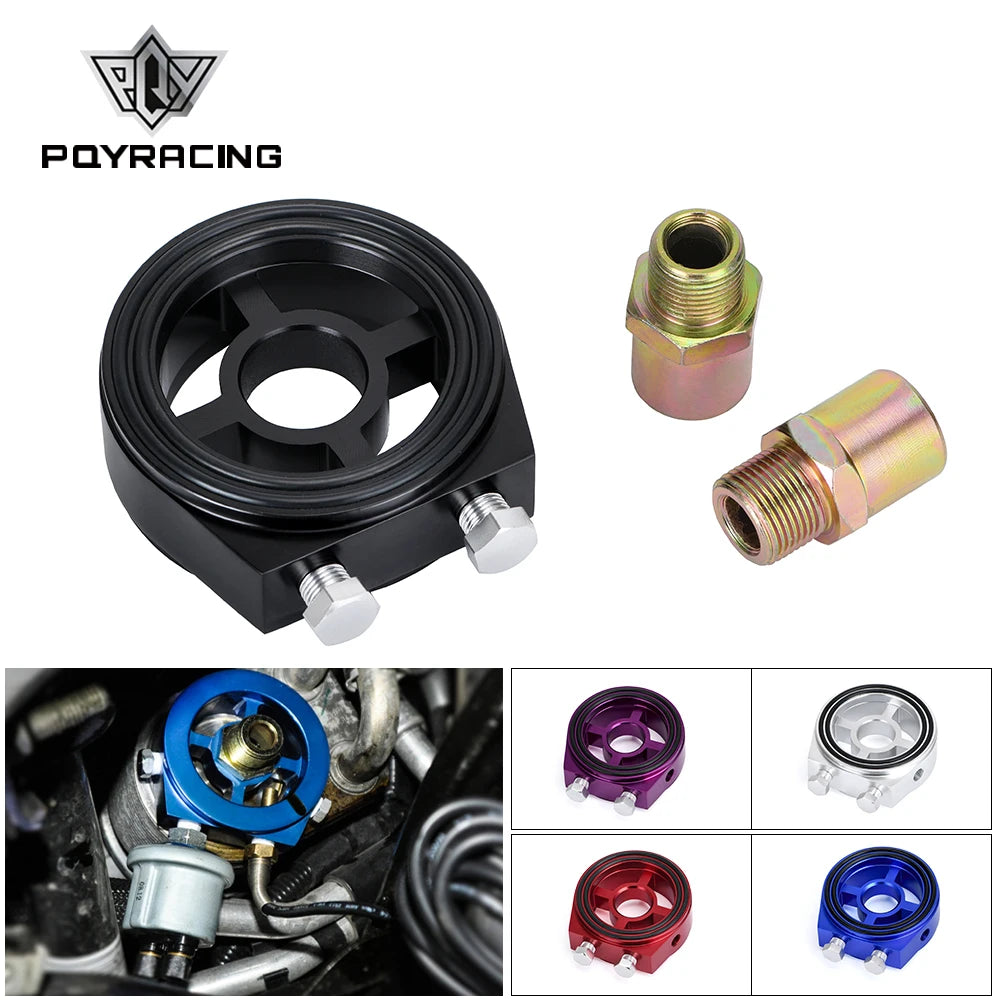

- Color options: Silver, Blue, Black, Gold, Purple, Red
- Application: Universal
- Adapters included: 4 adapters to fit 3/4-16 UNF and M20x1.5
Package includes:
- 1 x oil sandwich plate
- 4 adapters to fit 3/4-16 UNF and M20x1.5
Warnings/Reminders
- Verify compatibility with your vehicle’s oil cooler and filter threads (3/4-16 UNF and M20x1.5) before installation.
- Ensure O-rings are properly positioned; the design uses double O-rings for a secure, leak-free seal.
- Do not install in a way that obstructs oil flow or interferes with engine components.
