Analog Heat and Cool Thermostat Relay Board for HVAC Control 3106996022

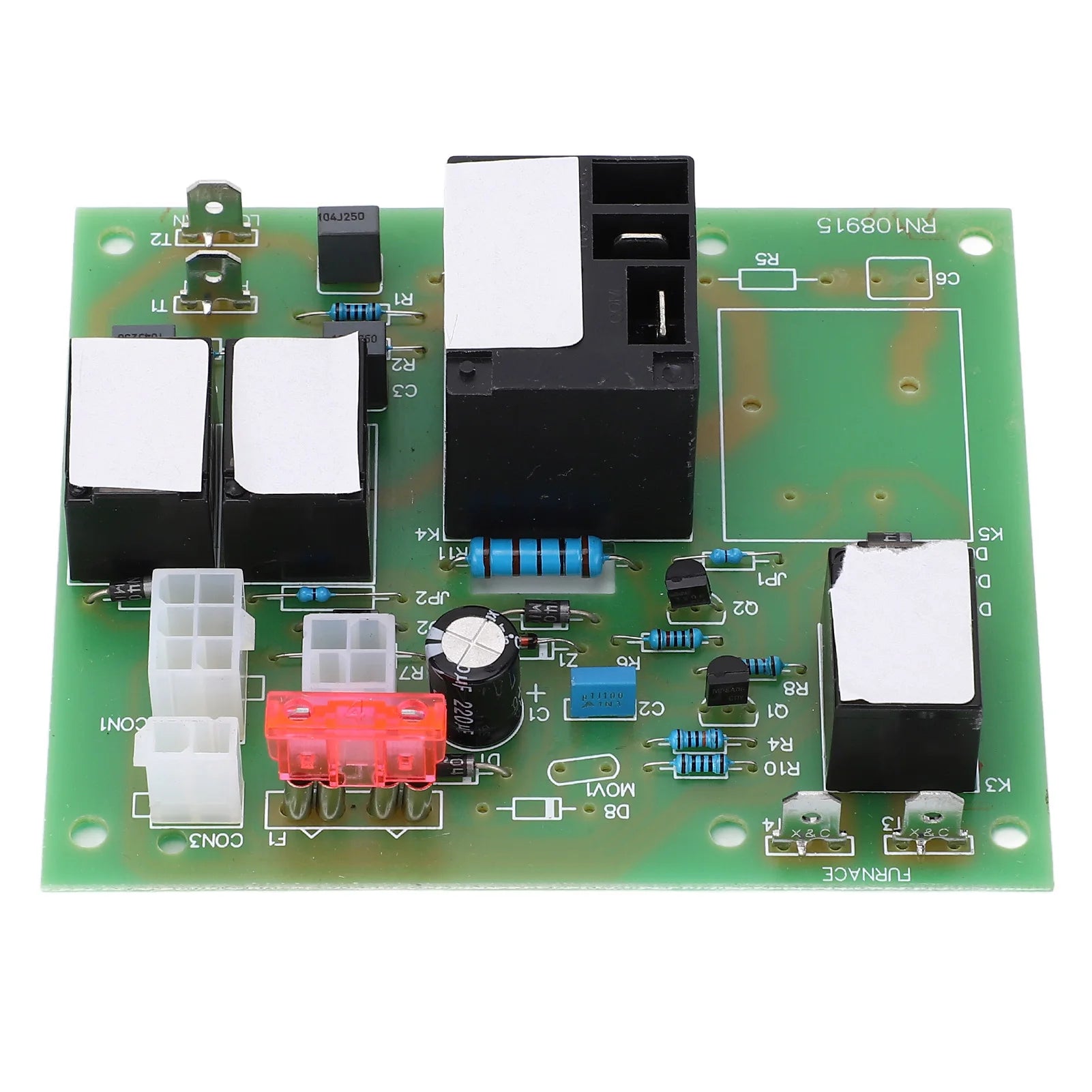

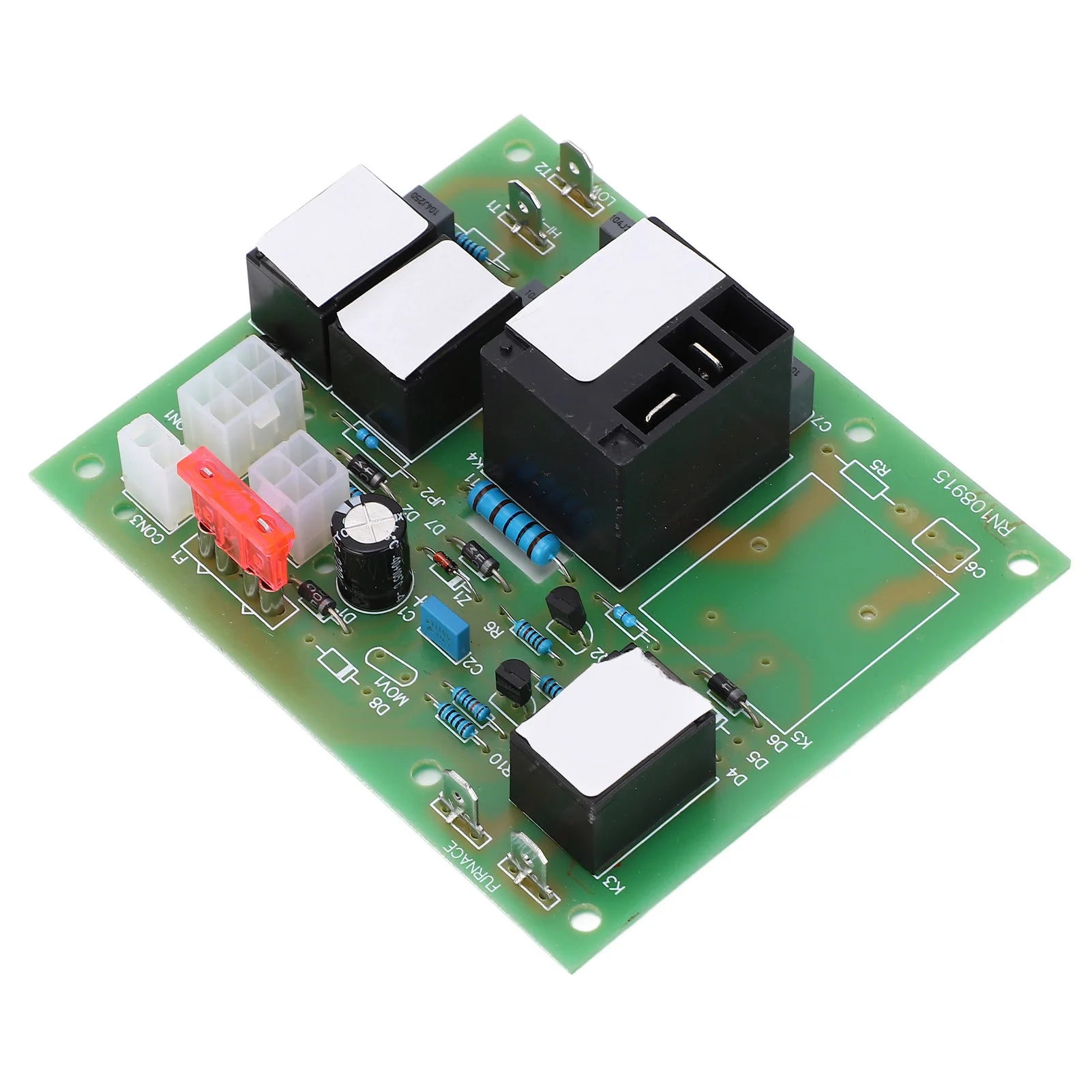

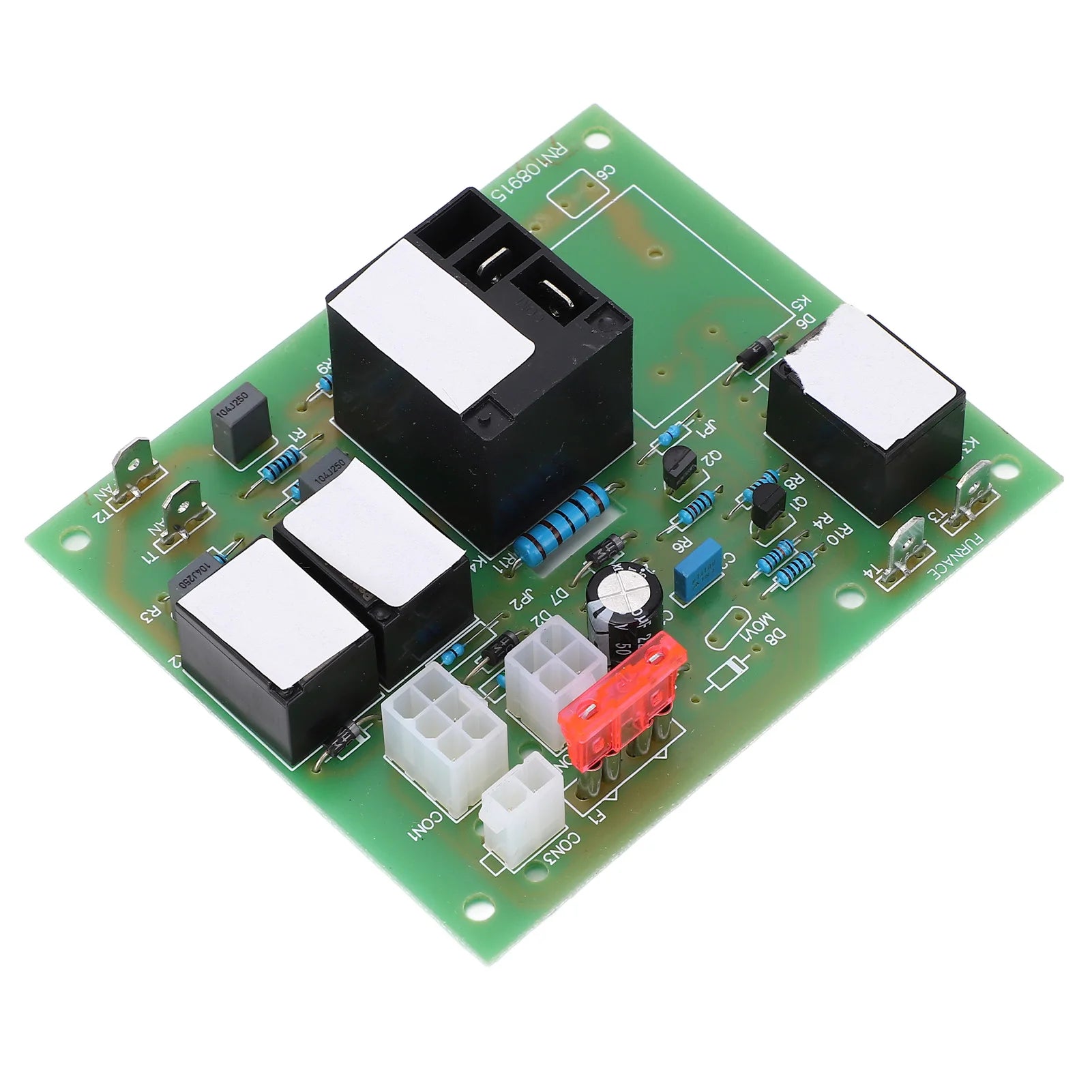

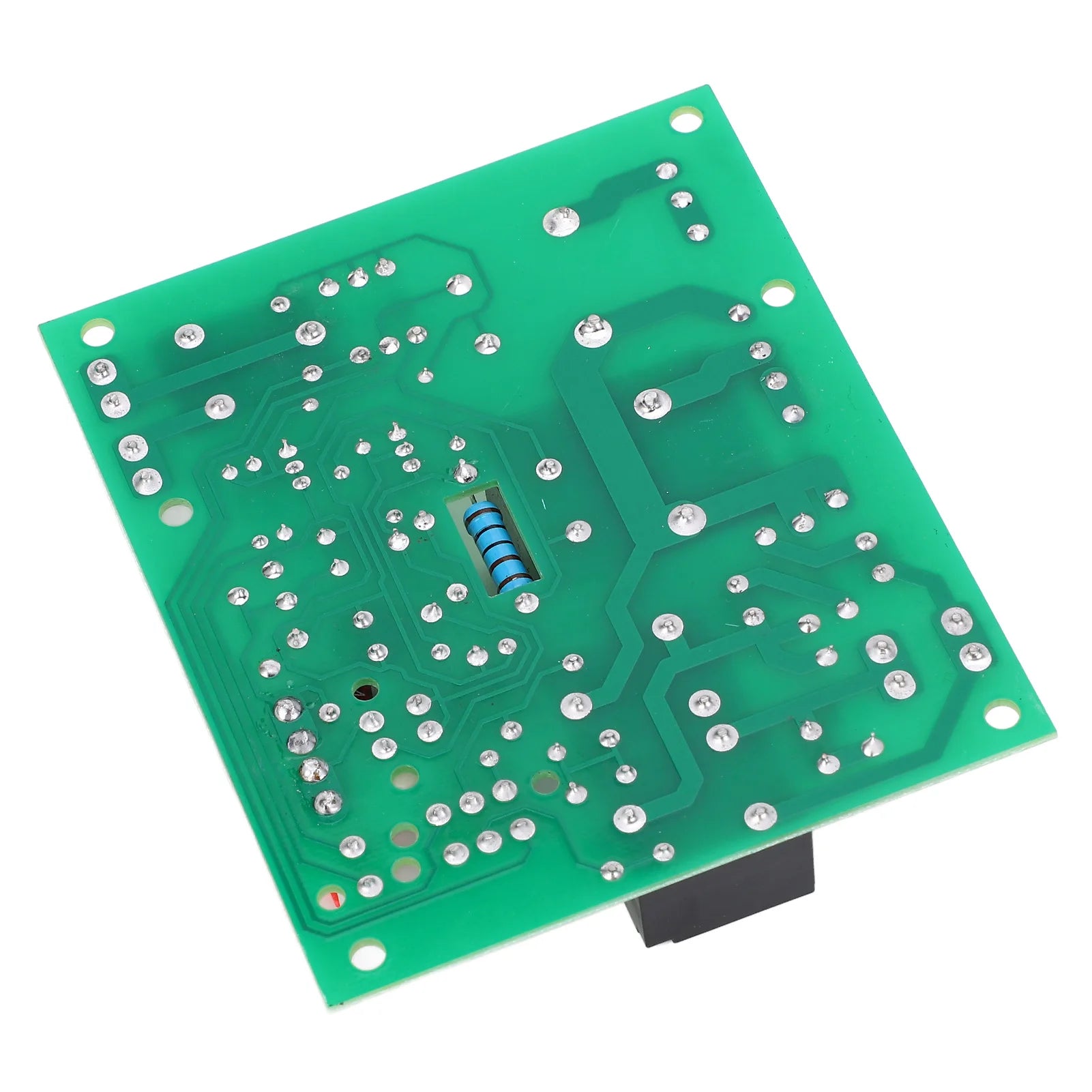

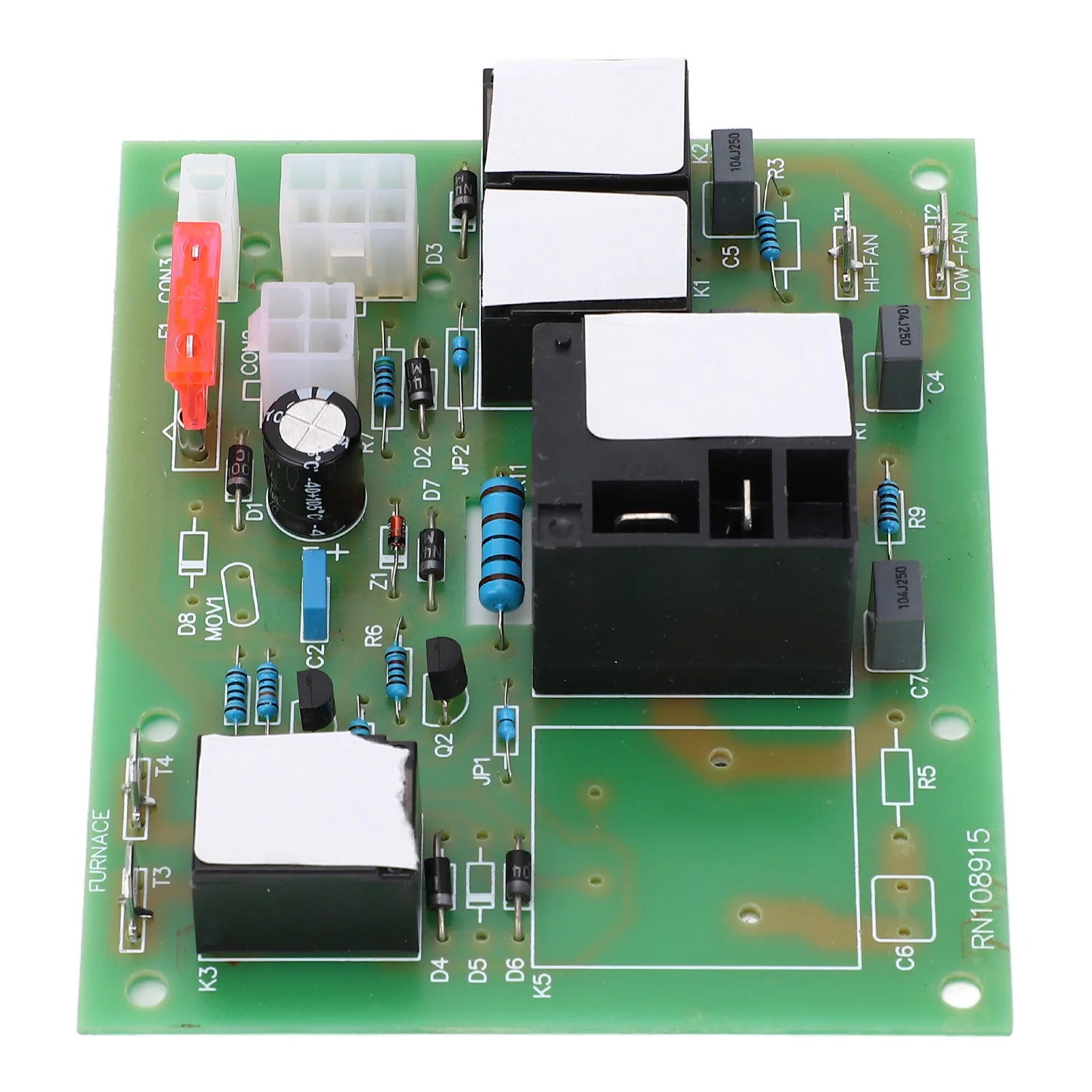

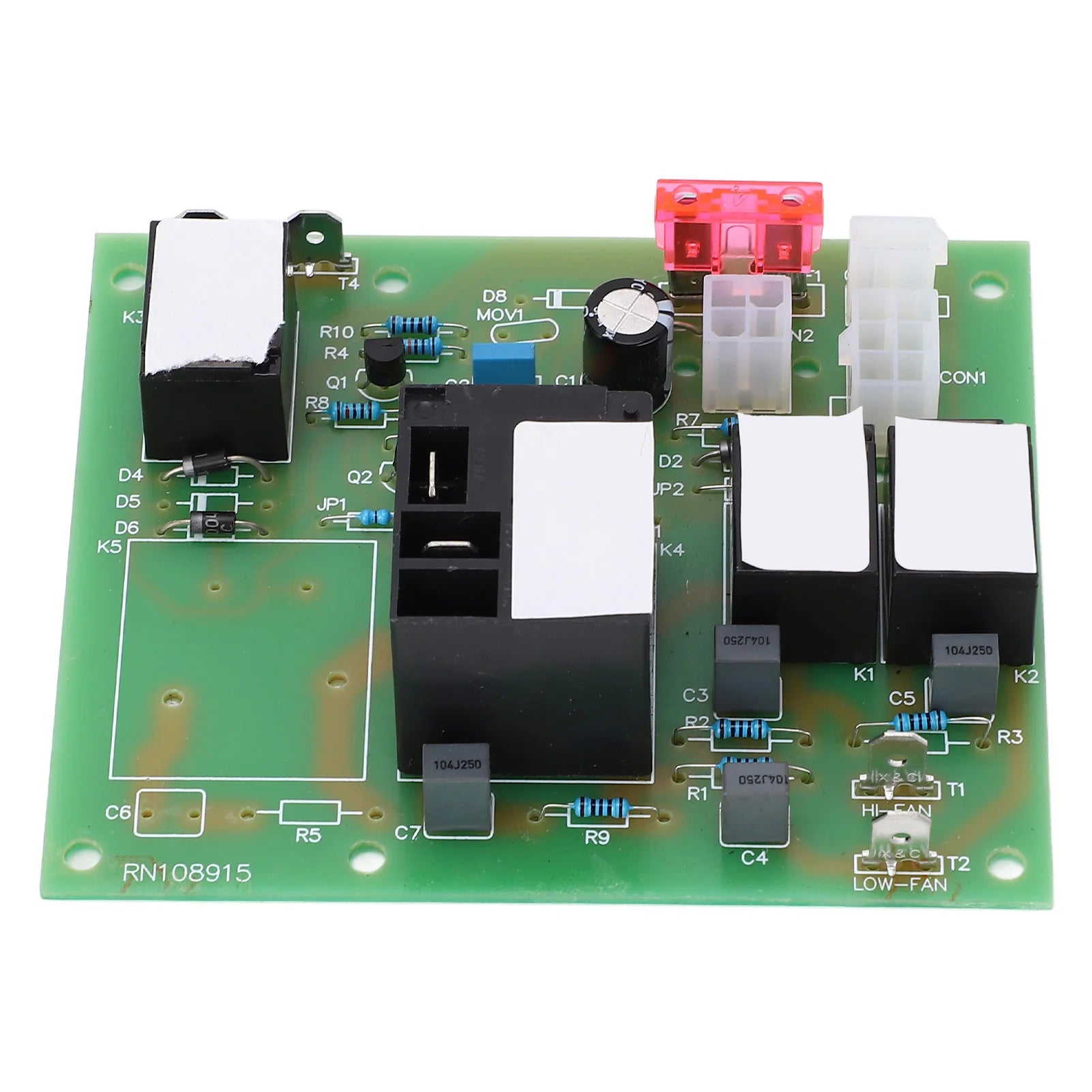

Meet the Analog Heat and Cool Thermostat Relay Board for HVAC Control (model 3106996022) from EBTOOLS. This durable relay board is a precise replacement for aging analog control boards in heating and cooling systems, delivering reliable heat/cool switching to stabilize indoor climate. Designed for under-counter/bunk installations, it frees up space while preserving strong condenser performance and overall system reliability.

Main Description

Engineered for compatibility with a wide range of Duo Therm and Dometic RV cooling kits, this analog control relay board supports models such as 317541.009, 3107541.017, 3107541.025, 3107541.009, 3107546.008, and Dometic RV units including 3107541.009, 3107541.017, and 3313191, among others. It is built with high-precision soldering on a PCB to minimize short circuits and prevent burn-in, delivering steady, dependable performance even in challenging environments. The design emphasizes moisture resistance and flame retardance to ensure long-term durability in RV and residential HVAC applications.

With analog control designed to work in tandem with the corresponding thermostat kit, this board provides accurate temperature management that can help increase condenser efficiency and optimize overall air conditioning performance. The integrated under-counter/bunk-friendly layout makes it easier to install in tight spaces, while the slinger fan system supports improved condenser airflow for more efficient cooling.

Key details such as OE numbers (3106996022, 3311924, 3311924.000) help you verify compatibility before purchasing. The board is suitable for a wide range of related kits and models, including several 57915.331, 3104996.022, 3106995.032, 3106997.004, 3107168.001, and other Duo Therm/Dometic configurations.

All electronic and mechanical equipment sold by InterCyprus to EU countries is CE certified and carries a two-year warranty, offering peace of mind with every replacement part. At intercyprus.com since 2002 — trusted for quality and reliability.

Benefits & Tips

• Benefit: Restores precise heat/cool control in HVAC and RV cooling systems, helping maintain comfortable temperatures without overworking the condenser.
• Tip: Double-check OE and fitment numbers (3106996022, 3311924, 3311924.000) to ensure seamless compatibility with your Duo Therm or Dometic kit before ordering.
• Tip: Utilize the under-counter installation option to maximize interior space; ensure adequate clearance around the unit for airflow and maintenance access.

Product Specifications

• Item Type: Thermostat Relay Board
• Brand Name: EBTOOLS
• Model Name: Heat Cool Relay Analog Control Board
• Material: PCBO
• OE Numbers: 3106996022, 3311924, 3311924.000
• Cooling Capacity: Control Temperature with 10,500 BTU/h, improving condenser efficiency
• Fitment: Fit for 3107541.009, 3107541.017, 3107546.008 cooling and furnace models; fit for 57915.331, 3104996.022, 3106995.032, 3106997.004, 3107168.001, 3107168.001, 3107541.009, 3107541.017, 3313191; fits relay boards 3106997.004, 3106997.012, 3106997.020, 3313189.000, 3313191.000, 3316230.000, 3316230.700; Suitable for Duo Therm thermostat kits 317541.009, 3107541.017, 3107541.025, 3107541.009, 3107546.008; For Dometic RV series 579, 590, 595, 600
• Origin: Mainland China
• Weight: 150 g
• Special Features: Thermostat Control Relay Board

Package includes:

• 1 x Relay Board

Warnings / Reminders

Please double check the part number of your item; the matching information provided is for reference. Ensure compatibility with your specific Duo Therm or Dometic model before purchasing to avoid mismatches.

All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.

Language support: Not specified for this product. If needed, refer to the product's documentation or contact support for localized guidance.
