ZOYI 102A Digital Multimeter 6000 Counts with Transistor Tester, Auto Range

The ZOYI 102A Digital Multimeter 6000 Counts with Transistor Tester (Model ZT102A) is a versatile, auto-ranging measurement tool designed for both electronics hobbyists and professionals. It delivers precise readings across AC/DC voltage and current, resistance, capacitance, inductance, and more, all on a bright backlit display for easy viewing in any workspace. With 6000 counts, true RMS capability, and auto range, you get reliable results fast without fumbling between settings.

This compact meter tackles everyday debugging and measurement challenges. It can automatically recognize voltage, resistance, and continuity, simplifying setup and speeding up troubleshooting. It covers a broad range of measurements including diode tests, non-contact voltage detection (NCV), frequency, duty cycle, and temperature, giving you a single tool you can rely on for most electronic projects. The large, backlit screen ensures clear readings even in dim environments, while features like data hold and auto power-off add convenience to your workflow.

Note: Batteries are not included due to customs inspection. The device requires two 1.5V AAA batteries (not included) to power up the meter. Built-in safety features and a compact form factor make this meter ideal for fieldwork or the bench alike.

Benefits & Tips

• Auto-ranging and a 6000-count display simplify measurements, saving time on setup and interpretation.
• True RMS support provides more accurate AC readings on non-sinusoidal signals, improving measurement reliability.

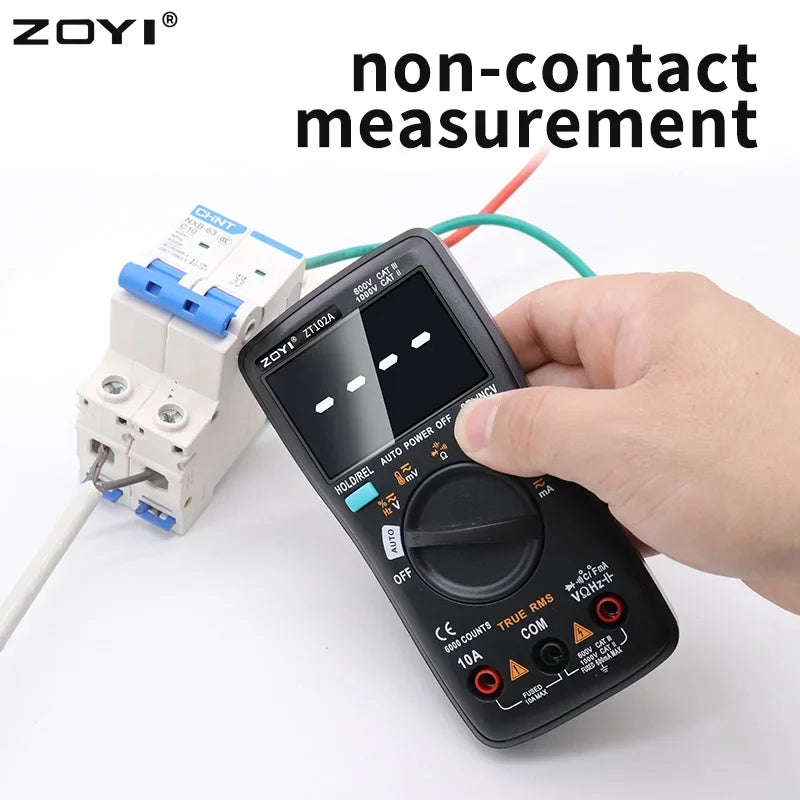

• Use the NCV and diode test functions to quickly assess live circuits and identify semiconductor components without disassembly.

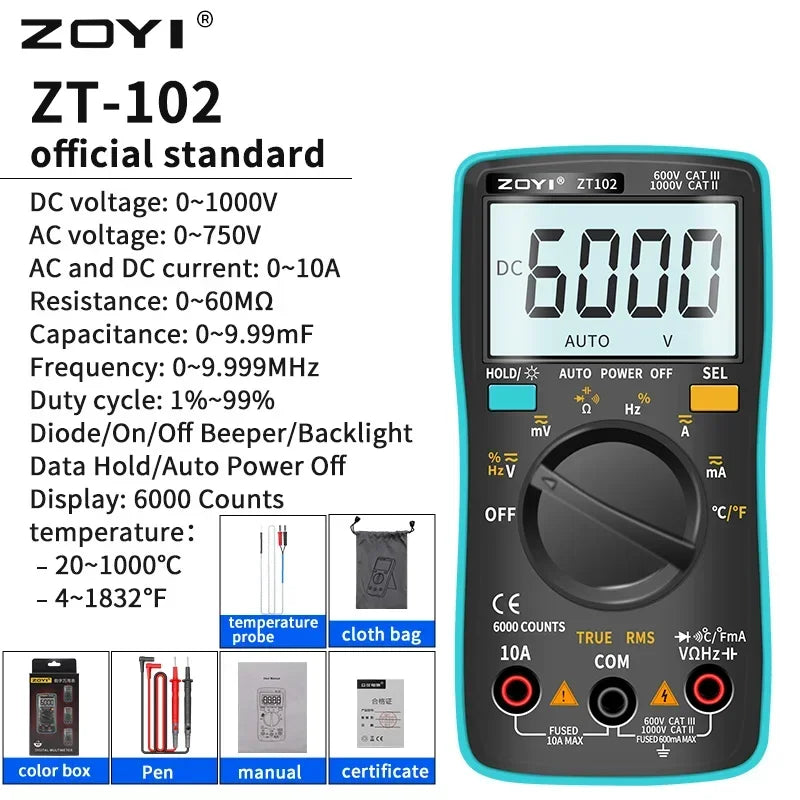

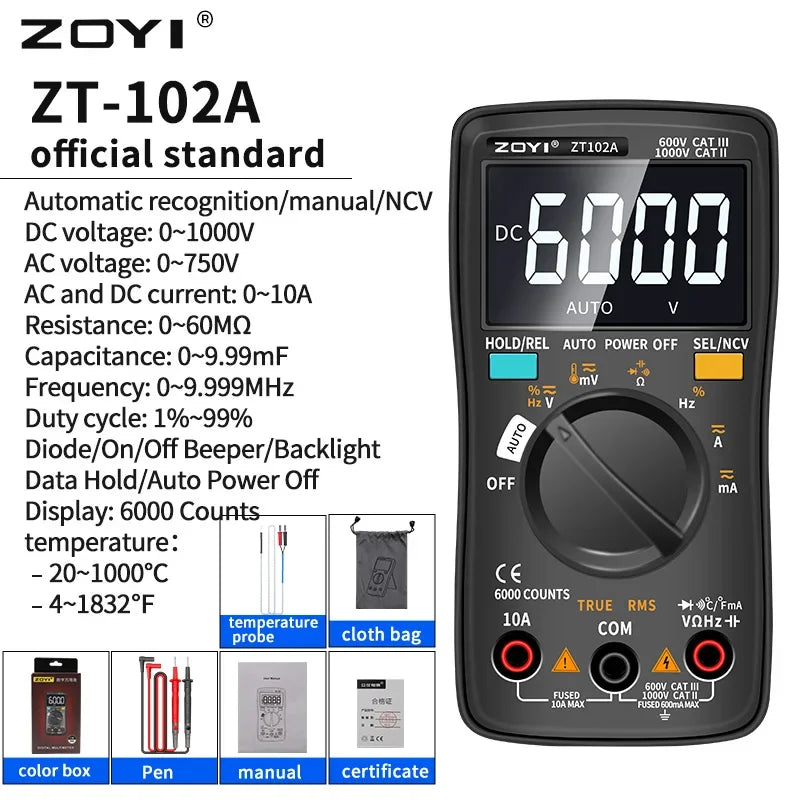

Product specifications

• Display: Digital display with 6000 counts; backlit for easy reading
• Measurement types: AC/DC voltage, AC/DC current, resistance, diode test, continuity, NCV, frequency, duty cycle, capacitance, inductance, temperature
• True RMS: Yes
• Auto range: Yes
• Data hold: Yes
• Auto Power Off: Yes
• Temperature measurement: Yes
• Battery: Not included (requires 2 x 1.5V AAA batteries)
• Dimensions: 130 x 65 x 32 mm
• Model number: ZT102A
• Operating temperature: 0–40 °C
• Measurement ranges: AC Current 60 mA / 600 mA / 6 A / 10 A; AC Voltage 60 mV / 600 mV / 6 V / 60 V / 600 V / 1000 V; DC Current 60 mA / 600 mA / 6 A / 10 A; DC Voltage 60 mV / 600 mV / 6 V / 60 V / 600 V / 1000 V
• Capacitance range: 9.999 nF / 99.99 nF / 999.9 nF / 9.999 μF
• Inductance range: 1 Hz to 10 MHz
• Resistance range: 600 / 6k / 60k / 600k / 6M / 60M
• Origin: Mainland China

Package includes:

• ZT102A Digital Multimeter (Model ZT102A)

Warnings/Reminders: Battery not included due to customs inspection. Use only within specified ranges and follow standard safety practices when measuring live circuits.
