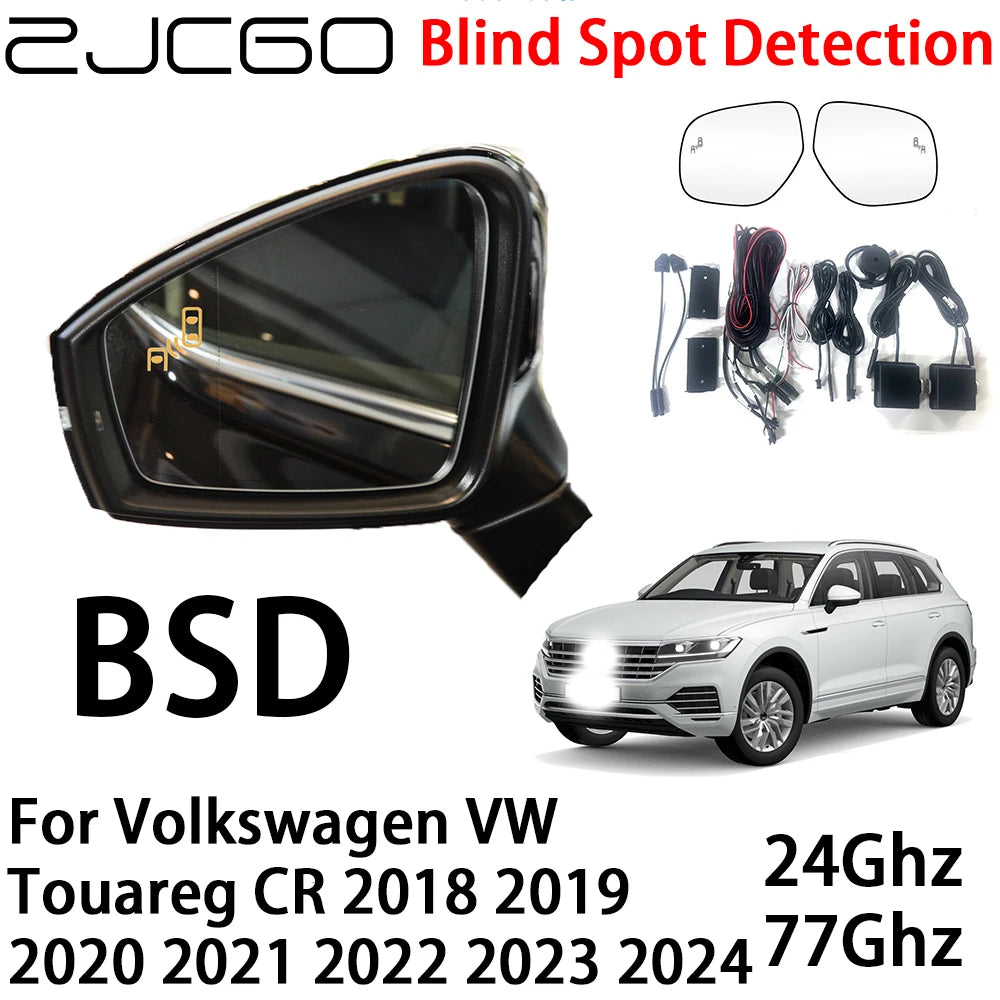

Blind Spot Detection Radar System For Volkswagen Touareg Dual MmWave Rear Radar With 700m Alarm
Enhance safety on every drive with the Volkswagen Touareg Blind Spot Detection Radar Warning System featuring a robust 700m alarm. This advanced system uses two mmwave radars mounted on the rear bumper to monitor the blind zones and alert you the moment a vehicle or object moves into your rear-side area. When an object enters the warning zone, LEDs light up and, depending on the setup, your side indicators may flash or a three-tone alert may sound, helping you make confident, safer lane changes even in challenging traffic conditions.
Designed specifically for Volkswagen Touareg models from 2018 through 2024, this system can be customized to work with your original mirrors. If you choose to send the original mirrors to our factory, our engineers will tailor the laser warning light pattern for your mirrors while keeping the product price the same. This makes it a precise, plug‑in upgrade that respects your vehicle’s aesthetics while boosting safety.
Two mainstream presentation options are supported: a lens-display where the prompt light is on the lens itself, and an in-car display option that shows a warning light on the triangular window inside the car. This flexibility lets you choose the visibility you prefer while keeping installation clean and unobtrusive. For busy urban roads or multi-lane highways, the system’s wide detection range and quick alerts reduce the risk of missed signals during lane changes.
All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.
Benefits & Tips
- Smart lane-change support: When another vehicle approaches from the rear side, the system not only warns you with LEDs but can also activate the corresponding turn signal for safer lane shifts.
- Versatile display choices: Choose between a lens-display prompt or in-vehicle display to suit your cockpit style and visibility preferences.
- Easy customization option: If you’re upgrading with your original Touareg mirrors, send them to our factory and get a tailored laser warning light pattern without changing the price.
Product specifications
- Working voltage: DC 9 ~ 16V
- Working current: DC12V 430mA ± 10mA
- Working temperature: -30 °C ~ +80 °C
- Static current consumption: ≤ 1mA
- Waterproof rating: IP66
- Speed adaptation range: ±120 KM/hour

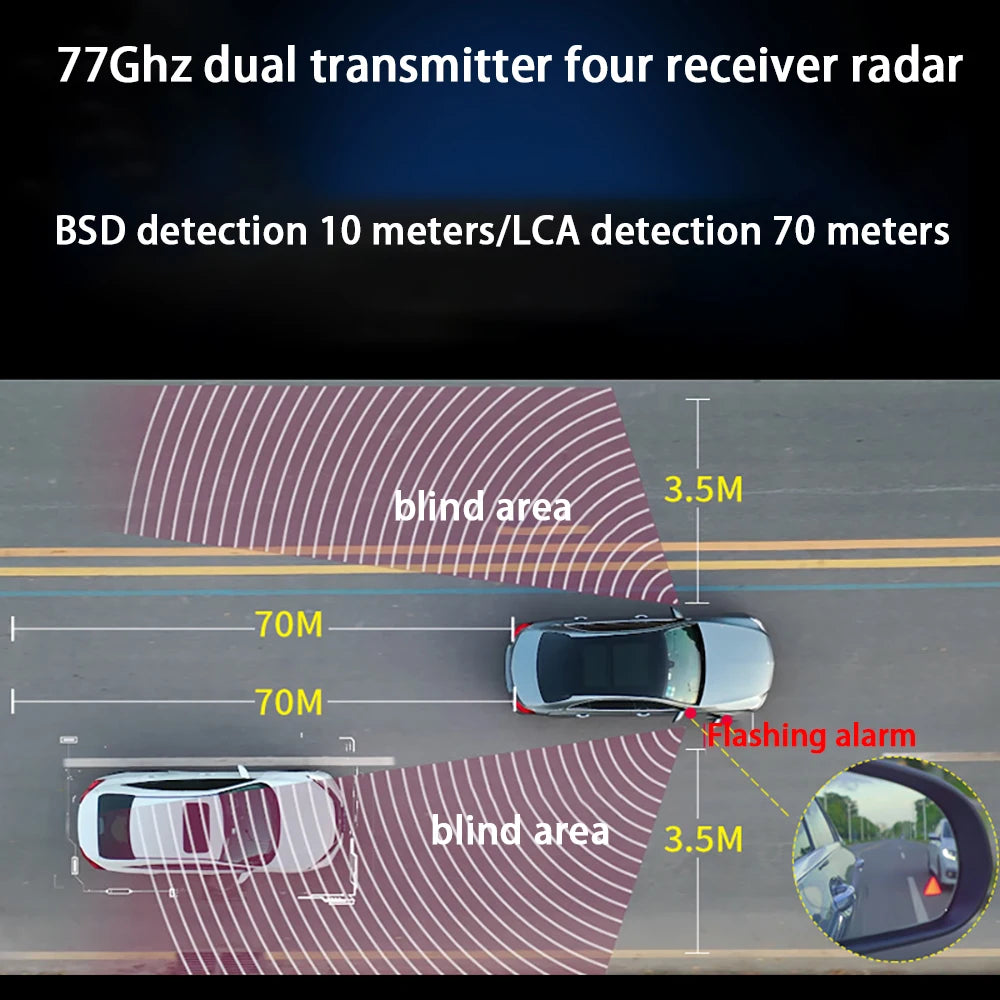

- Warning range: 3 to 10 meters behind the side
- Warning method: sound and LED lighting
- Startup mode: start with ACC
- Two mainstream types: Lens display with prompt light on the lens, or in-car display on the triangular window inside the car

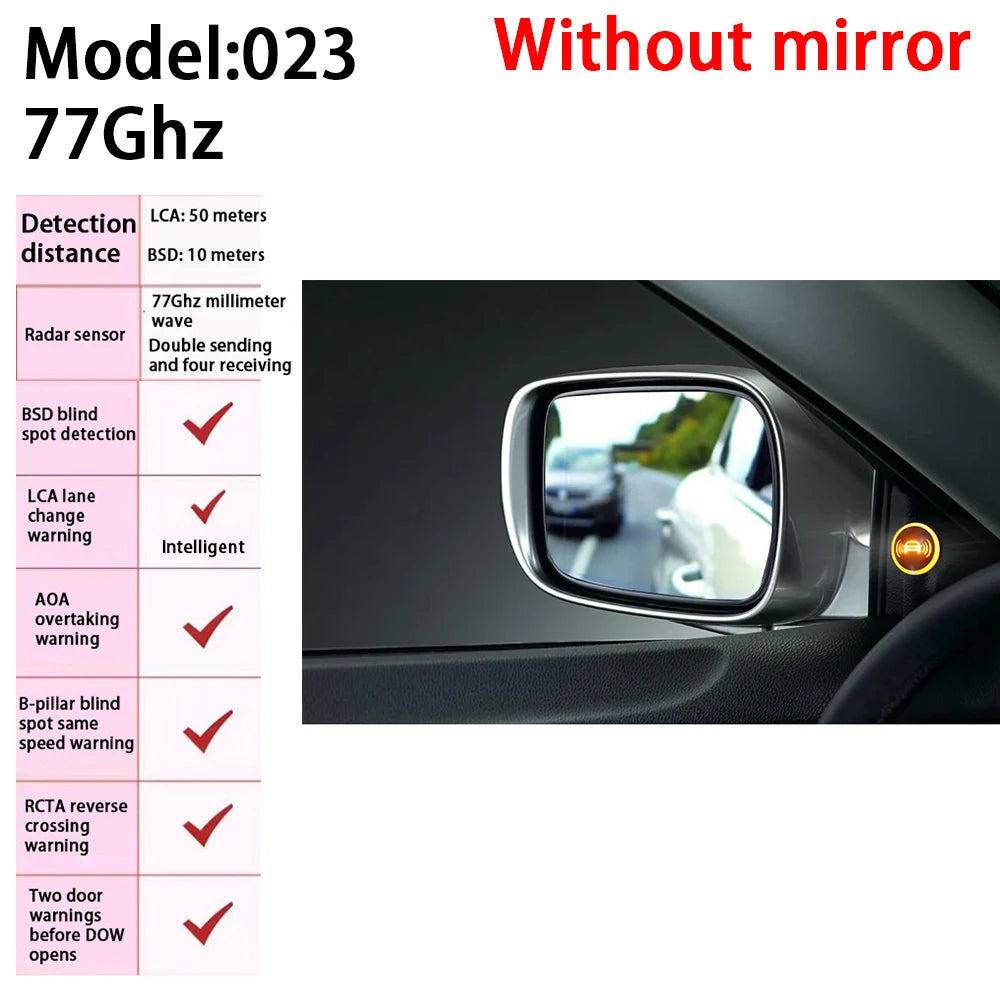

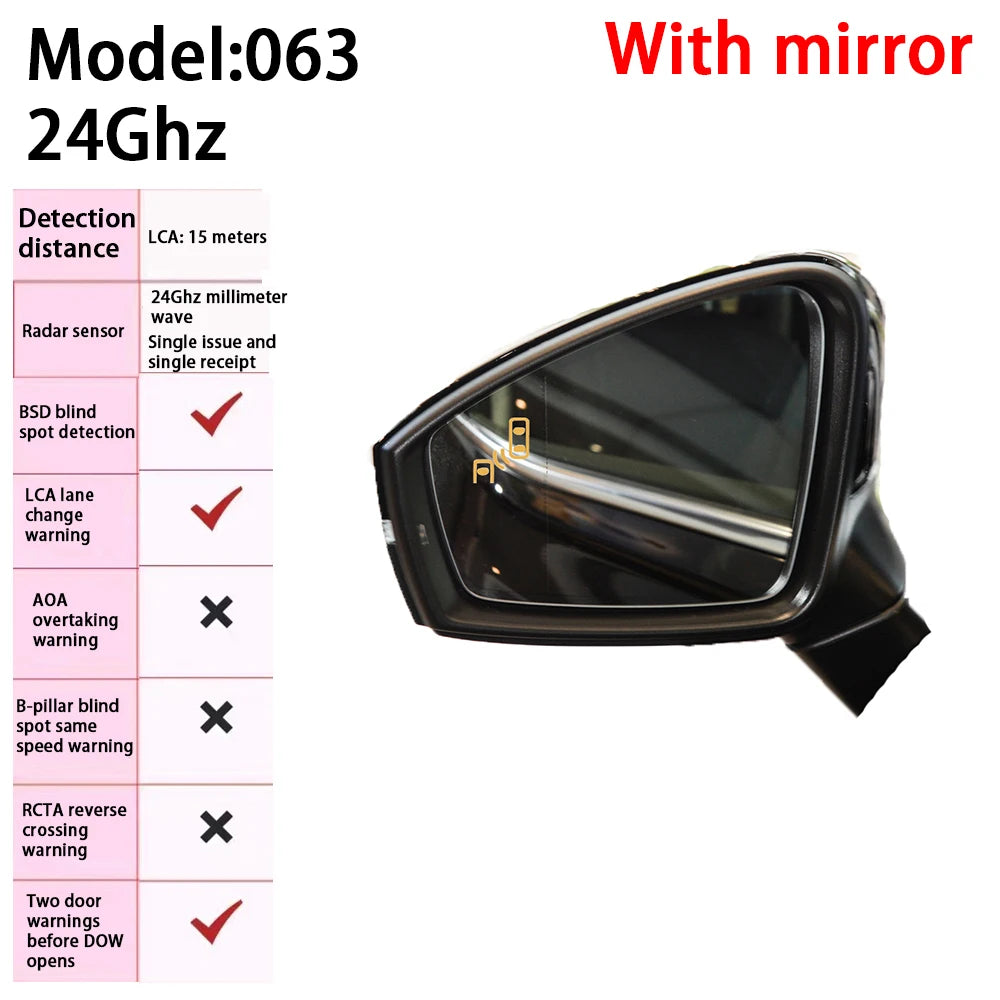

- Additional features: LCA lane change assistance, BSD blind monitoring system, AOA Active Overtaking Warning, B-pillar blind spot following warning, RCTA reverse crossing warning, DOW door opening warning (optional)
Package includes:
- Radar sensor
- Power cord
- LED transconnection
- LED indicator light; Blind area rear view lens
- Steering and reversing inspection line
- Calibration card
- Radar bracket
- Screw
- buzzer
- Instructions
Warnings / Reminders
- Radar signals cannot penetrate metal and can be disturbed by fluorescent lighting. Ensure installation locations avoid metal interference directly in front of the radar sensor emission surface.
- The rear bumper should be plastic. Do not install the radar emission surface facing fluorescent lamps or near metal structures that could disrupt signal reception.
- During installation, confirm the vehicle model and year, ensure the sensor is not facing a metal obstacle, and avoid direct alignment with fluorescent lighting for optimal performance.
Language support
OSD Language: English
All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.
