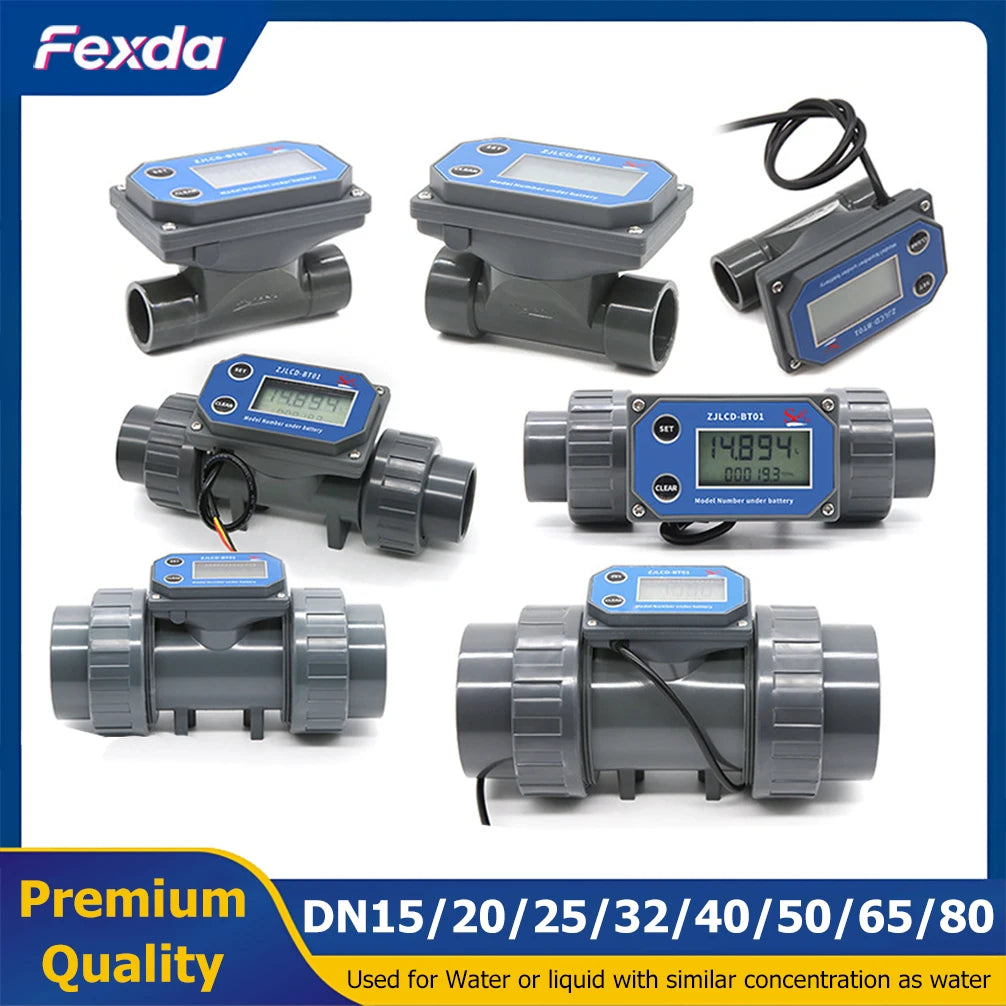

Digital Flow Meter DN15-DN80 With LCD Display, PVC Flow Sensor

Digital Flow Meter DN15-DN80 with LCD Display, PVC Flow Sensor is a turbine-style flowmeter for water and liquids with similar concentration. It supports DN15–DN80 piping and features an intuitive LCD readout, a wired output for automation, and a PVC flow sensor built for reliable farm, garden, and water-system monitoring.

Key capabilities include real-time flow and velocity display, simple operation, and a switch signal output for control circuits. The device is configured for water-like liquids and delivers precise readings with a maximum working pressure of 20 BAR. Units supported are Liters (L), Gallons (GAL), pints (PTS), and quarts (QTS). Connection sizes available: 1''/1.2''/1.5''/2''/2.5''/3''.

Flow ranges by size: DN25 20-280 L/min; DN32 40-460 L/min; DN40 50-750 L/min; DN50 60-1160 L/min; DN65 80-1980 L/min; DN80 100-3000 L/min. Measurement accuracy is ±2% with repeatability ±0.5%. Cumulative range 0-999999; single count 0-9999.9; cumulative count 0-999999. Medium: Water or liquid with concentration similar to water. Applications include farmland irrigation, fish ponds, swimming pools, waterworks, and water purification equipment.

Benefits & Tips

• Track real-time water flow for irrigation scheduling and resource management.

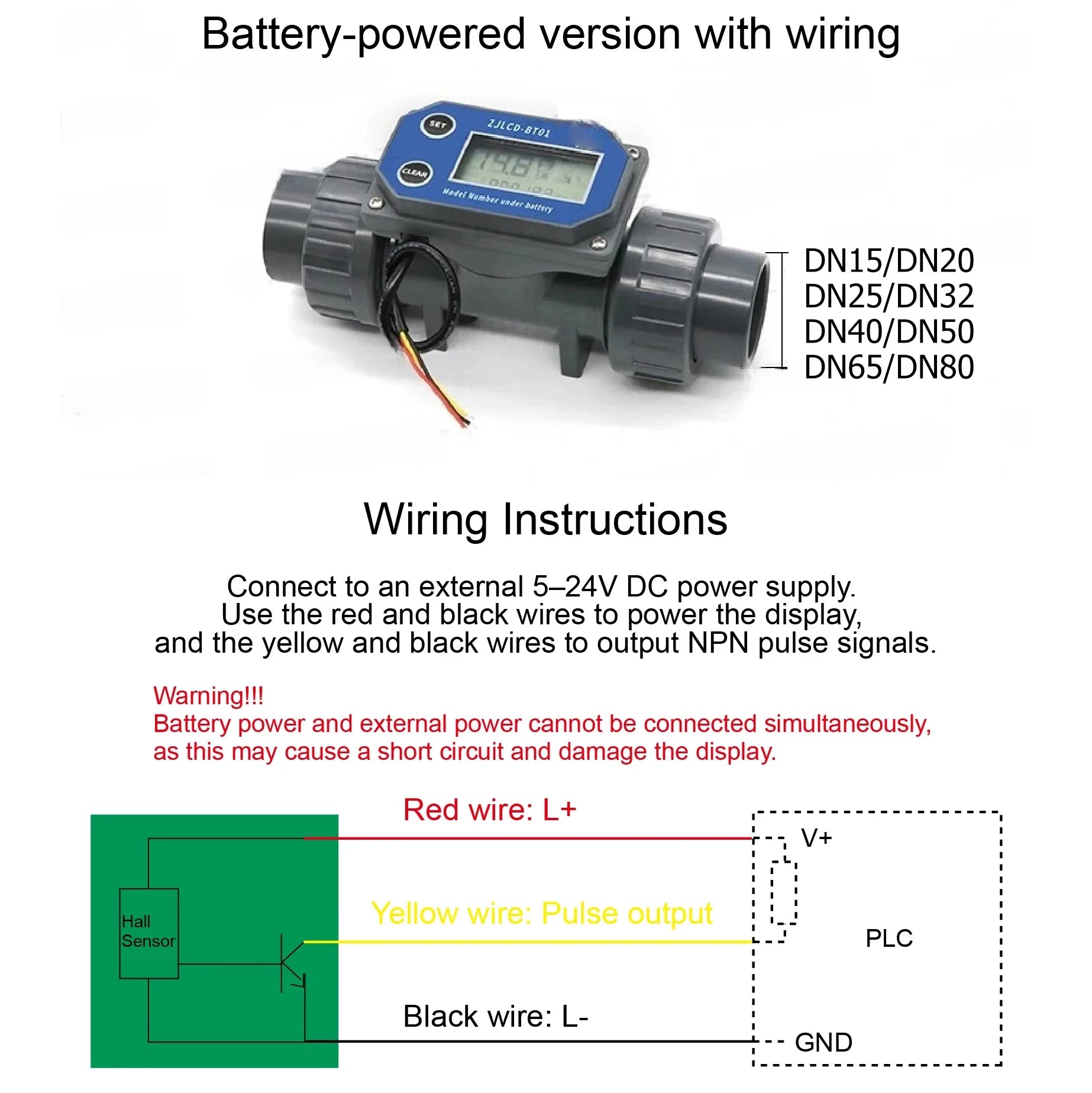

• Use the LCD display and switch output to automate pumps or valves based on measured flow.
• Choose the correct DN size and connection (1''–3'') to fit existing piping for accurate integration.

Product specifications

• Medium: Water or liquid with concentration similar to water
• Material: PVC

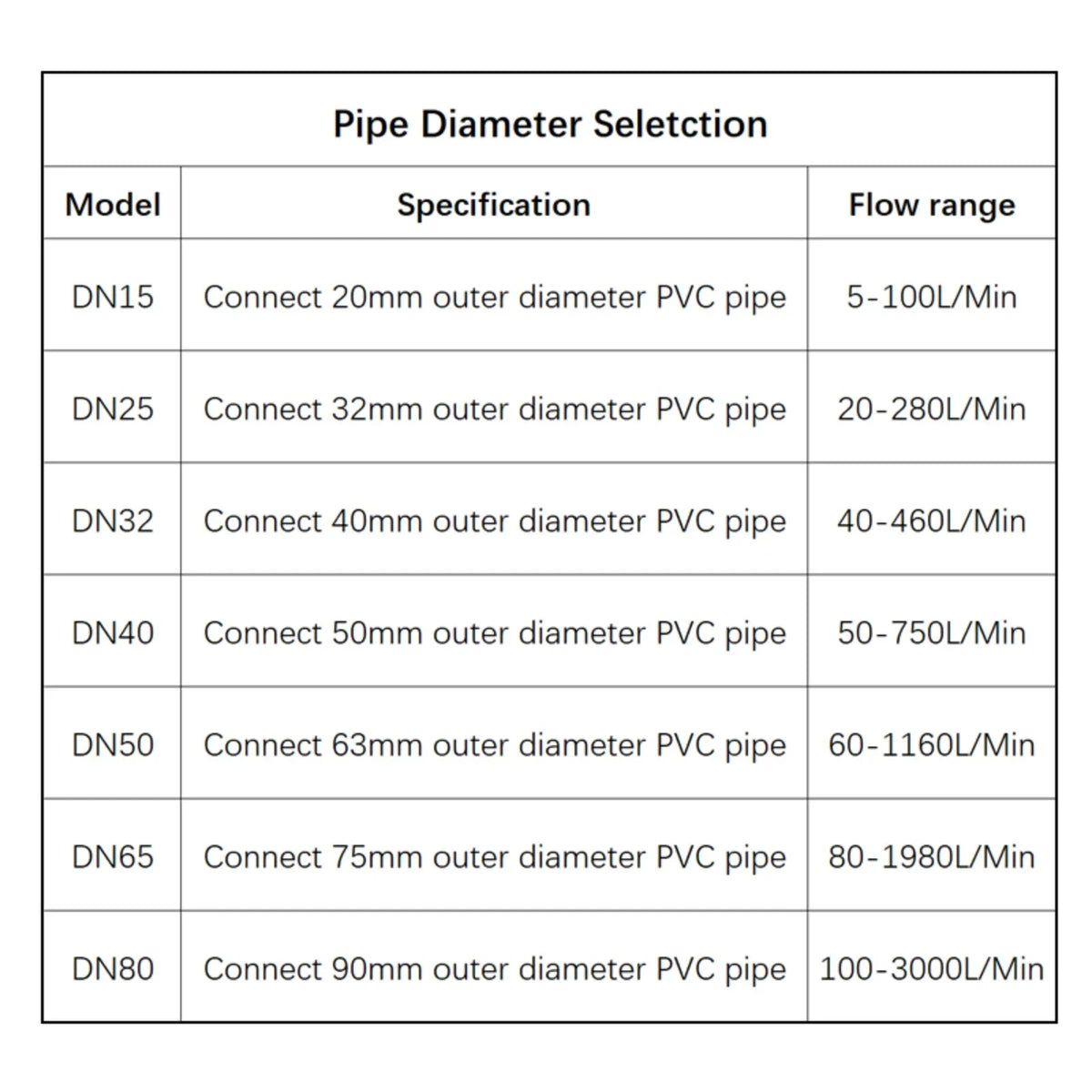

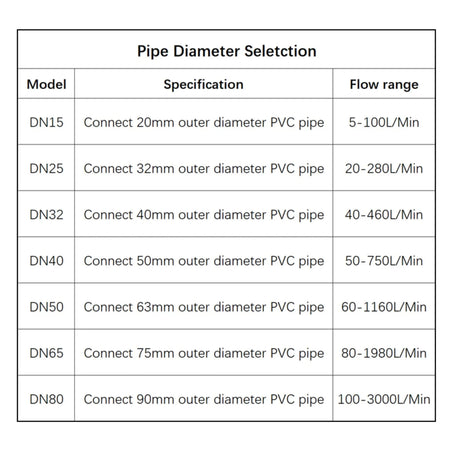

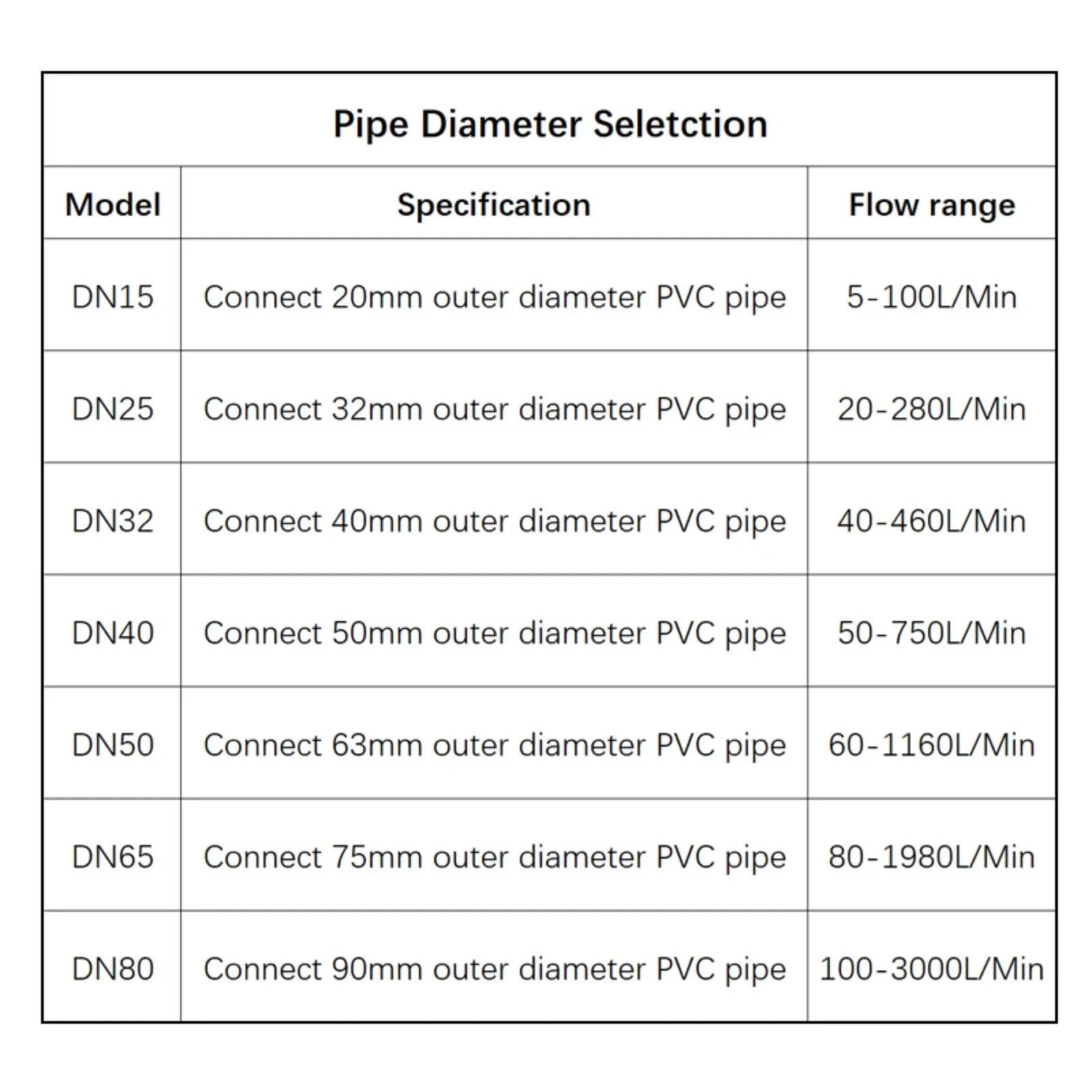

• Flow rate ranges: DN25 20-280 L/min; DN32 40-460 L/min; DN40 50-750 L/min; DN50 60-1160 L/min; DN65 80-1980 L/min; DN80 100-3000 L/min

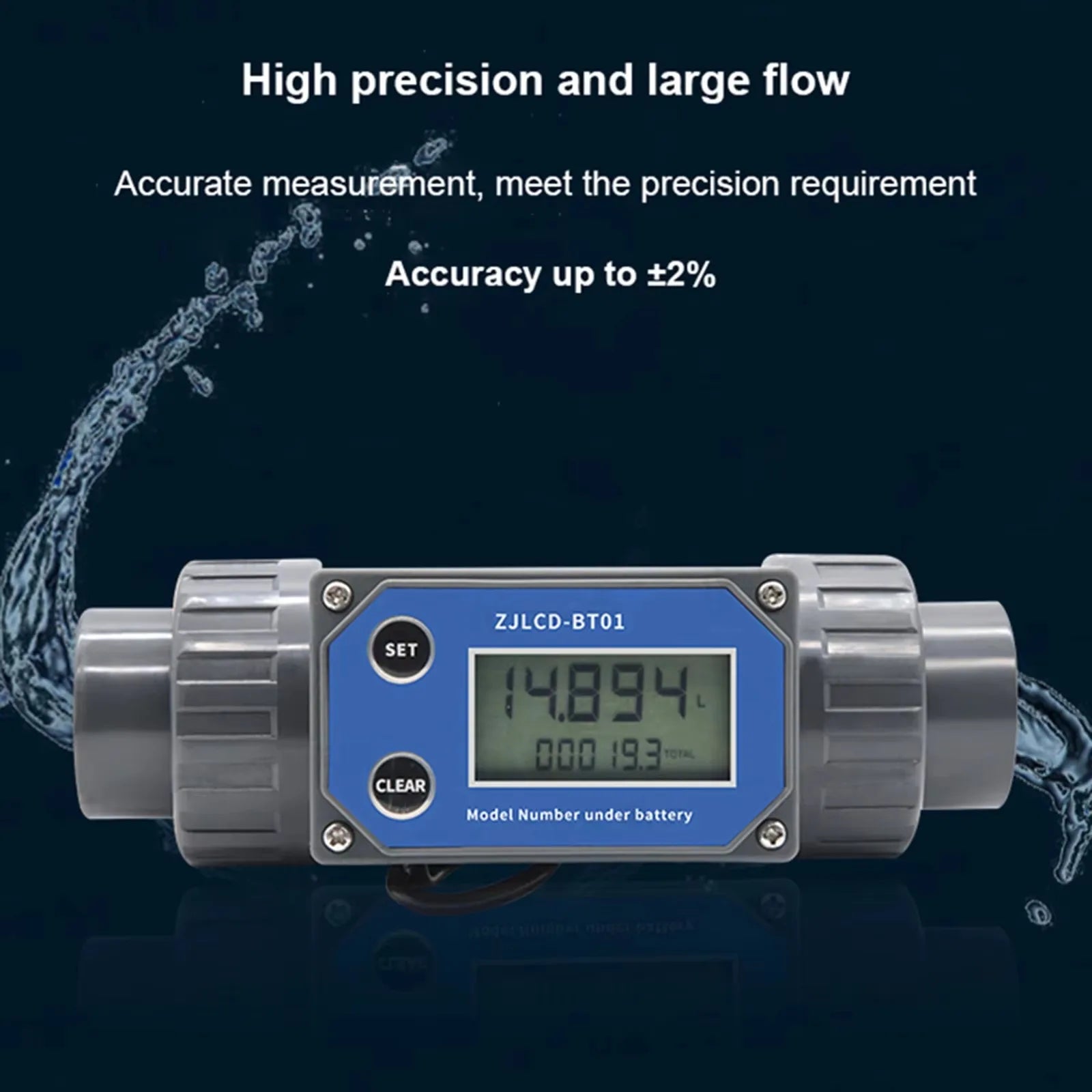

• Measurement accuracy: ±2%
• Repeatability: ±0.5%
• Maximum working pressure: 20 BAR
• Cumulative range: 0-999999
• Single count range: 0-9999.9
• Cumulative count range: 0-999999
• Units: L, GAL, PTS, QTS

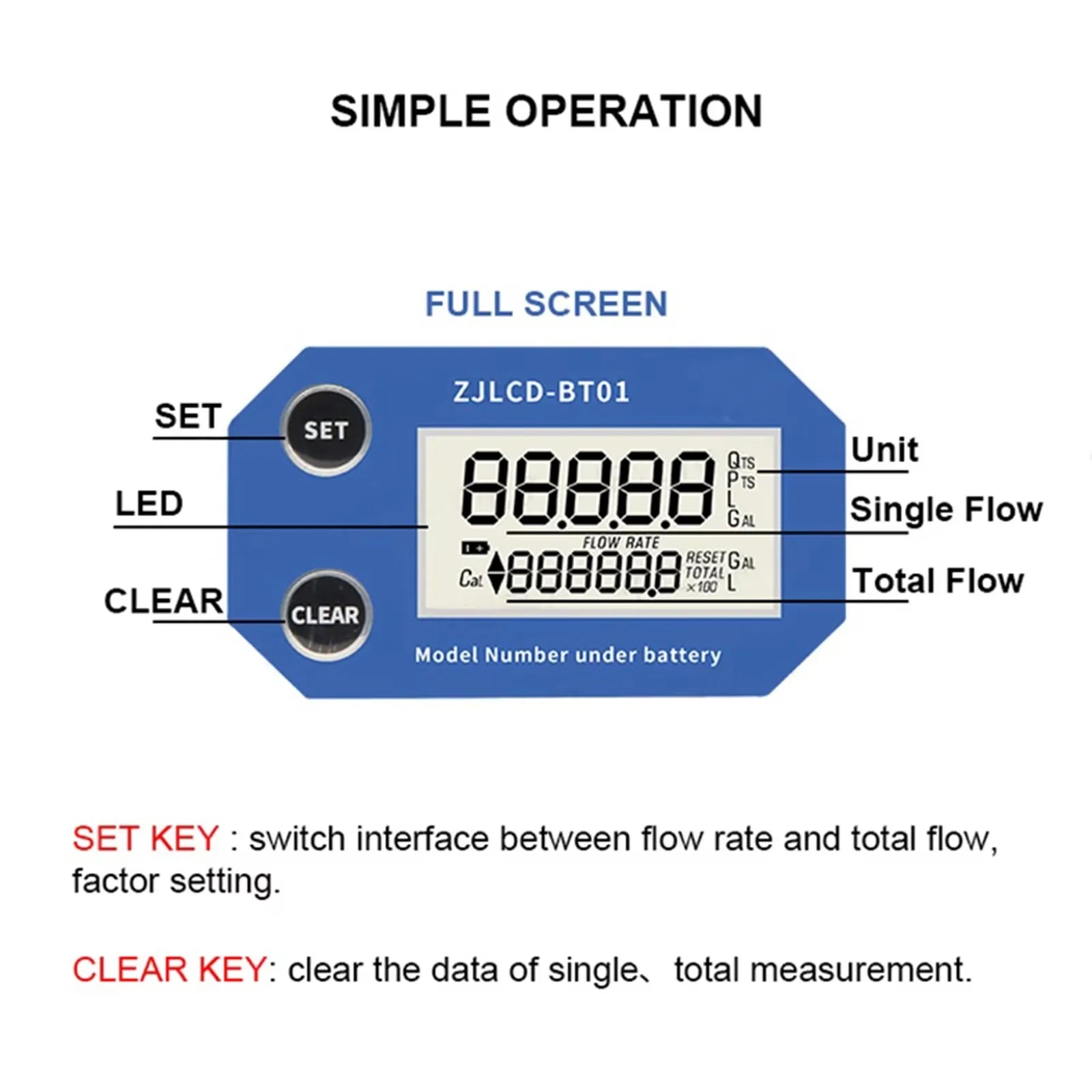

• Display: LCD
• Connections: 1''/1.2''/1.5''/2''/2.5''/3''

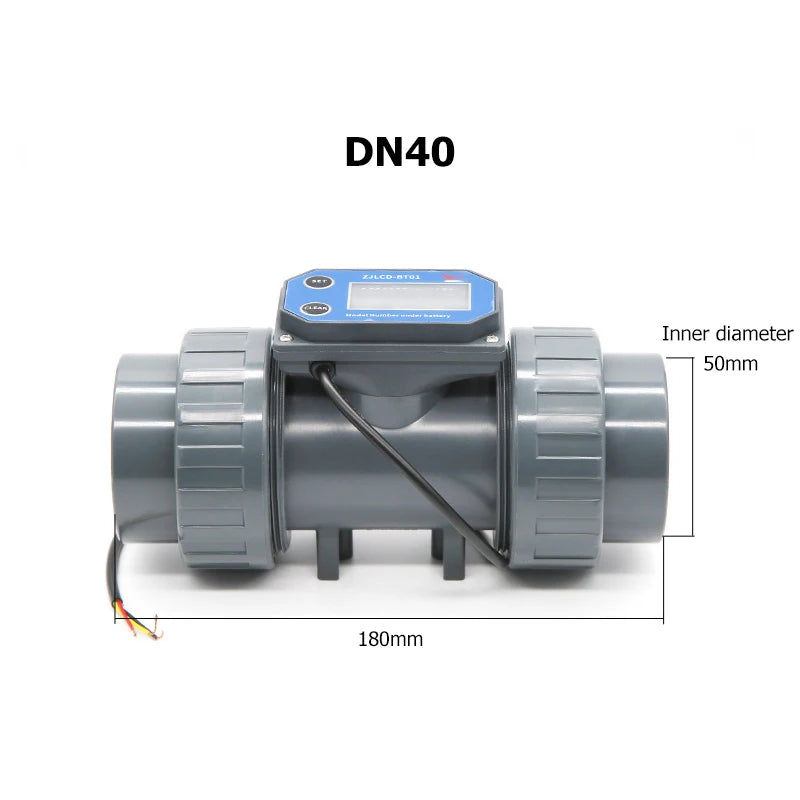

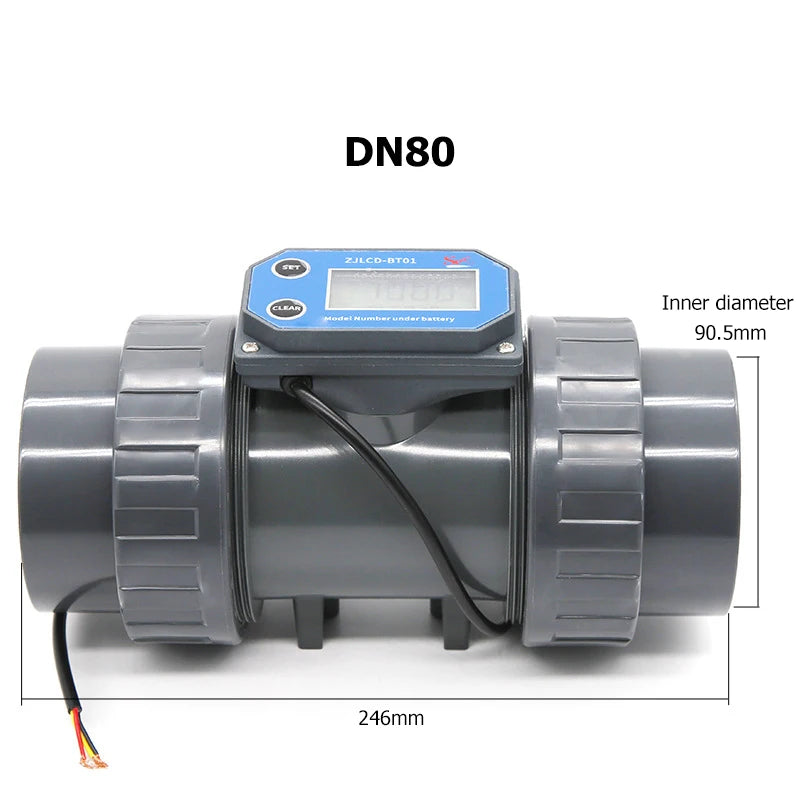

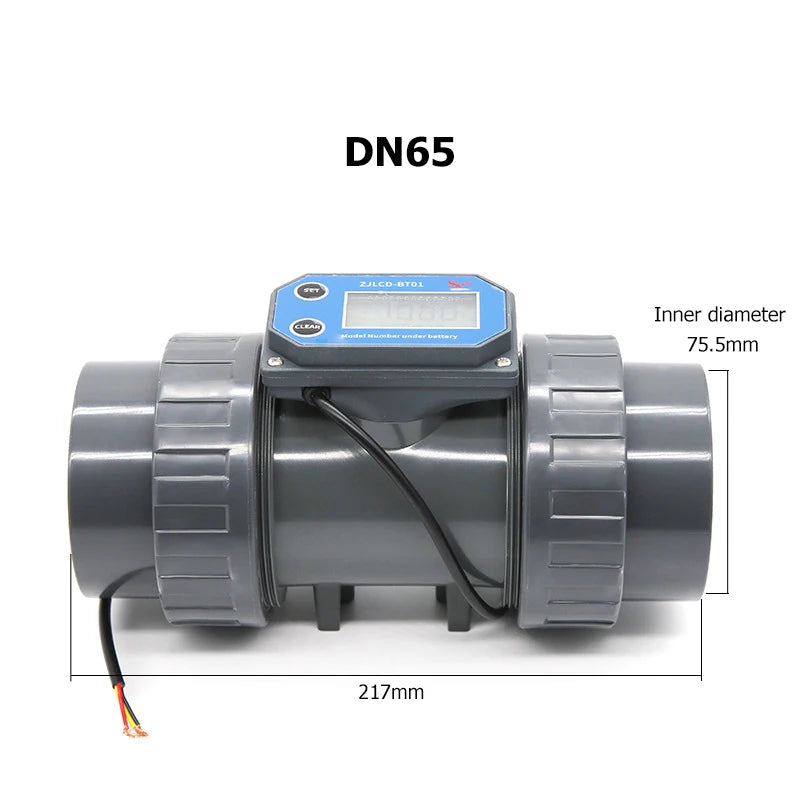

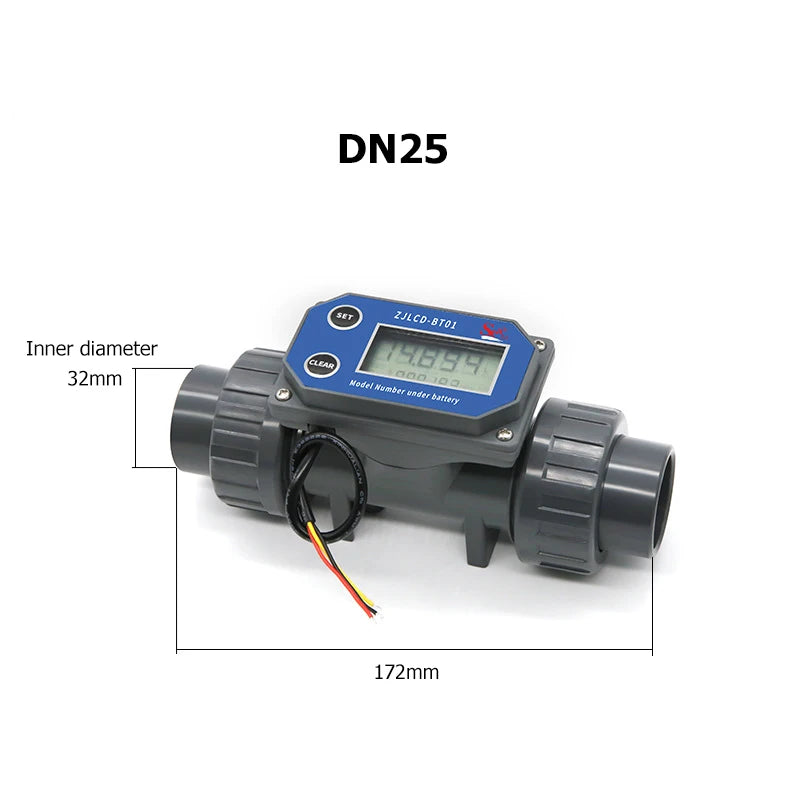

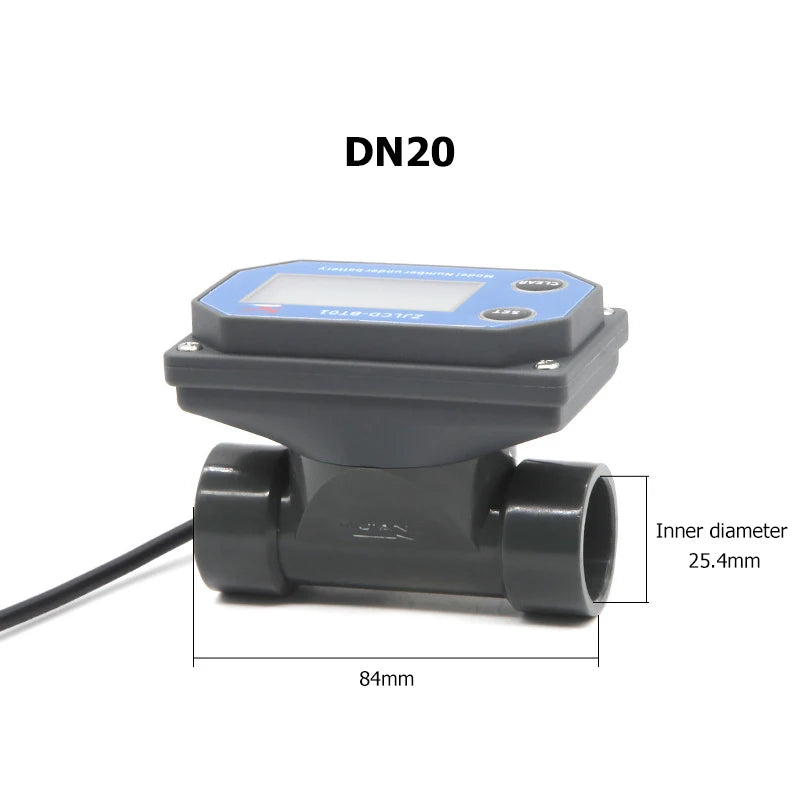

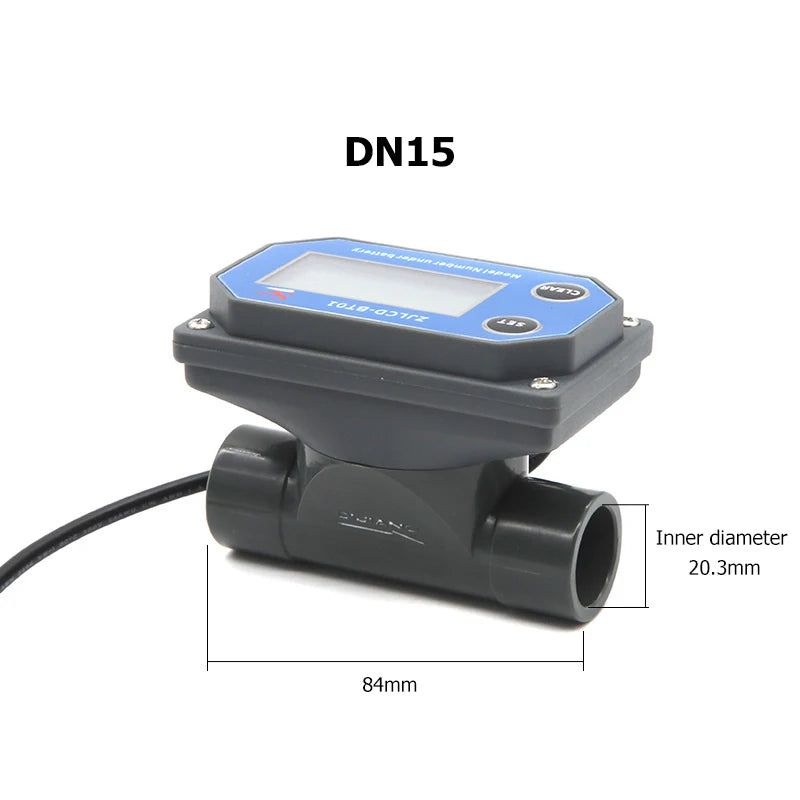

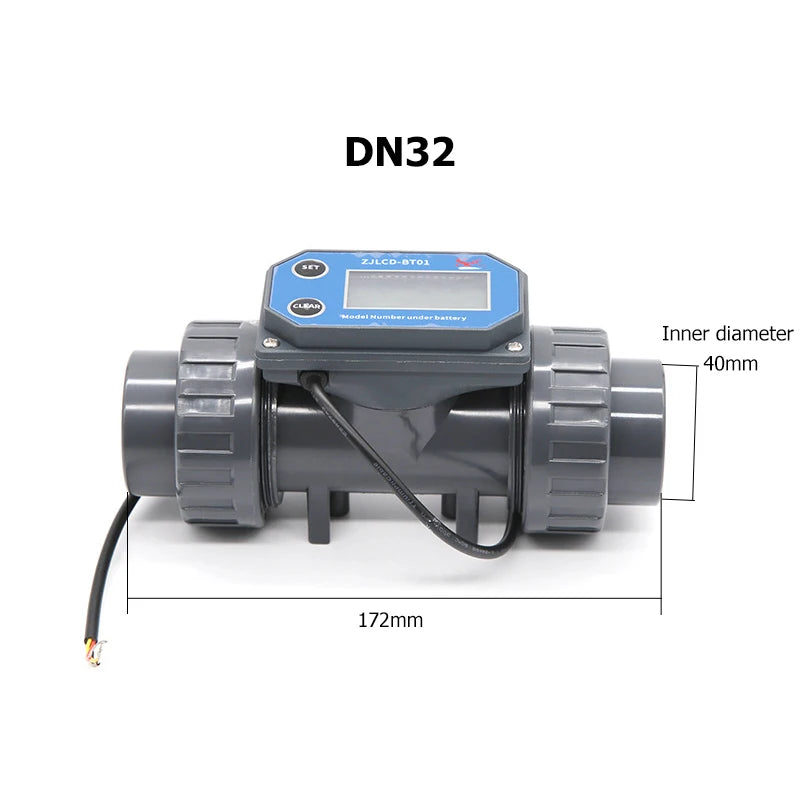

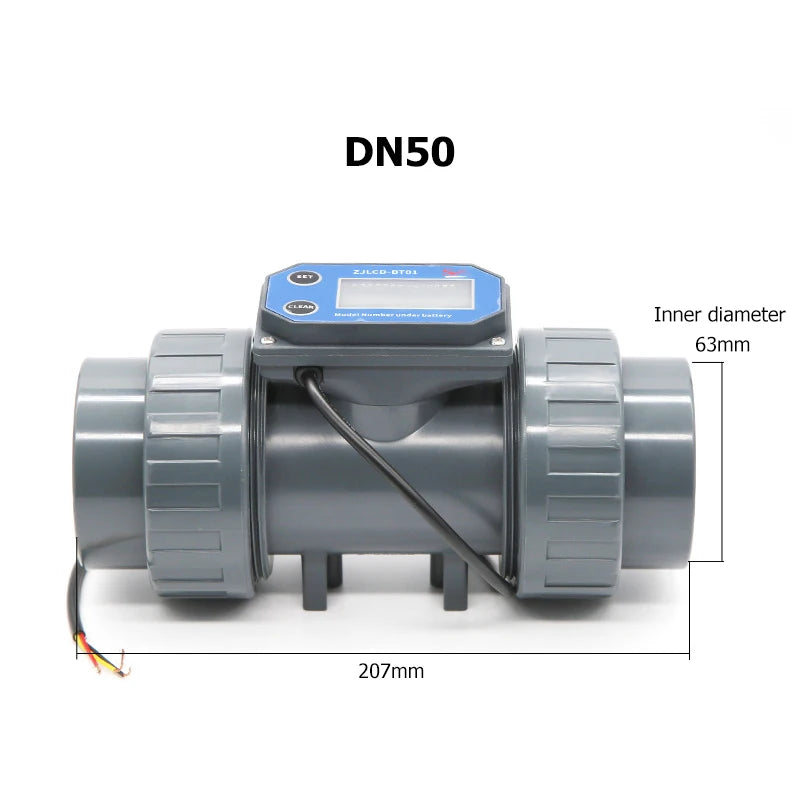

• Item size: As shown (Unit:mm)

Package includes:

• Digital display flow meter (1 unit)

Warnings/Reminders

• Applicable Medium: water or liquid with concentration similar to water
• Maximum working pressure: 20 BAR

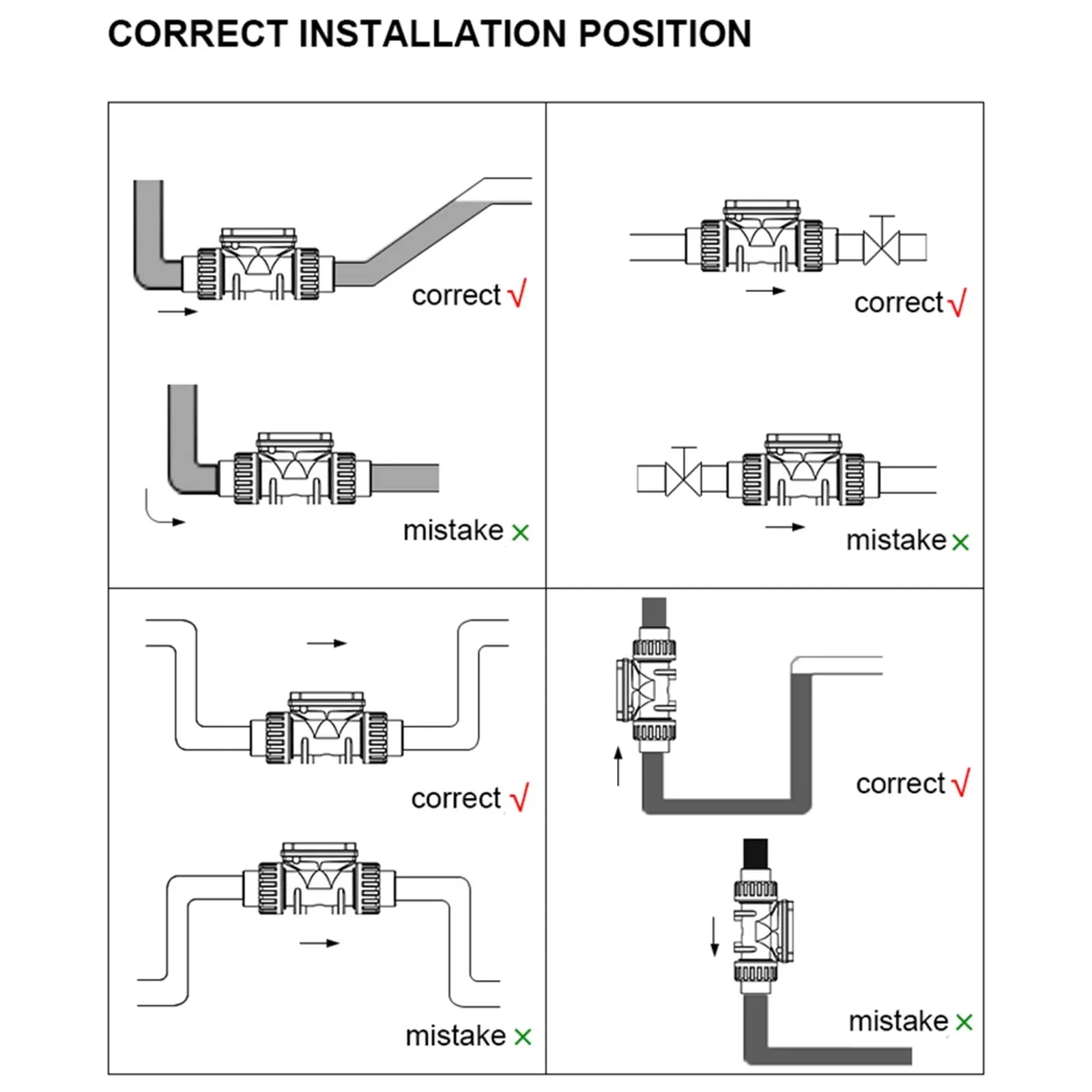

• Ensure correct DN Size and connection type for your installation
