Two-Wire Pluggable Power Cable Connector, 2-Pin 2-Way for D2 Quick-Connect Lock

Discover a practical and dependable solution for LED wiring with the Two-Wire Pluggable Power Cable Connector, a compact 2-pin, 2-way connector designed for quick, hassle-free installations. Compatible with D2 quick-connect lock systems, it makes wiring LED strips in homes, vehicles, and boats straightforward—no soldering, no messy wire-cutting, just dependable connections that snap into place.

This connector is built for reusability and efficiency. Its push-in design works with both hard and flexible wires, thanks to independent contact shrapnel that adapts to different conductor sizes. The result is faster wiring operations, fewer errors, and a tidy, reliable finish on your LED projects. Whether you’re upgrading interior lighting, building a custom LED array, or wiring a portable setup, this small connector does the heavy lifting so you don’t have to.

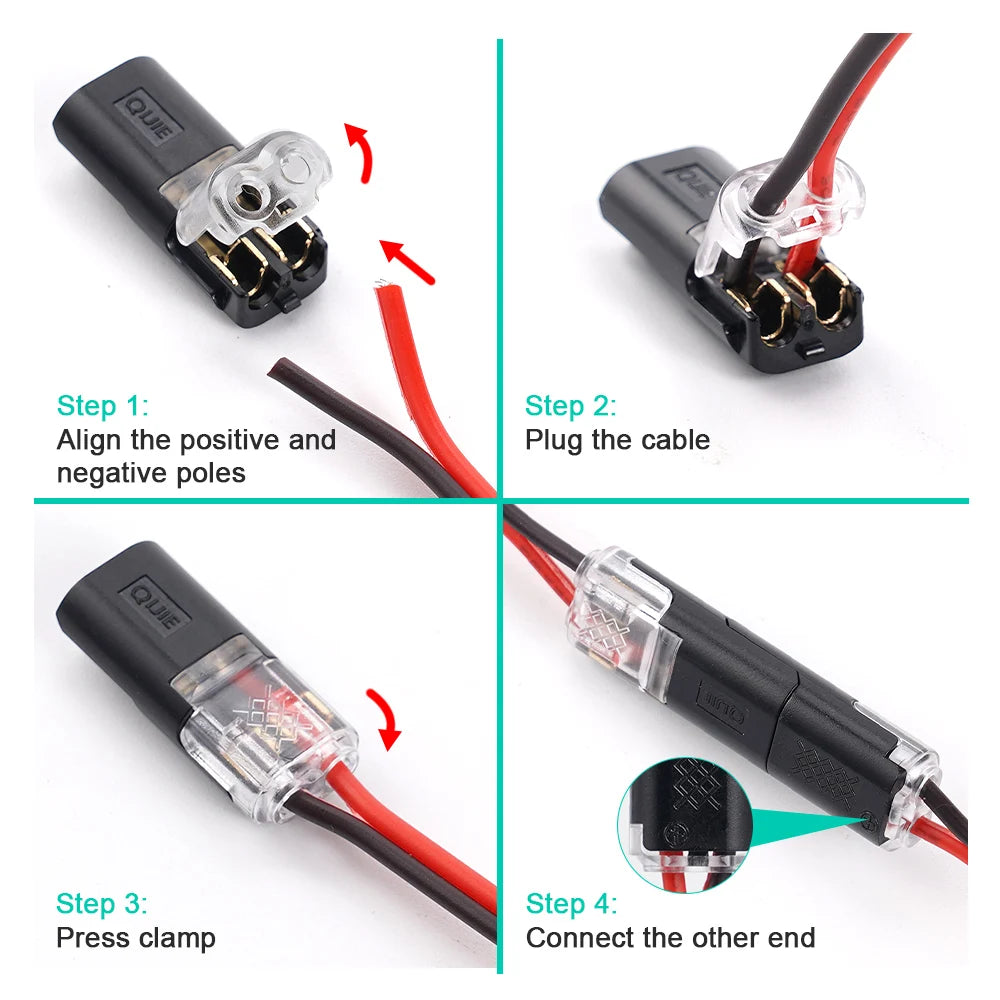

Key benefits include a true plug-and-play experience: no wire-stripping required, thanks to an innovative clasp connection that simply snaps feeds into the connector. It’s a versatile, time-saving solution that helps you route two wires in whatever orientation you need, reducing installation time and simplifying future adjustments.

Benefits & Tips

• 2-pin, 2-way design provides flexible wiring options for LED strips and small power runs in tight spaces.
• Reusable push-in connectors save resources and let you reconfigure layouts without waste.
• For best results, use wires with AWG 22–18 (0.35–0.75 mm²) and an insulation diameter of 1.5–2.1 mm; ensure contact distance is 4 mm for a secure fit.

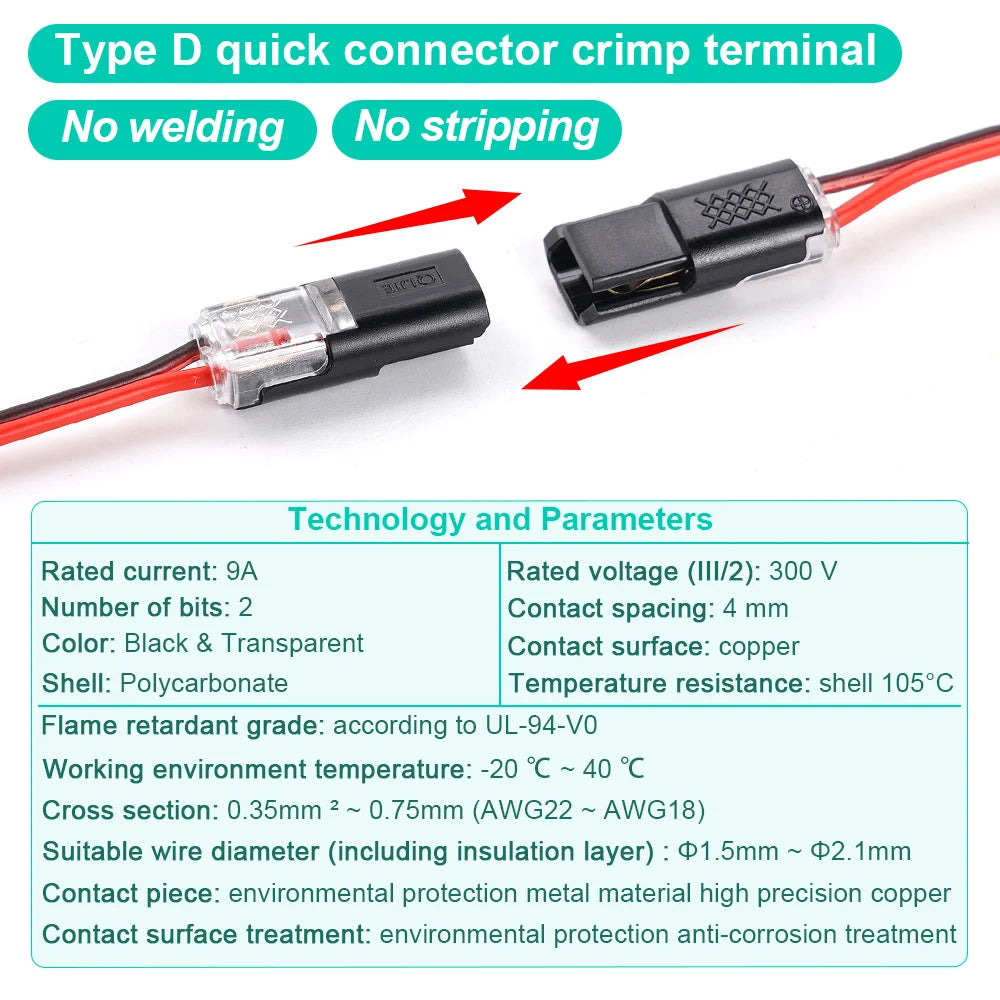

Product specifications

• Rated current: 9 A
• Rated voltage: 300 V

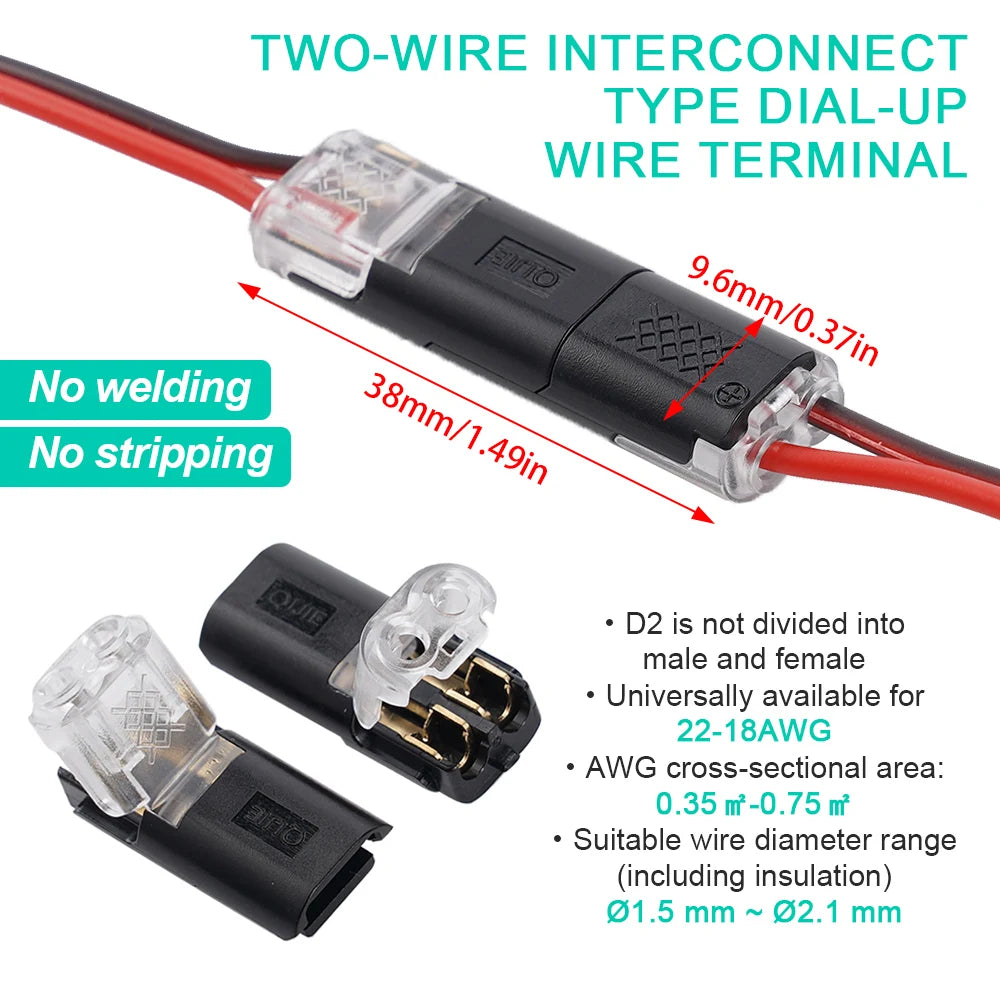

• Type: 2-pin, 2-way; contact distance 4 mm
• Color: Black & Transparent
• Contact surface: Copper
• Shell: Polycarbonate
• Contact sheet material: Environmentally friendly copper hardware
• Contact surface treatment: Environmental protection and anti-corrosion
• Working temperature: -20°C to 40°C
• Temperature resistance: Housing up to 105°C
• Flame retardant rating: UL-94-V0

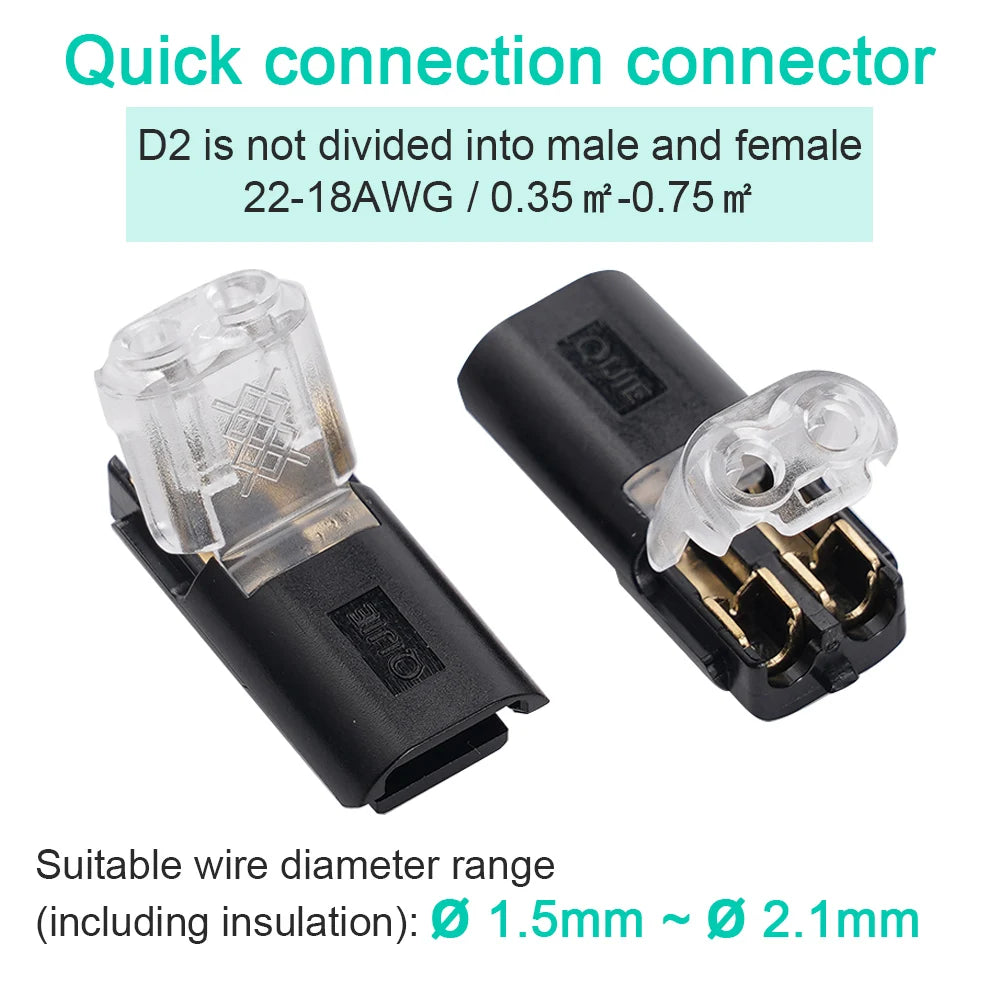

• Wire cross section: 0.35 mm² – 0.75 mm² (AWG 22 – AWG 18)
• Suitable wire diameter (including insulation): Φ1.5 mm – Φ2.1 mm

Package includes:

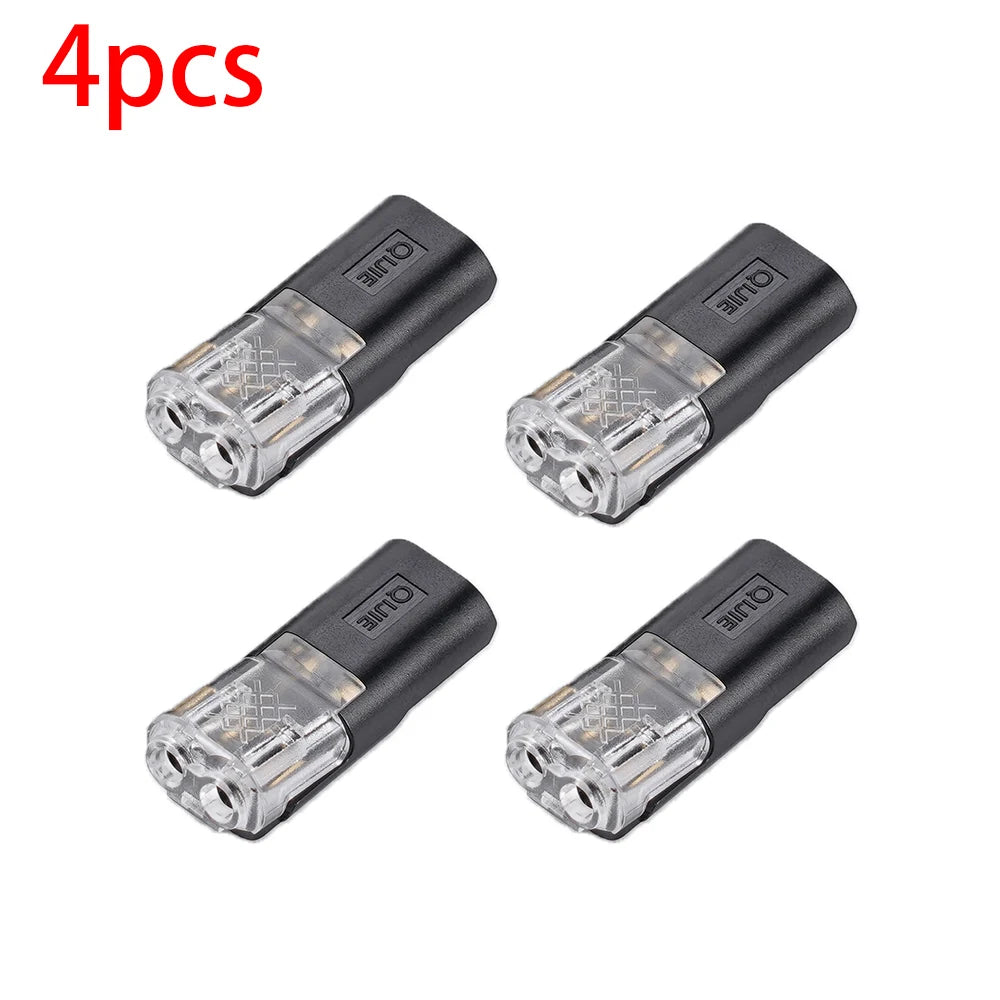

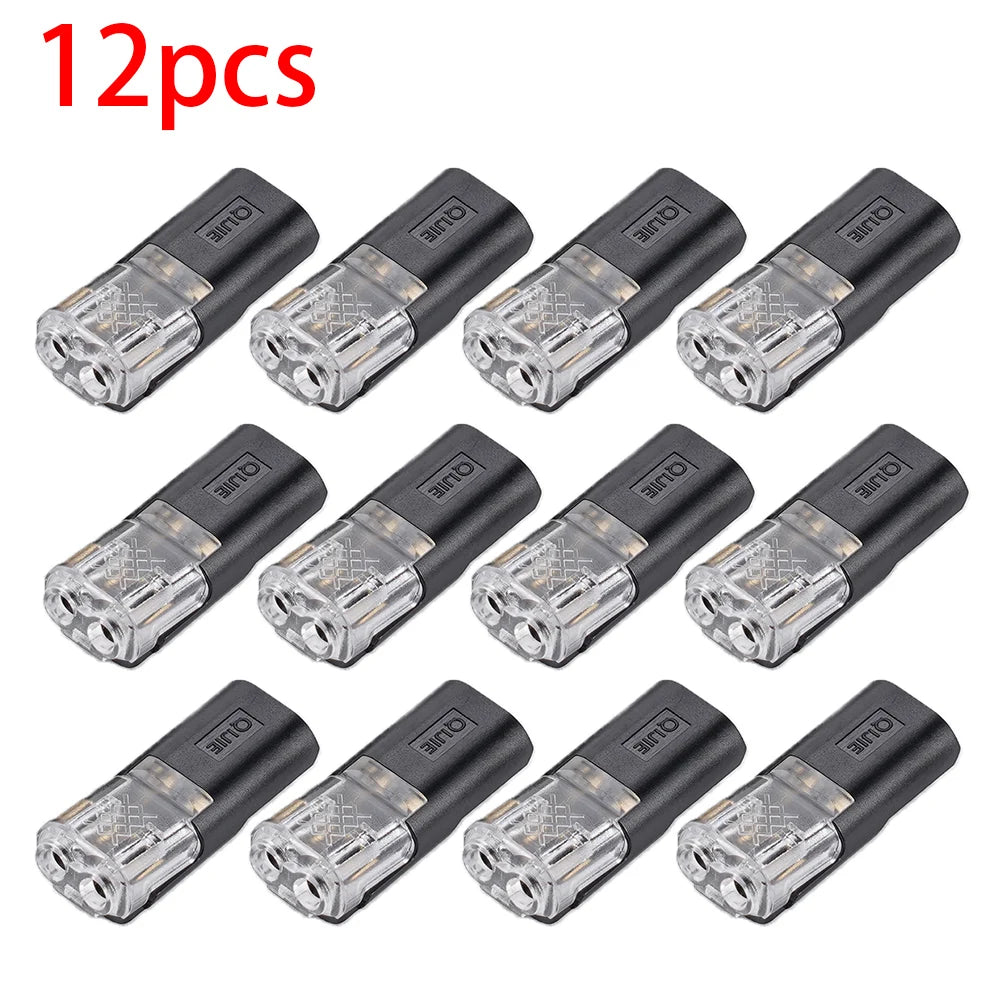

• 4 or 12 pieces LED Wire Connector 2 Pin

Warnings/Reminders

• Note: due to different measurement methods, product size may vary slightly.
• Note: color may vary slightly from the image due to display differences.
