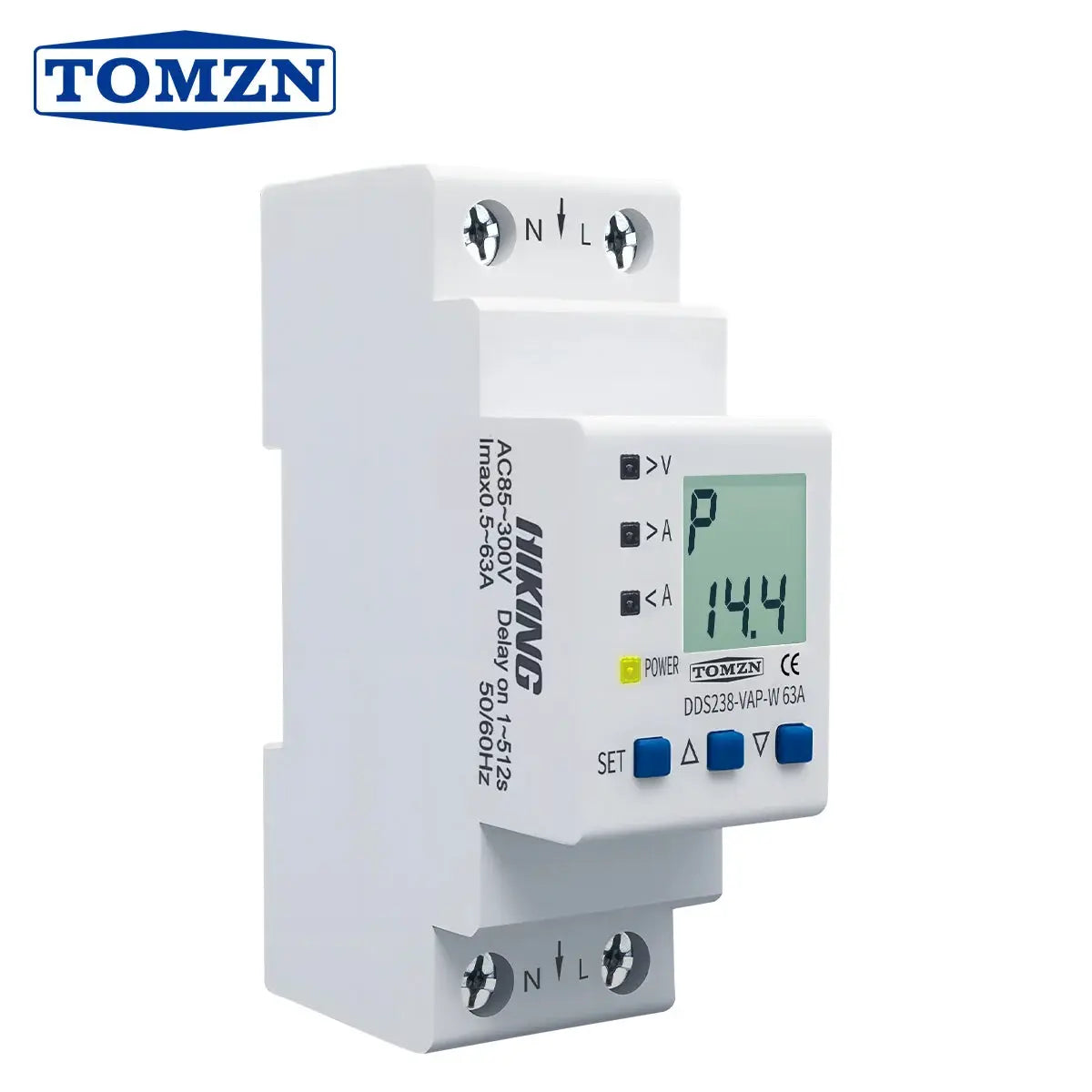

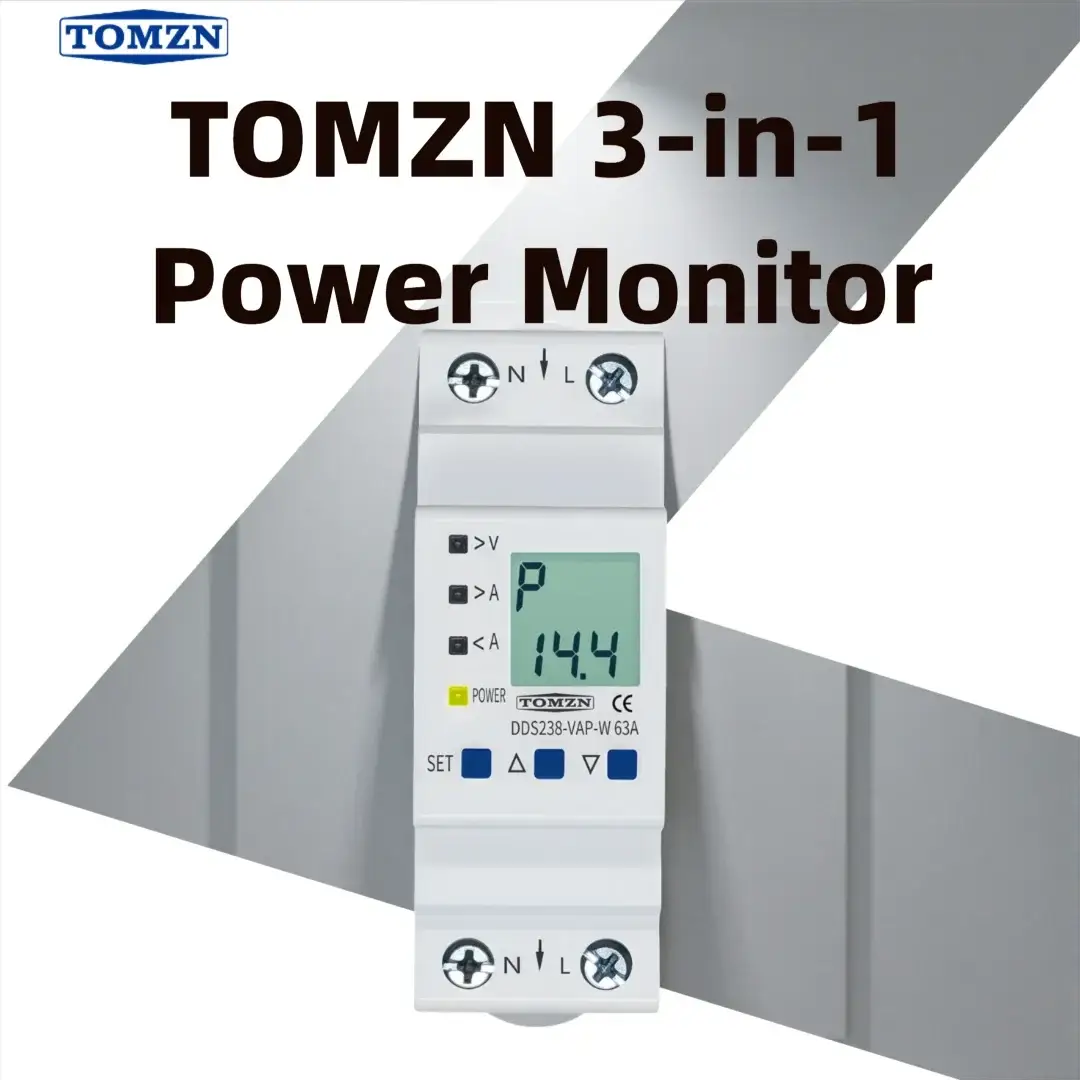

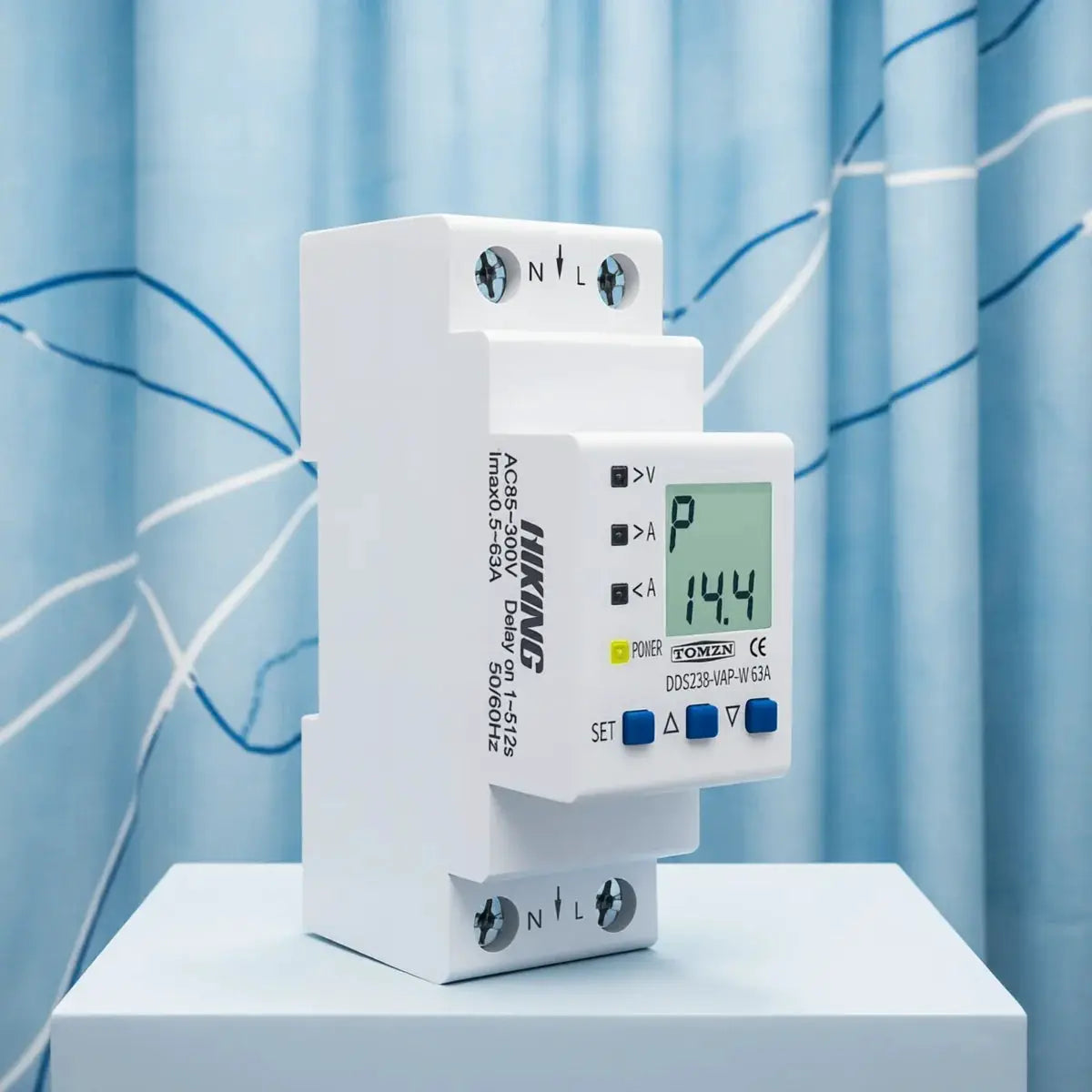

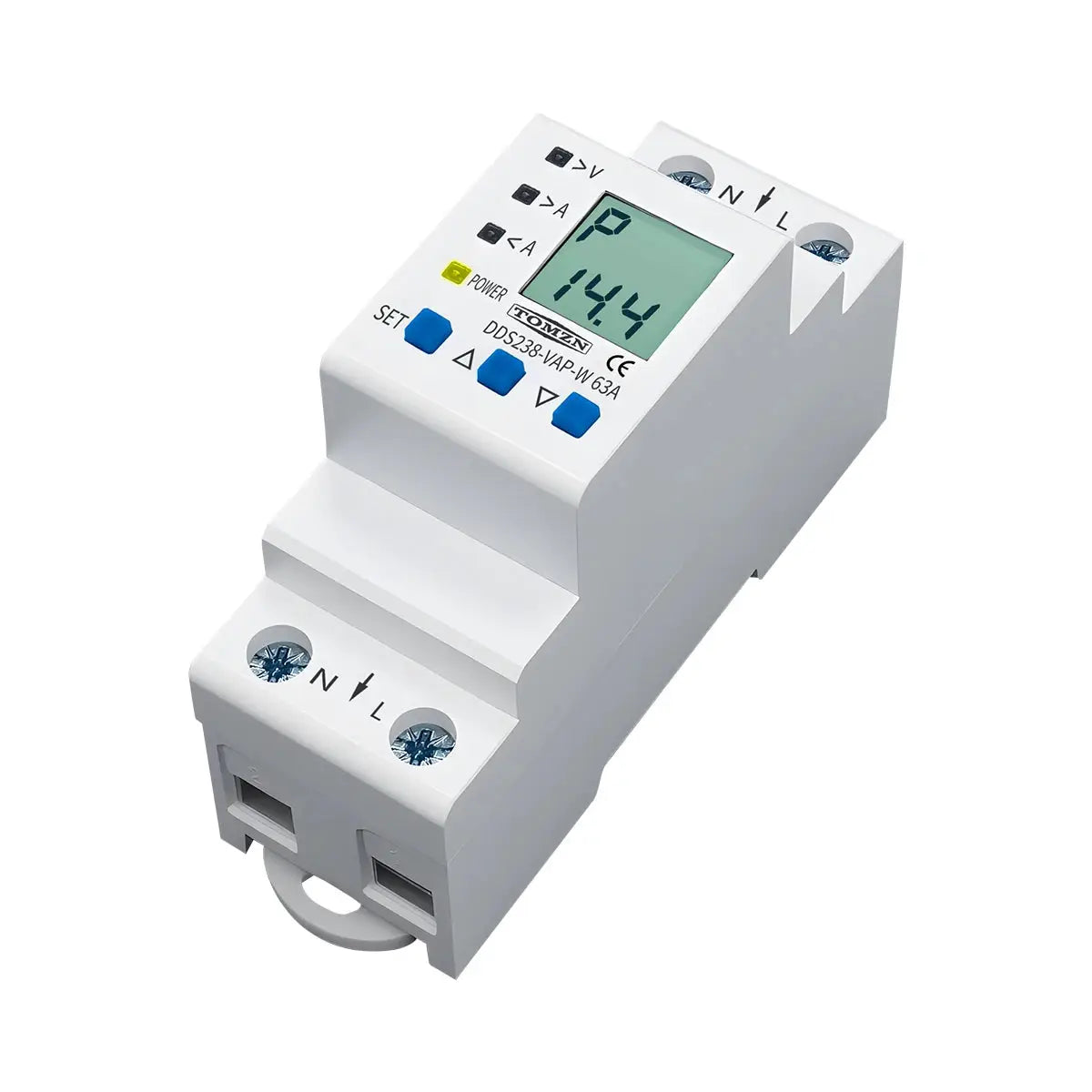

63A Adjustable Overvoltage and Undercurrent Protector Relay with Display
Protect a single-phase water pump from damaging current and voltage conditions while keeping energy use in view. The DDS238-VAP detects overcurrent when a water tower is full and undercurrent when a pipe runs dry, then disconnects the pump to help reduce water waste and prolonged motor operation.
Use the backlit LCD to check active energy, current, voltage and power at a glance. Choose automatic or manual reclosing, and set the power-on delay and pump recycle time to suit your pump routine.
Benefits & tips

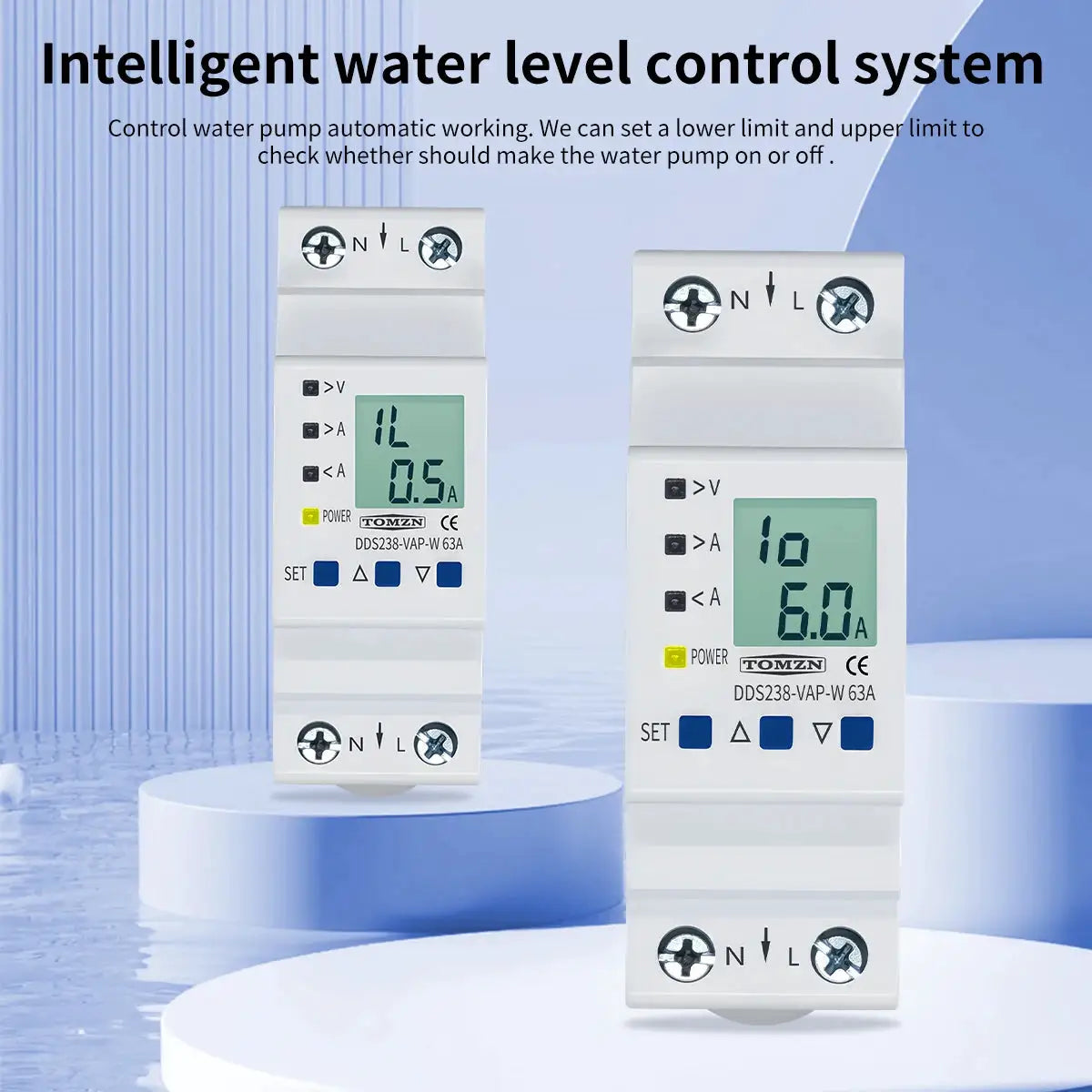

- Dry-pipe detection: Undercurrent protection can disconnect the pump when a pipe runs dry.
- Adjustable limits: Set overvoltage protection from 85–300 V and overcurrent protection from 1–63 A.
- Flexible restart: Select auto or manual reclosing and adjust the switch-on delay after power-off.
Product specifications
- Model and type: DDS238-VAP, single-phase two-wire AC active energy meter with pump control.
- Input and frequency: 85–300 V AC; 50/60 Hz; maximum current 63 A.
- Protection: Overvoltage, overcurrent, undercurrent and lightning protection; no undervoltage protection.
- Default limits: Overvoltage 270 V; overcurrent 40 A.
- Timing: Switch-on delay 2–255 seconds; active time 0.1–60 seconds; delay-off time 1–512 seconds; delay-on time 2–255 seconds.

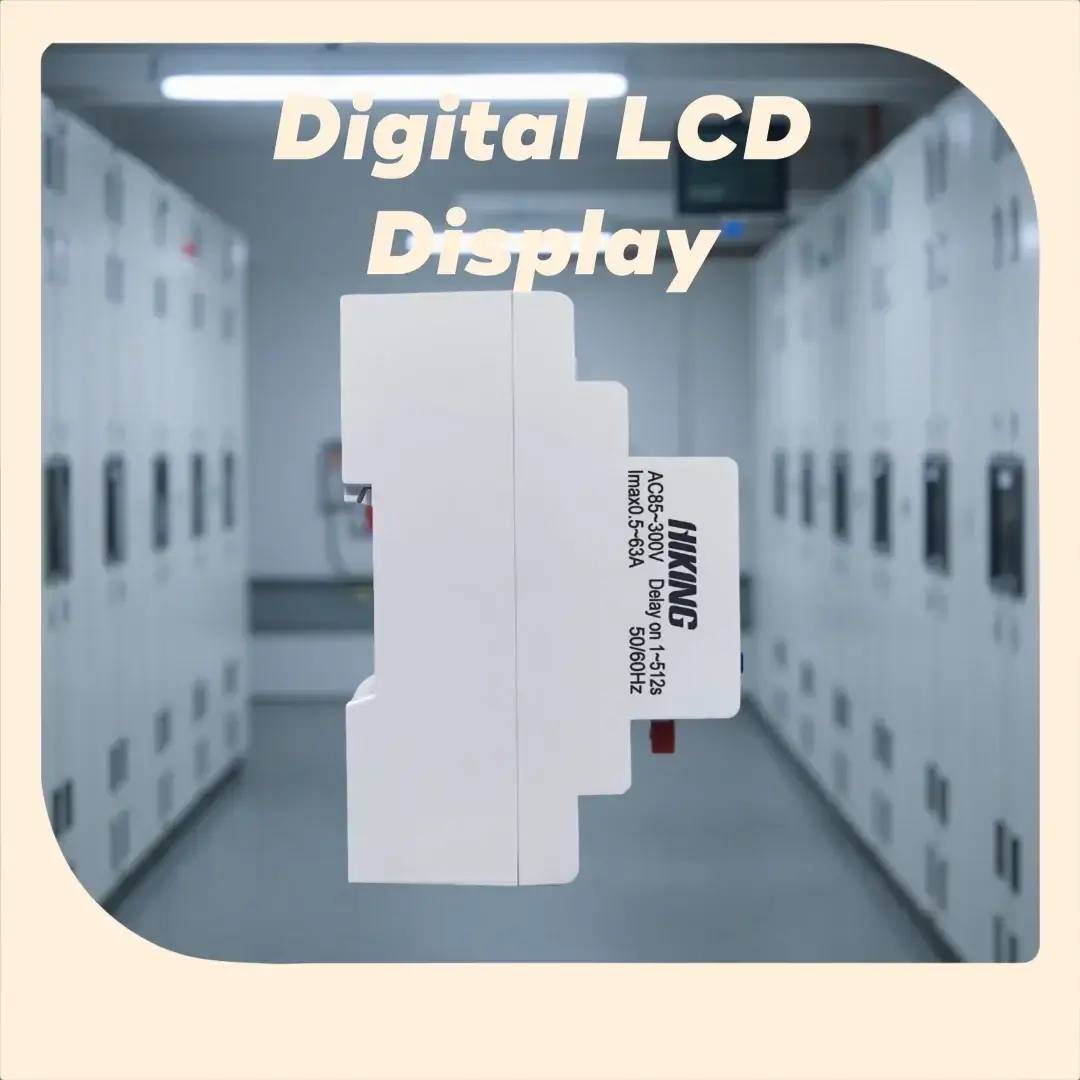

- Display and accuracy: Backlit LCD shows kWh, A, V and W; energy accuracy ±1%, voltage/current/power accuracy 0.50%.
- Operating conditions: −25°C to +70°C; relative humidity ≤85%; altitude ≤2500 m; mechanical life ≥100,000 cycles.
Package includes:
- DDS238-VAP water pump protective device.
Disconnect the load on power failure is a built-in function. This model is not a smart device and has no wireless functionality or battery.
CE-certified. All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.
