2.2KW Twin Cylinder Air Compressor Heads 12CFM Farm

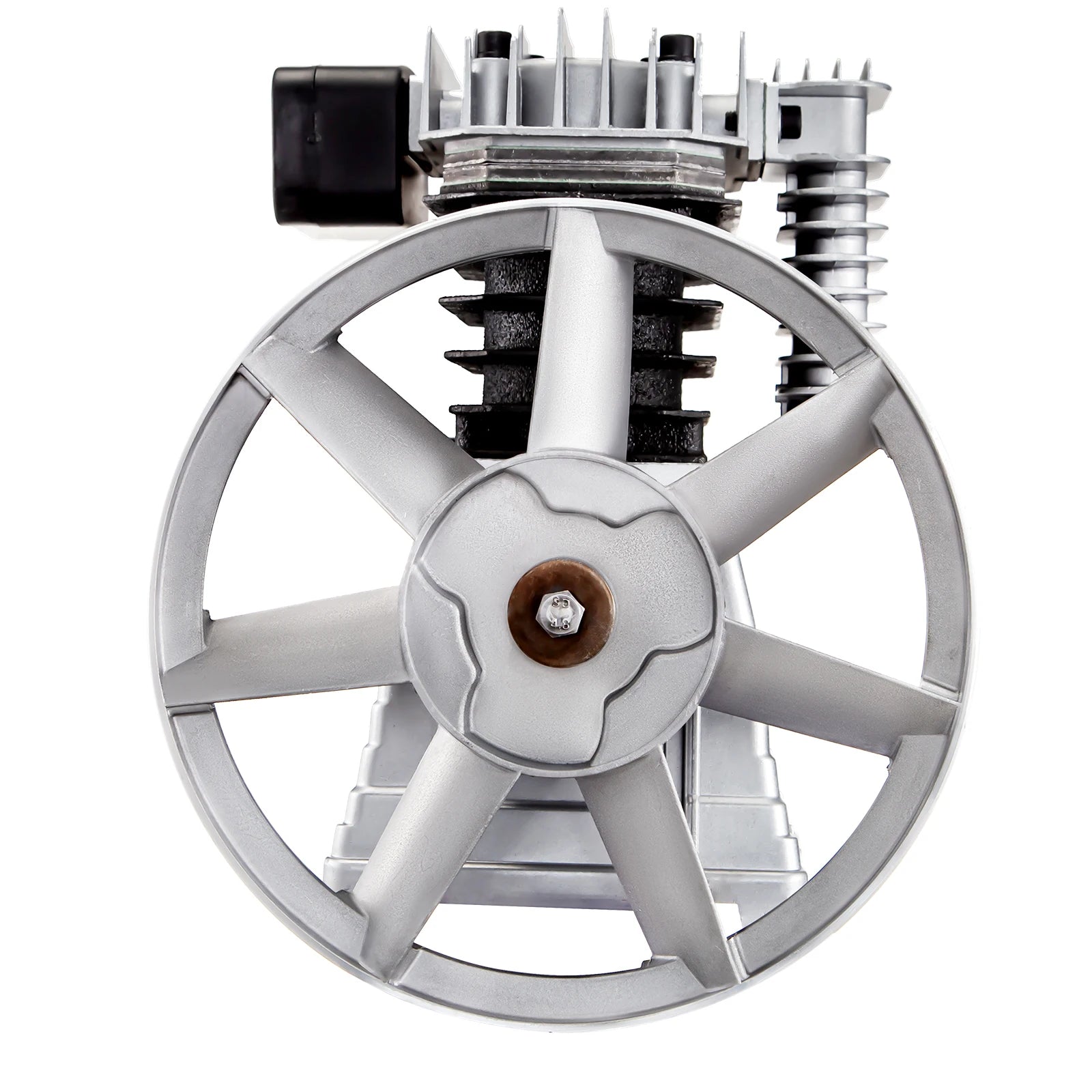

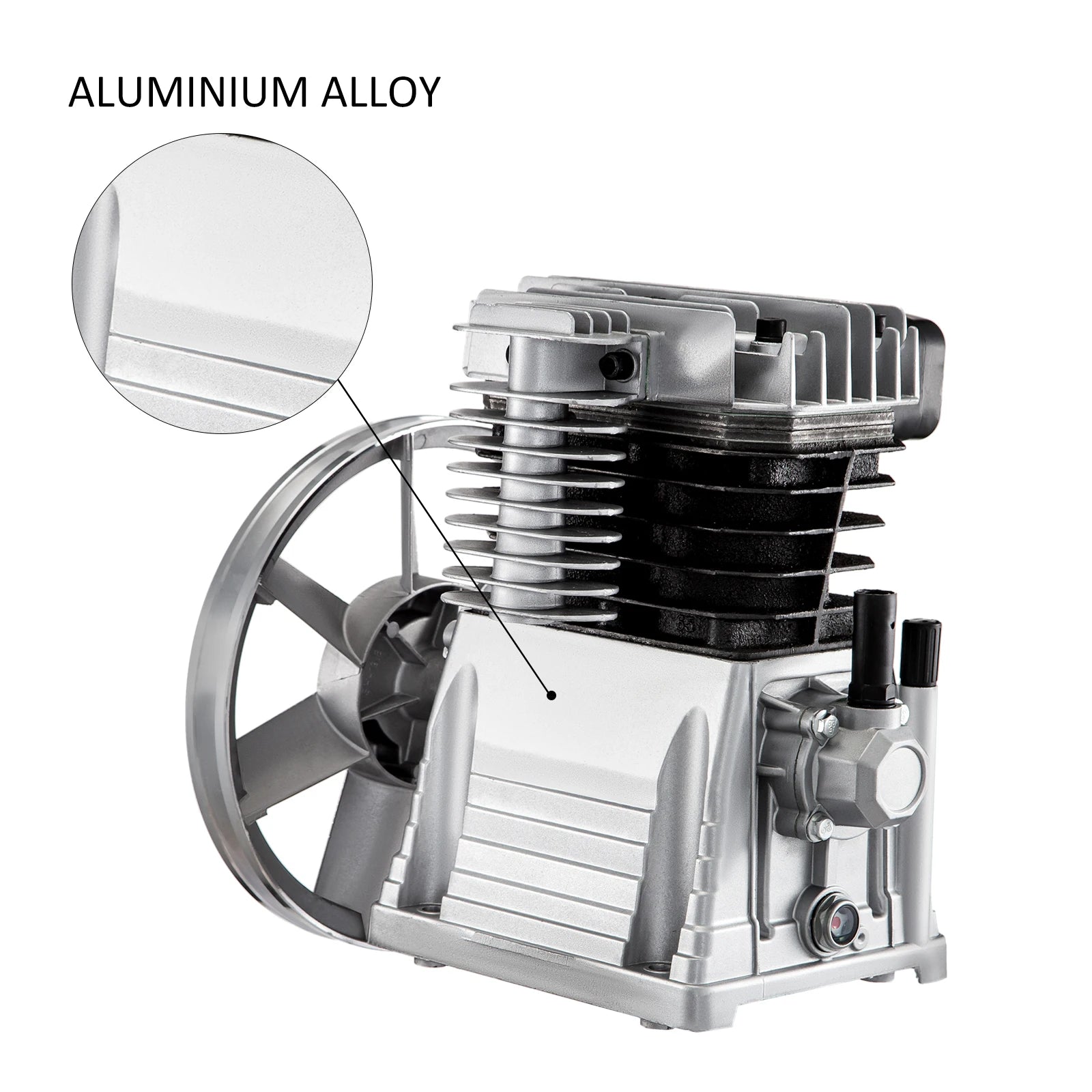

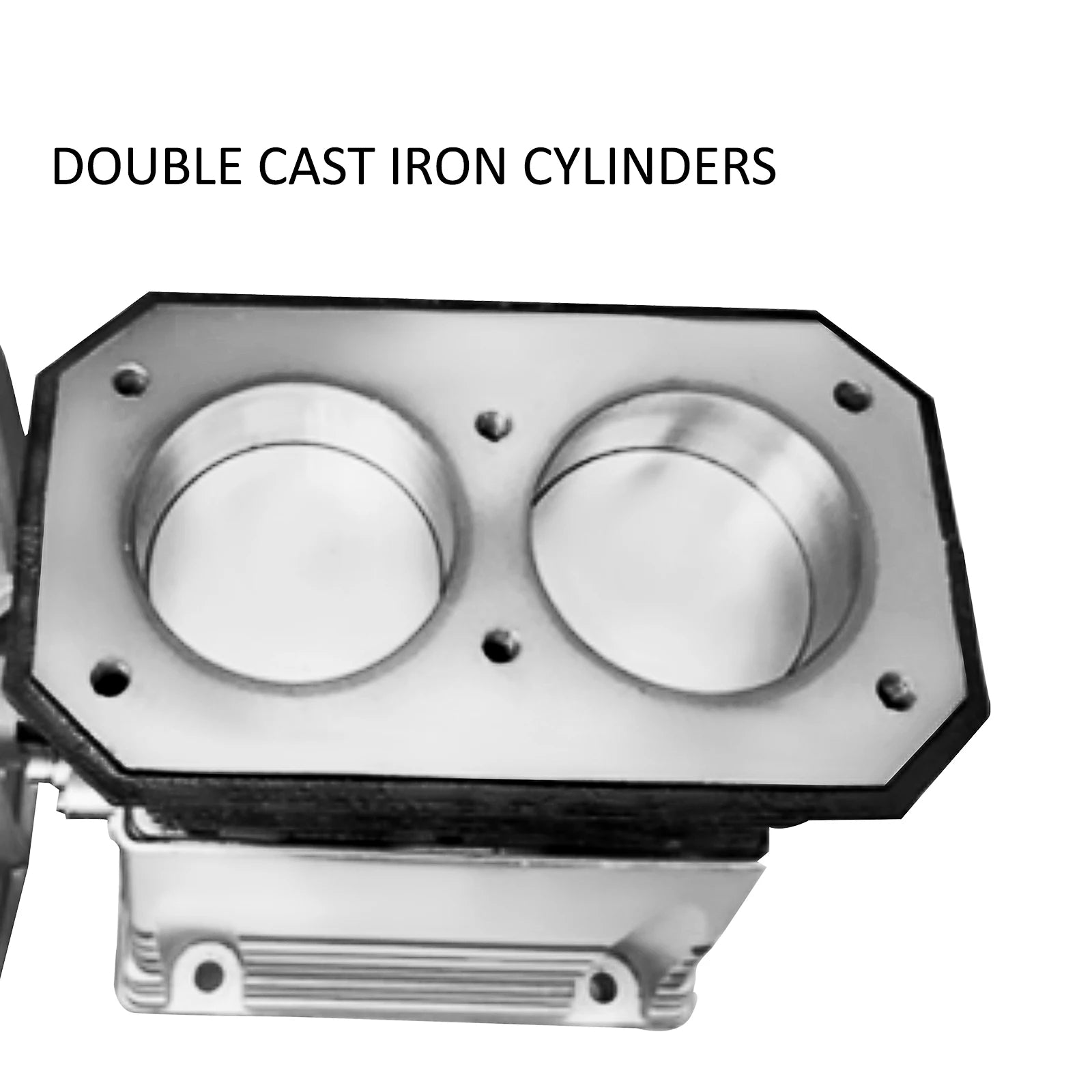

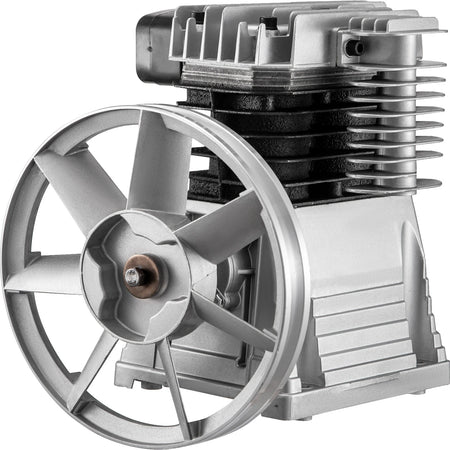

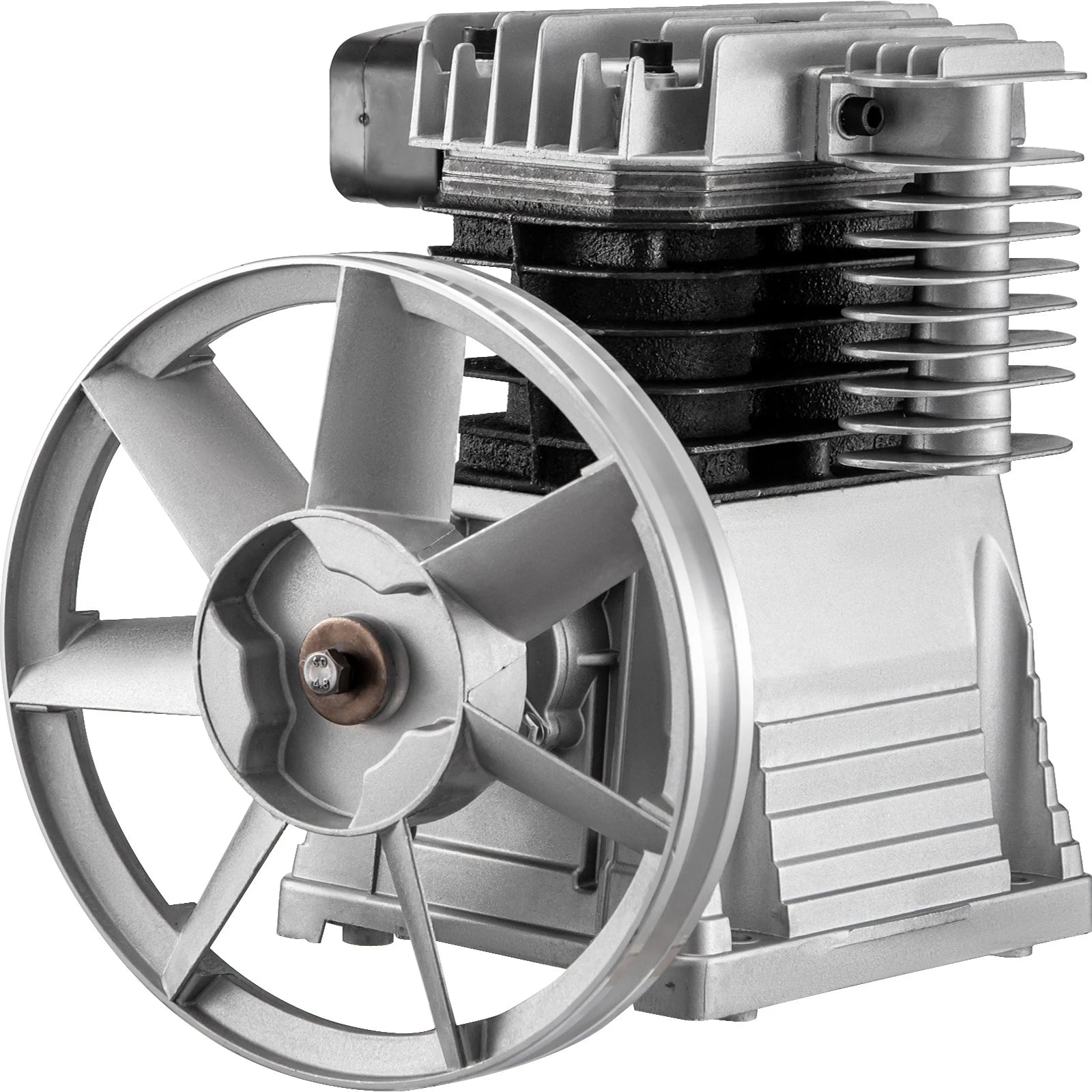

Meet the 2.2KW Twin Cylinder Air Compressor Heads — a robust, belt-driven single-stage pump designed to upgrade or expand your compressed air system. With a 2.2 kW power rating and a twin-cylinder configuration, this head delivers reliable performance in farming, industrial, and mechanical environments. The aluminum shell plus cast-iron cylinders provide excellent heat dissipation for longer life and easier maintenance.
The double-cylinder design minimizes vibration while maximizing cooling, and the belt-pulley drive ensures strong, stable compression even in dusty field conditions. An oil viewing window and oil drain plug let you monitor lubrication in real time, making maintenance intuitive and hassle-free. Built with high-quality components, this air compressor head is ready to replace a defective unit or expand an existing system.
Designed for versatile use, it fits seamlessly into a wide range of applications—from farming to chemical, electronic, textile, and food processing industries. Its efficient heat dissipation design keeps performance steady under load, while the rugged construction handles demanding environments with ease.
Benefits & Tips
- Replace a faulty compressor head or expand your current air system to meet higher demand without a full overhaul.
- Keep operations smooth in dusty or tough environments thanks to the belt-driven design and strong heat dissipation.
- Monitor oil level with the viewing window and perform proactive maintenance to extend pump life and reliability.
Product specifications
- Type: Piston Compressor
- Power: 2.2 kW
- Cylinder: 2 Cylinder
- Stages: Single Stage
- Capacity: 375 L/MIN / 12 CFM
- Sound Pressure Level LWA: 55 dB
- Pressure Max.: 11 bar / 159.5 psi
- Max. Rotation: 1300 rpm
- Dimensions (L x W x H): 7.9" x 6.5" x 12.4" / 20 x 16.5 x 31.5 cm
- Net Weight: 13.9 kg / 30.6 lbs
- Lubrication Method: Oil Lubricated Air Compressor
- Fast Heat Dissipation Design: Large Heat Sink Design
Package includes:
- 1 x Air Compressor Head
Warnings/Reminders
- Operate within the specified maximum pressure (11 bar / 159.5 psi) and ensure compatibility with your air system.
- Disconnect power before performing maintenance or adjustments.
- Use in appropriate environments and follow standard safety practices for compressed air equipment.
