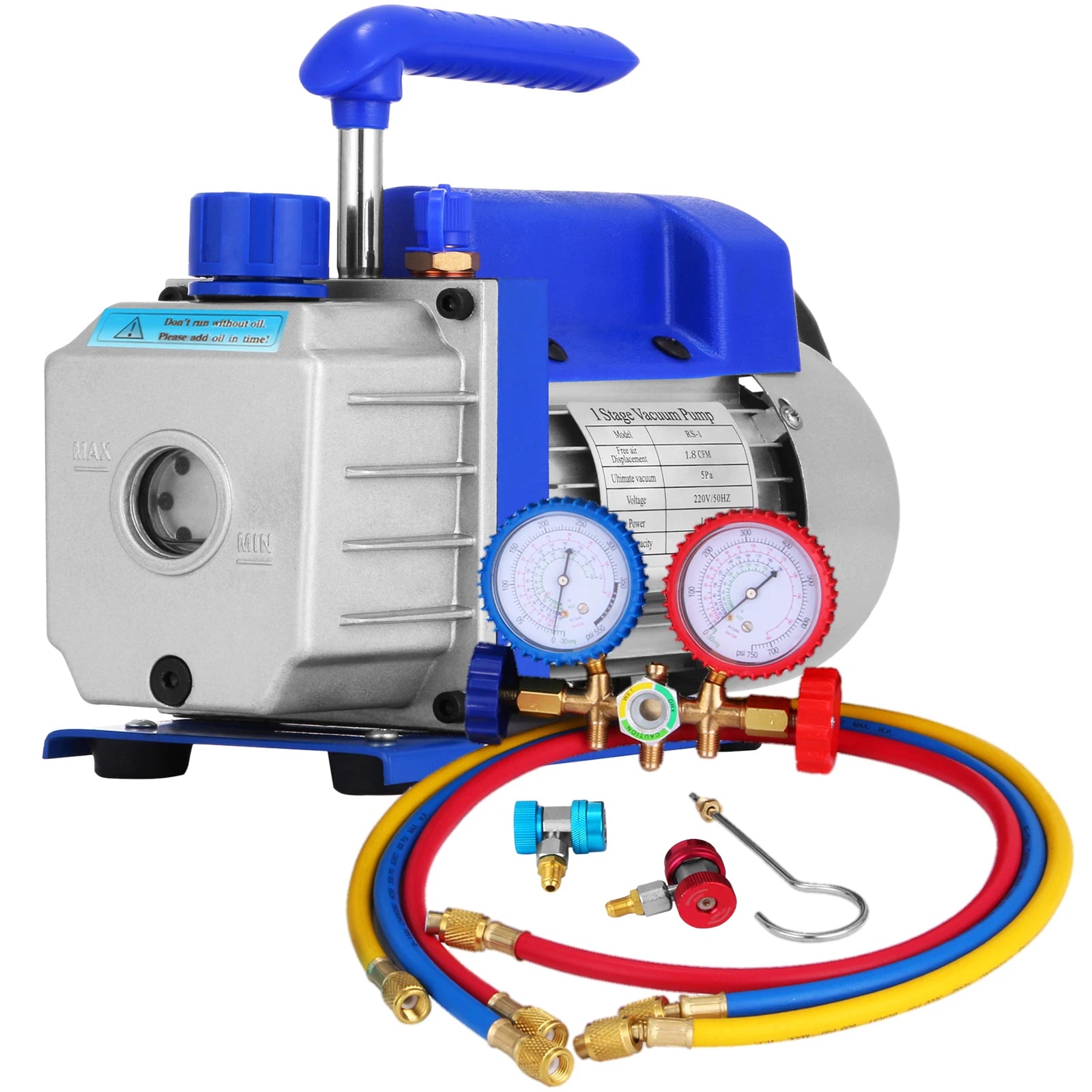

1.8CFM 1 Stage Vacuum Pump With Gauges Portable

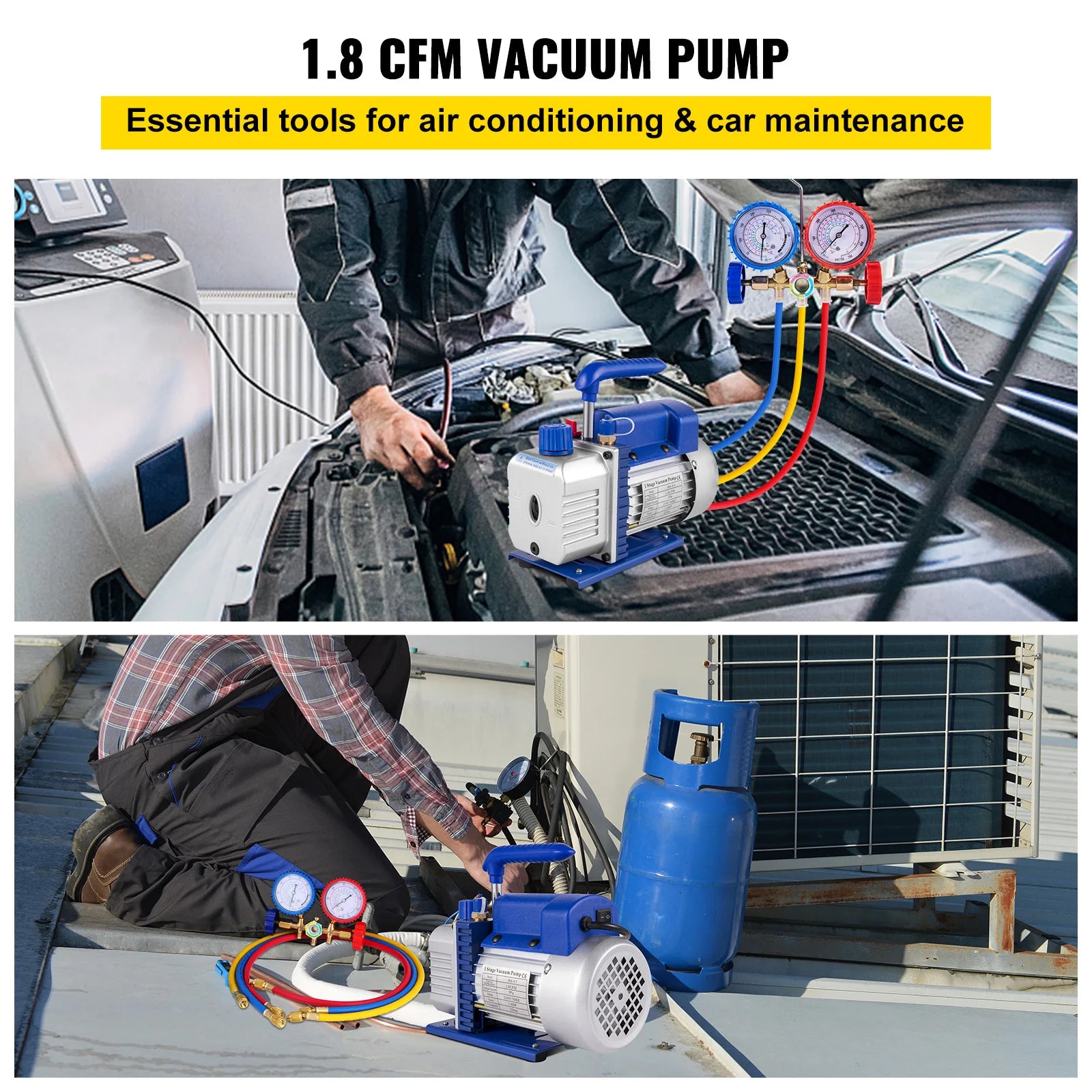

The 1.8CFM 1 Stage Vacuum Pump With Gauges Portable is your go-to solution for fast, reliable vacuum work in refrigeration and HVAC projects. Built for durability and portability, this pump delivers steady suction to help you remove air and moisture quickly, ensuring optimal system performance and faster service times. With a solid metal base, aeronautical vane materials, and a robust aluminum housing with a cooling fan, it stays reliable even during long jobs. It’s designed for R12, R134a, R22, R410a, R404 and R502 refrigerants, making it a versatile tool for technicians and enthusiasts alike. The integrated gauges provide precise readings, while the oil sight glass helps you monitor lubrication for consistent performance. All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.
Main Description

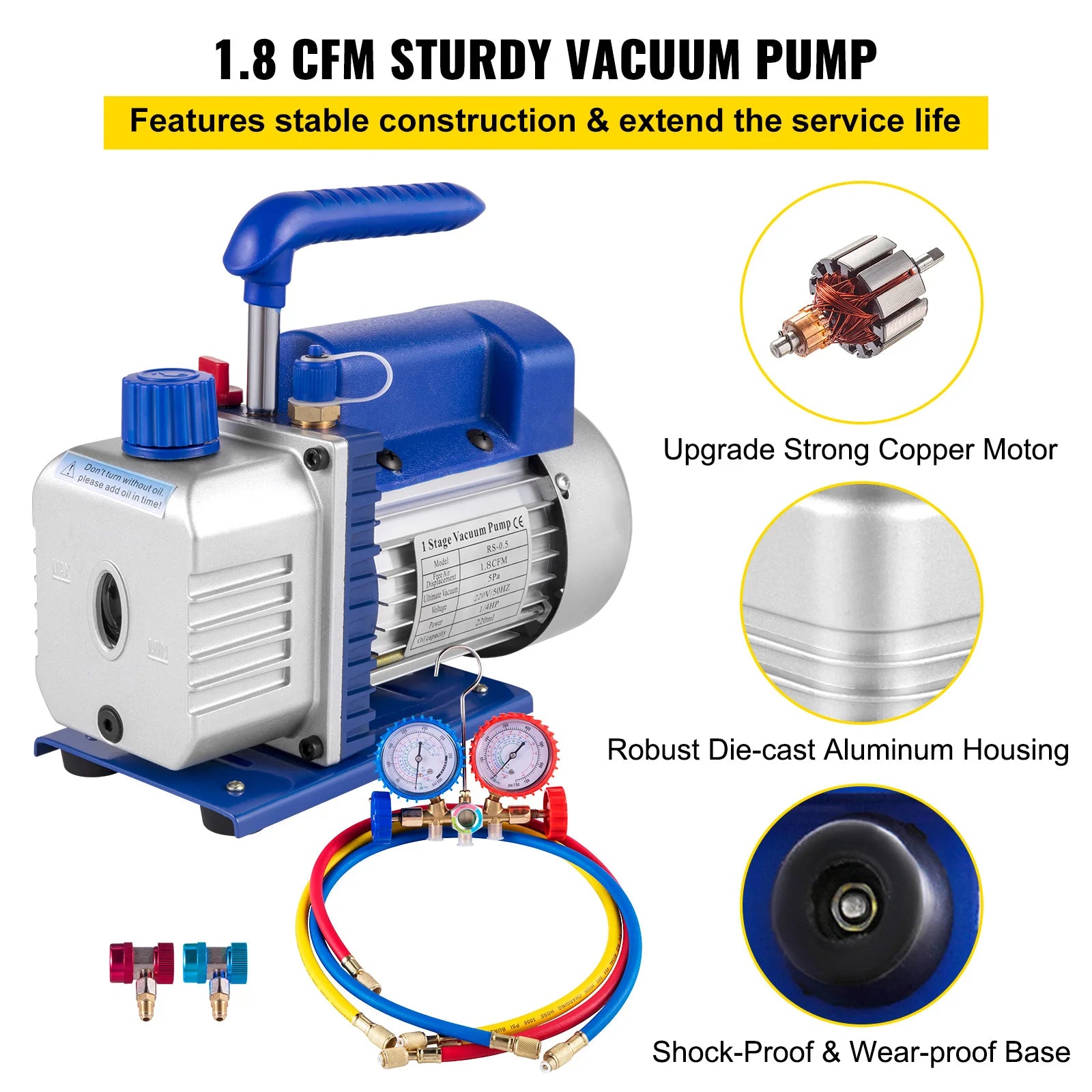

This 1.8 CFM single-stage refrigeration vacuum pump combines efficiency with practicality. The 1/4 HP motor runs at 1440 RPM on 220V / 60Hz, delivering up to 1.8 CFM (50 L/min) of free air displacement. Its closed-shell design, heavy-duty aluminum alloy housing, and built-in cooling fan optimize heat dissipation, so you can work confidently through multiple cycles. The pump features an oil anti-flow back design and an effective force-fed lubrication system, contributing to stable performance and longer life. Includes a precise manifold gauge system and color-coded hoses for quick, accurate vacuum testing. Compact and portable, it’s ideal for service calls, shop work, and field repairs where space and reliability matter. At intercyprus.com since 2002 — trusted for quality and reliability.
Benefits & Tips
- Fast, consistent vacuum performance: 1.8 CFM capacity and a robust motor deliver efficient evacuation of air and moisture for faster refrigerant recovery and better system performance.

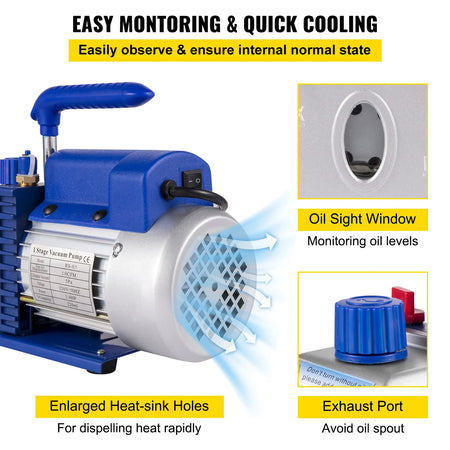

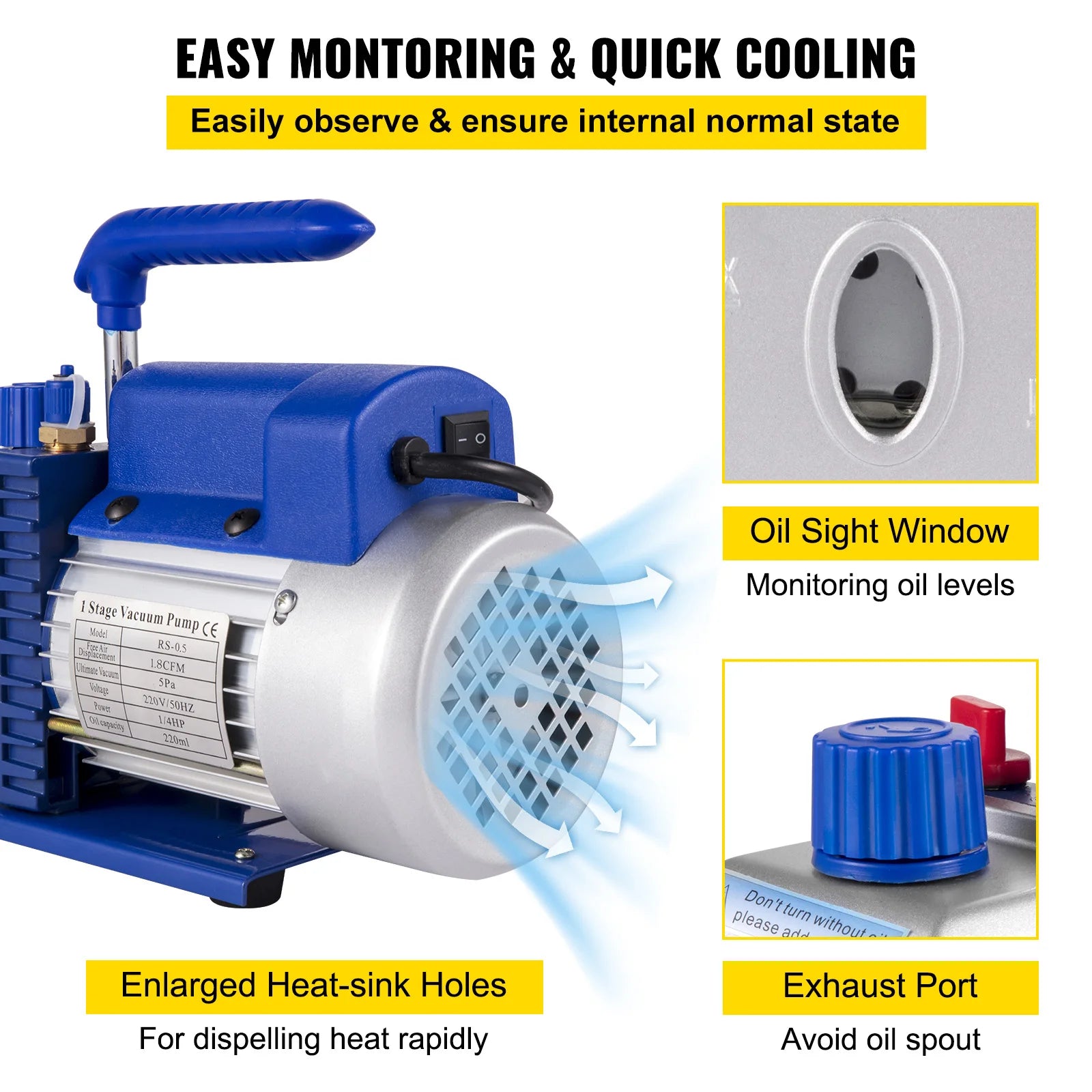

- Easy monitoring: Integrated gauges and an oil sight glass let you monitor vacuum levels and lubrication at a glance, helping prevent dry runs and oil starvation.
- Versatile and durable: Works with common refrigerants (R12, R134a, R22, R410a, R404, R502) and features a heavy-duty aluminum shell with a cooling fan to handle extended use.
Product Specifications
- Brand:
- Model: 1.8 CFM 1 Stage Refrigeration Vacuum Pump
- Free Air Displacement: 1.8 CFM (50 L/min)
- Ultimate Vacuum: 25 microns (≈0.3 Pa)
- High Pressure: 0–800 PSI
- Low Pressure: 0–500 PSI
- Hose Burst Pressure: 4000 PSI
- Hose Max Working Pressure: 800 PSI
- Intake Fitting: 7/16"
- Connection: 1/4" SAE
- Power: 1/4 HP
- Voltage: 220V / 60Hz
- Rotating Speed: 1440 RPM
- Shell Type: Closed
- Origin: Mainland China
- Certification: CE

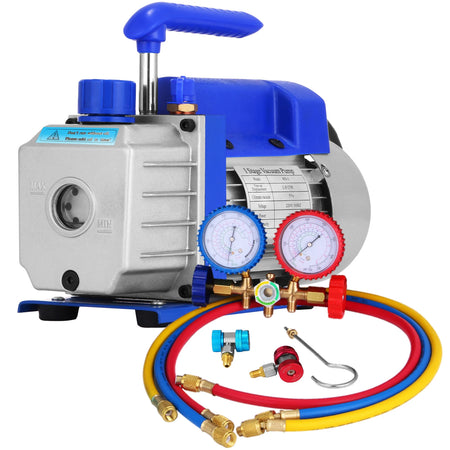

Package includes:
- 1 x 1.8 CFM 1 Stage Vacuum Pump

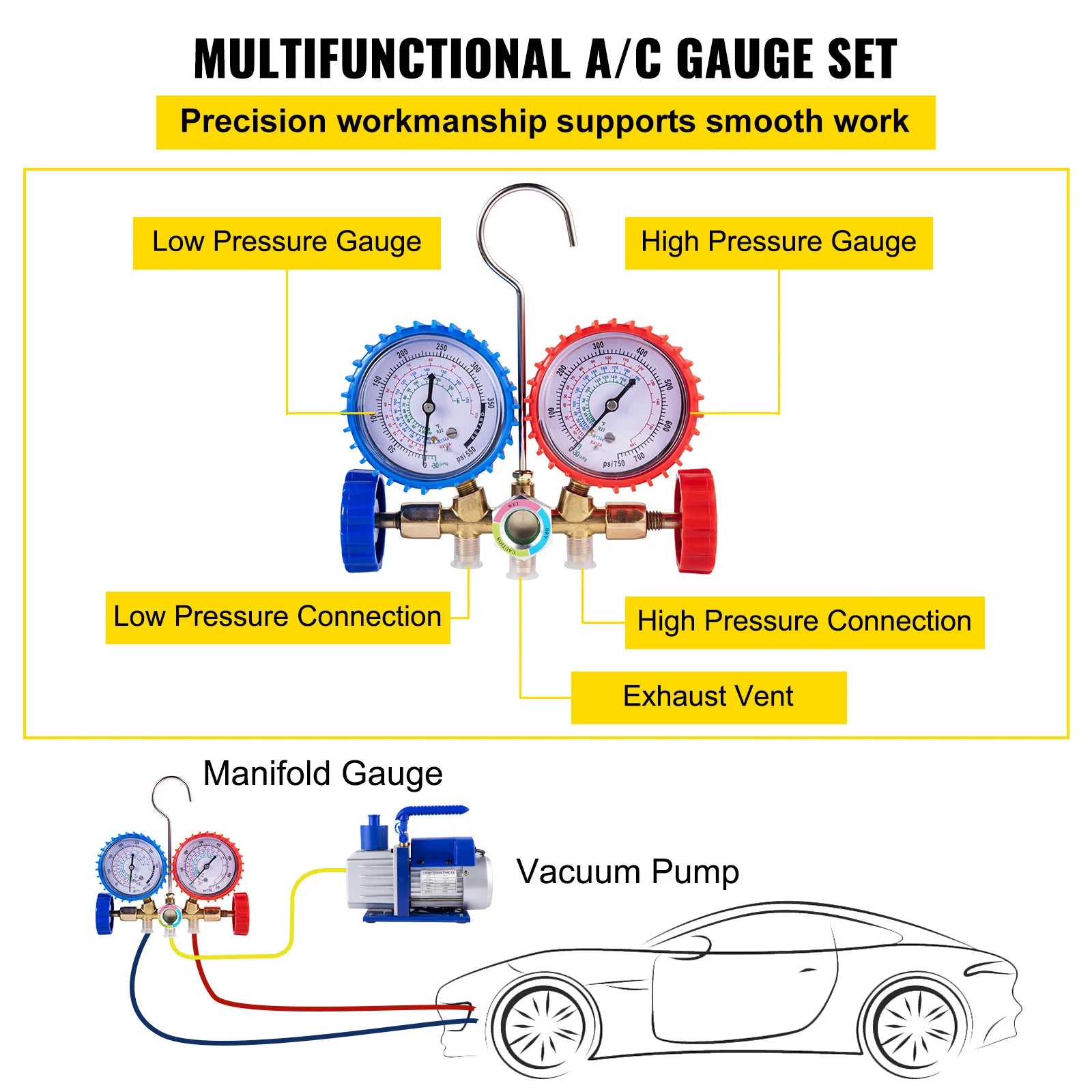

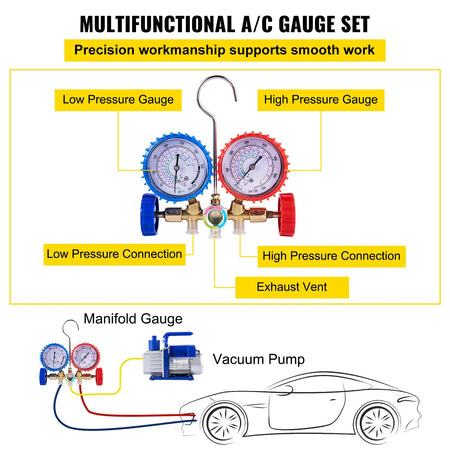

- 1 x Multifunction Manifold Gauge

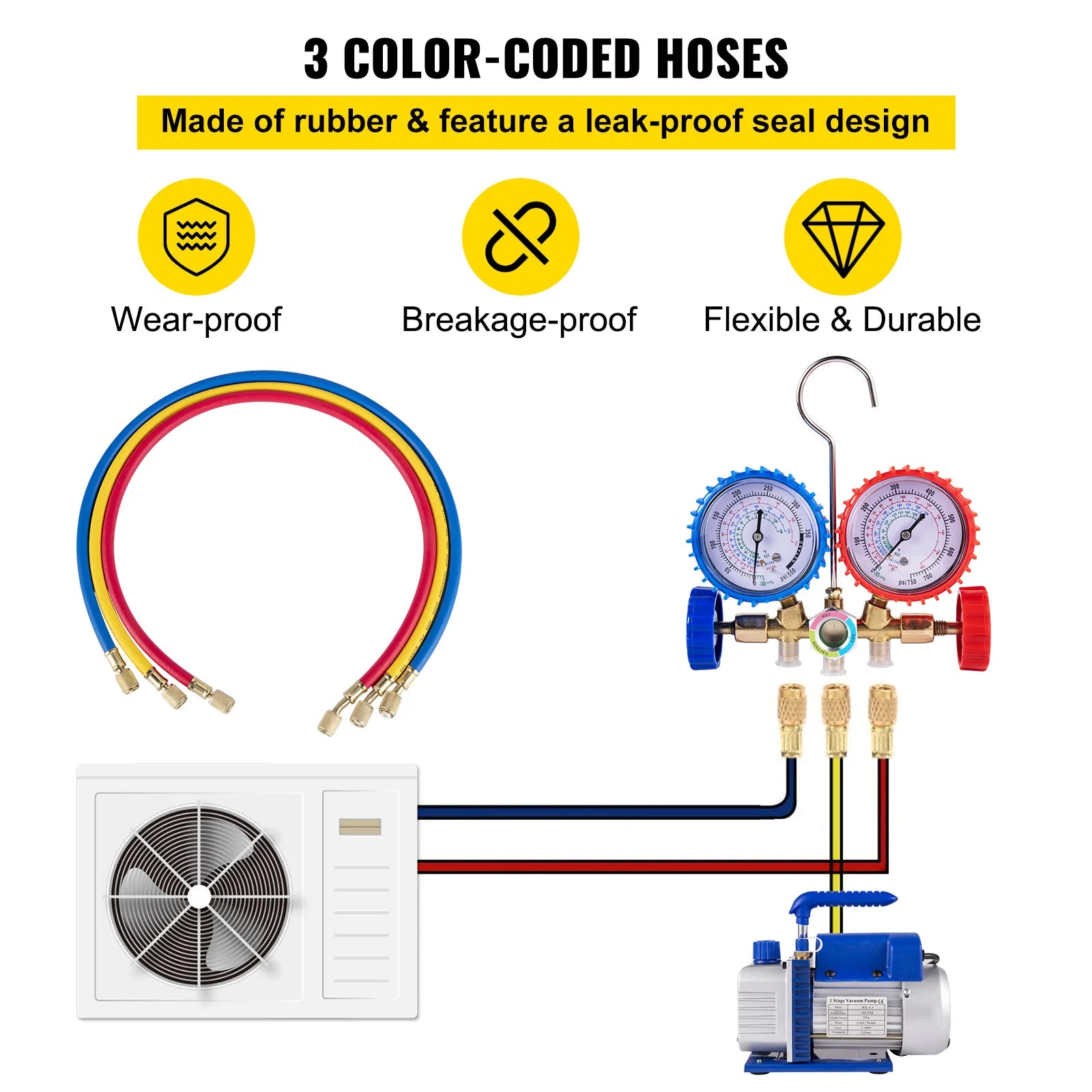

- 1 x Set of Three-Color Coded Hoses (Yellow, Blue, Red) with Brass Fittings
- 1 x Complete Refrigerant Tool Kit
- 1 x Oil Sight Glass for monitoring oil level
- 1 x User Manual
- Note: Oil not included.
Warnings / Reminders
- Oil not included — add the recommended oil before first use.
- Designed for 220V / 60Hz electrical systems; ensure compatibility with your power supply.
- CE certified with a two‑year warranty for EU customers.
