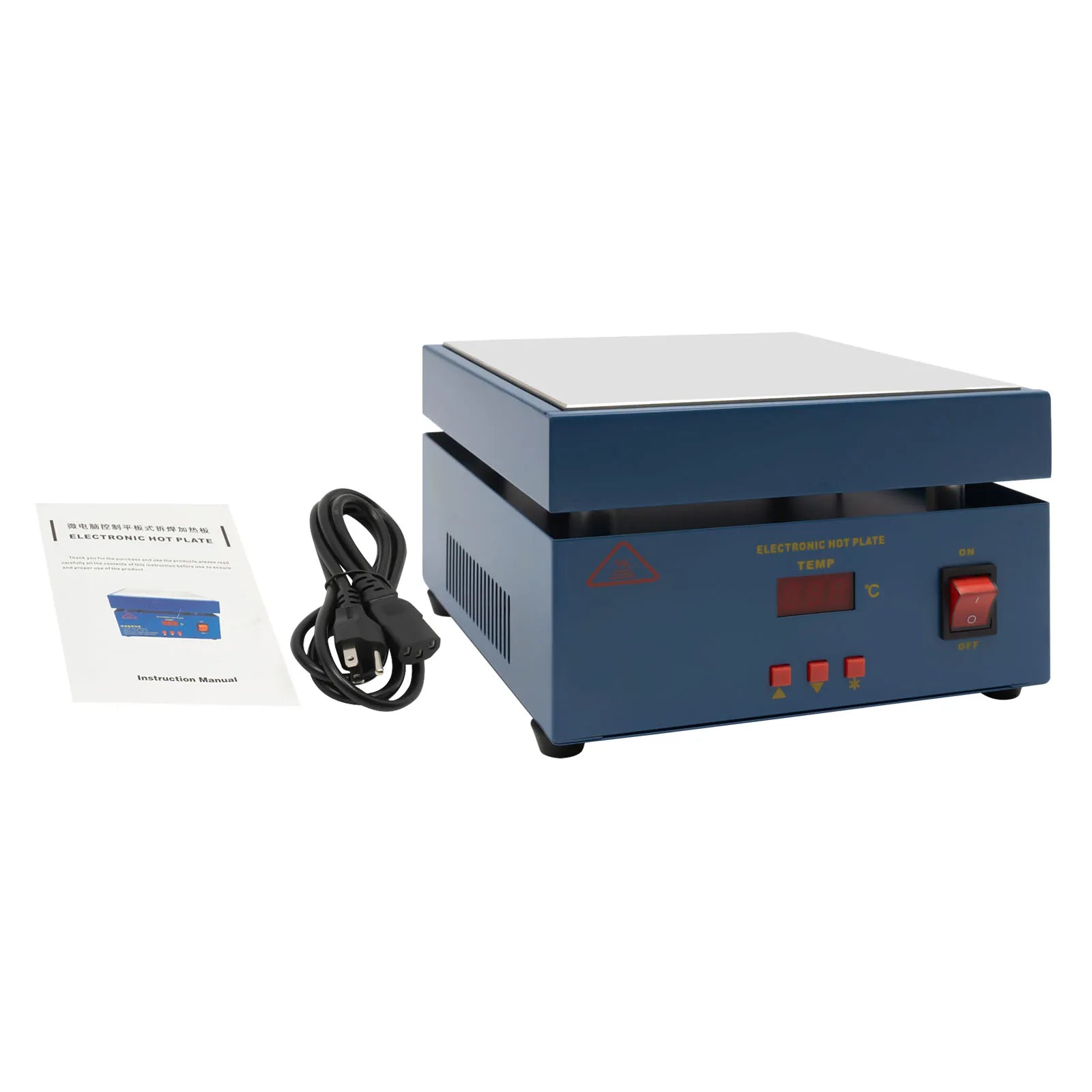

Upgraded 800W Soldering Station Microcomputer Preheat Plate
Meet the Upgraded 800W Soldering Station Microcomputer Preheat Plate—the fast, precise, and reliable workstation engineers and hobbyists reach for. Built with aerospace aluminum and a high-quality aluminum alloy heating plate, this station delivers rugged durability, excellent heat transfer, and stable performance under demanding soldering tasks. Its integrated, installation-free design gets you up and running in minutes, not hours.

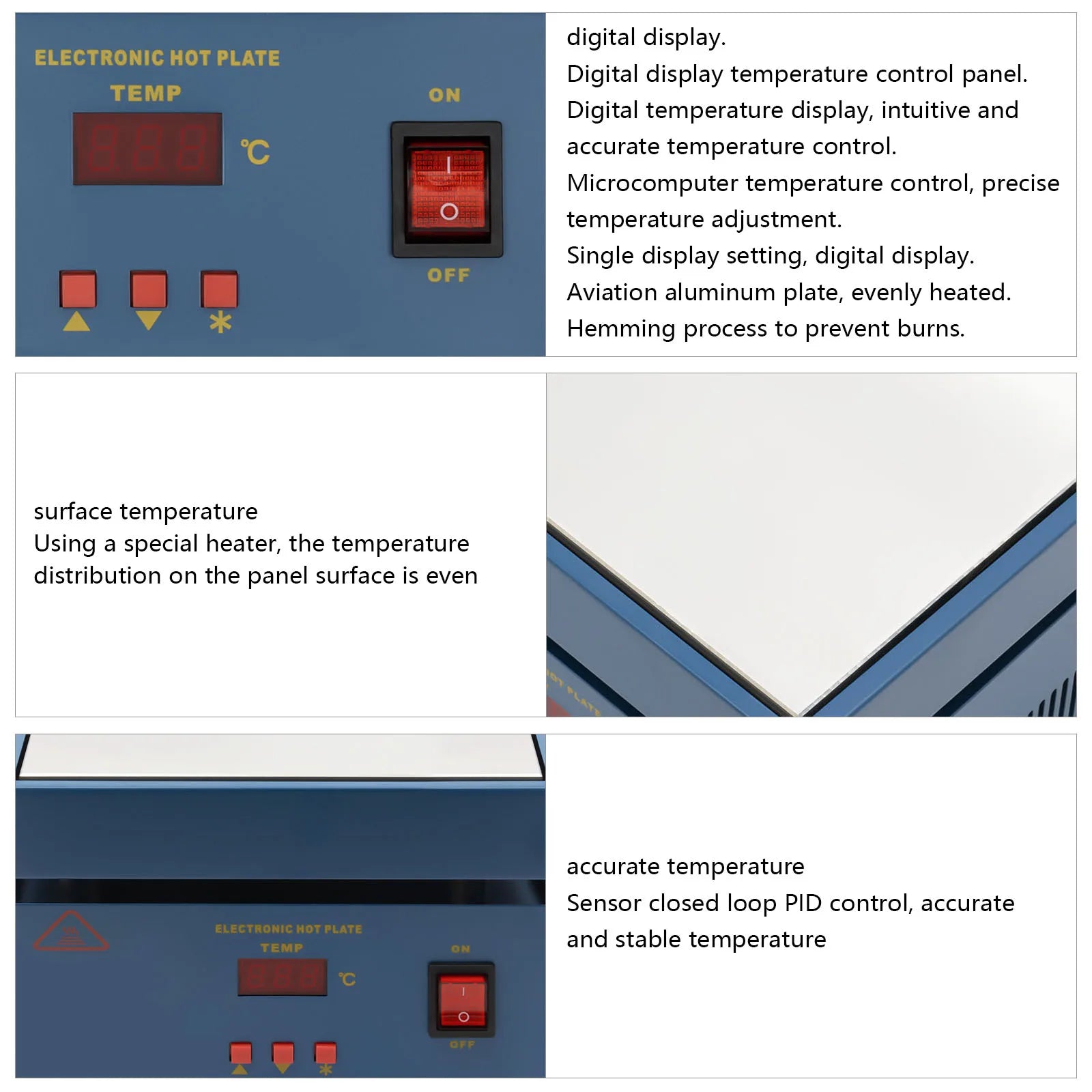

Experience precise temperature control with micro-computer PID regulation and a sensor closed-loop system. The HD LCD display shows temperature in three digits with a 1°C (or 1°F) resolution, and the temperature stability is within ±1.5°C (34.7°F). With a heat range from room temperature to 350°C (662°F) and two modes—Normal and Instant—you can fine-tune heat for delicate components or rapid preheating, improving joint quality and workflow efficiency.

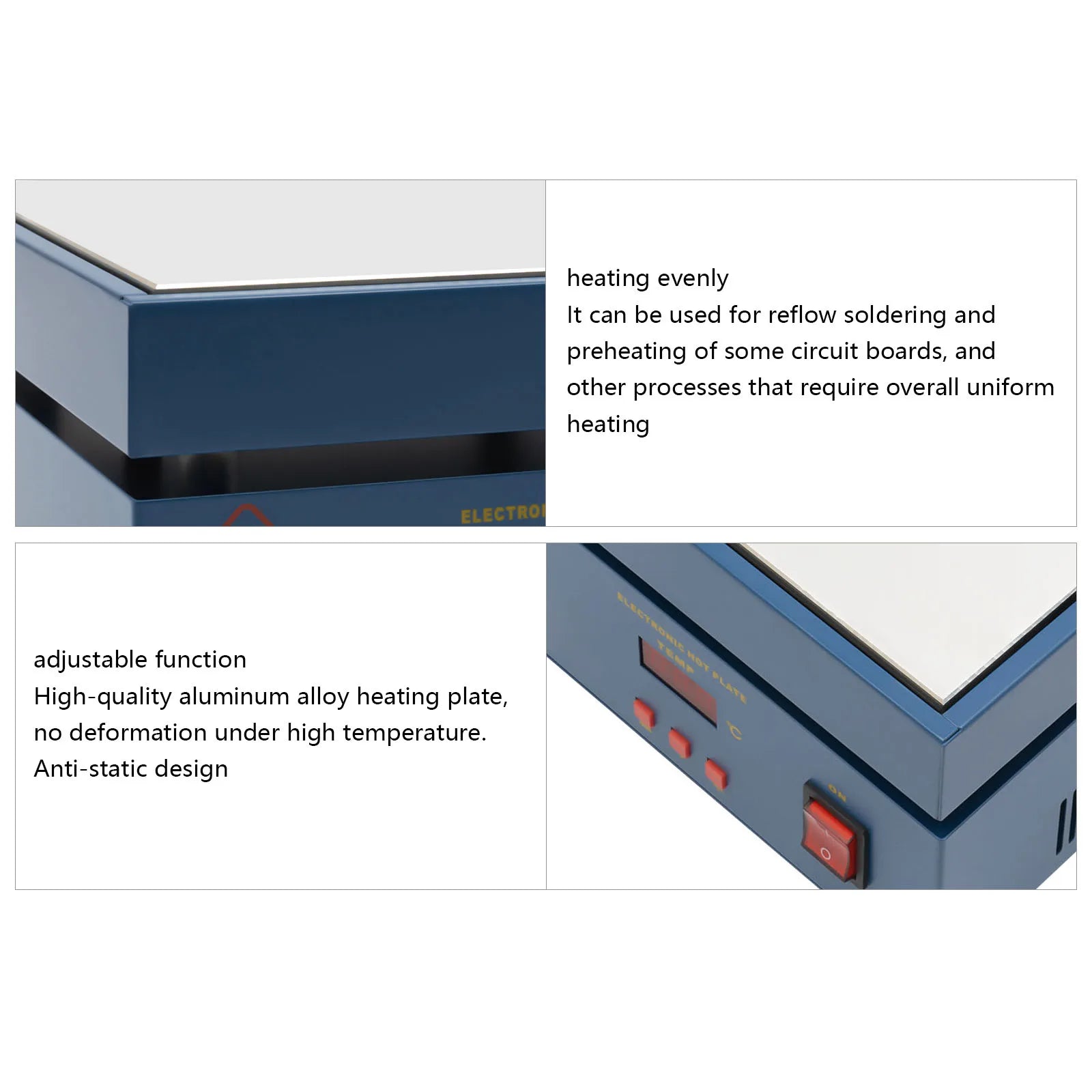

Thoughtful design details boost safety and stability: four-sided structure with non-slip feet, edge-wrapped heater plate to reduce accidental contact, and anti-static aluminum alloy components for safer handling. The station’s high-power 800W heating and multi-tube design ensure fast heat-up and even surface temperature distribution for consistent results across your boards.
Benefits & Tips
- Use for precise soldering of small components, preheating PCBs before reflow, and tinning wires to improve joint quality.
- Switch between Normal and Instant settings to balance steady heating with faster preheating depending on your task.
- Keep the work surface protected with the four-sided stable footprint and non-slip feet, and always connect the ground wire before use for safety.
Product Specifications
- Brand: CNCEST
- Model: Upgraded 800W Soldering Station Microcomputer Preheat Plate
- Input: 220-250V AC 50/60Hz
- Power: 800W
- Temperature Range: Room Temperature to 350°C (662°F)
- Display: Three Digits (HD LCD Digital Display), 1°C/33.8°F resolution
- Temperature Stability: ±1.5°C / 34.7°F
- Control: Micro-computer PID with sensor closed loop
- Material: Aerospace Aluminum, Aluminum Alloy
- Color: Blue
- Surface: Brushed, Baked
- Process: Brushed, Baked
- Assembly: No (Installed/Ready to use)
- Product Size: 20 × 20 × 20 cm (7.8 × 7.8 × 7.8 in)
- Package Size: 28 × 28 × 22 cm (11 × 11 × 8.66 in)
- Gross Weight: 3.5 kg (7.7 lbs)
- Includes Heat Dissipation Holes for multi-angle cooling
- Origin: Mainland China

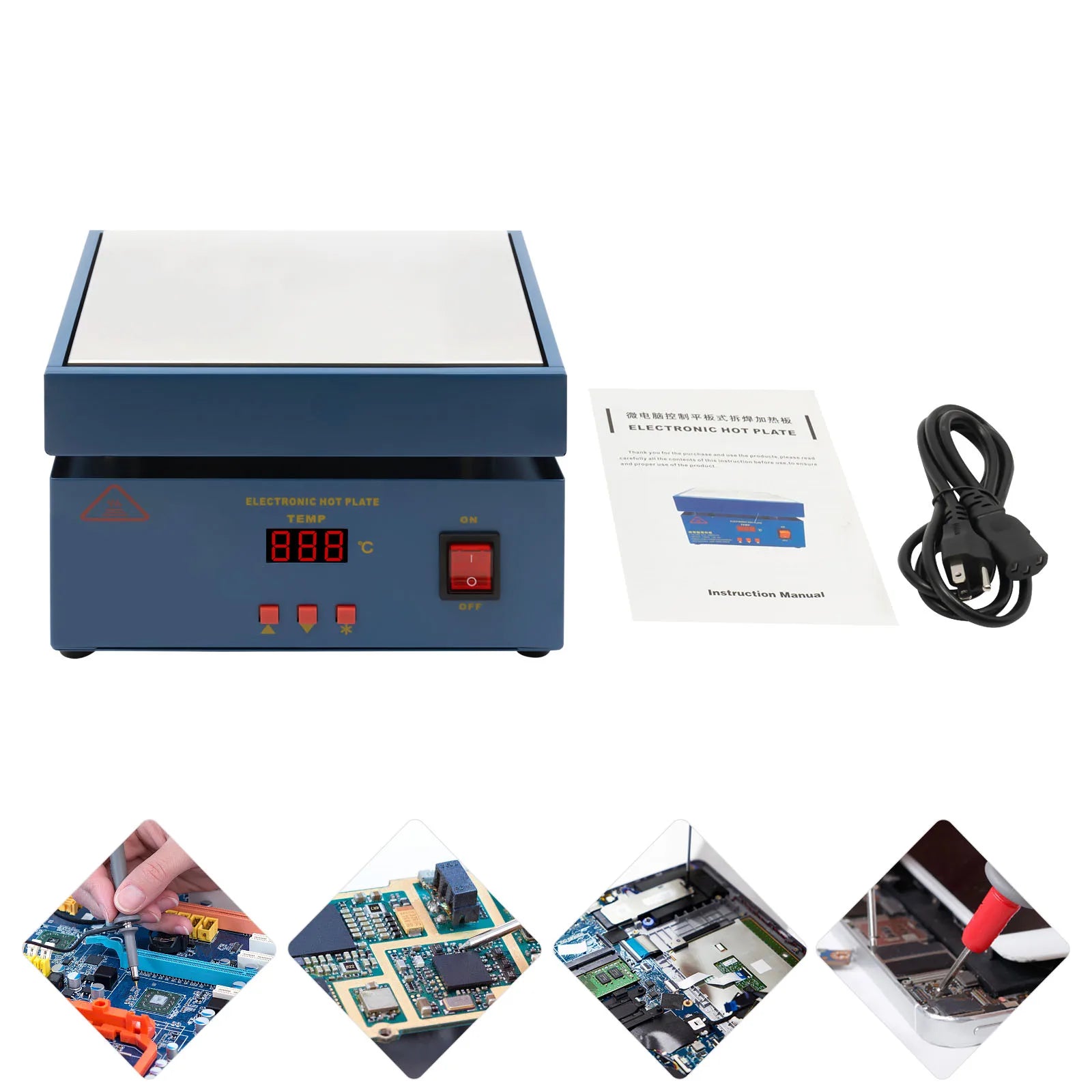

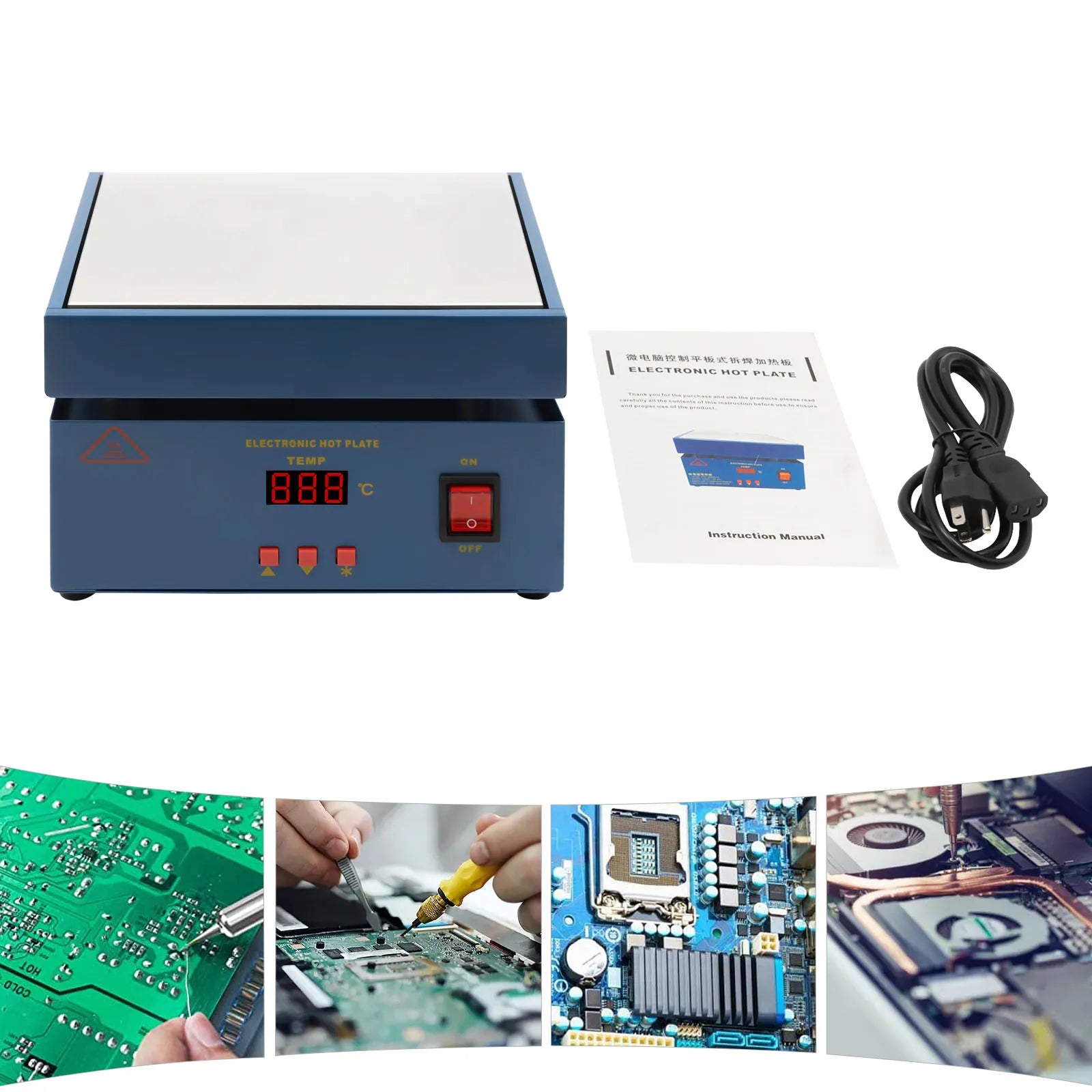

Package Includes
- 1 × Microcomputer Electric Hot Plate
- 1 × Chinese and English Manual
- 1 × Power Cord
Warnings / Reminders
- Please connect the ground wire before use.
