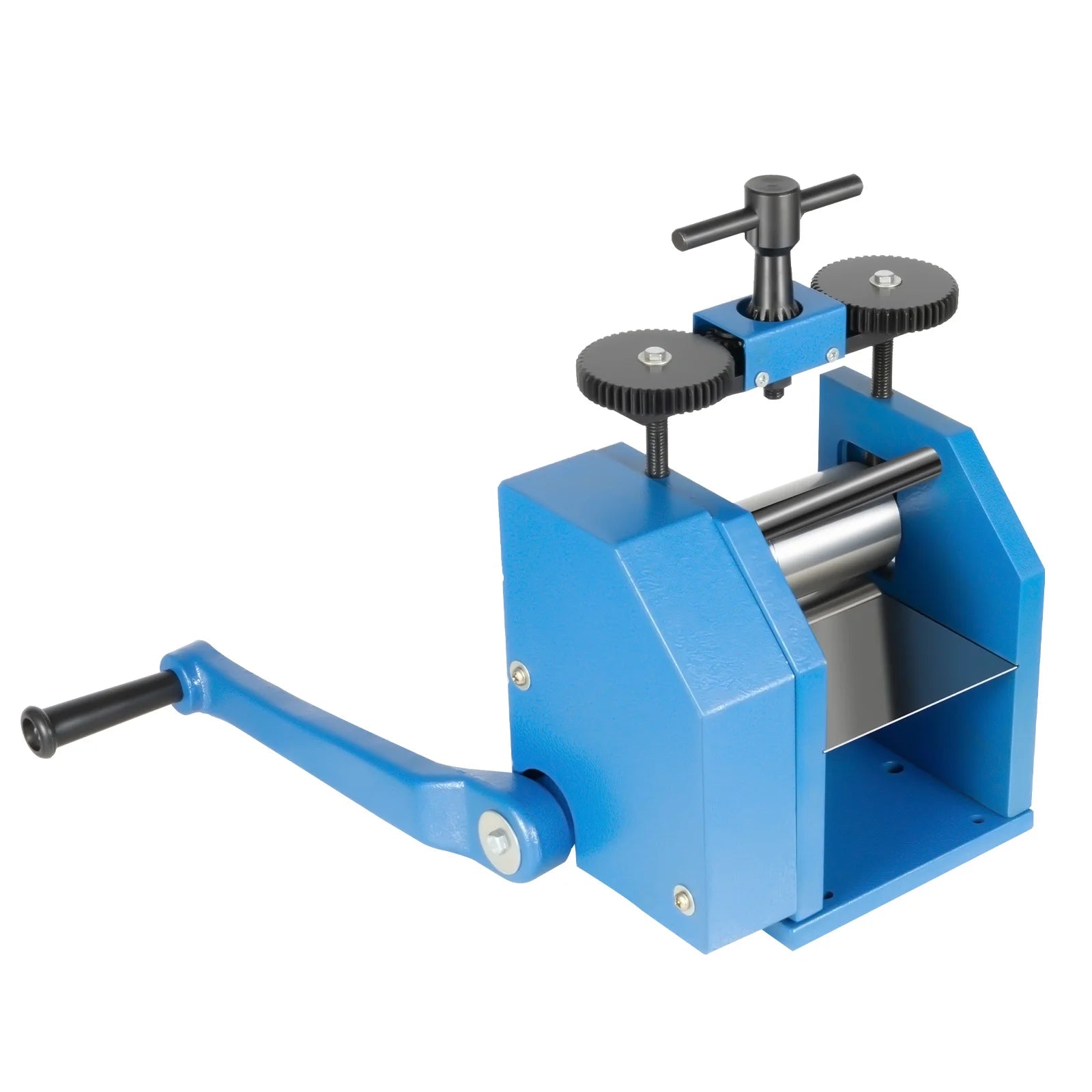

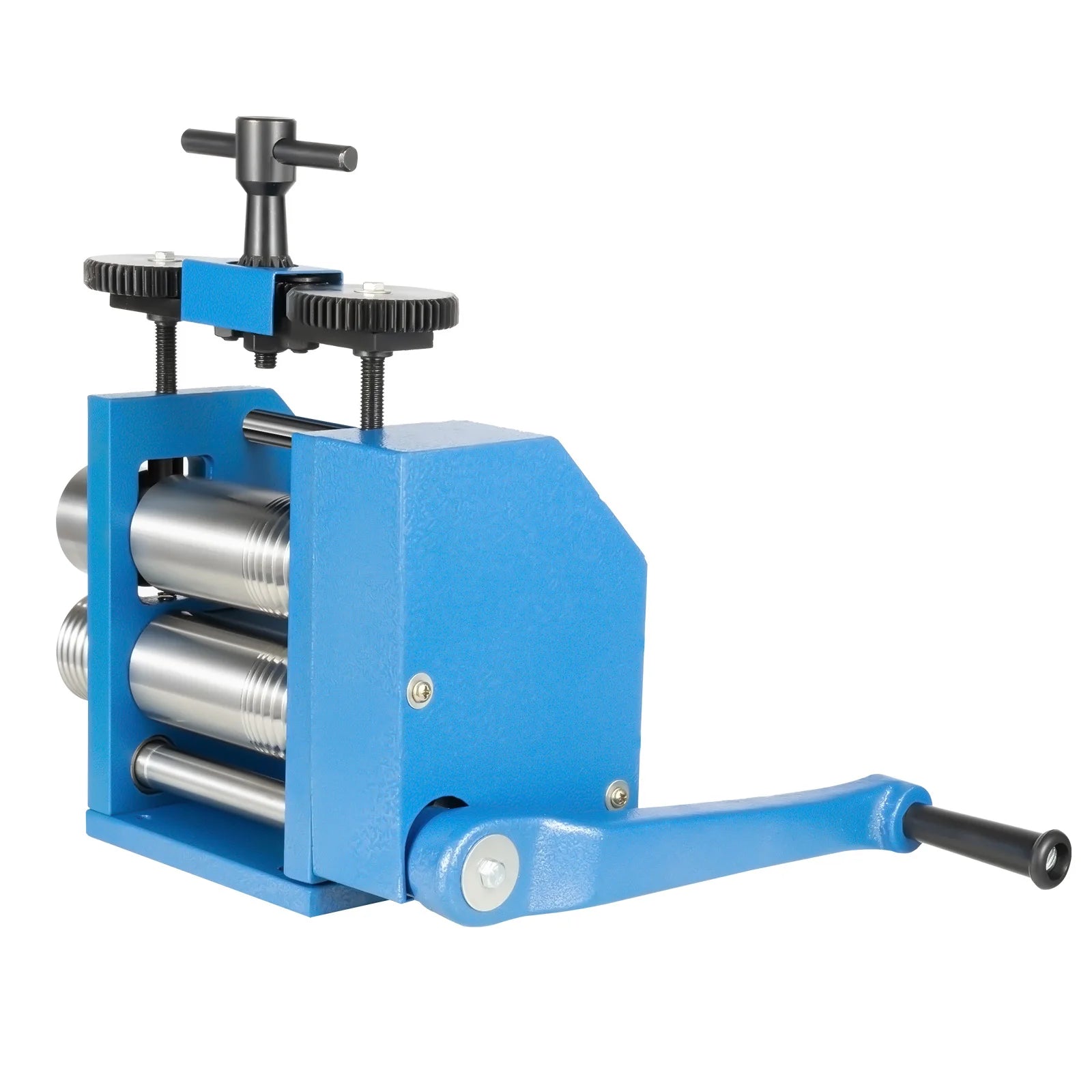

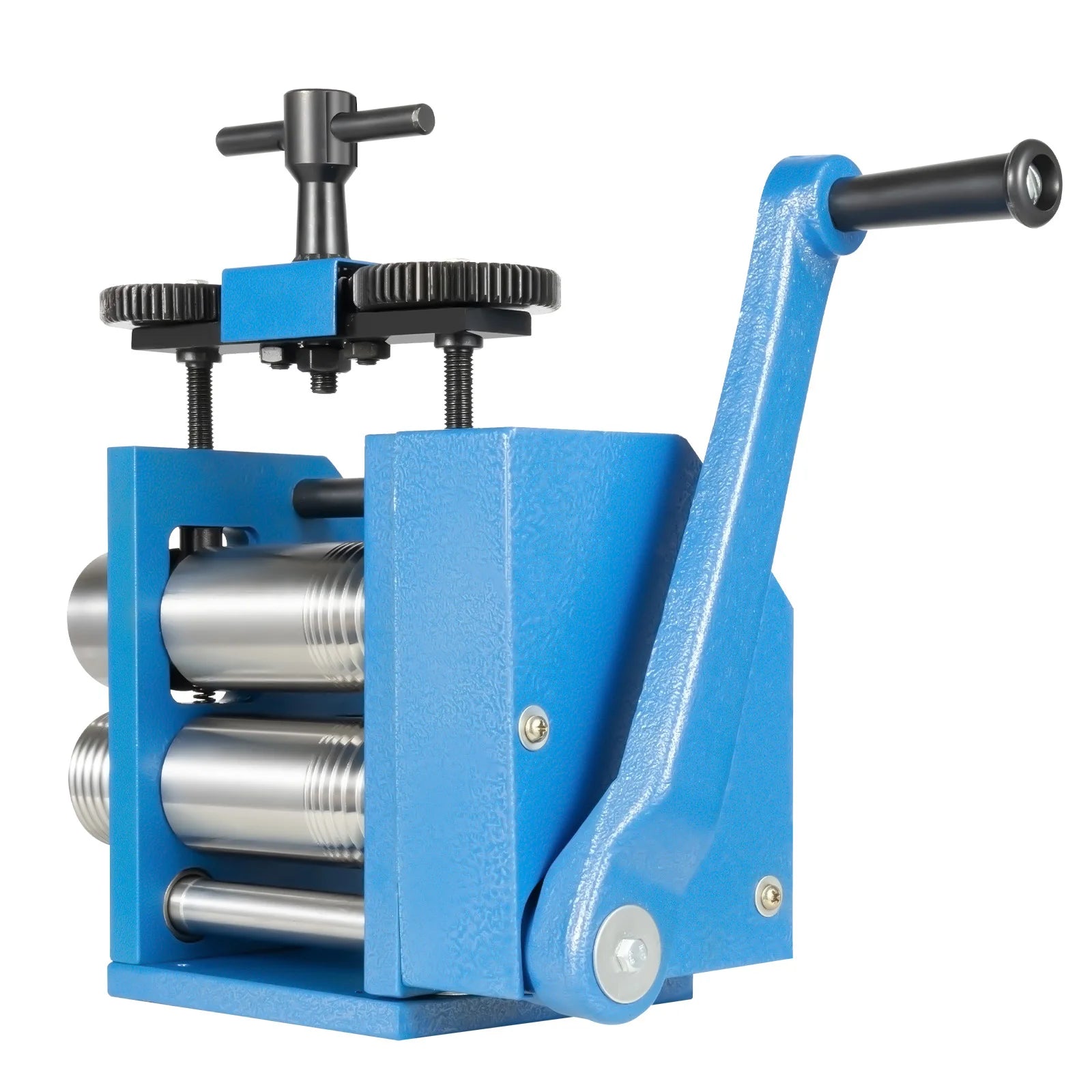

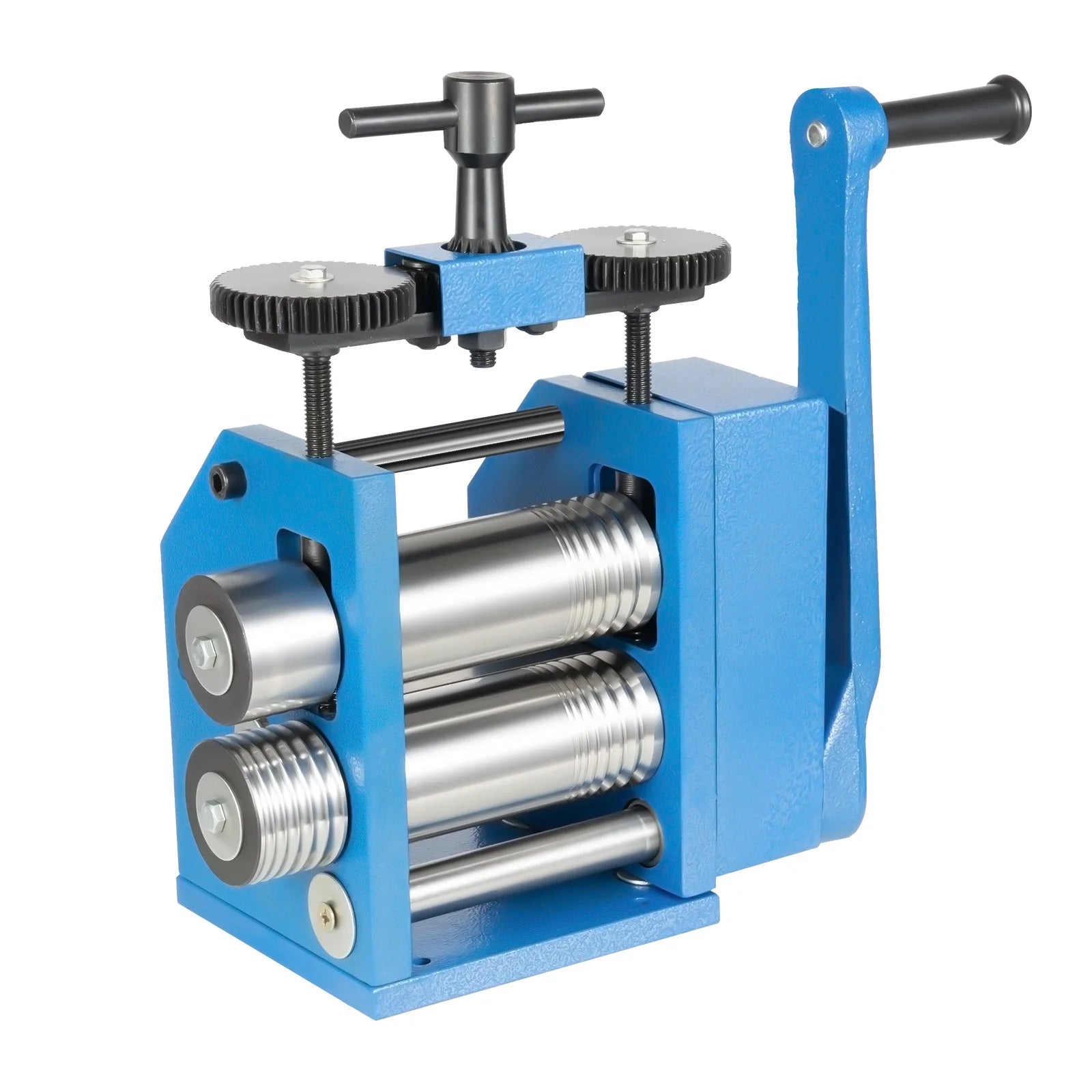

Hand Cranked Rolling Mill Jewelry Press Tool Gear 3 To 1
Enhance your jewelry making with the Hand Cranked Rolling Mill Jewelry Press Tool Gear 3 To 1. This versatile metalworking tool lets you form gold, silver, copper and other metals into precise sheets, square wire, and semicircle shapes with a smooth, low-effort operation. Built to endure, it combines a hardened 40Cr roller set with a sturdy cast iron hand crank and a spray-painted sheet metal frame for durable, long-lasting performance.
Three-in-one rollers provide flexible shaping options, while the 3:1 gear ratio minimizes the amount of force you need to apply. The large, stable base allows you to mount the mill securely on your workbench for steady, accurate results. With adjustable roller spacing and low-noise, double-sided gears, this mill delivers reliable performance in a compact footprint—perfect for hobbyists and professional studios alike.
Benefits & Tips

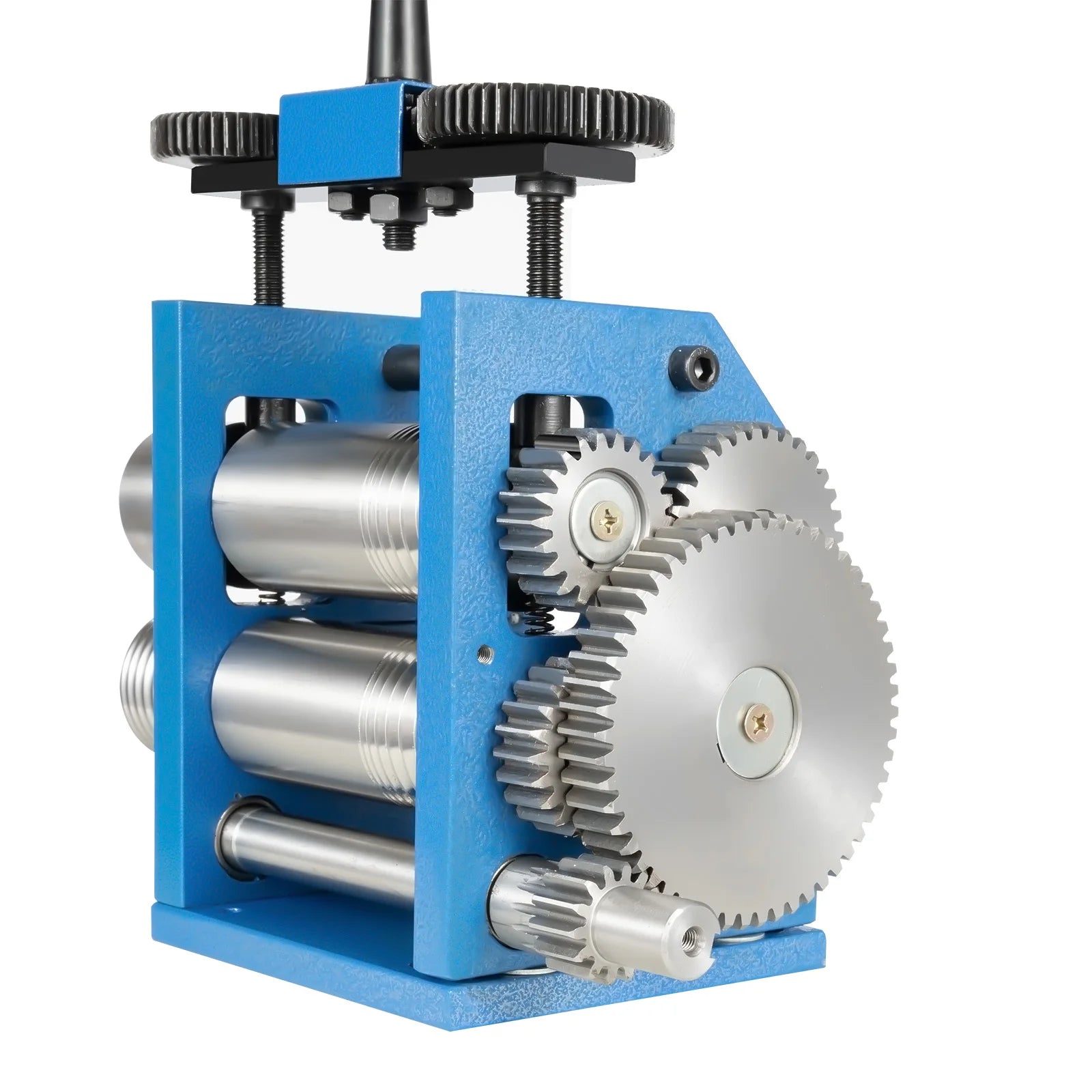

- Effortless operation: The 3:1 gear ratio means one full mill rotation requires three turns of the handle, saving time and reducing hand fatigue during long sessions.
- Versatile shaping: Press into sheet metal, square wire, or semicircle grooves to suit a variety of jewelry designs and wirework projects.
- Precision adjustments: Use the T-shape gear handle to finely adjust press thickness up to 0.36 inches for consistent results across different materials and gauges.
Product specifications
- Color: Blue
- Main Material: 40Cr, Sheet Metal, Plastic, Cast Iron
- Treatment: Spray Paint, Hardening Heat Treatment
- Gear Ratio: 3:1
- Roller Diameter: 5 cm (1.96 in)
- Roller Length (Sheet): 72 mm (3 in)
- Roller Total Length: 16.5 cm (6.49 in)
- Semicircle Grooves Length: 3.3 cm (1.29 in)
- Square Grooves Length: 3.5 cm (1.37 in)
- Max Sheet Width: 72 mm (3 in) Hand Crank Length: 28 cm (11.02 in)
- Net Weight: 17.7 kg (39.02 lbs)
- Gross Weight: 18.6 kg (41 lbs)

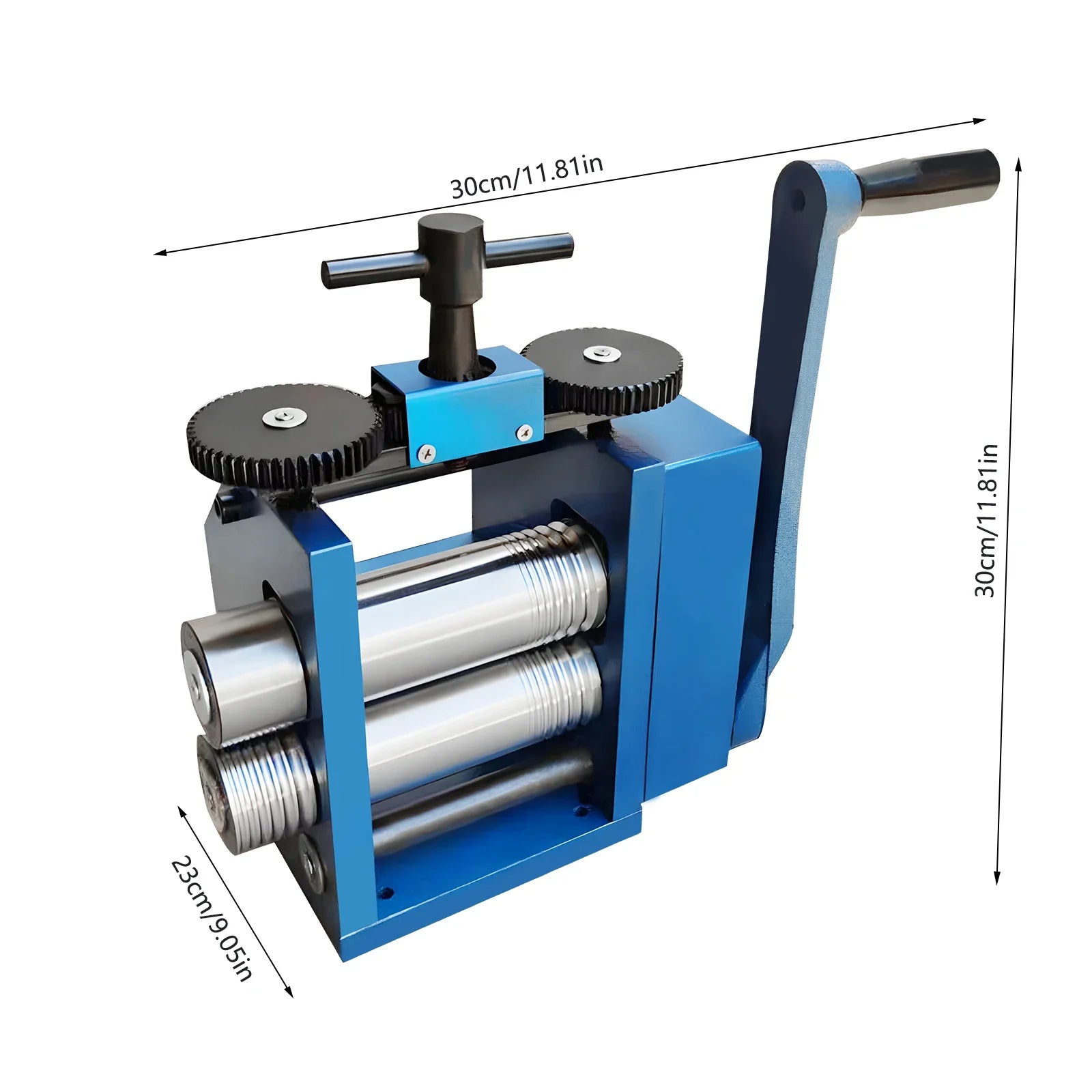

- Product Size: 34 x 14.5 x 28 cm (13.38 x 5.7 x 11.02 in)
- Package Size: 35 x 28 x 32 cm (13.77 x 11.02 x 12.59 in)
- Max Space Between Rollers: 9.38 mm (0.36 in)
- Square Wire Size compatibility: 1.5/2/3/4/5/6/7 mm
- Semicircle Wire Size compatibility: 3/3.6/4/4.5/5.13/5.75/7.7/9.1/9.5 mm
Package includes:
- 1× Jewelry Rolling Mill Machine
- 1× Replaceable Semicircle Mold
- All Accessories for Assembly
Warnings/Reminders
- Notice: Screws are not included in the package.
- When using this machine, add lubricating oil to the connection ports on both ends of the roller once or twice daily.
- Please peel away the plastic wrap on the rollers before using.
- Allow for slight color differences due to lighting and 1–3 cm measurement variance due to manual measurement; please consider these factors before ordering.
All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.
