2-Channel Tuya WiFi Smart Switch, DC 12–48V, Dry Contact Relay, Google Home

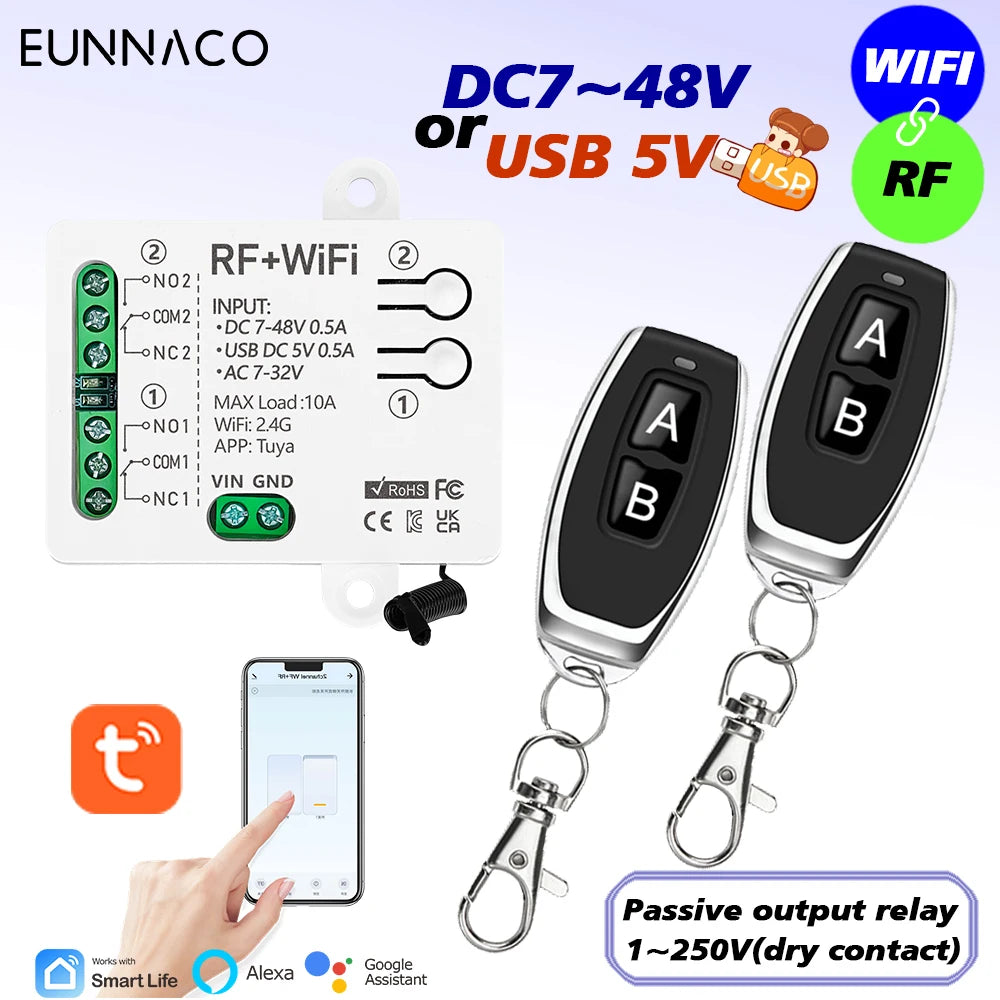

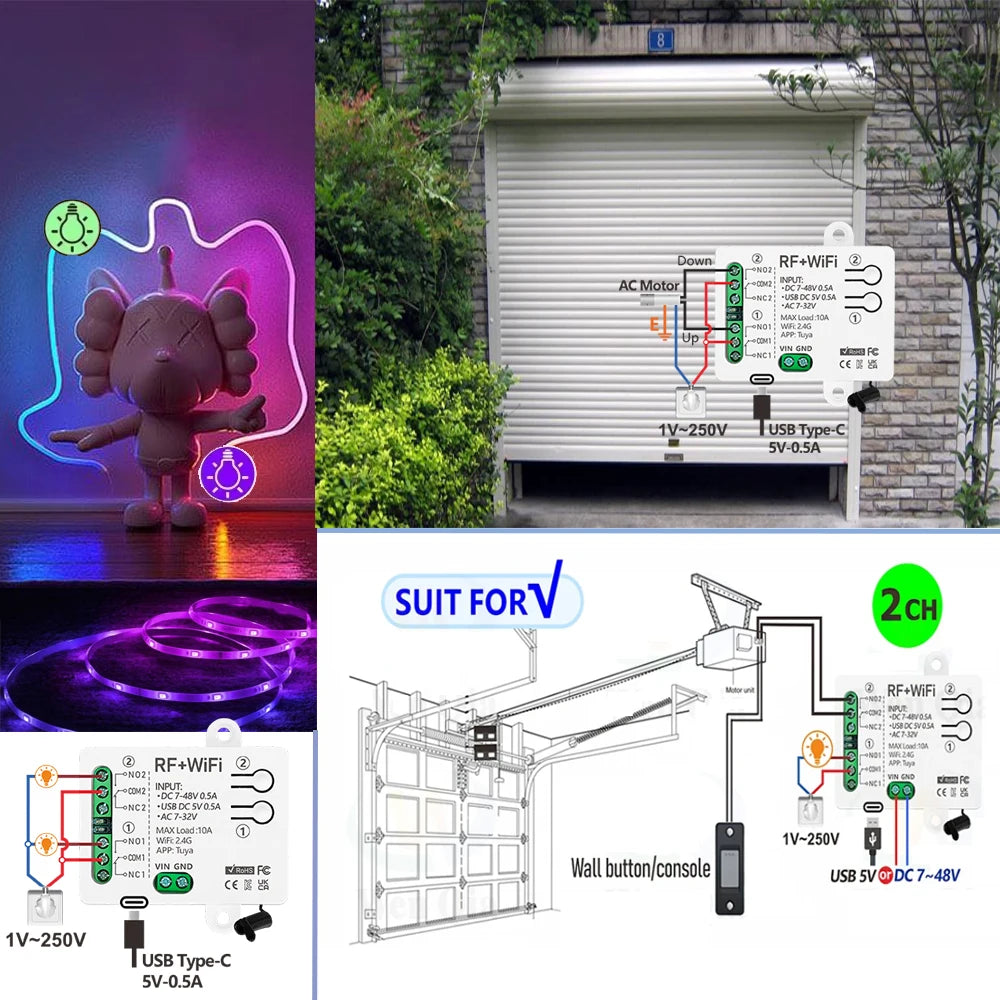

Turn any device into a connected smart device with the 2-Channel Tuya WiFi Smart Switch. This dual-channel dry-contact relay runs from DC 12–48V (USB-C 5V or AC/DC options also supported) and handles up to 10A per channel, enabling precise control of lights, motors, garage doors, pumps, and household appliances via the Tuya/Smart Life app, RF remote, or voice with Google Home or Alexa. It provides two independent channels, a 1–250V dry-contact output, and flexible power options to suit your wiring. Wi‑Fi (IEEE 802.11 b/g/n, 2.4GHz) plus a 433MHz RF receiver give you multiple ways to automate and control from anywhere. The RF remote works up to 50m in open space and comes with 2x CR2016 batteries. The receiver module measures 65×50×24 mm; remote size is 30×60×10 mm. Supported apps: Tuya and Smart Life; platforms: Android 5.0+ and iOS 10+. It works with Alexa, Google Home, and IFTTT. Features include timing schedules, inching (momentary) operation, and group control for multi-device scenes. Origin: Mainland China. Certifications: CE, RoHS. All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.
Benefits & Tips
- Two independent channels let you control a light and a motor or door from a single device.
- Control methods: Tuya/Smart Life app, RF433MHz remote (up to 50 m), and voice via Alexa or Google Home.
- Use timing, countdowns, or group devices to automate scenes (for example, lights at dusk, shutters at dawn).
Product specifications
- Channels: 2
- Relay max current: 10A per channel
- Input/Output voltage: 1–250V
- Output type: Dry contact
- Power supply: USB Type-C 5V or DC 7–48V or AC 7–32V
- WiFi: 802.11 b/g/n 2.4GHz
- RF control: 433MHz (remote distance up to 50m)

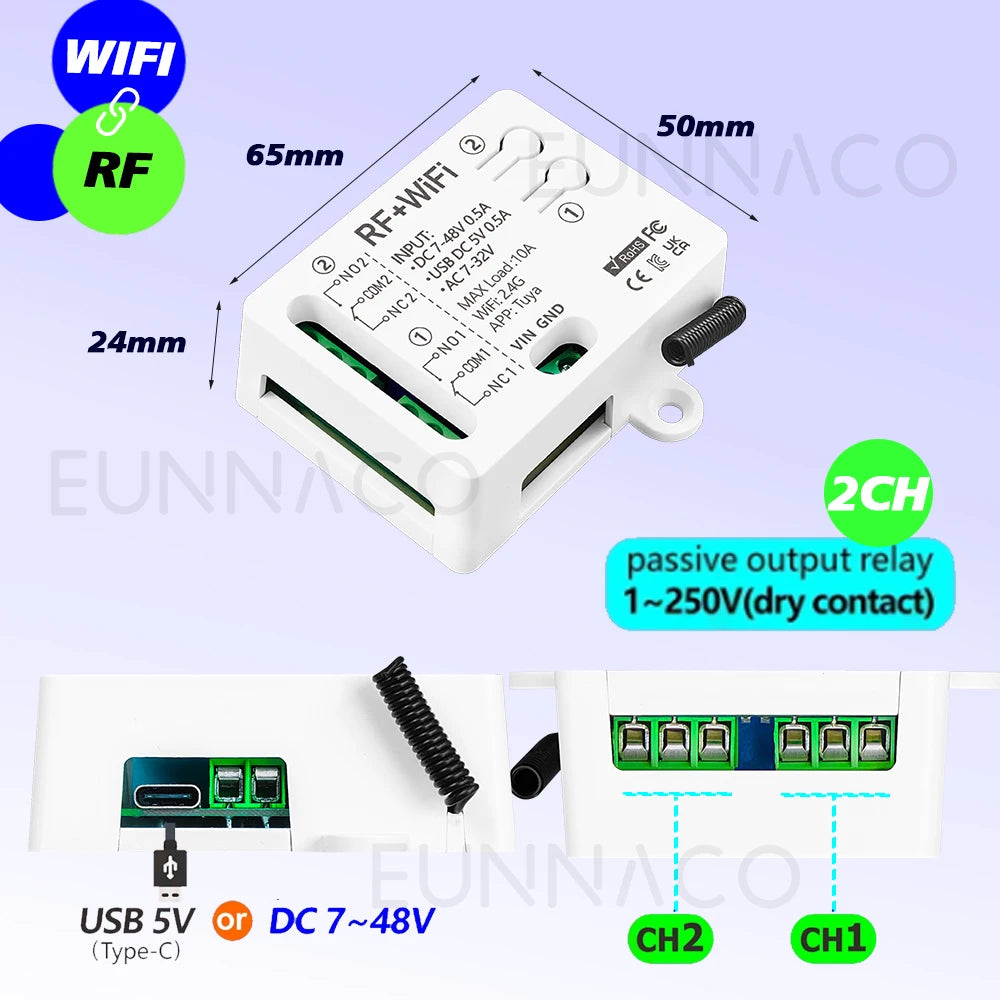

- Receiver module size: 65×50×24 mm
- Remote size: 30×60×10 mm
- Remote batteries: 2×CR2016 included
- APP support: Tuya / Smart Life
- Platform compatibility: Android 5.0+ & iOS 10+
- Voice compatibility: Alexa, Google Home, IFTTT
- Operating temperature: -30 to +80°C
- Origin: Mainland China
- Certification: CE, RoHS

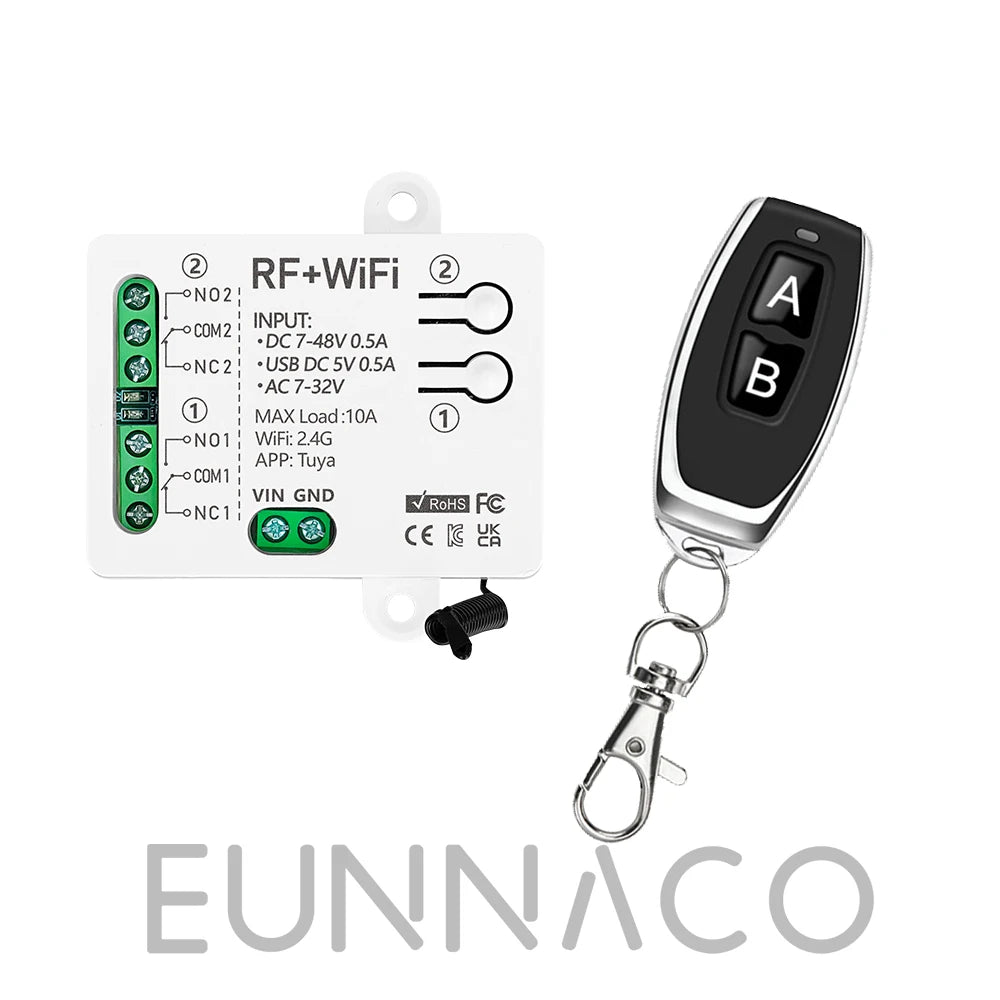

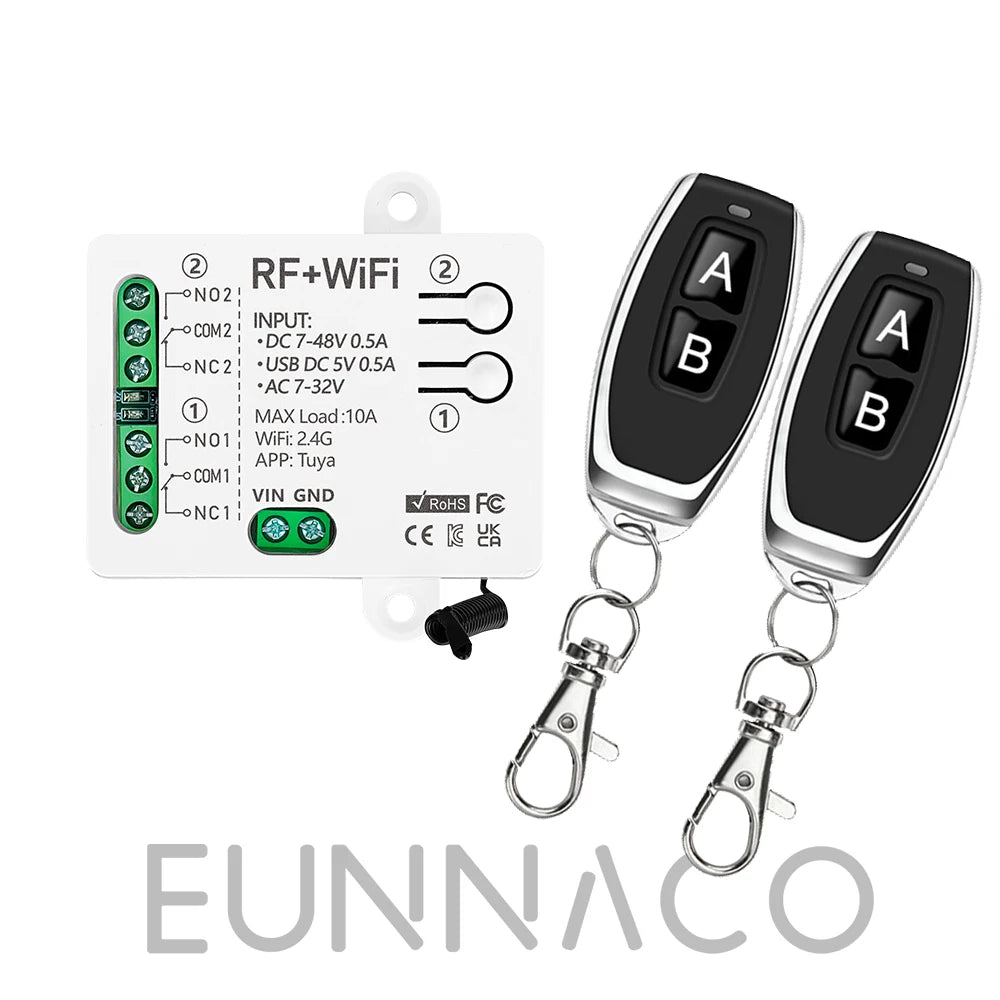

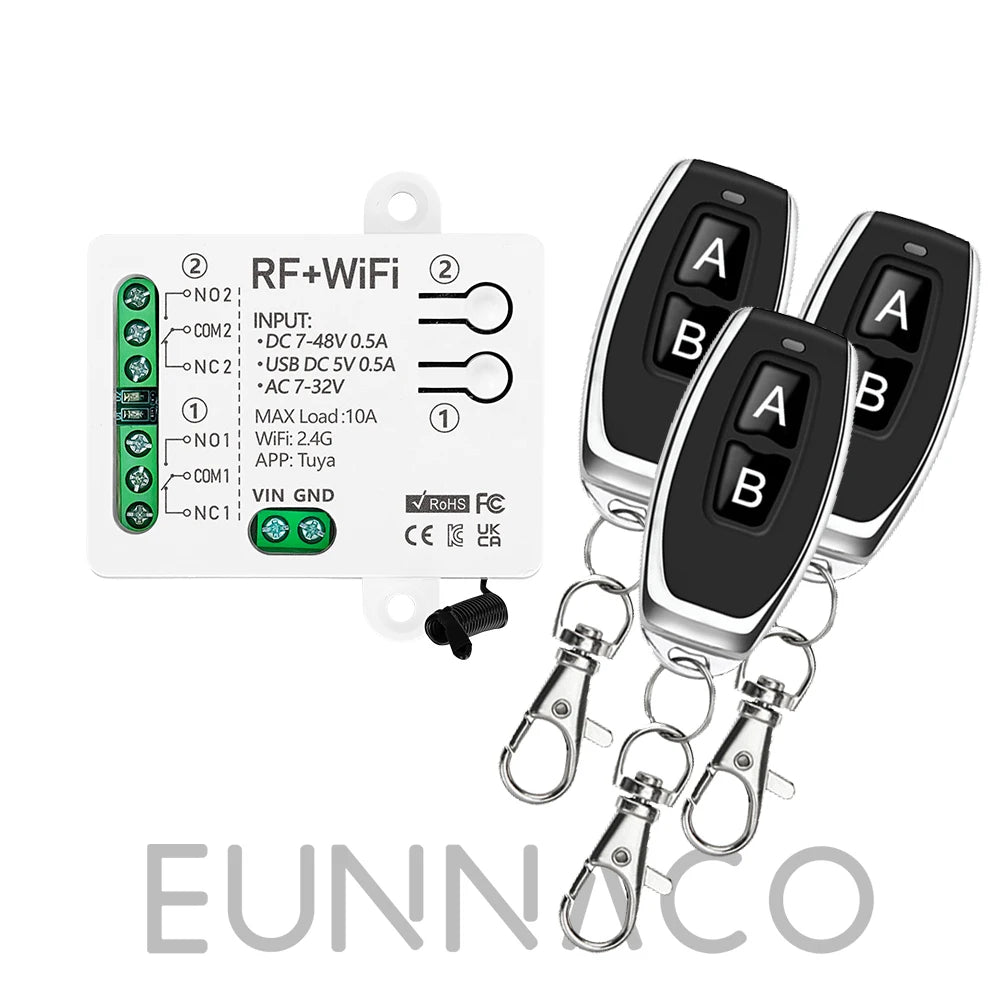

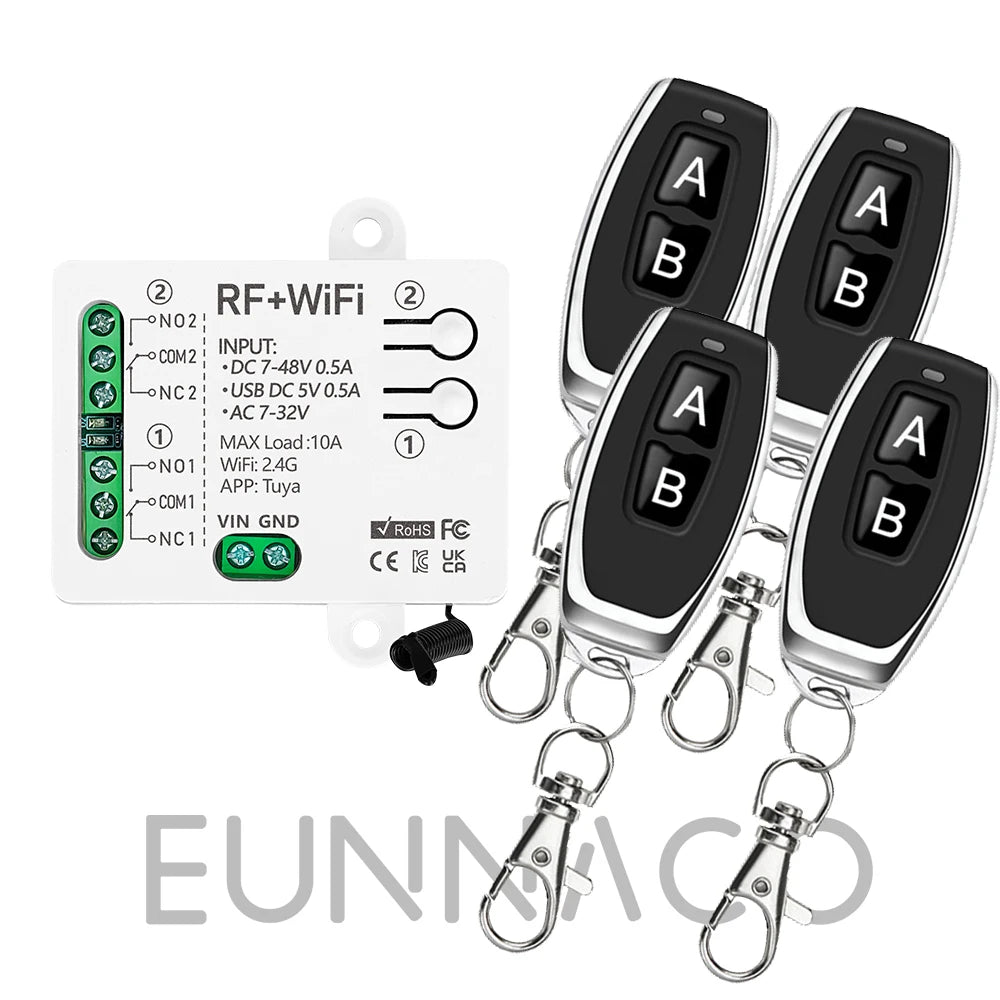

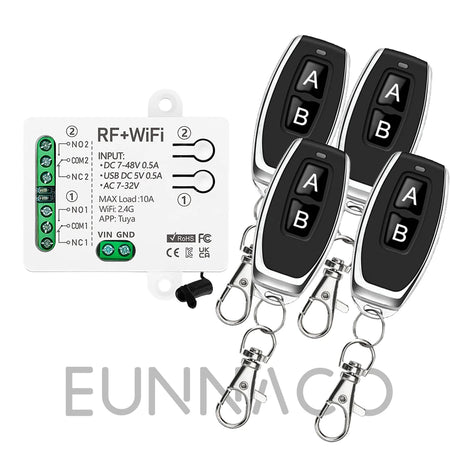

Package includes:

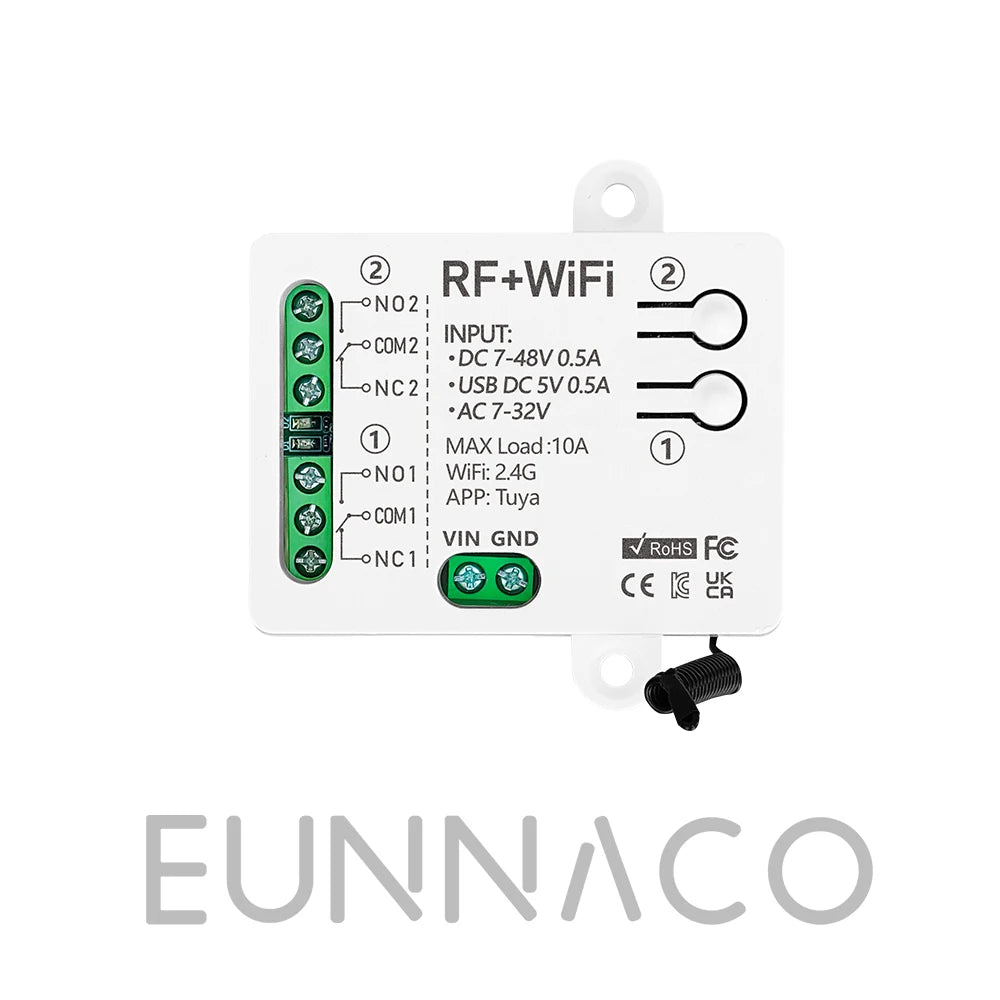

- 2-channel receiver module
- RF433MHz remote control
- 2x CR2016 batteries for the remote
Warnings/Reminders
- Install within the specified voltage range and respect the 10A per-channel rating.
- Electrical work should be performed with power off and by qualified personnel where required.
