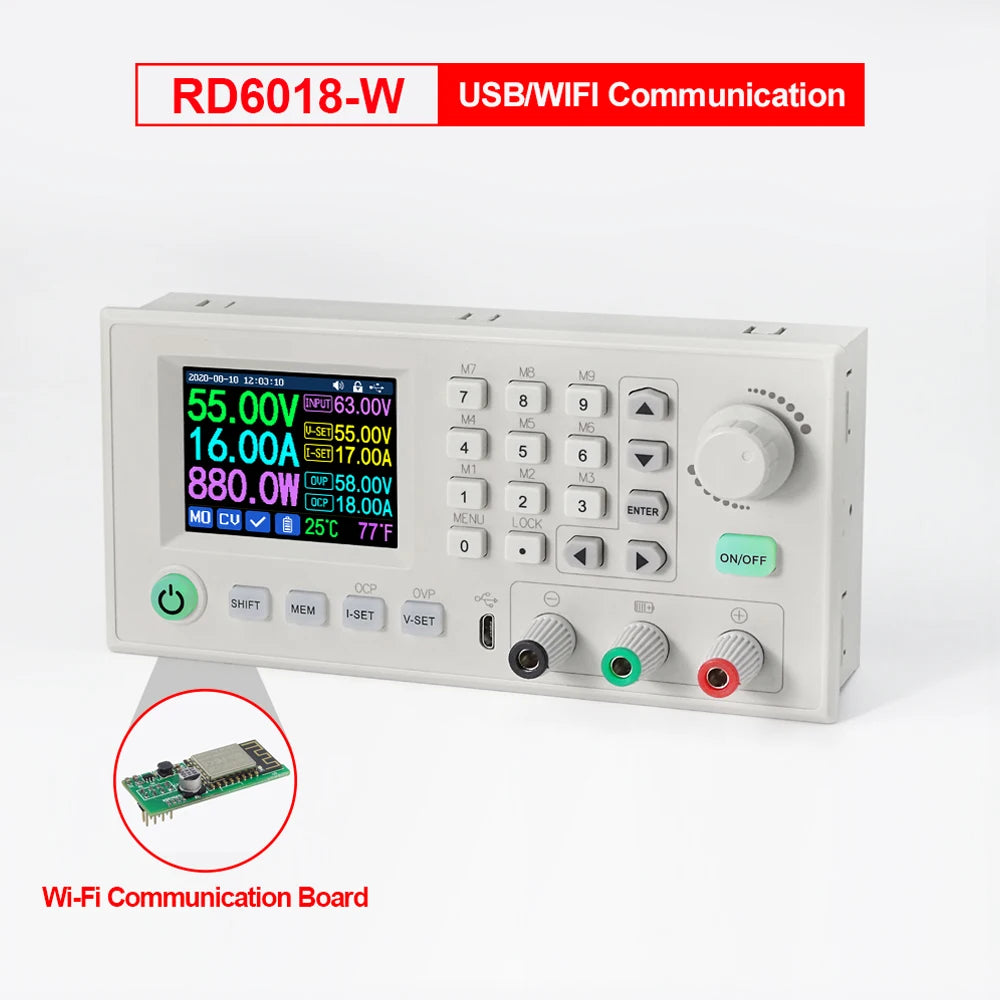

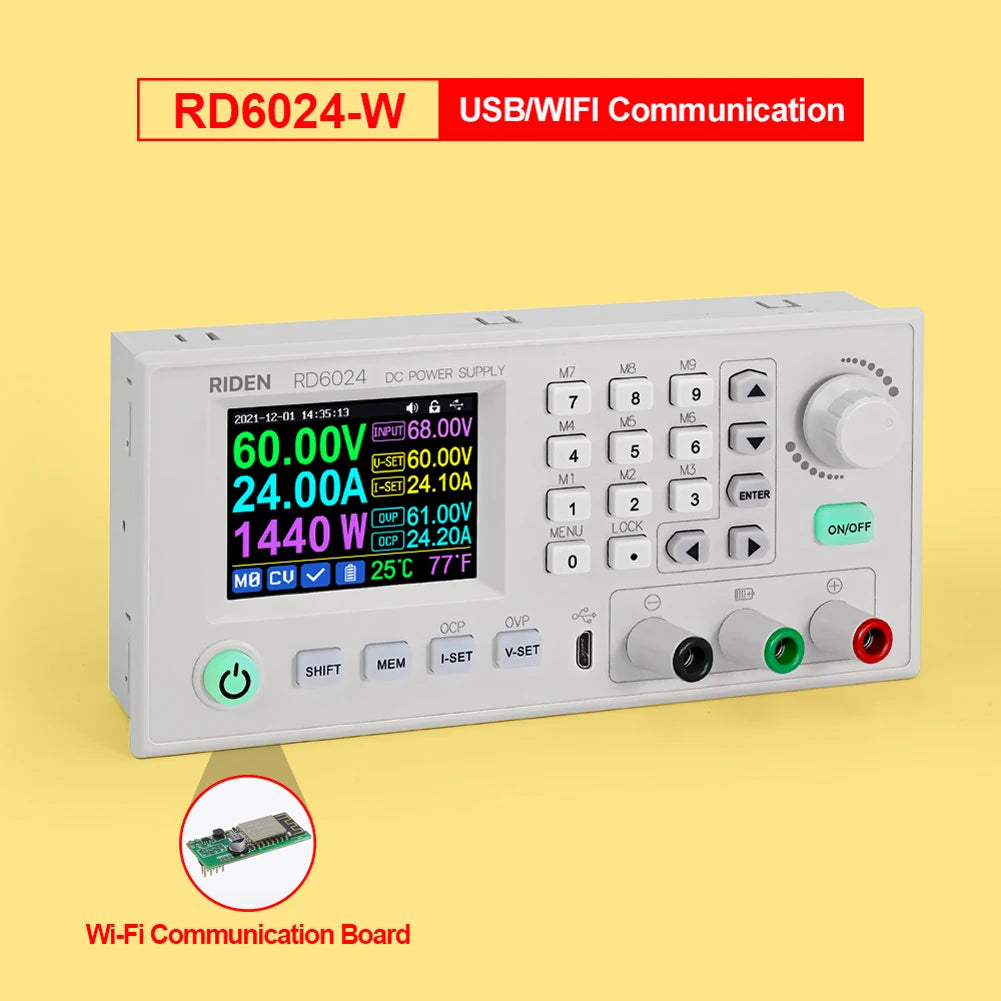

RD6024 RD6018 DC Voltage Regulator 60V 24A WiFi Bench Supply

Power your electronics lab with the RD6024 RD6018 DC Voltage Regulator 60V 24A WiFi Bench Supply. This versatile bench power supply delivers precise DC output for testing, prototyping, and development. Choose between RD6024 (up to 24A) and RD6018 (up to 18A) to match your project needs.

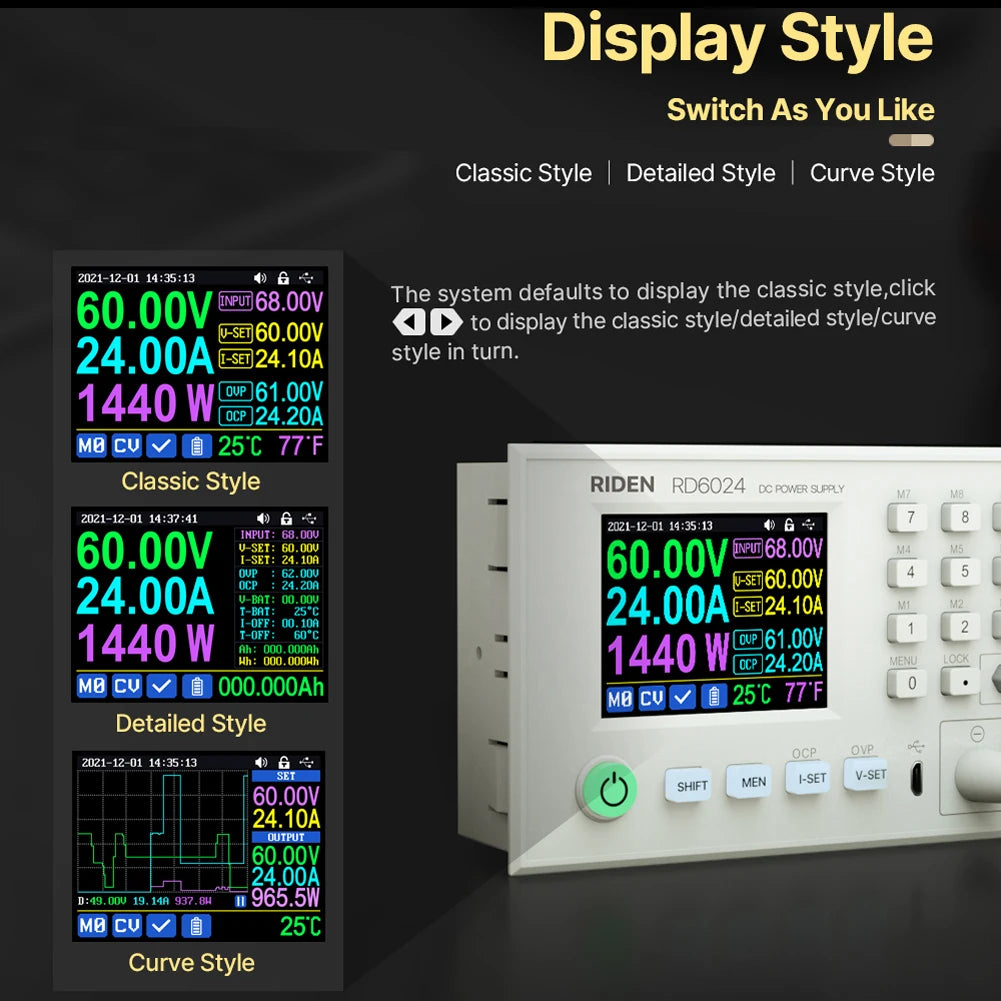

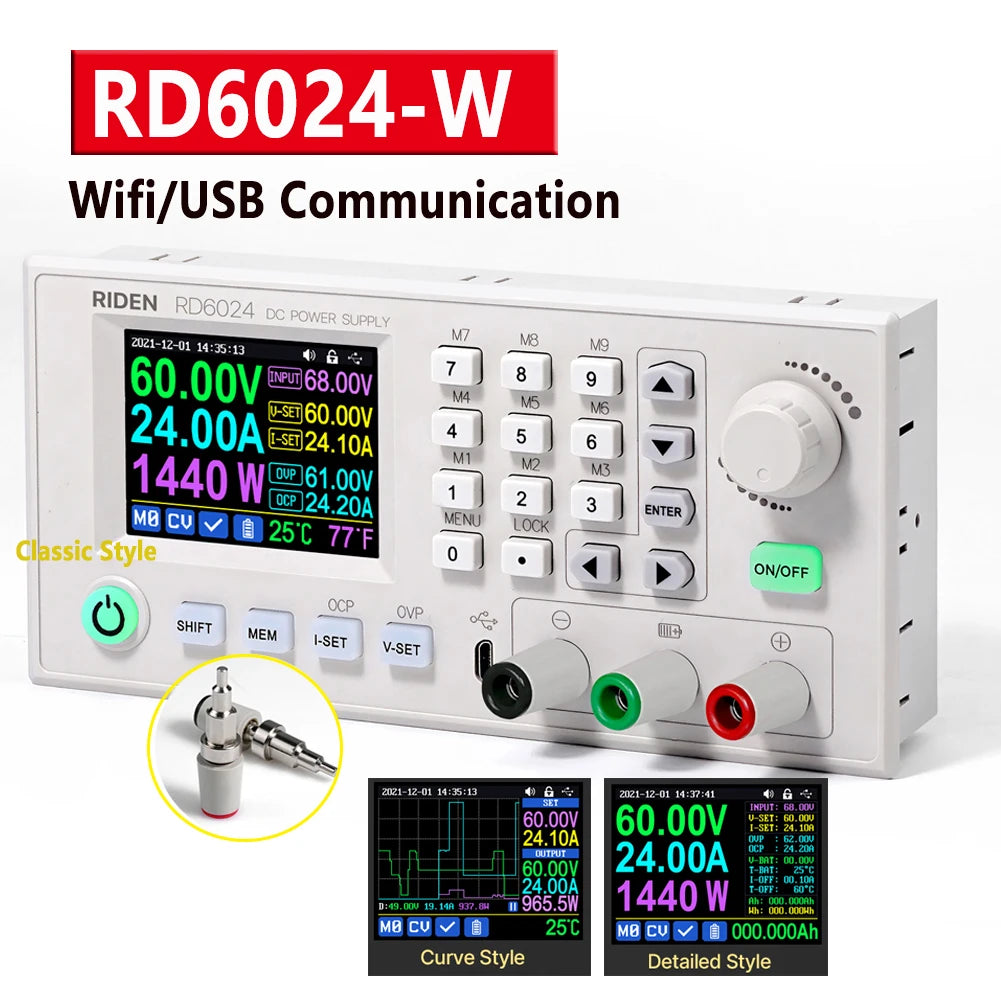

Key features include a 2.4-inch color screen for clear data readouts, three display styles (normal, detailed, curve), and language options in Chinese, English, French, German, and Russian. It also offers automatic power limit control, data storage and recall for quick setup, PC software control (Windows 7 or above), and robust protections against over-voltage and over-current to safeguard your devices.

RD6024 delivers up to 60V and 24A (maximum 1440W), while RD6018 provides up to 60V and 18A (maximum 1080W). Input voltage is supported from 6 to 70V. With high-precision resolutions (0.01V voltage readings, 0.01V voltage setting, 0.01A current setting), accurate readings and stable output are ensured. Typical ripple is 100mV at 12A and 150mV at 24A. The units include cooling fans and protection features such as over-voltage (OVP) and over-current (OCP) protections to prevent damage to your devices.

Benefits & Tips

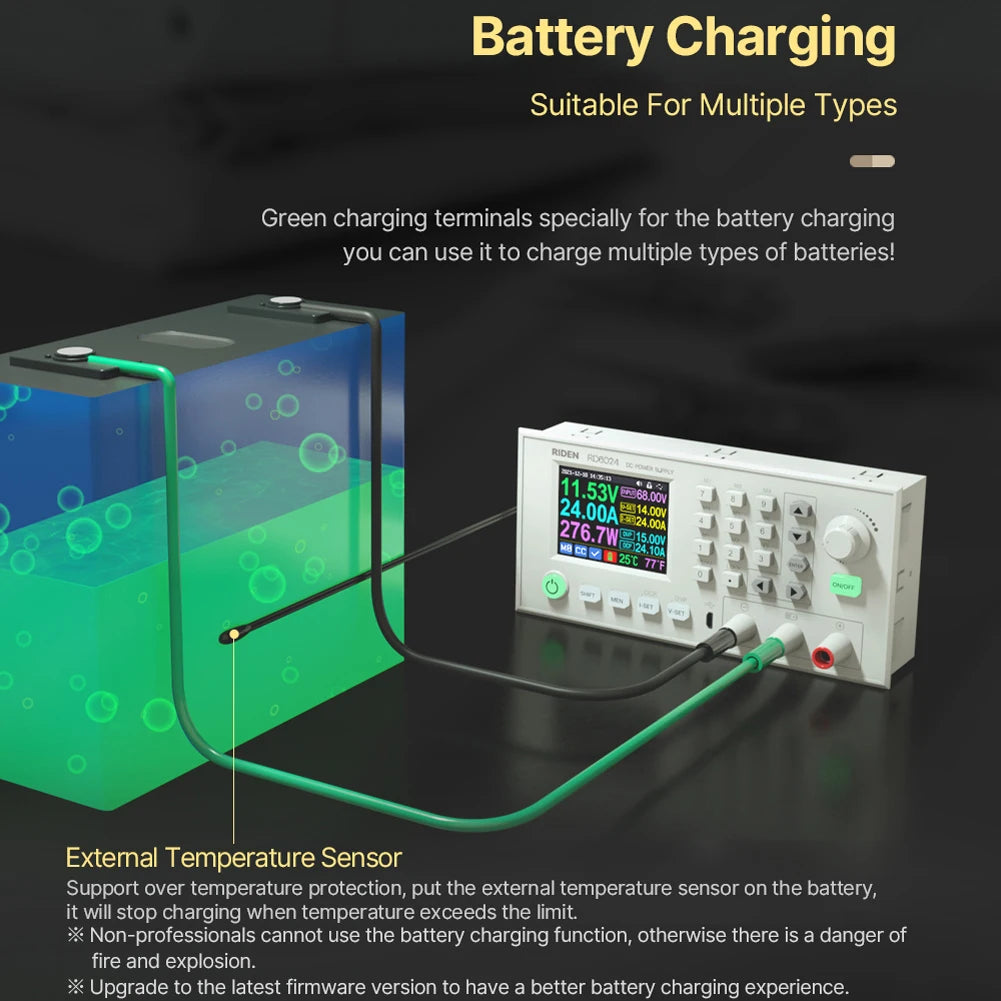

• Precise, adjustable DC output ideal for voltage-sensitive devices and battery testing (0-60V; up to 24A on RD6024 or 0-18A on RD6018).

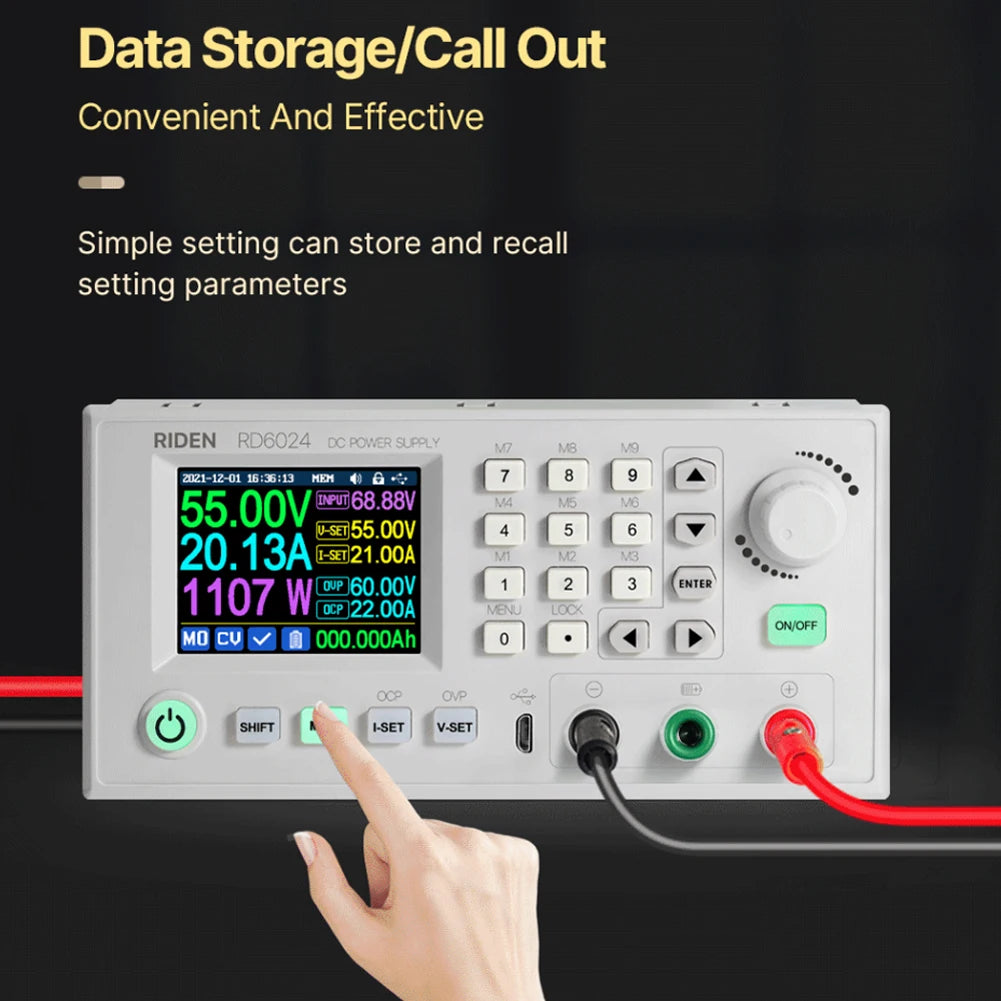

• Store and recall frequently used settings to speed up repetitive tests and prototyping workflows.

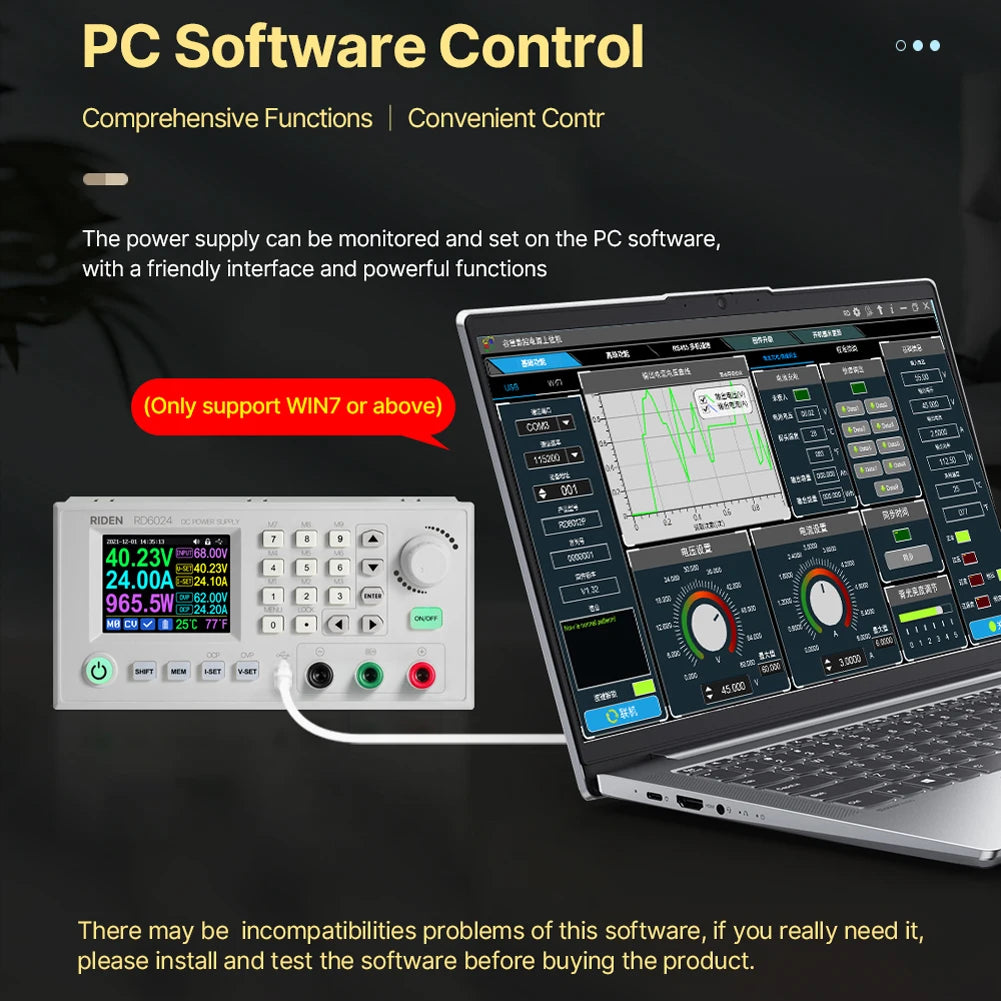

• Monitor and control parameters from your PC with compatible software (Windows 7 or newer) for automated or remote testing.

Product specifications

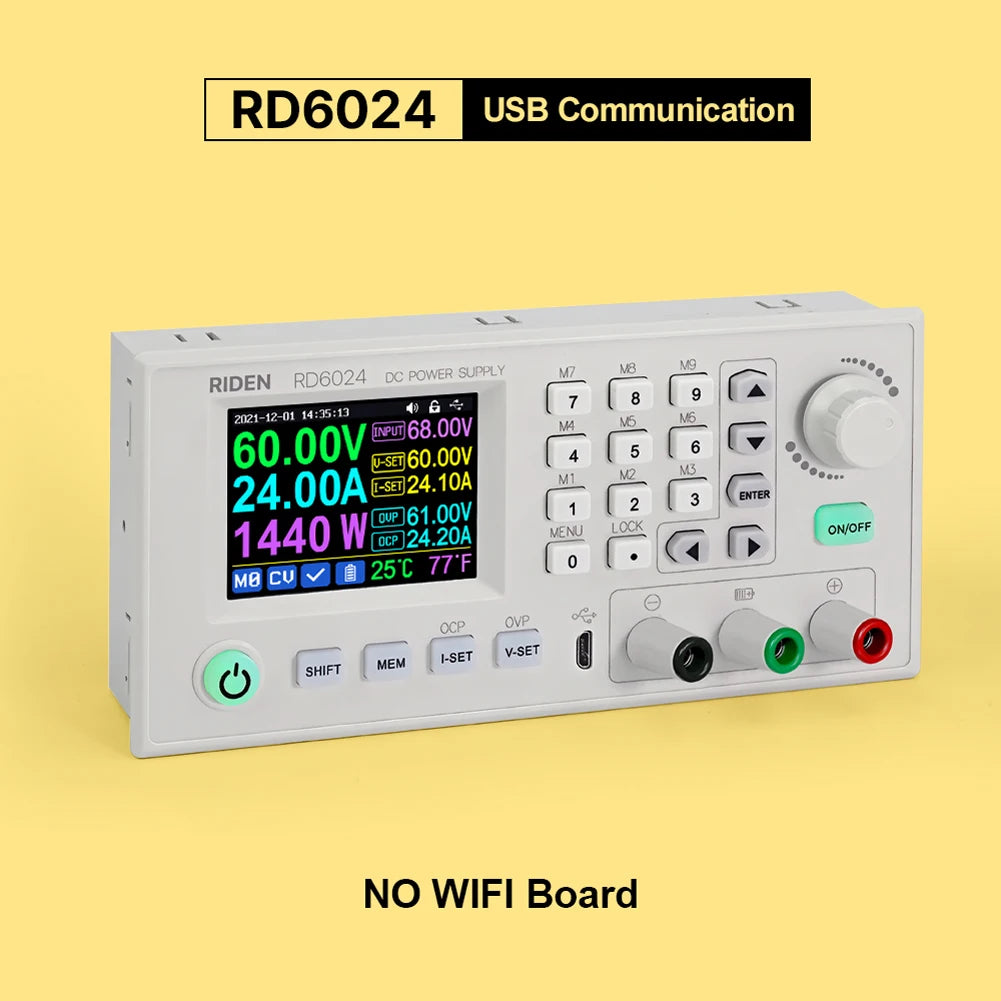

RD6024

• Input voltage range: 6-70V
• Output voltage range: 0-60V
• Output current range: 0-24A
• Output power range: 0-1440W
• Input voltage measurement resolution: 0.01V
• Output voltage setting/measurement resolution: 0.01V
• Output current setting/measurement resolution: 0.01A
• Ripple (typical): 100mV @ 12A, 150mV @ 24A
• Working temperature range: -10°C to 40°C
• Cooling: Fan active when output current > 8A or system temperature > 45°C

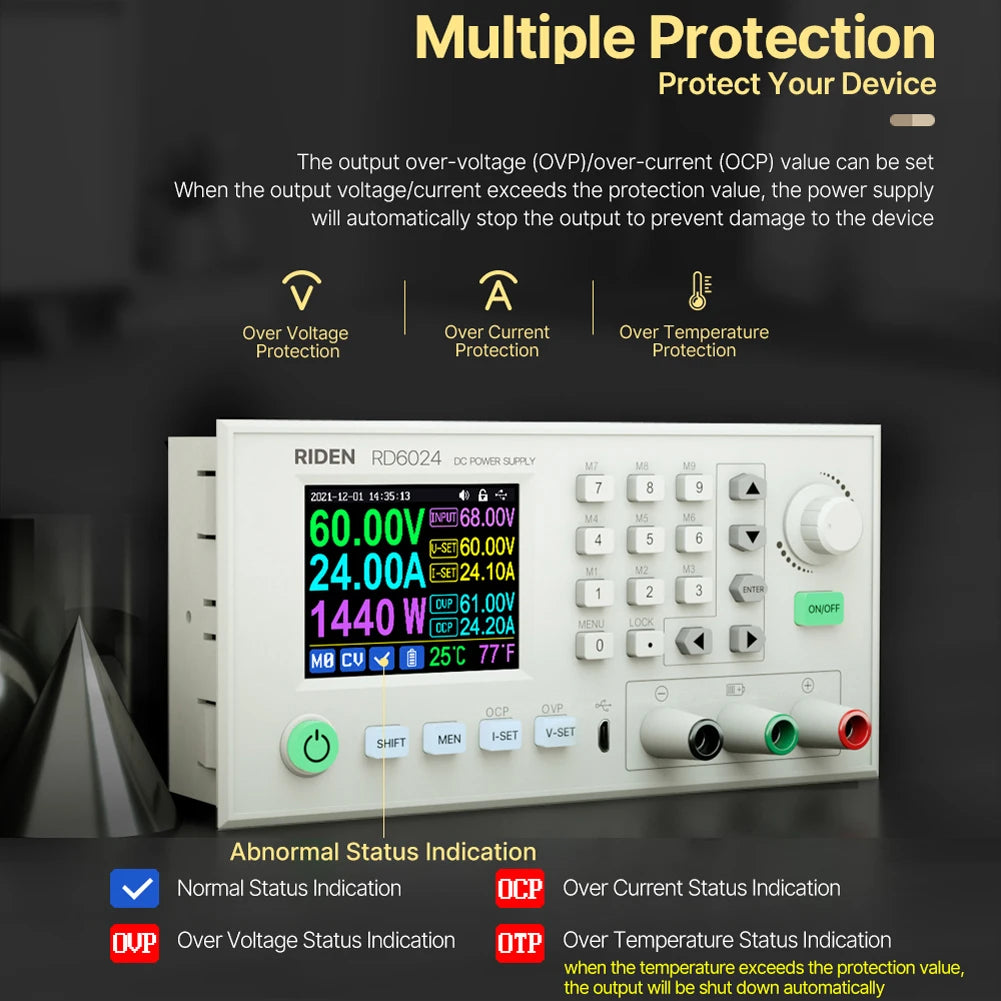

• Protections: Over-voltage (OVP) and over-current (OCP)

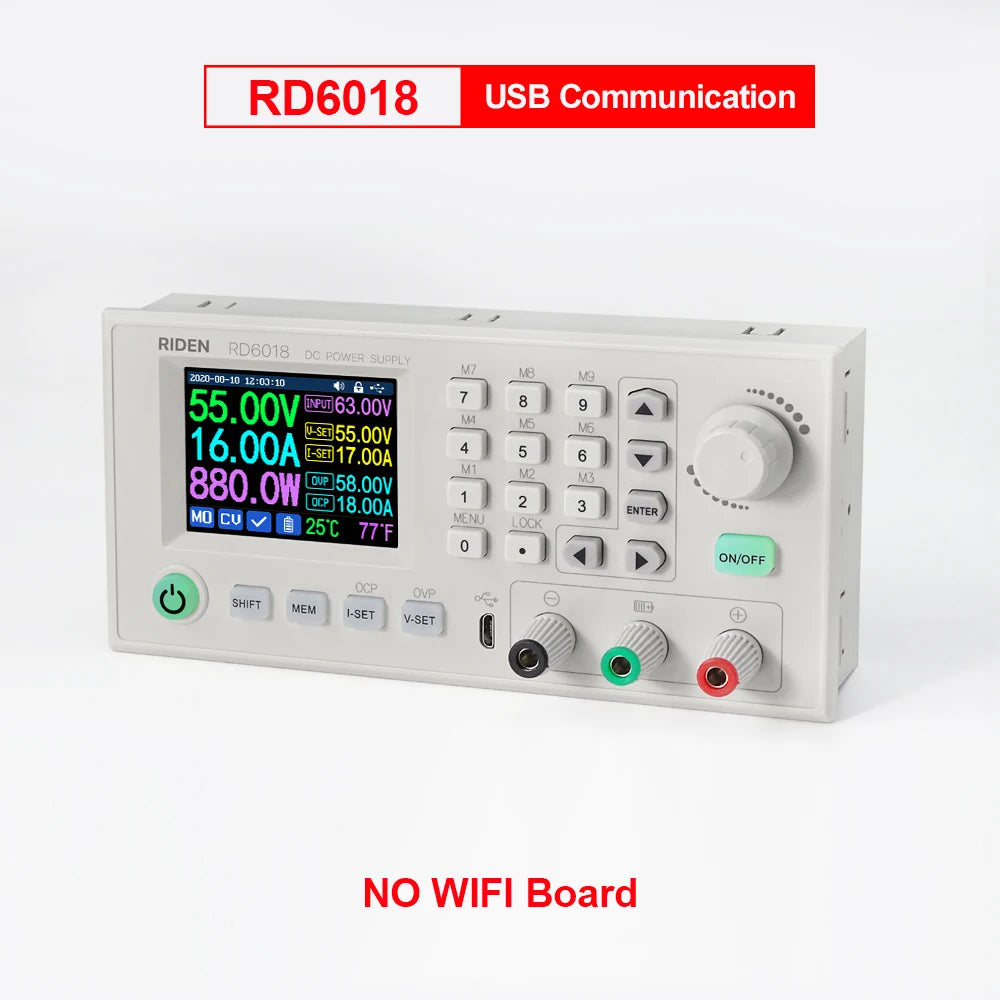

RD6018

• Input voltage range: 6-70V
• Output voltage range: 0-60V
• Output current range: 0-18A
• Output power range: 0-1080W
• Input voltage measurement resolution: 0.01V
• Output voltage setting/measurement resolution: 0.01V
• Output current setting/measurement resolution: 0.01A

Language support

System languages: Chinese, English, French, German, Russian.

Package includes

Details not specified in the product data.

Warnings & reminders

• Ensure operation within the specified input voltage range (6-70V) and follow all safety instructions in the manual.
• Configure OVP and OCP protections appropriately to protect both the bench supply and the device under test.
• Provide adequate ventilation and keep the unit dry and away from moisture or liquids.
