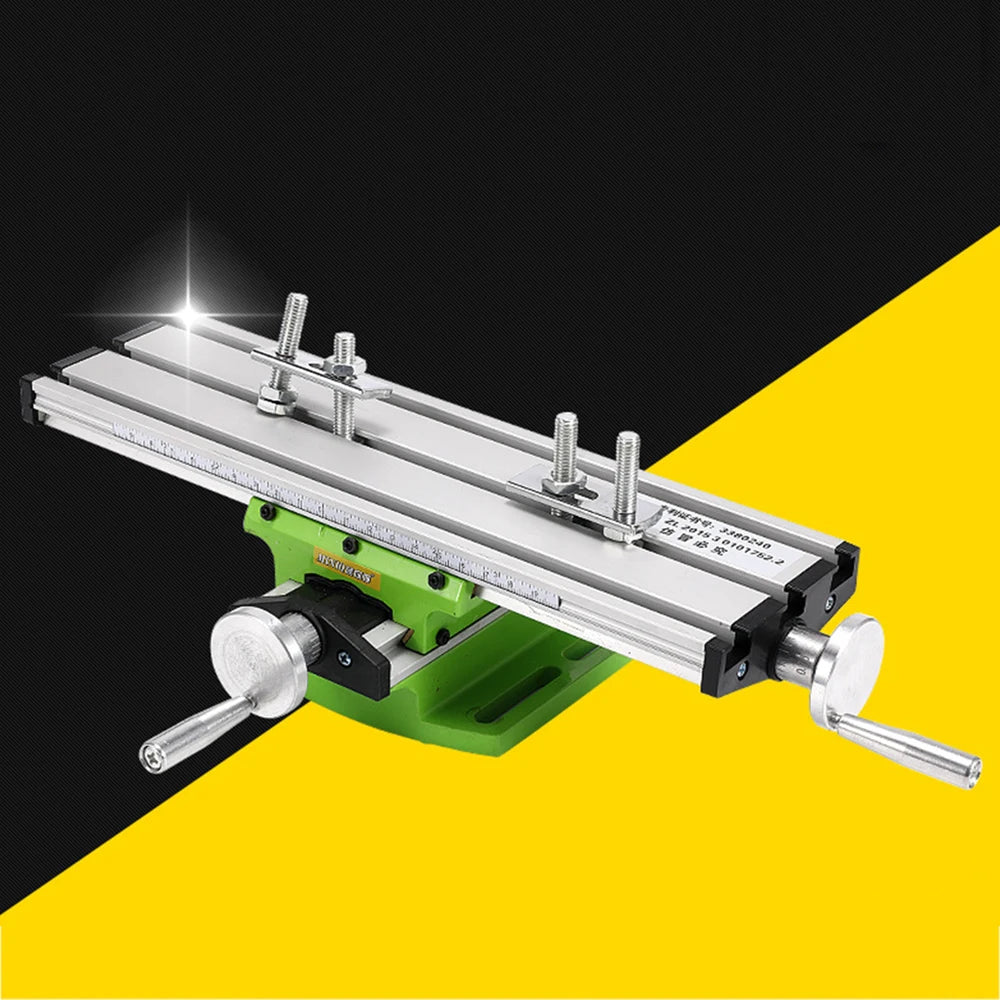

Multifunction Work Table Milling Machine Vise Fixture

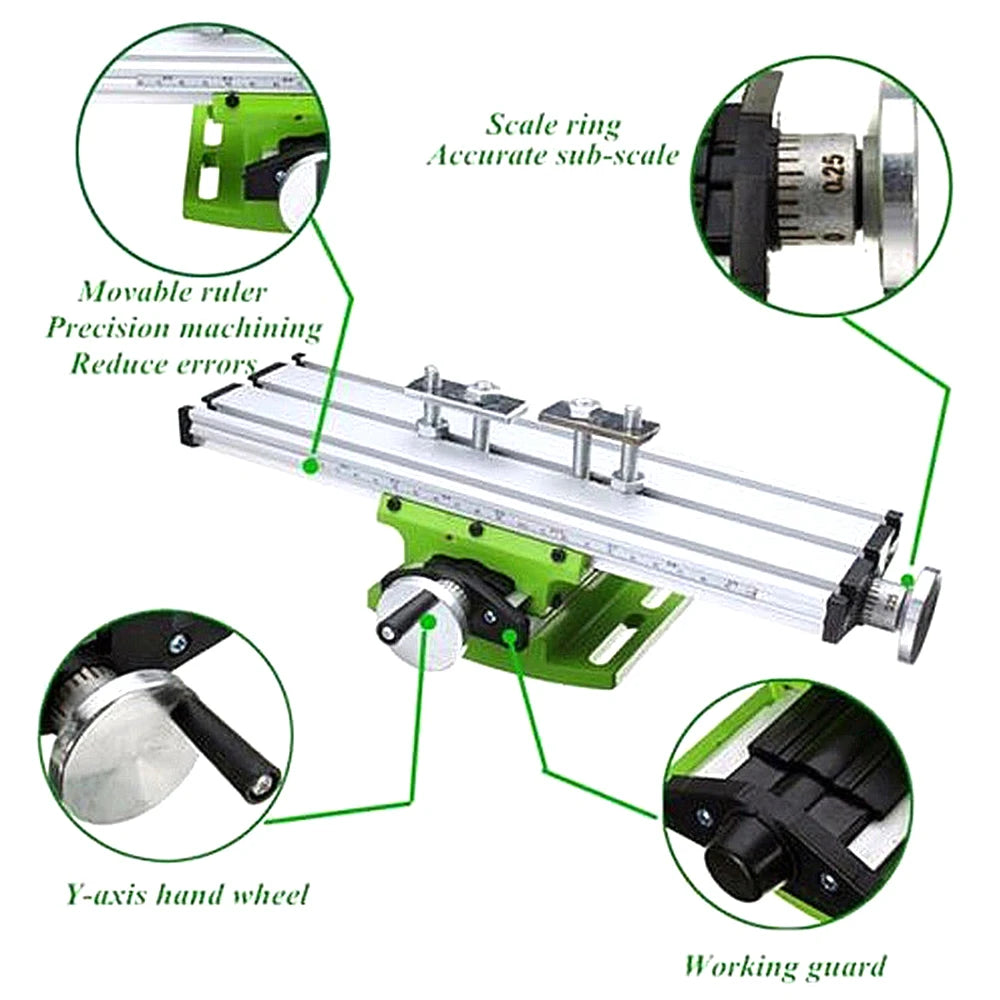

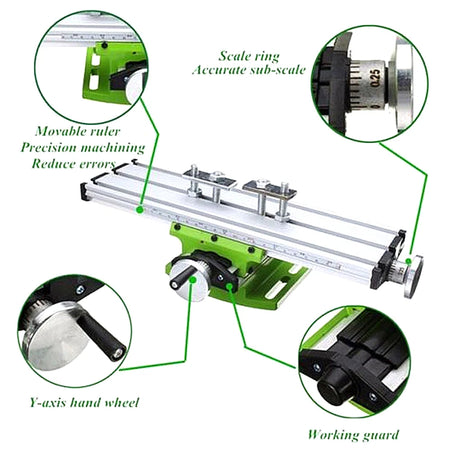

The Multifunction Work Table Milling Machine Vise Fixture is a compact, precision-driven work surface designed to elevate small-machine workflows. Built to accommodate mini drill and drill bracket series, it can also adapt to other compatible machines, expanding your workshop’s versatility. Made from adjustable aluminum alloy dovetail slots, this table minimizes wasted space while maintaining high accuracy. It features three T-slots for secure mounting, a front-positioned scale for quick positioning, and a zero-adjustment hand wheel that rotates 1.25 mm per turn for repeatable zeroing. With an X-axis travel of 200 mm and a Y-axis travel of 50 mm, it delivers stable, reliable support for precise drilling and milling tasks. The table size is 300 × 85 × 78 mm (including two clamps, with an overall work surface of 310 × 90 mm). Originating in Mainland China and CE-certified, this fixture combines practical design with dependable performance for hobbyists and professionals alike.

Benefits & Tips

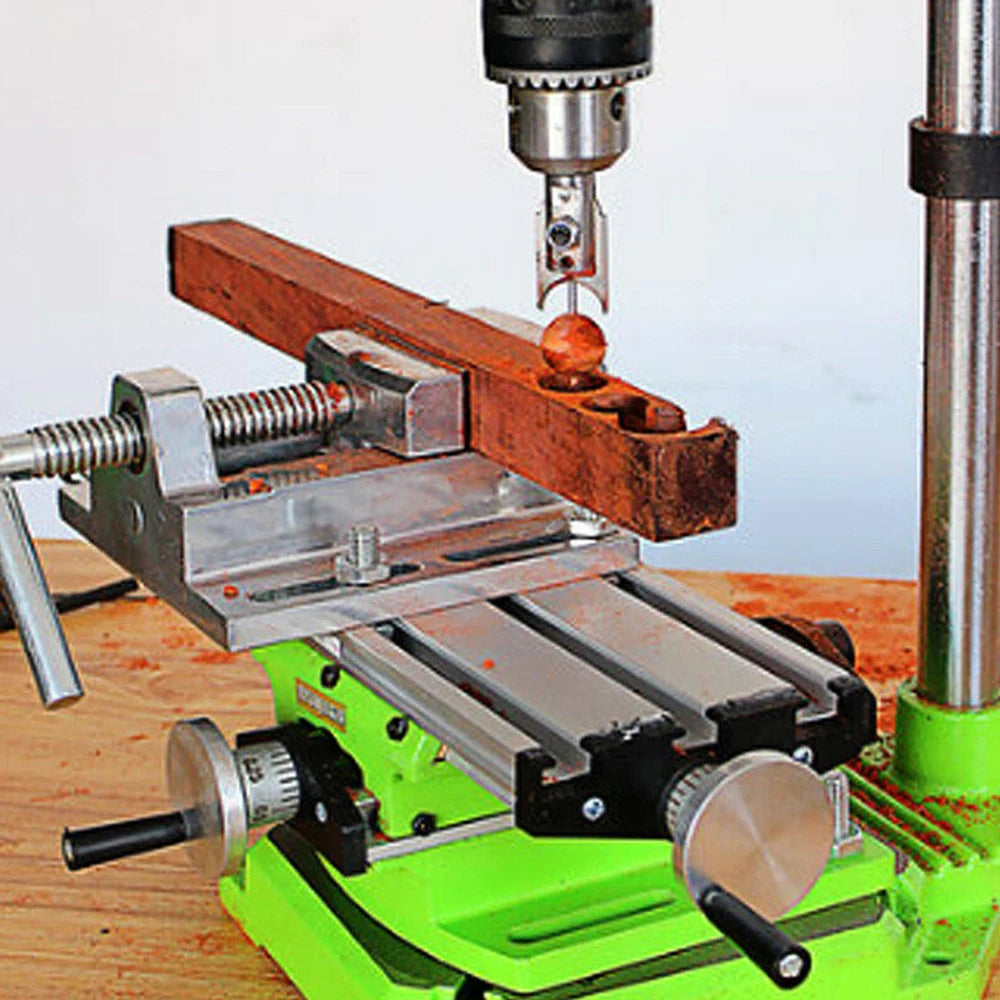

• Precise drilling and light milling on small parts with repeatable reference points for consistent results.
• Fast setups for repetitive operations thanks to the front-scale positioning and the 1.25 mm per turn hand wheel.

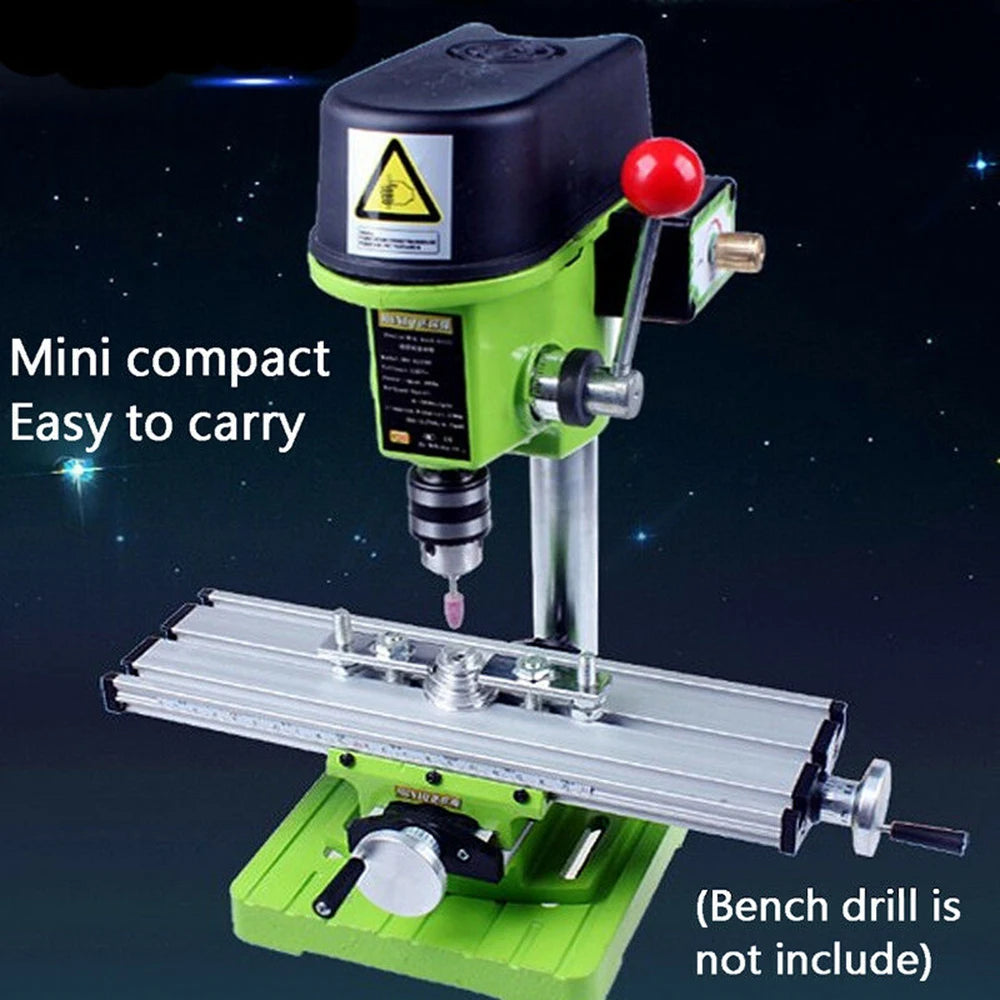

• Versatile enough for mini drill stands and drill brackets, yet adaptable to other compatible machines for enhanced workshop flexibility.

Product specifications

• Table size: 300 × 85 × 78 mm

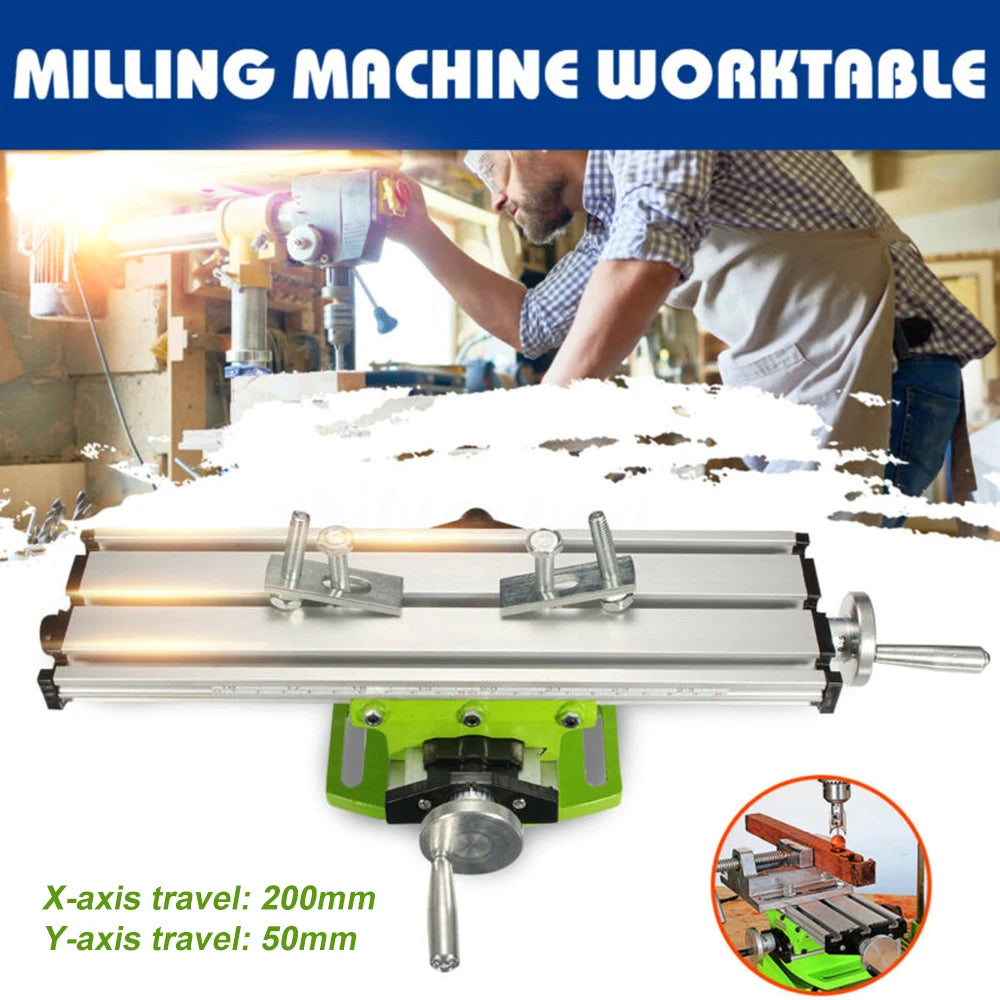

• X-axis travel: 200 mm
• Y-axis travel: 50 mm
• Distance between grooves: 34 mm
• 1 ring: 1.25 mm
• 1 scale: 0.05 mm
• Front scale positioning: Yes
• Working table size (including two clamps): 310 × 90 mm
• Material: Aluminum alloy with adjustable dovetail slots
• Weight (package): 1657 g / 3.65 lb
• Origin: Mainland China
• Certification: CE
• Fits: Mini drill and drill bracket series; compatible with other machines

Package includes:

• 1 Mini Multi-function Table
• 1 Accessories Set

Warnings / Reminders

Note: Please allow 1–10 mm size error due to manual measurement. Thank you for your understanding!
