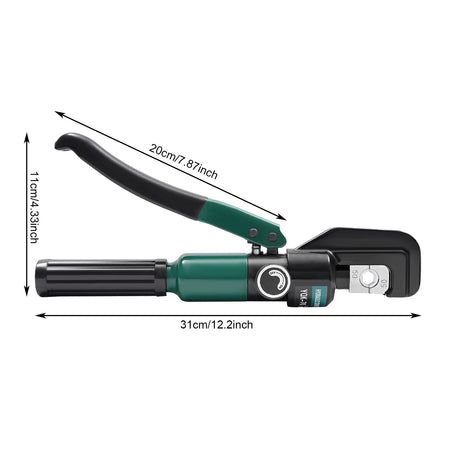

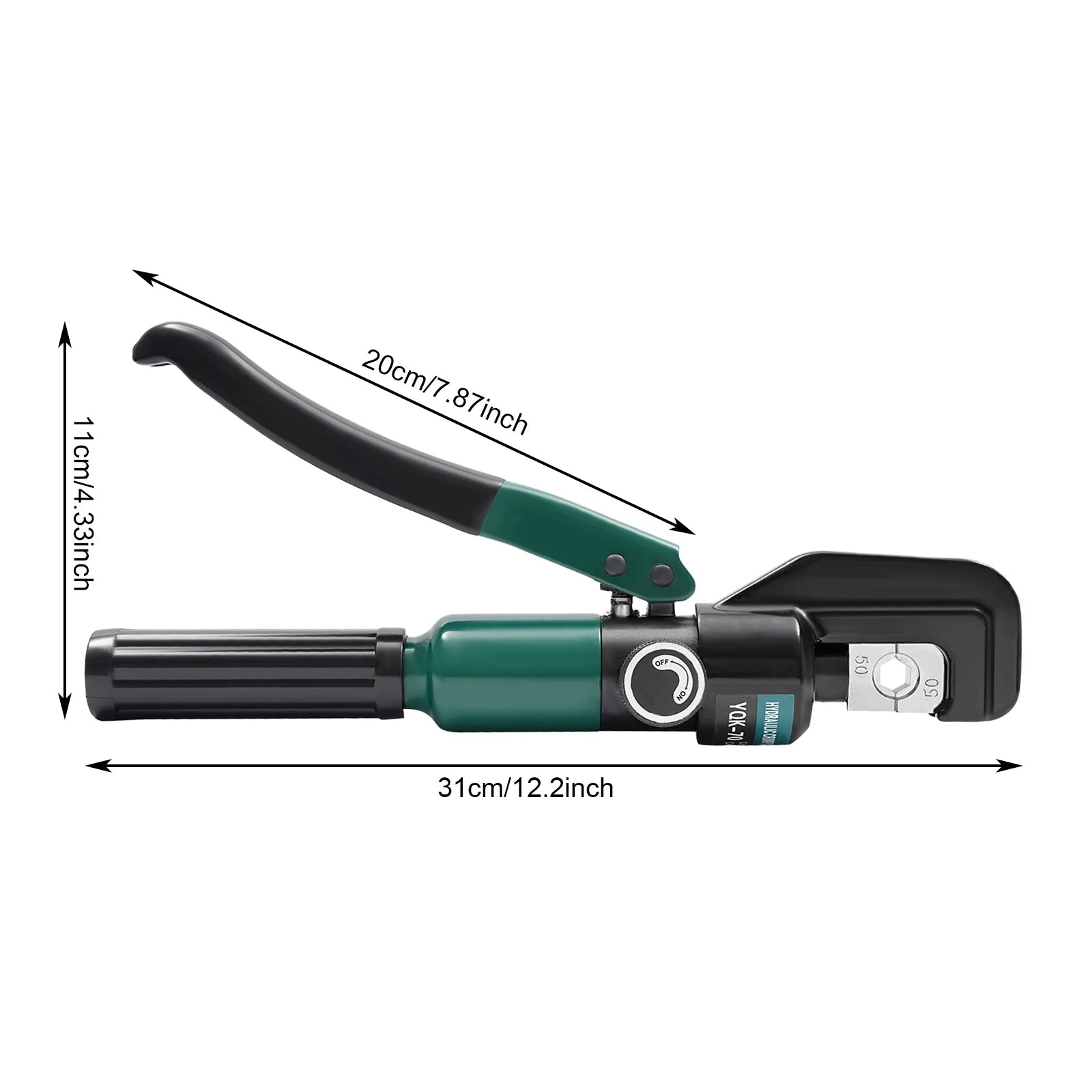

Hydraulic Crimper With 8 Dies 6 Ton Rotatable Joint Tool
Engineered for professional electrical, telecom, and construction work, the YQK-70 Hydraulic Crimper is a 6-ton manual hydraulic tool designed for durability and precise, secure connections. Crafted from cast iron, plastic, and rubber, with hardened steel dies that are chrome-plated for rust resistance, it delivers reliable crimping performance across copper and aluminum conductors from 4 to 70 mm².
The eight dies included (4/6/10/16/25/35/50/70 mm²) let you switch quickly between sizes, while the rotatable compression joint lets you adjust direction to fit tight spaces. A fixed handle and a movable handle give you powerful, labor-saving crimping, and the round knob valve design makes on/off operation quick and simple. The tool comes with a sturdy plastic case with a carrying handle for easy transport to the job site.
Benefits & Tips
- High-efficiency 60 kN crimping force delivers fast, secure connections on Cu or Al conductors within 4–70 mm².
- Rotatable joint and dual-handle design reduce effort and enable working in confined spaces.
- Durable construction with rust-resistant chrome-plated dies ensures long service life in demanding environments.
Product specifications
- Model: YQK-70
- Crimping Force: 60KN
- Crimping Range: Cu 4-70mm²
- Crimping Die Size: 4/6/10/16/25/35/50/70mm²
- Crimping Form: Hexagonal Surrounding Crimping
- Operation Type: Manual
- Material: Cast Iron, Plastic, Rubber
- Color: Dark Green, Black
- Process: Polishing, Electroplating, Spray Molding
- Stroke: 10mm / 0.39in
- Origin: Mainland China
- Model Number: YQK-70
- Gross Weight: 2

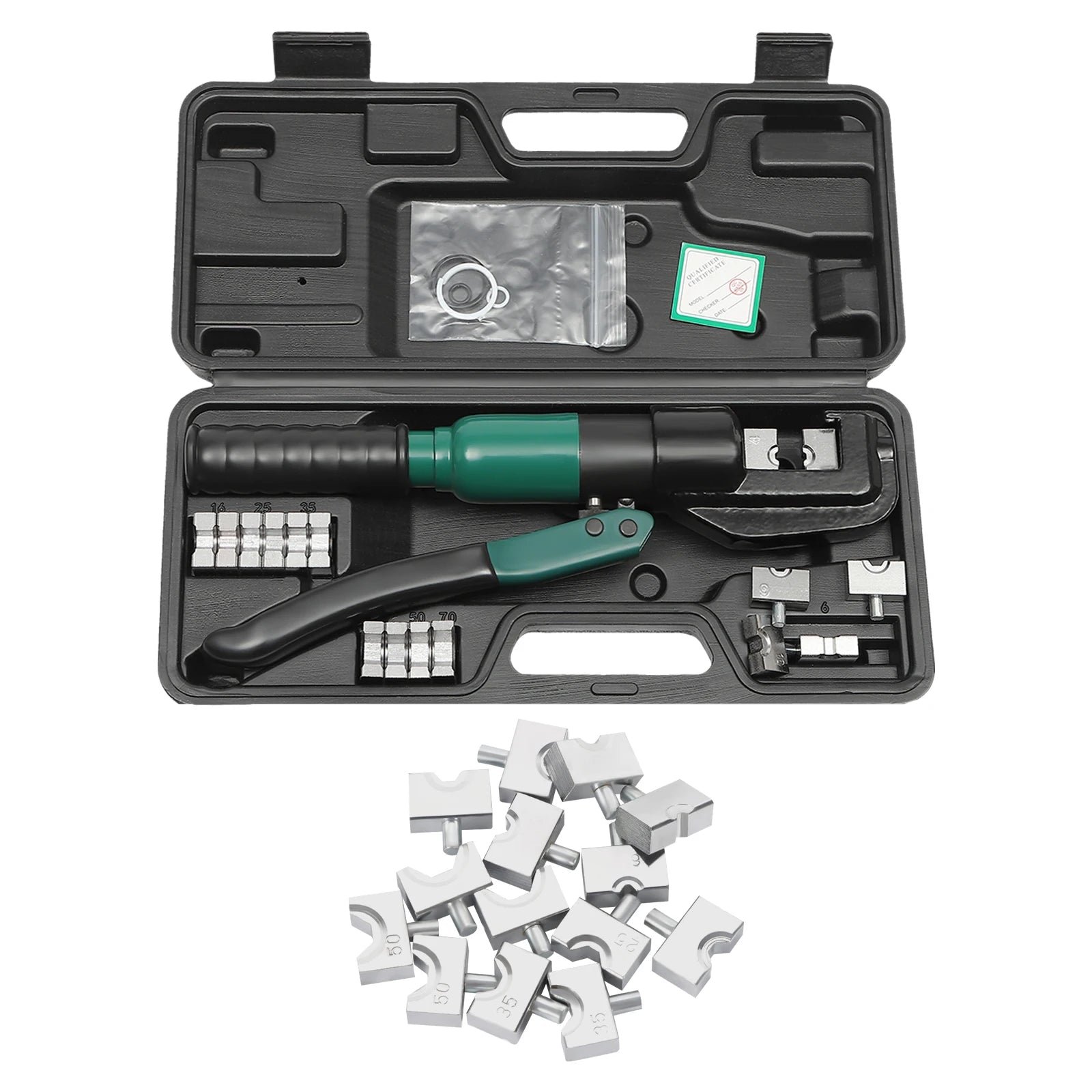

Package includes:
- YQK-70 manual hydraulic crimping tool
- Eight dies: 4/6/10/16/25/35/50/70 mm²

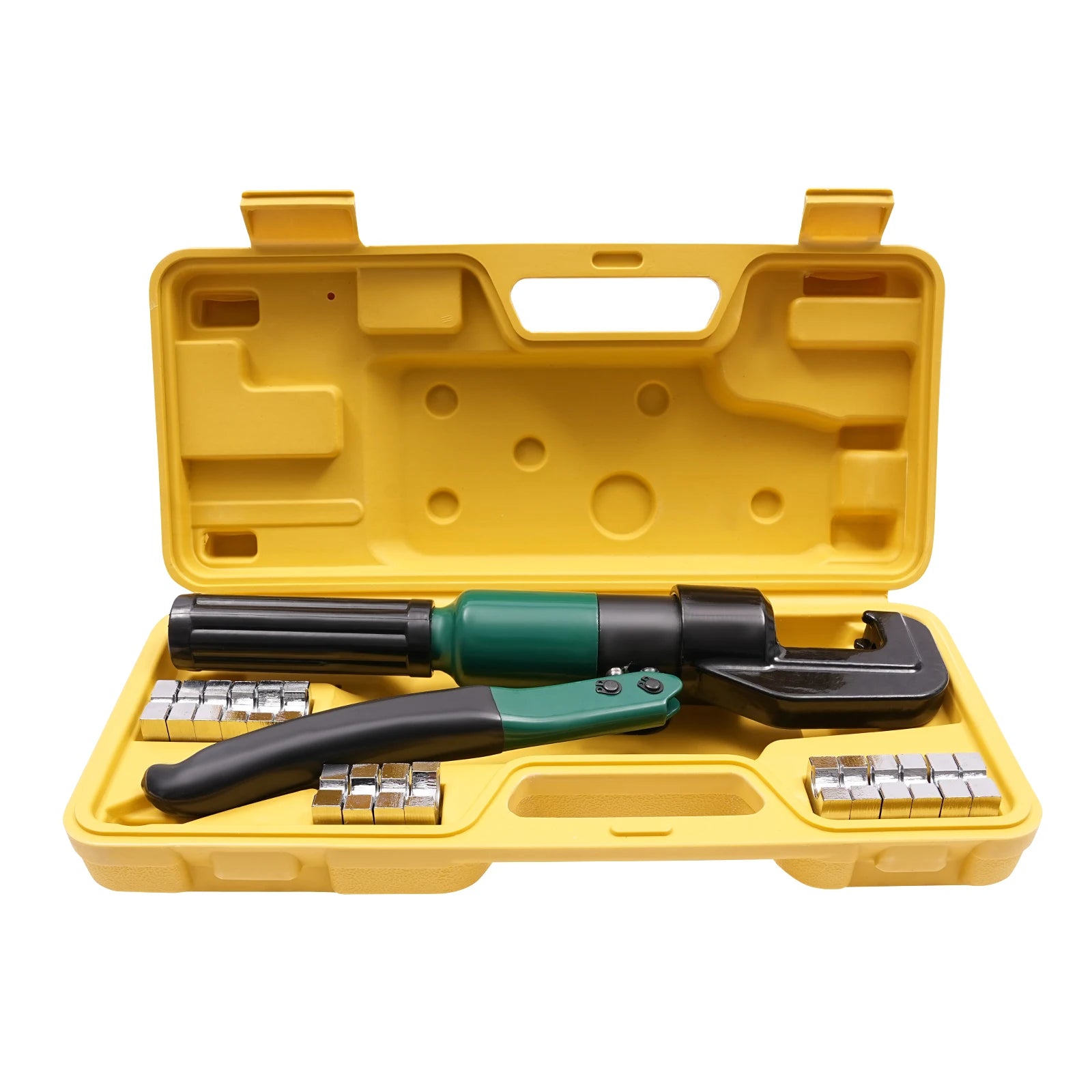

- Plastic carrying case
Warnings / reminders
- Maximum crimping force: 60 KN (6 tons). Do not exceed the rated capacity.
- Always use the correct die size for the conductor and ensure proper alignment before crimping.
- Operate with the round knob valve in the “on” position only when crimping; switch to “off” after use and store in a dry place.
