Pinion Gear Puller for DC Motors FC280 FC380 FC140 FC130

SKU: 1005005988583497-1set
Color
€77,81
-37% €124,49 €77,81

Main Description

Pinion Gear Puller for DC Motors FC280 FC380 FC140 FC130 is a purpose-built removal tool designed to safely extract pinion gears and worm gears from small DC motors. Its innovative ring-in-ring structure enables quick, precise alignment and evenly distributed stress across the gear components, reducing the risk of damage to gears and motor shafts. This means you can remove gears without resorting to improvised methods like prying, hammering, or gnawing at stubborn parts. Built for durability and ease of use, the tool takes the guesswork out of disassembly and helps you complete maintenance tasks faster and more reliably. The set is designed for versatility across FC-series motors, including FC280, FC380, FC140, and FC130, with three replaceable thimbles to fit different sizes. The whole assembly is metal-bodied for reliable strength and long service life, with a compact 0.7 kg weight that keeps it comfortable in hand. Includes Rotary Rod, Motor Bolder, Rotary Bar, Sliding Plate (Motor Gasket), and Metal Pin (Metal Thimble) for a complete gear-pulling solution. Its operation relies on gradual internal pressure and controlled rotation (clockwise or counterclockwise) to push the gear out evenly, minimizing slips and damage. Note: ships with a 365-day warranty from the seller and originates from Mainland China. Ships within 3–7 working days.

Benefits & Tips

  • Safe, controlled gear removal: The ring-in-ring design concentrates force where it’s needed, reducing the chance of gear or shaft damage compared to traditional methods.
  • Wide applicability: Three replaceable thimbles of different sizes accommodate a range of motor gears, giving you better tolerance for motor variations.
  • Prolonged tool life: Metal construction and gradual pressure application help you complete maintenance tasks repeatedly without marring gear teeth or threads.

Product Specifications

  • Compatibility: FC280, FC380, FC140, FC130 DC motors
  • Weight: 0.7 kg
  • Material: Metal construction

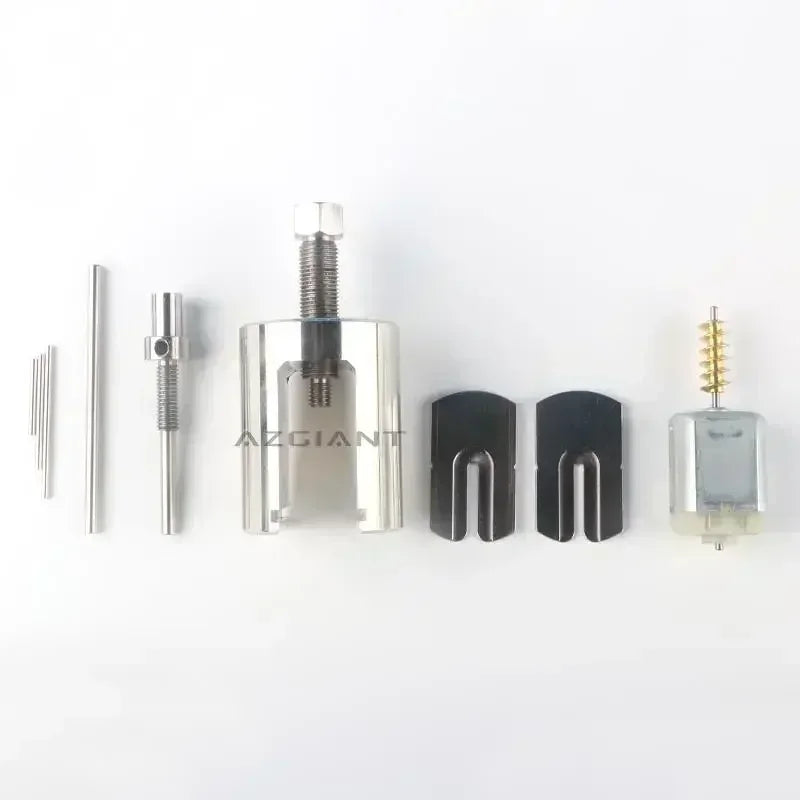

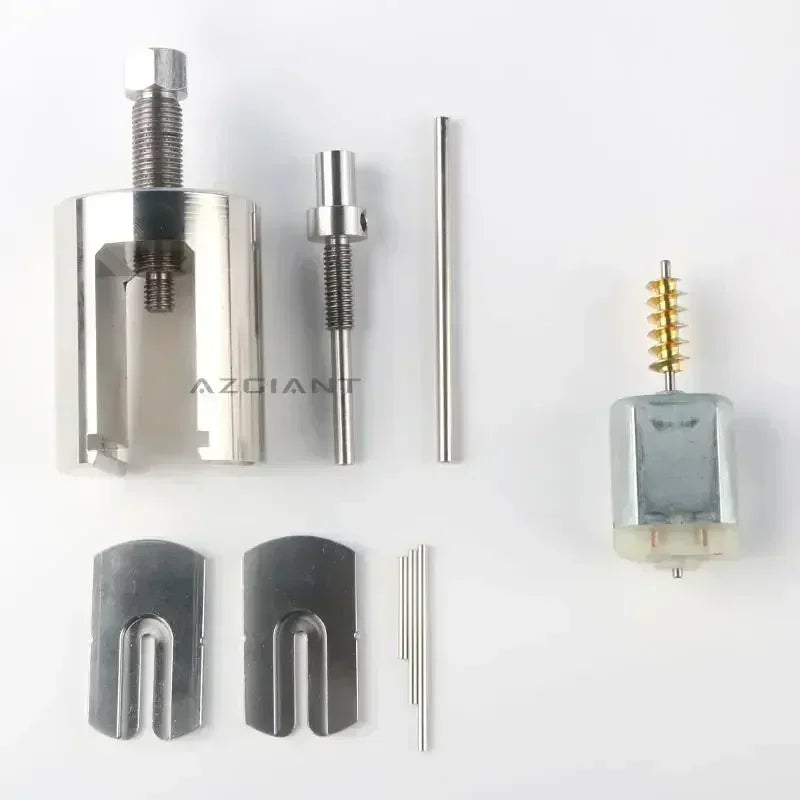

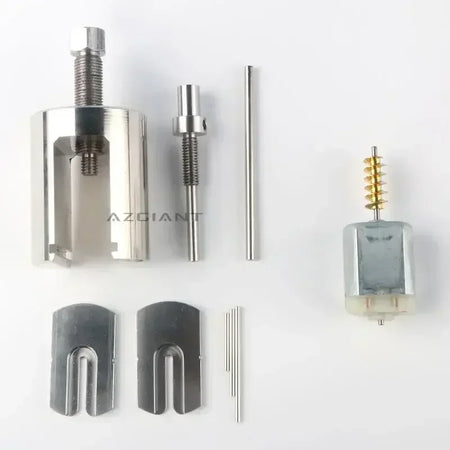

  • Includes: Rotary Rod, Motor Bolder, Rotary Bar, Sliding Plate (Motor Gasket), Metal Pin (Metal Thimble)
  • Advantage: Convenient and safe removal with a ring-in-ring alignment system

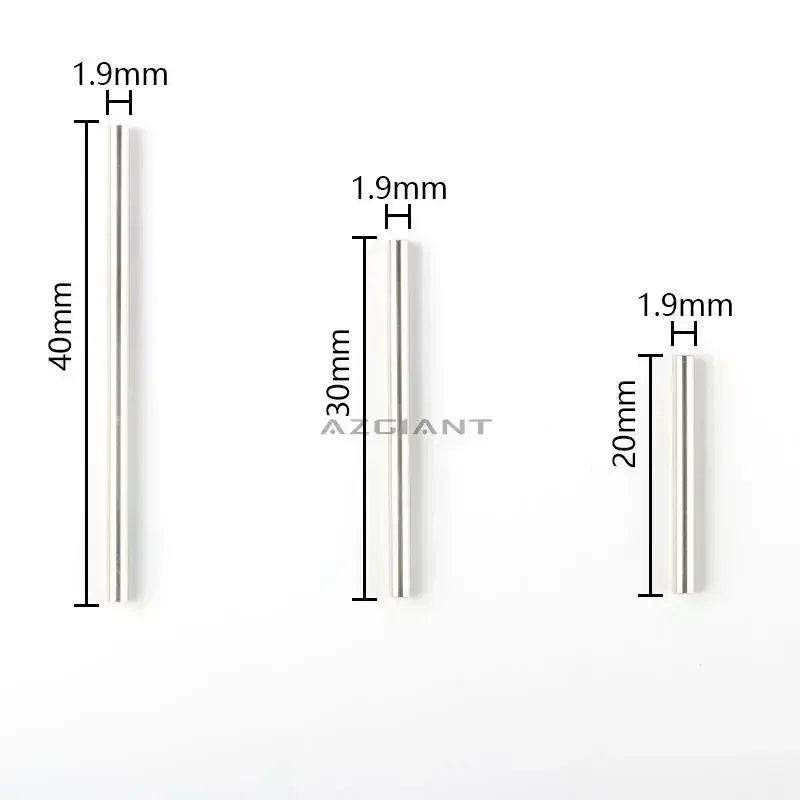

  • Thimbles: Three replaceable thimbles of different sizes for broader inner-range compatibility

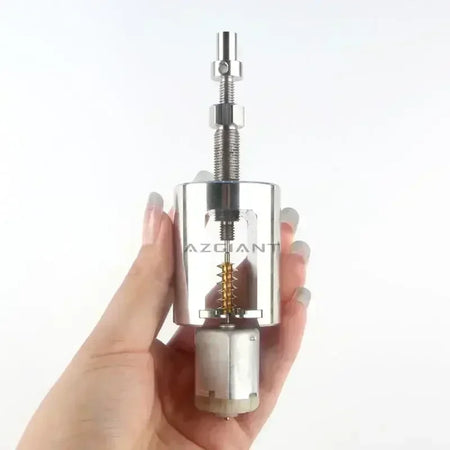

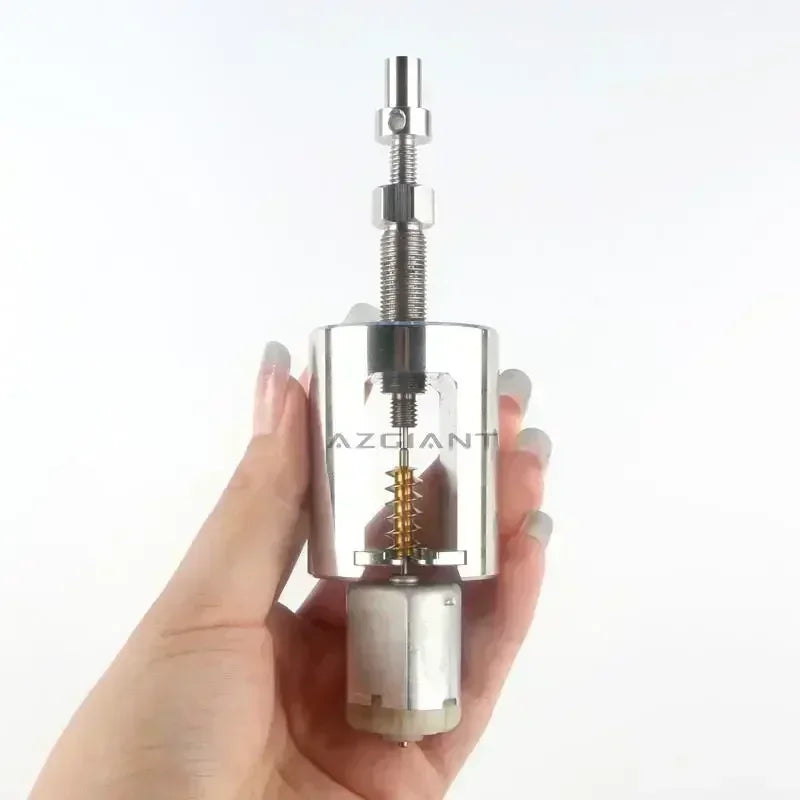

  • Operation principle: Gradual internal pressure with clockwise or counterclockwise rotation to evenly push out the worm/gear

Package includes:

  • Rotary Rod
  • Motor Bolder
  • Rotary Bar

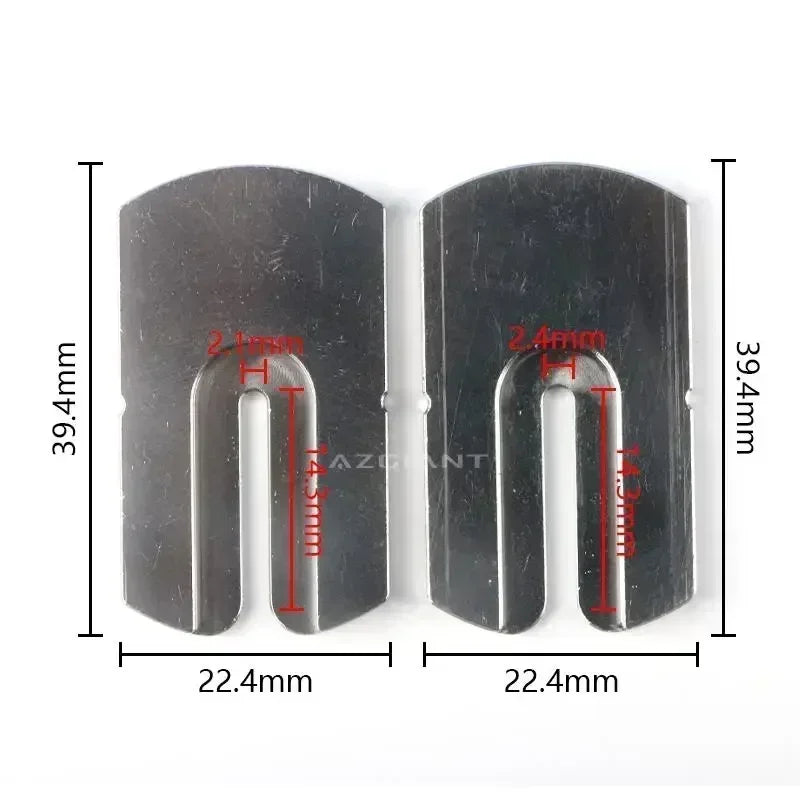

  • Sliding Plate (Motor Gasket)
  • Metal Pin (Metal Thimble)

Warnings / Reminders

  • You are advised to go slowly when pulling gears off to avoid sudden slips or damage.
  • If the gear is loose when inserted into the Sliding Plate, tighten with the 7-shaped metal rod to apply pressure evenly.
