Home » Fuel Tank Level Sensor for Chery A1 KIMO S12 QQME S16 M1 S18

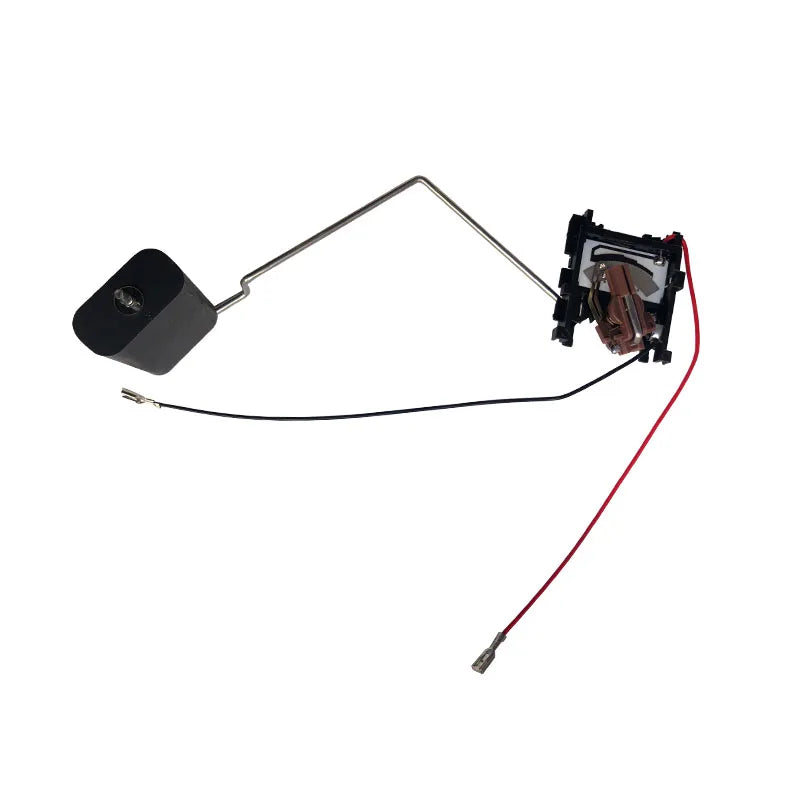

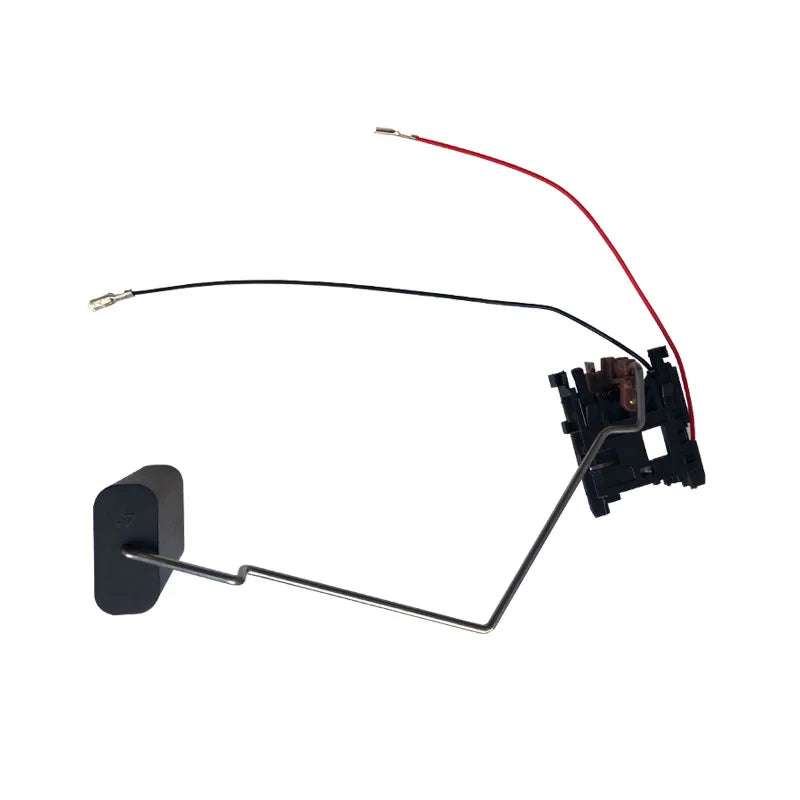

Fuel Tank Level Sensor for Chery A1 KIMO S12 QQME S16 M1 S18

SKU: 4001295482310-Default Title
Default Title
€29,37
-37% €46,99 €29,37

Restore steady fuel gauge readings with this Fuel Tank Level Sensor built for select Chery models. A failing sender often causes the needle to jump or drop to empty, leaving you unsure about your remaining range. This replacement uses a thick film resistor and POM plastic assembly to deliver consistent volume detection inside the tank. It serves as a direct match to OEM part number S12-1106610, fitting Chery A1, KIMO, S12, QQME, S16, M1, and S18 vehicles. The unit installs straight onto the fuel pump assembly for a secure fit.

Fitment Advice and Care

  • Check the fuel pump connector pins for corrosion before mounting the new sender for optimal signal clarity.
  • Glide the float arm through its full travel range by hand during fitting to confirm it clears all tank edges.
  • Clear any stored fault codes with a scanner after installation if the low fuel warning lamp stays illuminated.

Technical Details

  • Part Reference: S12-1106610
  • Brand: LEFJIQ

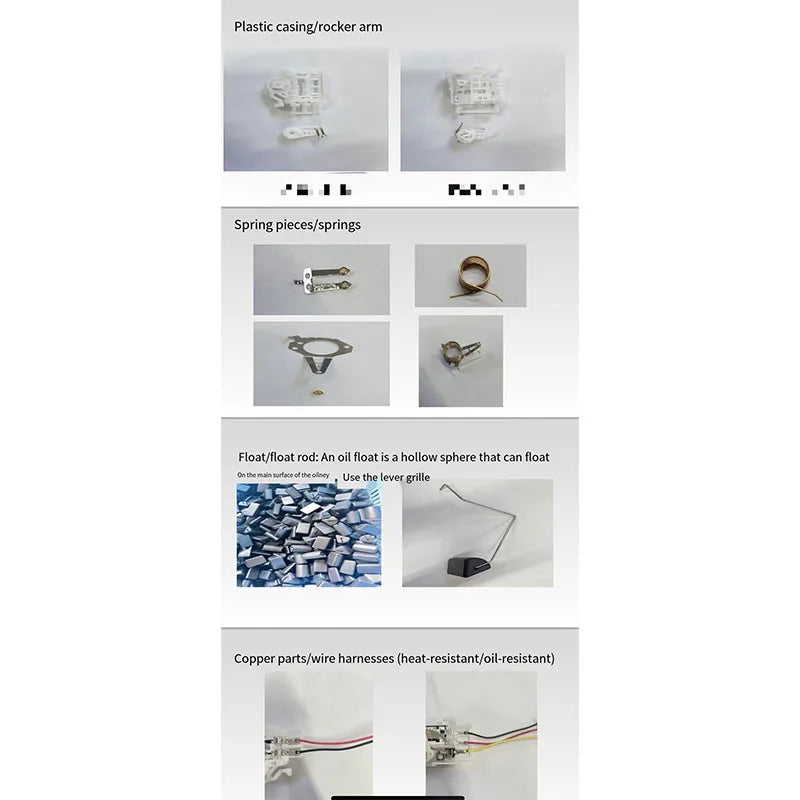

  • Built With: Thick film resistor and POM plastic assembly
  • Application: Mounts on the fuel pump assembly to measure fuel level volume
  • Supported Models: Chery A1, KIMO, S12, QQME, S16, M1, S18

You receive one Fuel Tank Level Sensor packed and ready for replacement.

Safety Precautions

Always disconnect the battery before removing the fuel pump module to prevent electrical sparks. Work in a well-ventilated space free of flames, as fuel residue can create flammable vapors near hot surfaces.

All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.

Trusted service and dependable components for your Chery maintenance since 2002 at intercyprus.com.
