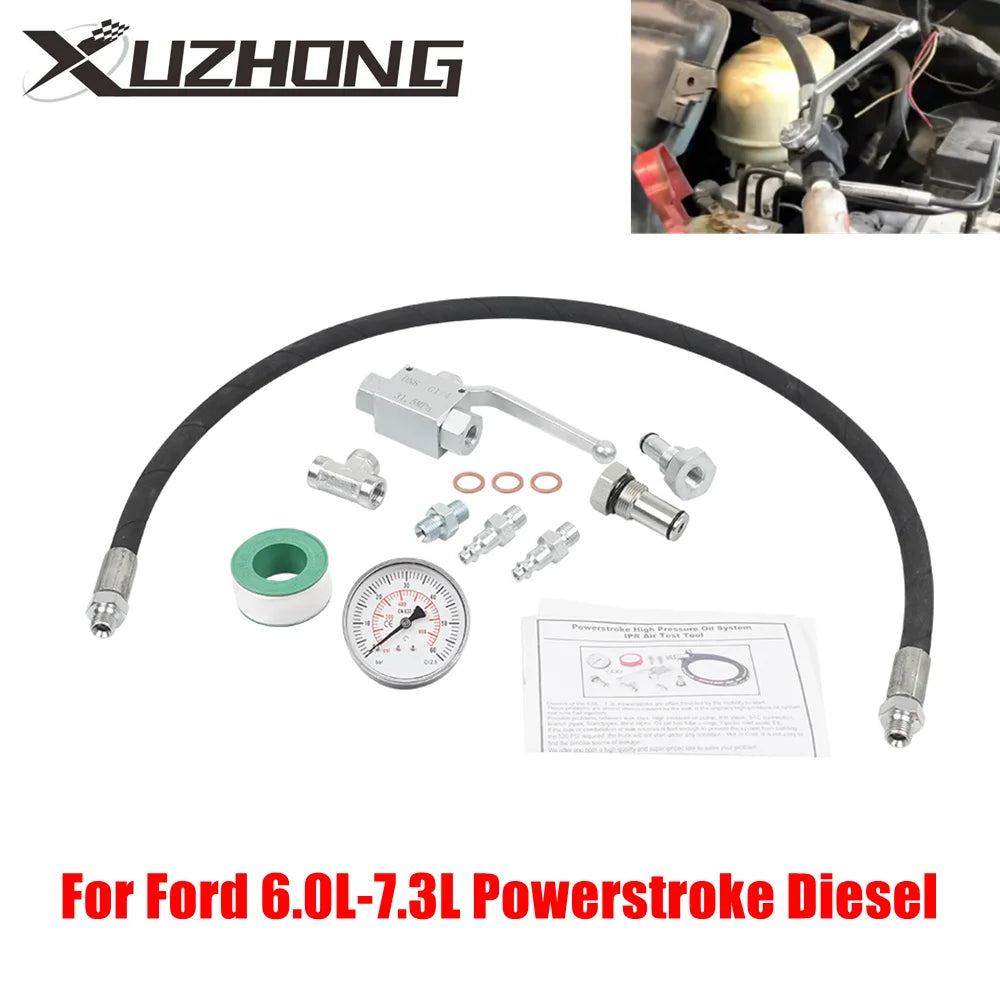

Oil Pressure Test Tool Kit for Ford 6.0L-7.3L Powerstroke IPR High-Pressure Oil System

Introducing the Ford 6.0L-7.3L Powerstroke IPR High Pressure Oil Test Tool Kit (TF-1141-BK). This specialized air test tool is designed for Ford 6.0L and 7.3L Powerstroke diesel engines, letting you safely pressure-test the high-pressure oil (IPR) system before final assembly. By replacing the IPR valve to create a fully sealed test environment, you can detect even the tiniest leaks that could otherwise lead to costly downtime and engine rework. The kit is built for real-world use, providing a reliable, straightforward way to verify system integrity without needing a dedicated scan tool.

Key benefits come from a simple, seal-first testing approach. You’ll be able to confirm the absence of high-pressure oil leaks after disassembly, test compatibility with the latest standpipe updates, and dramatically reduce the risk of leaks after installation. The heavy-duty hydraulic hose is rated up to 5,300 PSI, ensuring durability under prime testing conditions. And with three extra O-ring sets included for the IPR fittings, you’ll be ready for repeated use without downtime.

Benefits & Tips

• Accurate leak detection before installation: seal the system with the IPR substitute and pressurize to reveal any leaks that could complicate future repairs.
• Easy, tool-free setup: connect by removing only the air cleaner, FICM, and coolant degas bottle—no turbo removal required—and thread in the tool by hand for a secure seal.

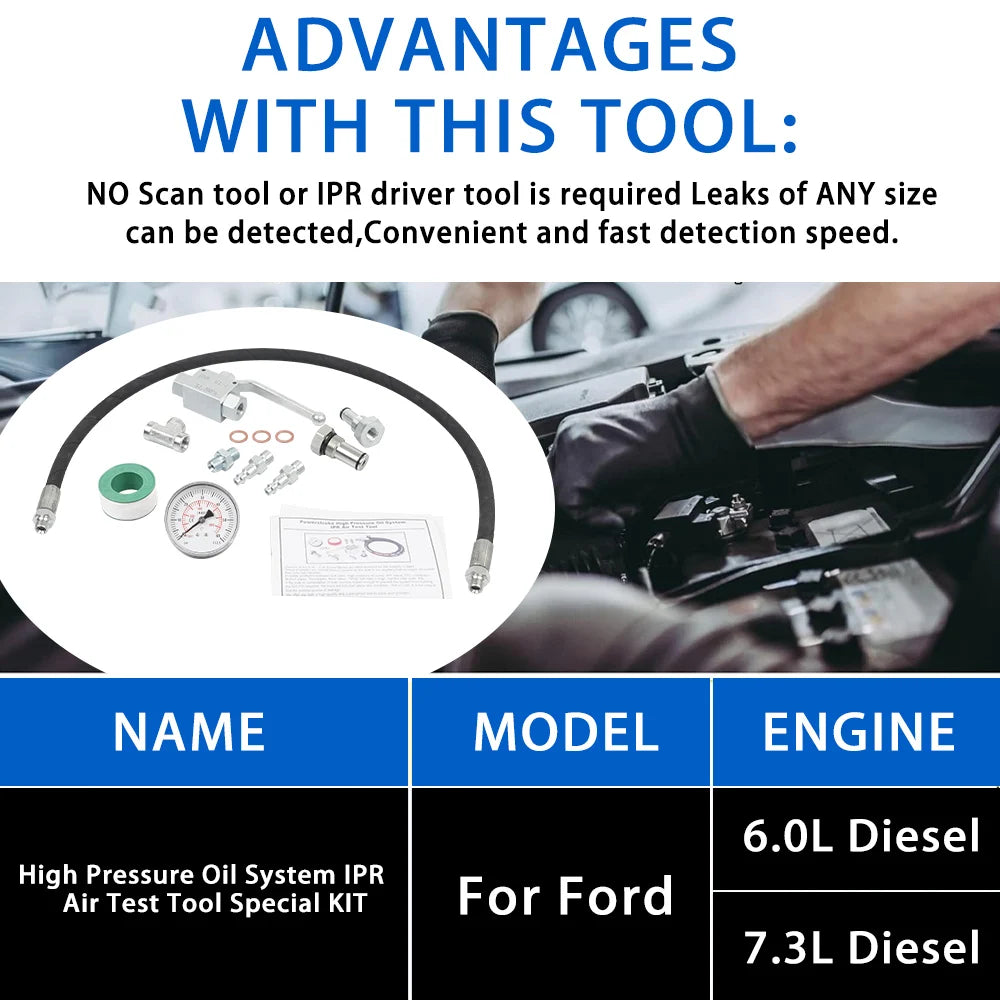

• Flexible testing options: while a scan tool isn’t required, you can optionally monitor ICP sensor readings with a compatible tool for real-time pressure visibility.

Product Specifications

• Model: TF-1141-BK

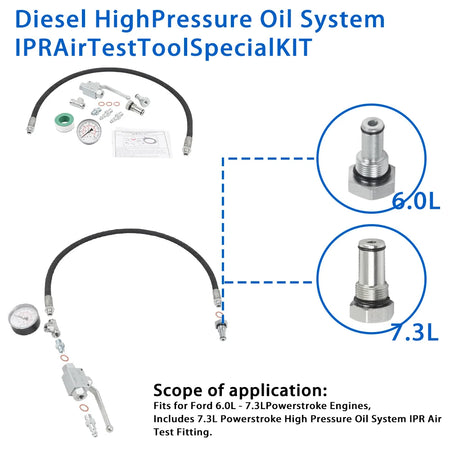

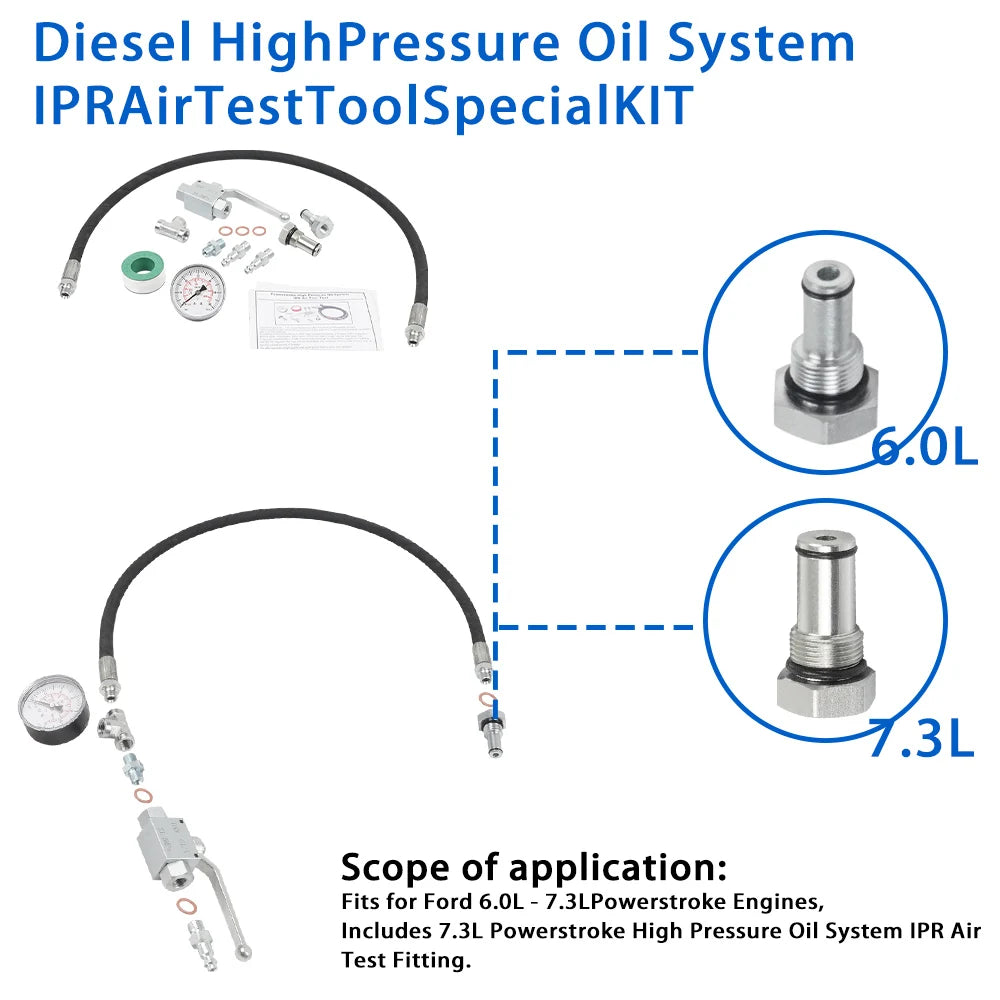

• Engine compatibility: Ford 6.0L-7.3L Powerstroke engines
• Tool type: High Pressure Oil System IPR Air Test Tool
• Pressure rating: up to 5,300 PSI (heavy-duty hydraulic hose)

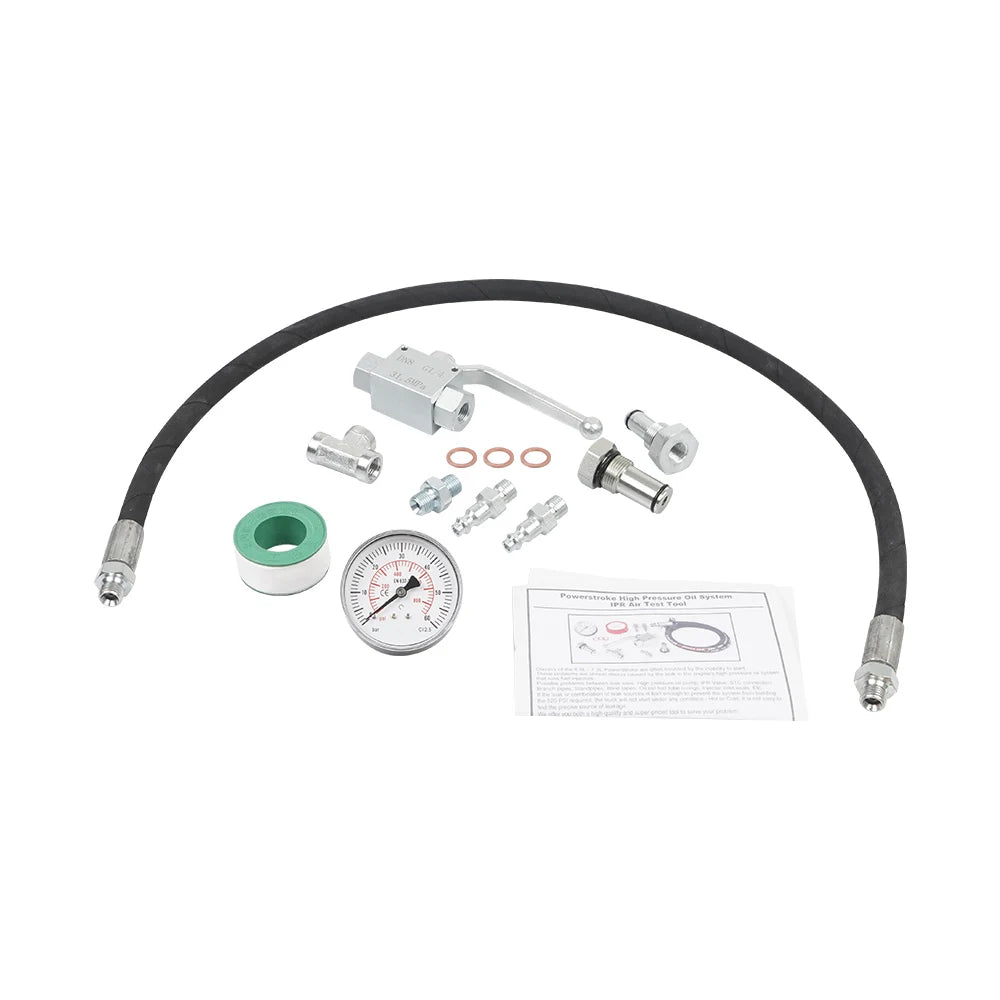

• In the box: IPR Air Test Tool Special Kit (1 piece) with three extra O-ring sets

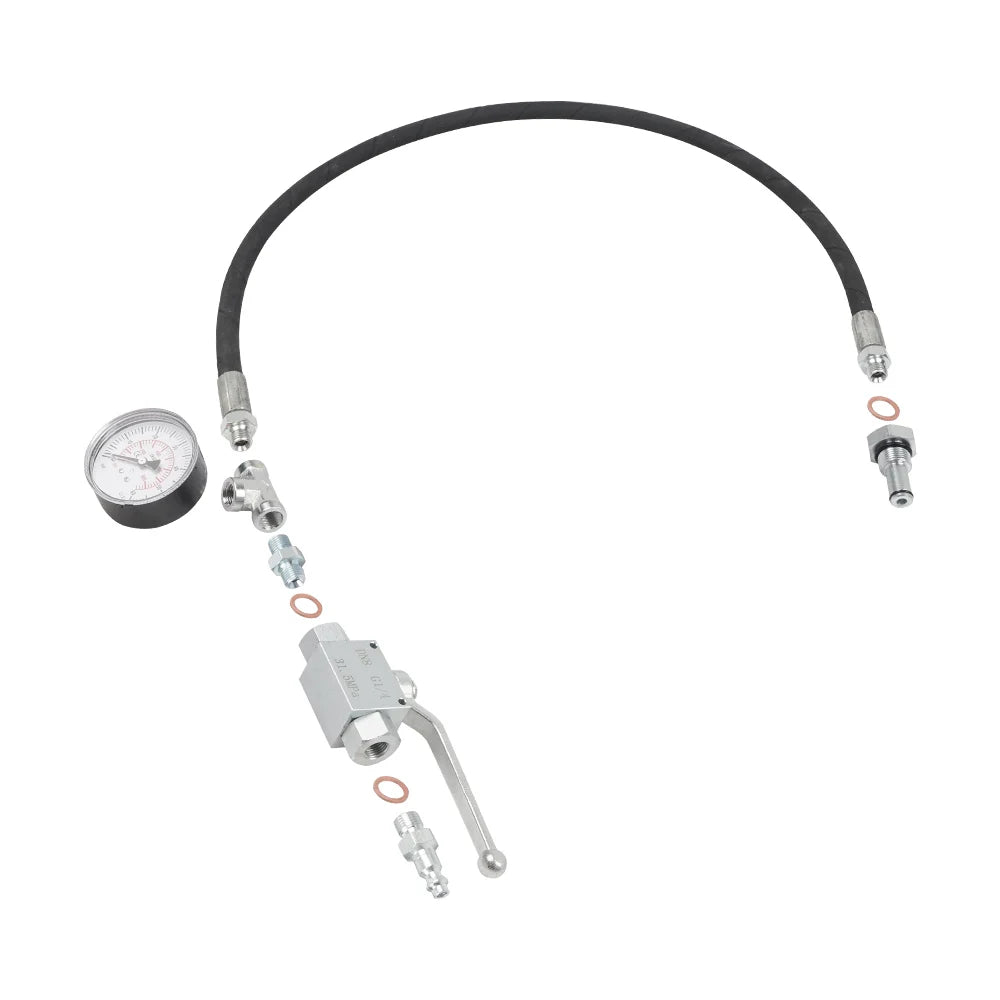

• Connection method: remove air cleaner, FICM, and coolant degas bottle; thread in tool by hand; connect shop air
• Sealing approach: creates a completely sealed test environment by replacing the IPR valve
• Color: Black (BK)
• Origin: Mainland China

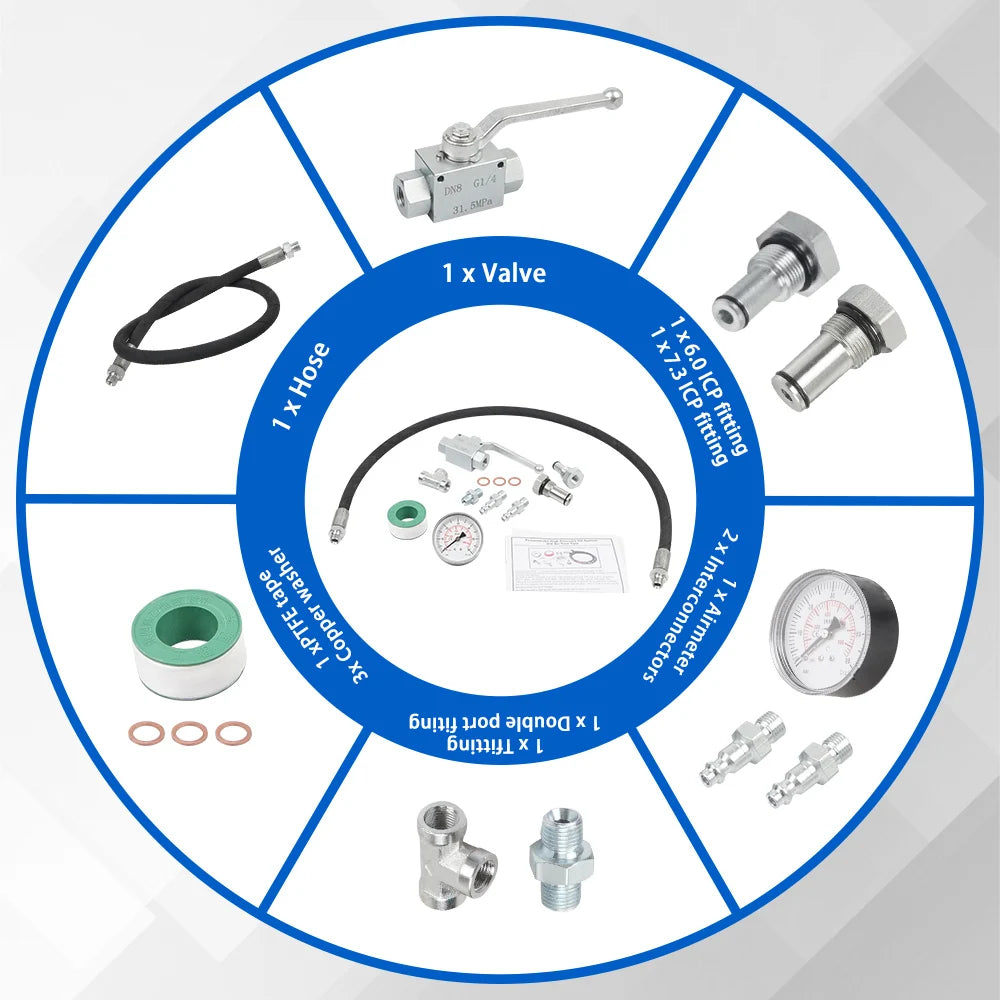

Package includes:

• 1 x IPR Air Test Tool Special Kit

Warnings/Reminders

• To locate the smallest leaks, close the shutoff valve on the tool to momentarily seal the system while listening for air escape.
• If you choose to use a scan tool, you can monitor ICP sensor readings for additional verification; this is optional and not required.
• Avoid turbo removal during installation strictly for the testing process—follow the provided connection steps for a safe setup.
