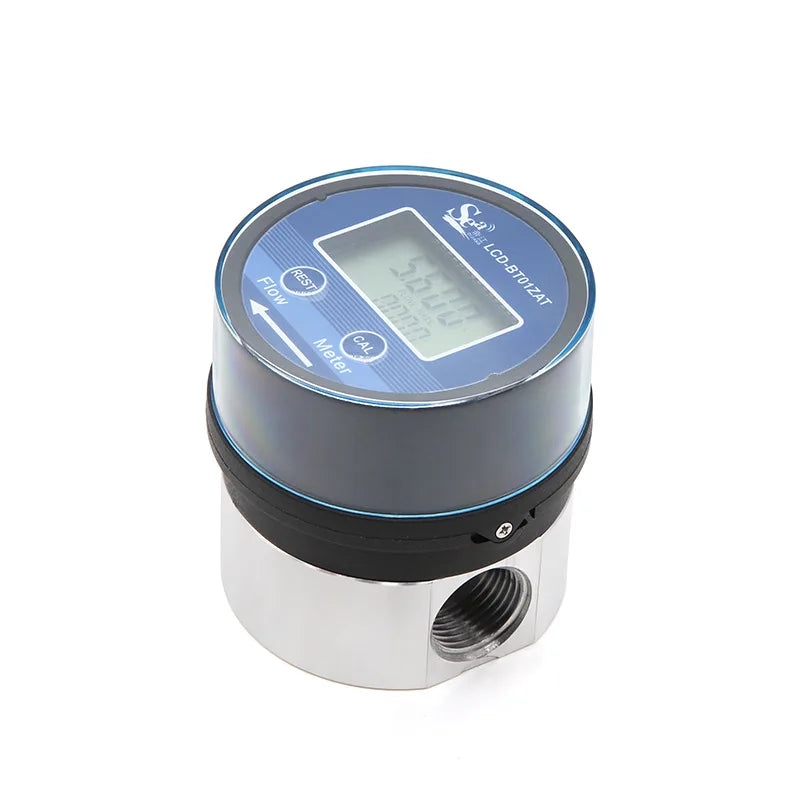

High-Precision Oval Gear Flow Meter With Digital Display, Liquid Flow Sensor

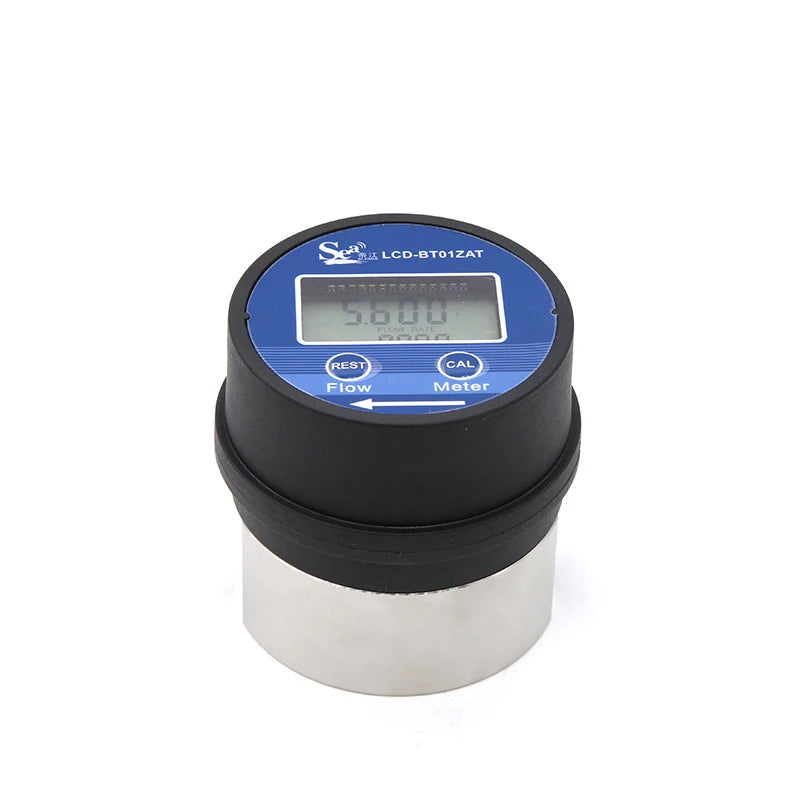

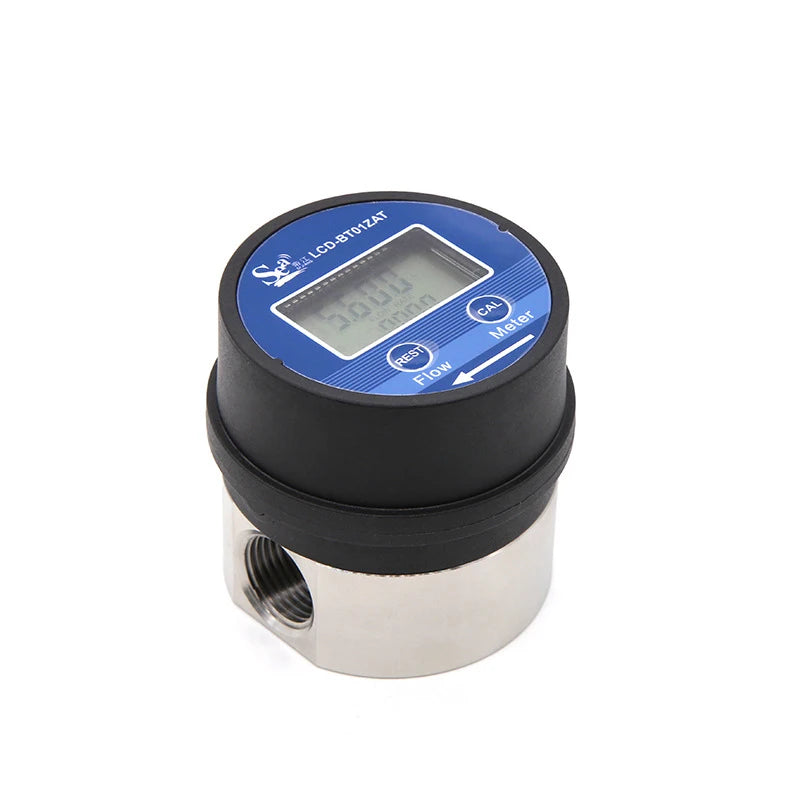

High-Precision Oval Gear Flow Meter with Digital Display delivers accurate liquid flow measurement in industrial settings. Crafted from durable stainless steel, it is pressure-resistant and wear-resistant, built to endure demanding environments. The high-accuracy oval gear mechanism provides reliable flow data, while the clear LCD display shows real-time measurements for easy monitoring and adjustments. A sealed ring design minimizes leakage, and IP65 protection guards against dust and water splashes for long-term stability.

Benefits & Tips

• Real-time monitoring supports precise dosing, batching, and process control with multiple units (L, GAL, PTS, m³).
• Adaptable installation thanks to multiple interface sizes and flow ranges for different piping: G3/8, G1/2, G3/4, G1.
• Keep readings accurate by using liquids that are pure and stable (free of impurities and corrosiveness); this helps maintain the stated ±5% measurement accuracy.

Product specifications

• Interface size: G3/8, G1/2, G3/4, G1

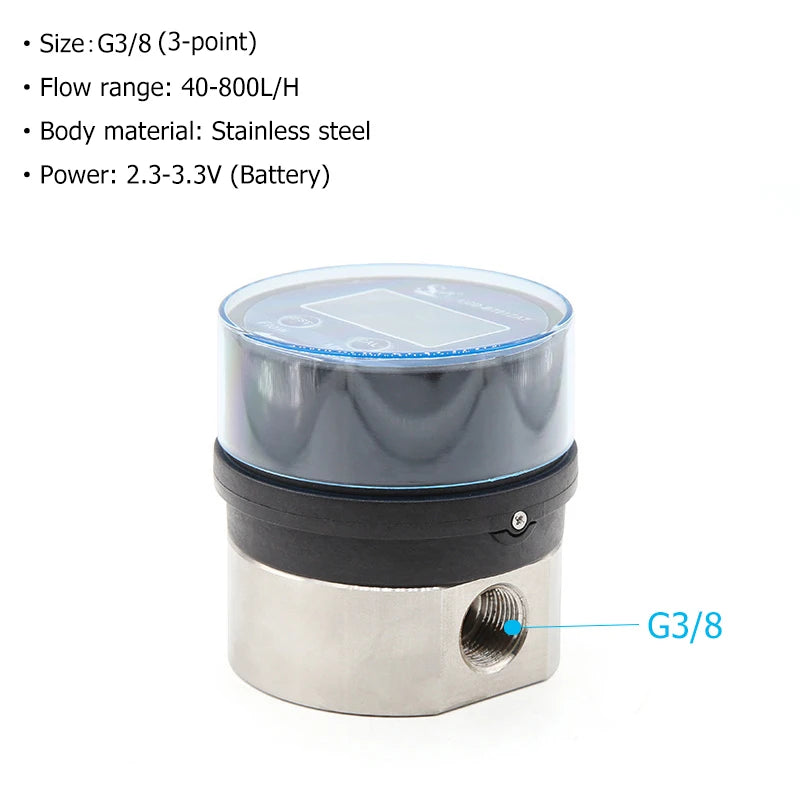

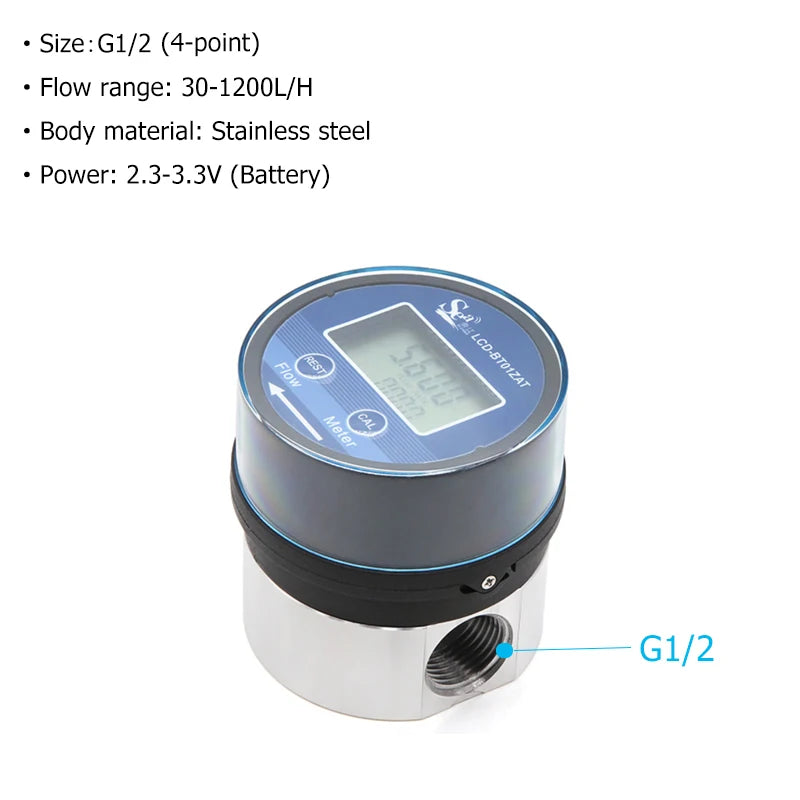

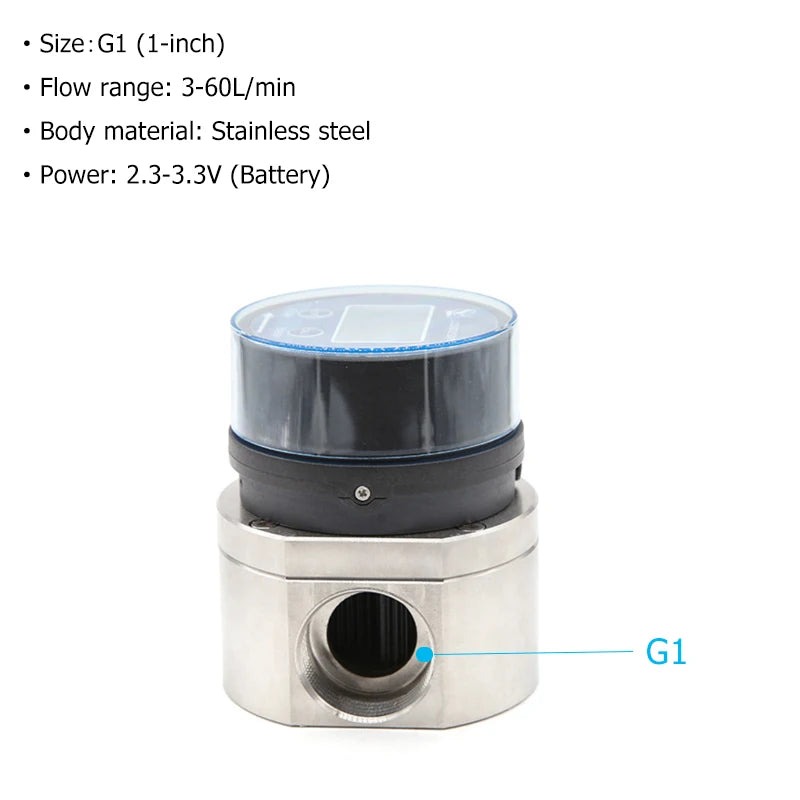

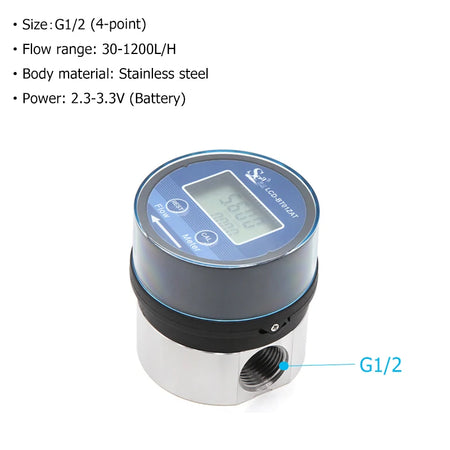

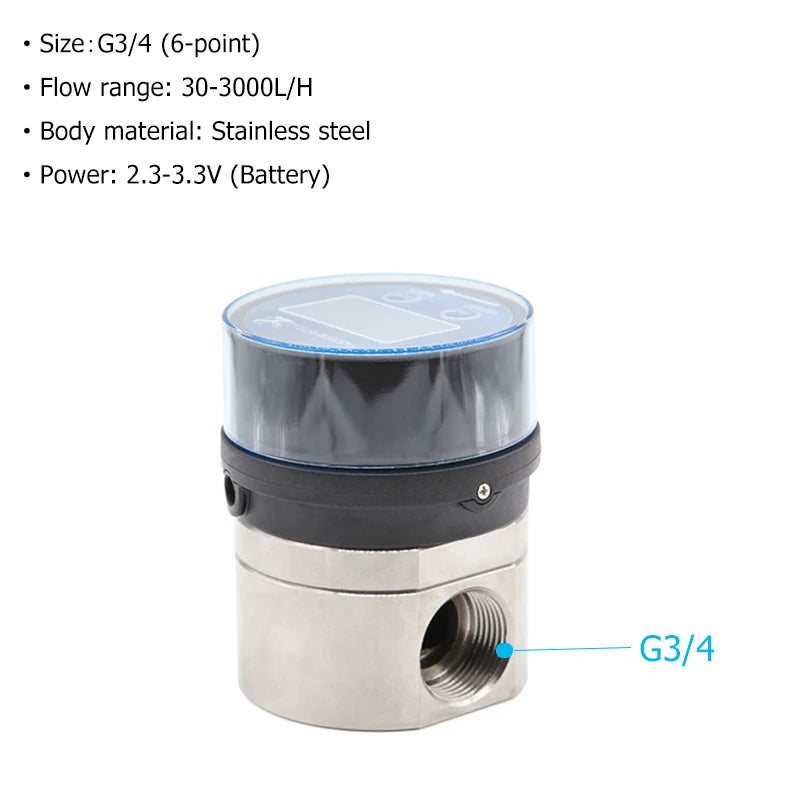

• Flow range: 40-800 L/H (G3/8); 30-1200 L/H (G1/2); 30-3000 L/H (G3/4); 3-60 L/min (G1)
• Measurement accuracy: ±5%
• Maximum working pressure: 10 BAR
• Operating voltage: 2.3-3.3V
• Suitable medium: Most of pure and stable liquids (liquids without impurities/corrosiveness)
• Body material: Stainless steel
• Single count: 0.00-9999
• Total cumulative count: 0-999999
• Measurement units: Liter (L), Gallon (GAL), Pint (PTS), Cubic Meter (m³)
• Protection: IP65
• Model Number: G3/8 G1/2 G3/4 G1
• Origin: Mainland China
• Certification: CE, DOT, EAC, EPA, FCC, GMP, RoHS, TGA, UL, KC, PSE, WEEE
• Included: Oval Gear Flow Meter

Package includes

• Oval Gear Flow Meter

Warnings / Reminders

• All electronic and mechanical equipment sold by InterCyprus to EU countries is CE certified and carries a two year warranty.
• Do not exceed the maximum working pressure of 10 BAR.
• Operate within the specified voltage of 2.3-3.3V.
• Use with liquids that are pure and stable to maintain accuracy and longevity.
