Waterproof CCD Backup Camera With Fish Eye Lens And Night Vision For Universal Vehicles

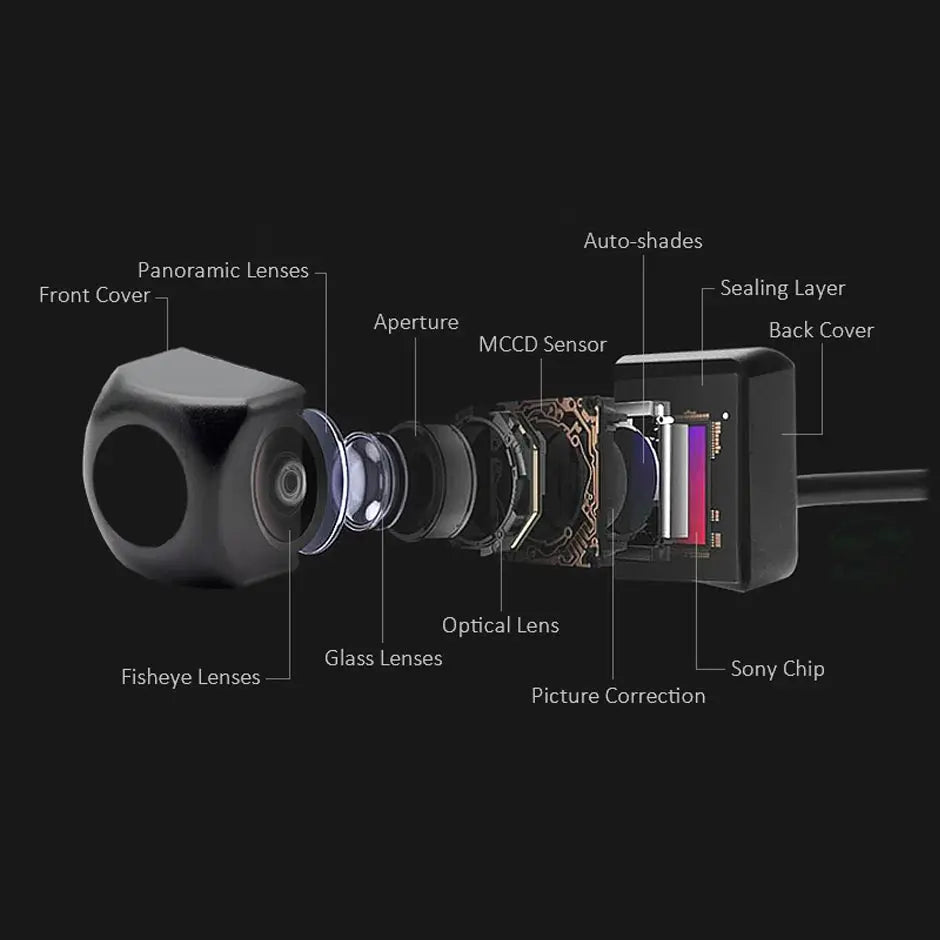

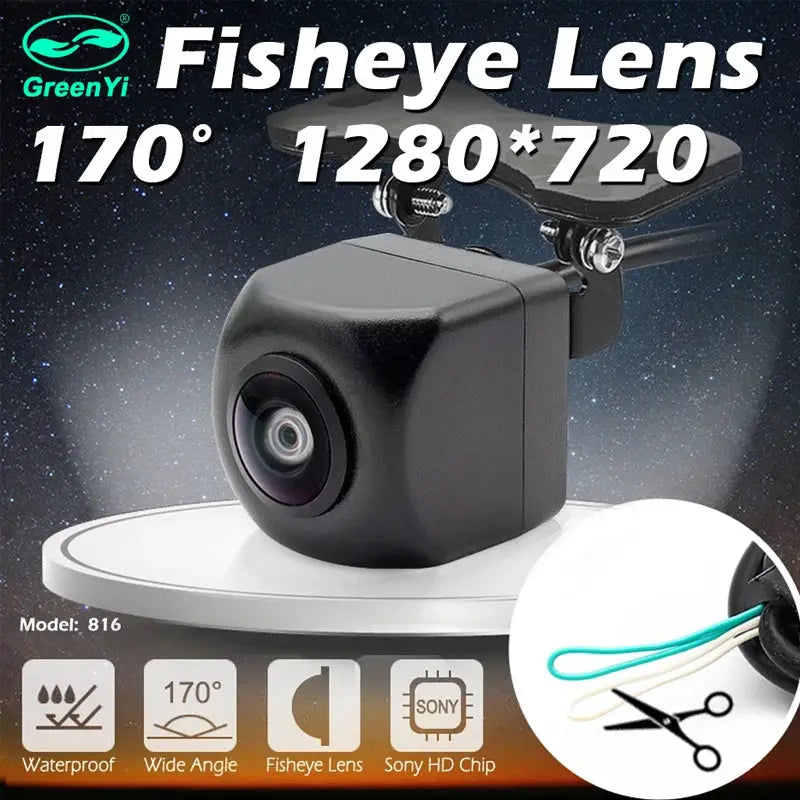

Backing up your vehicle becomes safer and simpler with this GreenYi waterproof backup camera. The 170-degree glass fisheye lens sweeps wide enough to capture curb edges and hidden obstacles. Its solid IP68 rated shell keeps out rain, dirt, and winter road spray so the image stays clear season after season. You enjoy crisp reverse footage thanks to the Sony MCCD 1409 sensor and dedicated night vision elements. Automatic white balance adjusts instantly to changing outdoor lighting. The included six-meter video cable routes neatly to your dashboard. You control the display layout by trimming two small indicator wires. Snip the green lead to enable distance markings. Pull the white wire to flip the picture for forward driving. Plug the RCA connector straight into any compatible TFT screen or Android head unit.
Practical Tips & Usage
- Reverse precision: Guide yourself past narrow lanes by watching the optional scale markers judge exact clearance.

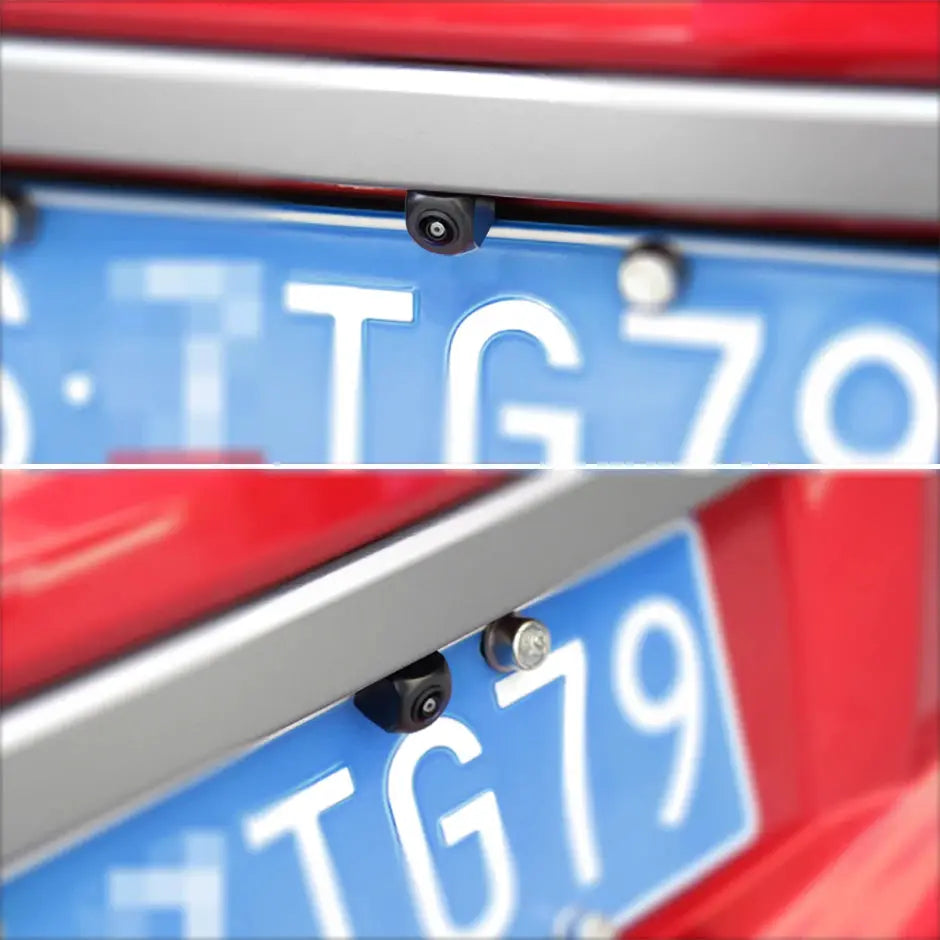

- Forward conversion: Mount the unit near your grille and connect the power tap to daytime running circuits.
- Rapid testing: Verify your chosen wire-cut pattern against the monitor before drilling bracket holes or applying sealant.
Technical Specifications
- Resolution: 1280 x 720 effective pixels render crisp detail across daylight and dusk conditions.

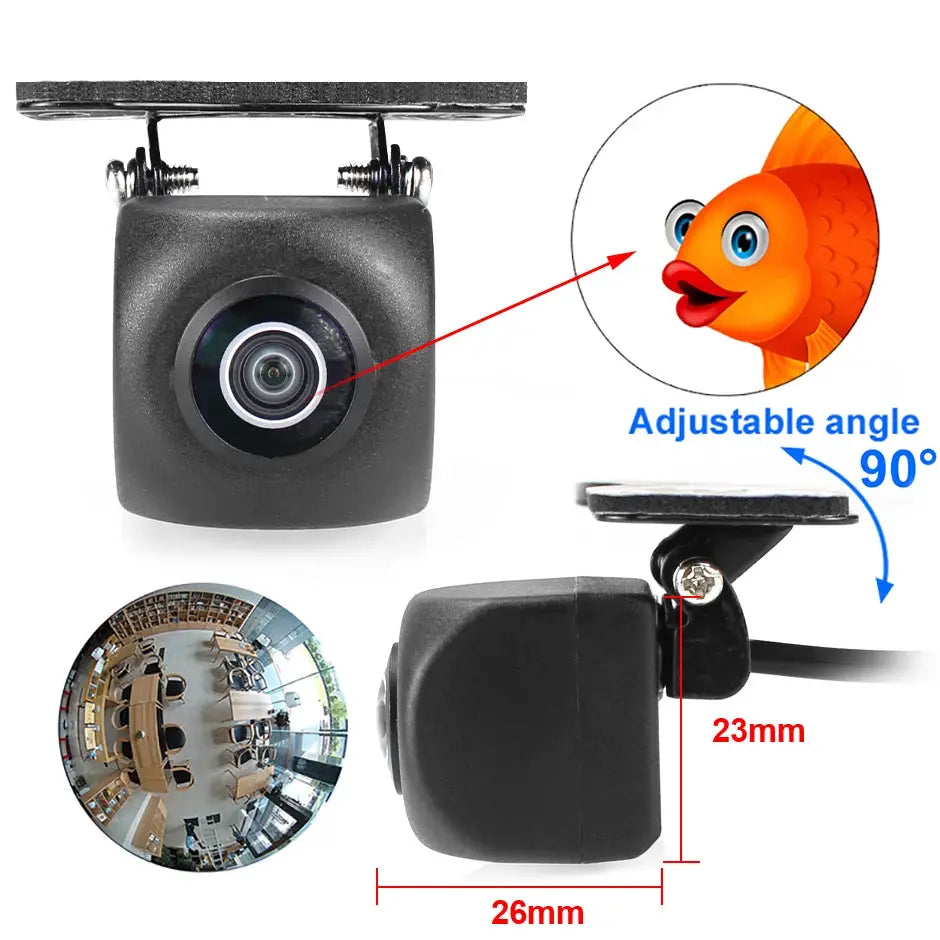

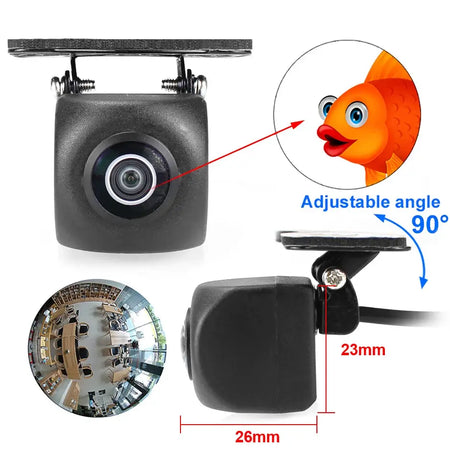

- View Coverage: 170 degree fisheye optics eliminate stubborn side blind zones quickly.

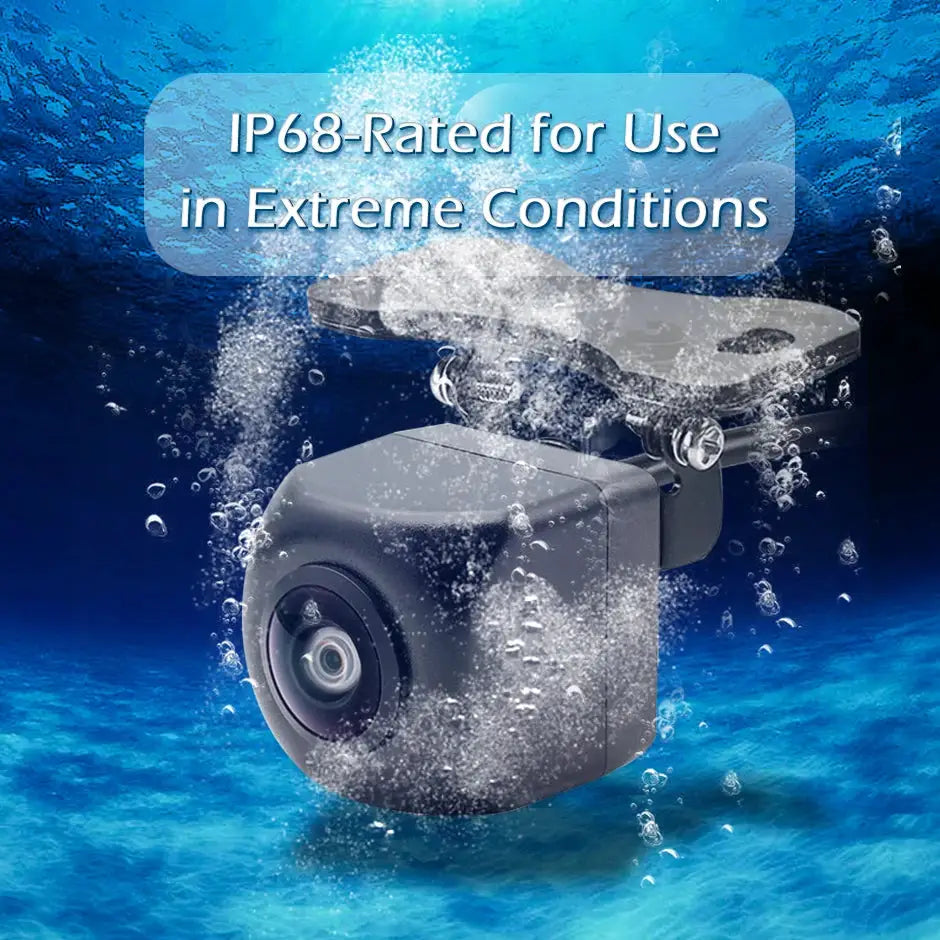

- Protection Rating: IP68 certification guarantees uninterrupted signals during heavy downpours or dusty loads.
- Signal Output: 1.0Vpp CVBS NTSC broadcast with 1000 TV line clarity matches standard car displays.
- Electrical Draw: Optimized for steady consumption on DC 12V automotive boards.

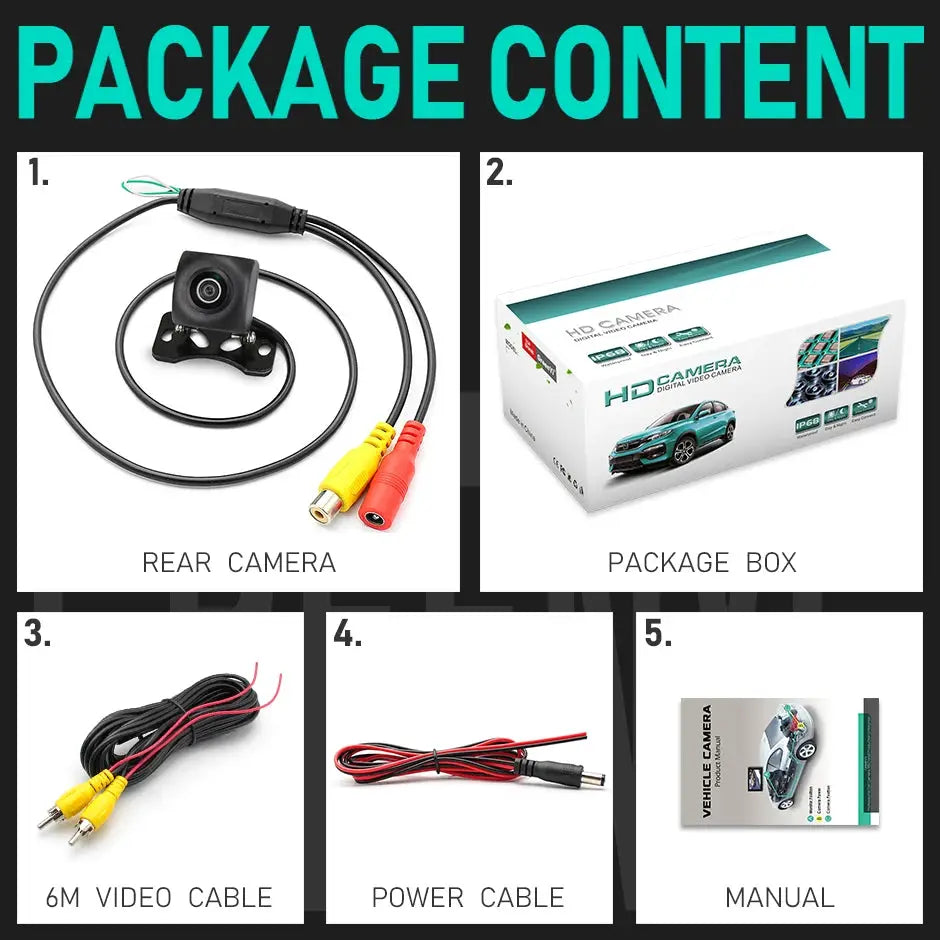

Package Includes:
- One CCW backup camera body
- Six meter RCA video extension cord
- 1.5 meter power lead
- Assembly reference booklet
- Factory cardboard carton
Setup Reminders
Confirm your dashboard electronics match the DC 12V requirement before making permanent splices. Route cables away from engine heat shields and moving door hinges to prevent abrasion. Toggle your head unit to NTSC mode if colors appear washed out or the screen rolls.
