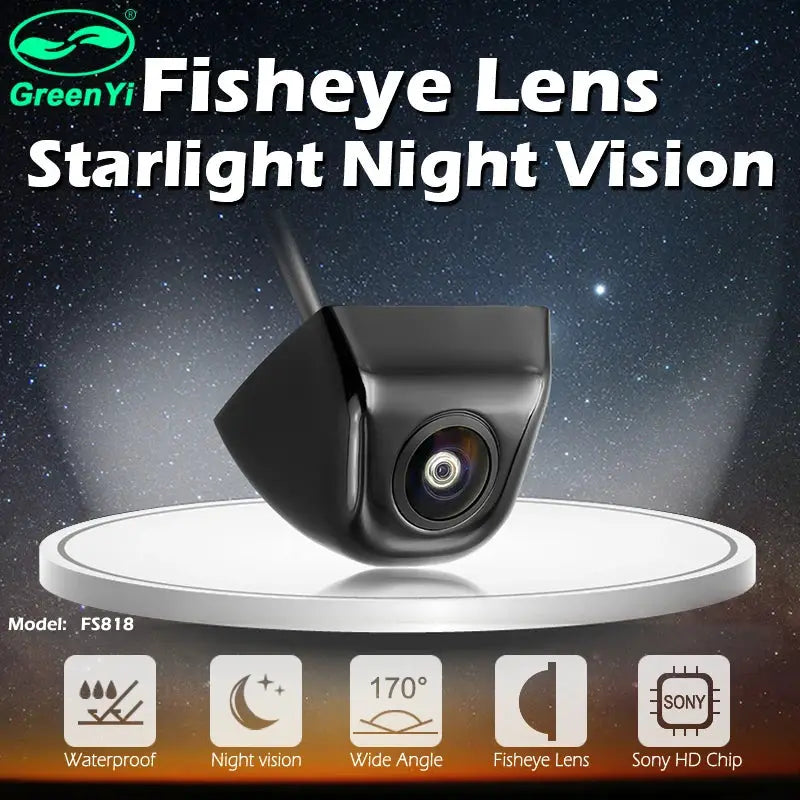

170 Degree Fish Eye Camera With Starlight Night Vision And HD 720P
You steer with clearer sightlines when this GreenYi fish-eye camera mounts on your vehicle. The ultra-wide 170-degree angle spreads across corners and lanes, helping you spot curbs or pedestrians others miss during tight pulls and reverses. HD 720P resolution brings sharp detail to your screen, so lane markers and license plates stay easy to read while you move.
Reliable nighttime performance comes from a starlight-grade MCCD 1409 sensor that captures clear images at distances up to 15 meters in low light. An IP68-rated shell built from stainless steel and aluminium alloy protects the electronics from rain and road debris, while the waterproof silicon interior secures the chip against moisture. The system supports NTSC and PAL standards, making it ready for use with Android DVD players and any TFT car monitor.
Benefits & Practical Tips
Park with added assurance using the adjustable distance guidelines, which appear on your monitor to help gauge spacing. Modify the display to match your preference by swapping the mirror image setting or hiding guide lines with simple wire adjustments. Install the red power wire directly to your reversing lights to trigger the camera instantly every time you shift gears.
Product Specifications
- Viewing Angle: 170-degree fish-eye lens ensures complete side-to-side coverage.
- Image Quality: HD 720P delivers sharp visuals with 1280 x 720 effective pixels.
- Night Vision: Sensing down to 15m allows safe maneuvering in dim environments.
- Construction: Durable meshed materials resist scratches and daily wear.
- Water Resistance: IP68 rating shields components from water and dust exposure.
- Cables: Includes a 6-meter RCA video wire compatible with standard monaural inputs.
- Power: Operates on DC 12V drawing power from the vehicle system.

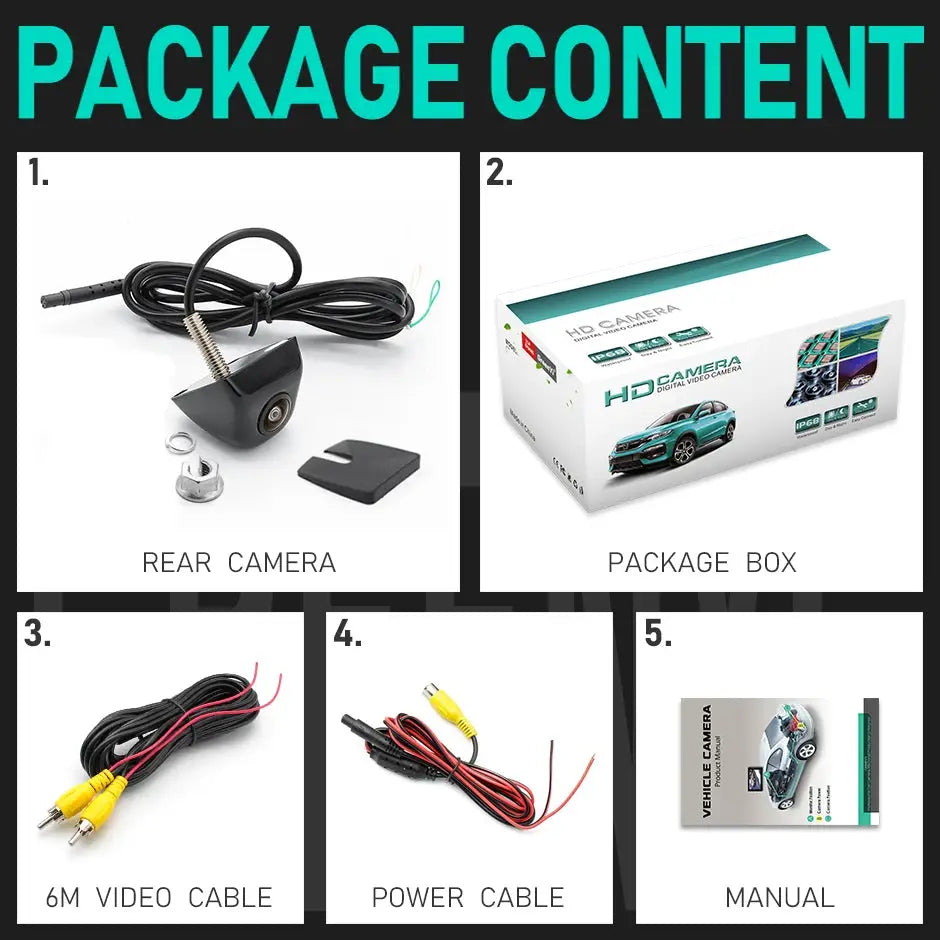

Package Includes
- Vehicle camera unit.
- 6m RCA video cable.
- 1m power cable assembly.
- Installation manual guide.
Installation Notes
- The dedicated 4-pin to RCA connector cannot be replaced, so route it carefully before securing.
- Connect the red power lead strictly to reversing lights; linking to ACC will prevent proper operation.
- To enable backup guide lines, leave the green wire connected; cut it to remove guidelines instead.
- Select your mirror mode and front-rear behavior by adjusting the white wire switcher connections.
