170° Wide Angle AHD 1080P Rear Backup Camera With Night Vision And Guidelines

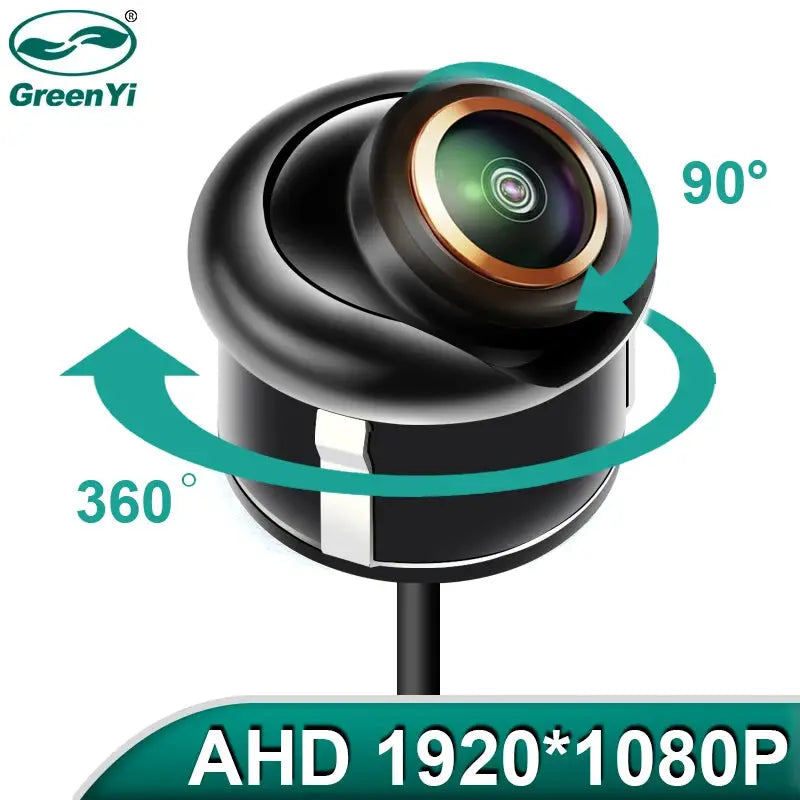

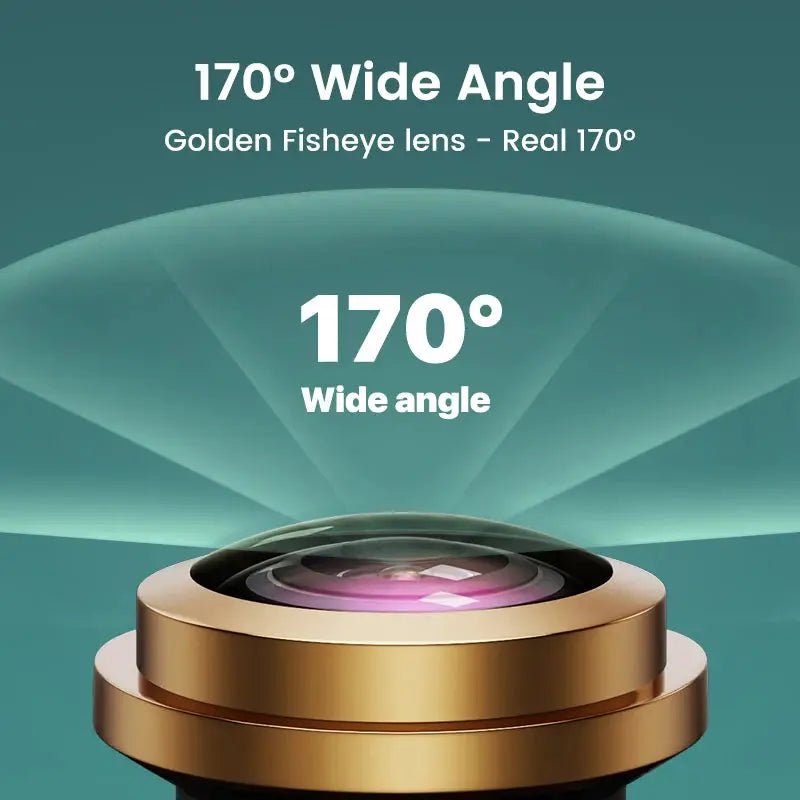

Park with confidence using a camera that maps exactly what sits behind your bumper. The GreenYi AHD 1080P rear backup camera delivers sharp frames through its real 170-degree glass fisheye lens. You will notice low curbs, tight alleys, and obstacles that narrower lenses routinely hide.
Clear visibility matters most when you are backing up fast. This wired unit catches detailed images even in dim lighting thanks to its top starlight night vision sensor. Drizzle and road grime simply wash away without clouding the feed. The sturdy stainless steel housing and internal waterproof silicone shield keep the main chip safe at an IP68 rating. A 6-meter pure copper video cable carries clean data to your dash unit without signal dropouts. The module draws steady power at DC 12V to 24V and never overheats during long drives.
You decide how the feed looks by preparing three control wires before mounting. The brown wire flips between AHD and CVBS modes to fit older or newer screens. Snip the white wire to change the display from mirrored rear view to straight non-mirrored positioning. Cut the green wire to disable the steering trajectory guidelines whenever you want an unobstructed screen. The built-in auto white balance adjusts quickly as streetlights replace daylight. Pair the camera with any NTSC or PAL monitor and watch the picture stay true to life.
Daily use tips
Check your aftermarket stereo settings first to confirm it accepts AHD input. If your head unit runs a different format, select the matching signal mode in the factory menu. Run the red trigger wire directly to your reverse light circuit to wake the screen automatically. Swap the original harness with the supplied 6-meter cable only after verifying a stable picture on a test monitor.
Product specifications
- Resolution: Optional AHD 1080P or 720P output
- Lens Material: Durable glassfisheye construction
- Night Vision: High-sensitivity starlight imaging sensor
- Cable Length: 6 meters of pure copper shielding
- Power Supply: Reliable DC 12V~24V operation
- Ingress Protection: Full IP68 waterproof sealing
- TV System: Works with NTSC or PAL displays

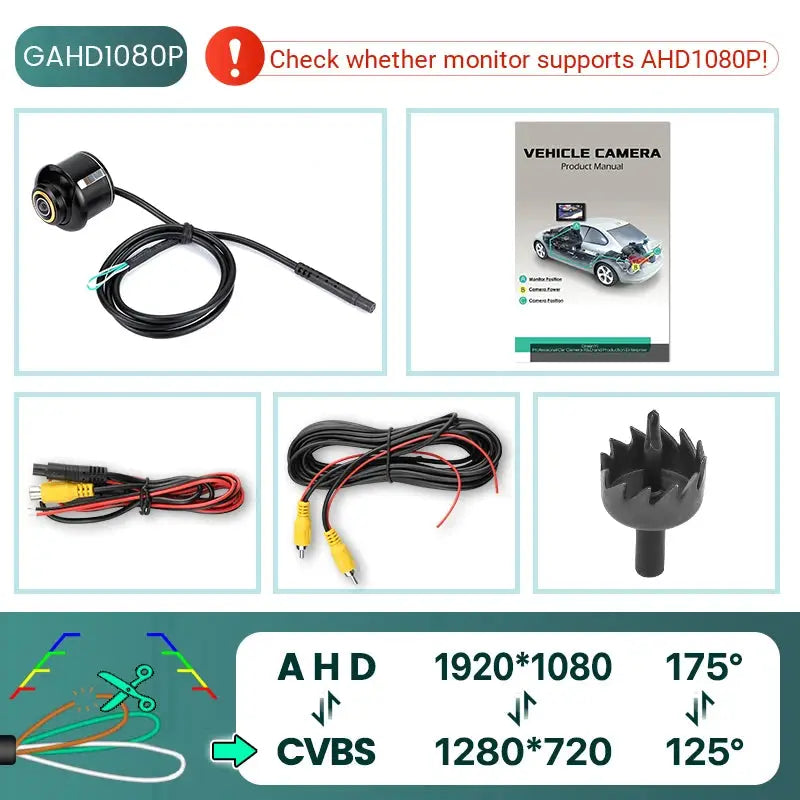

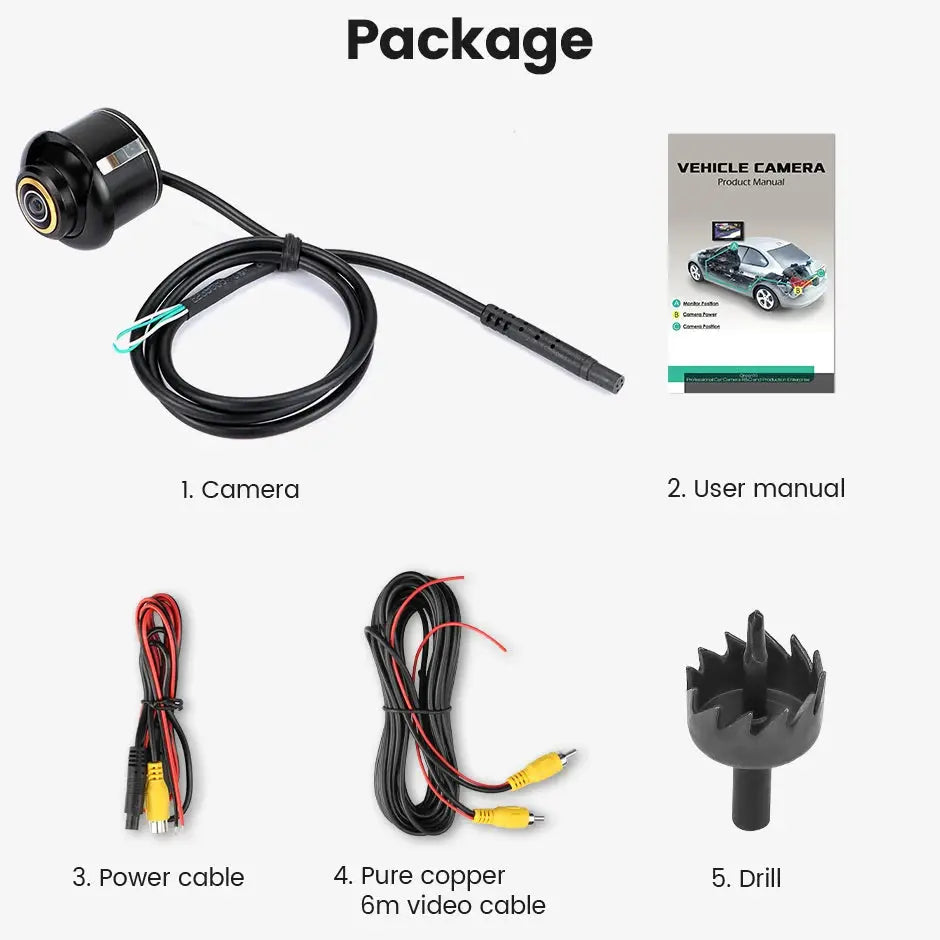

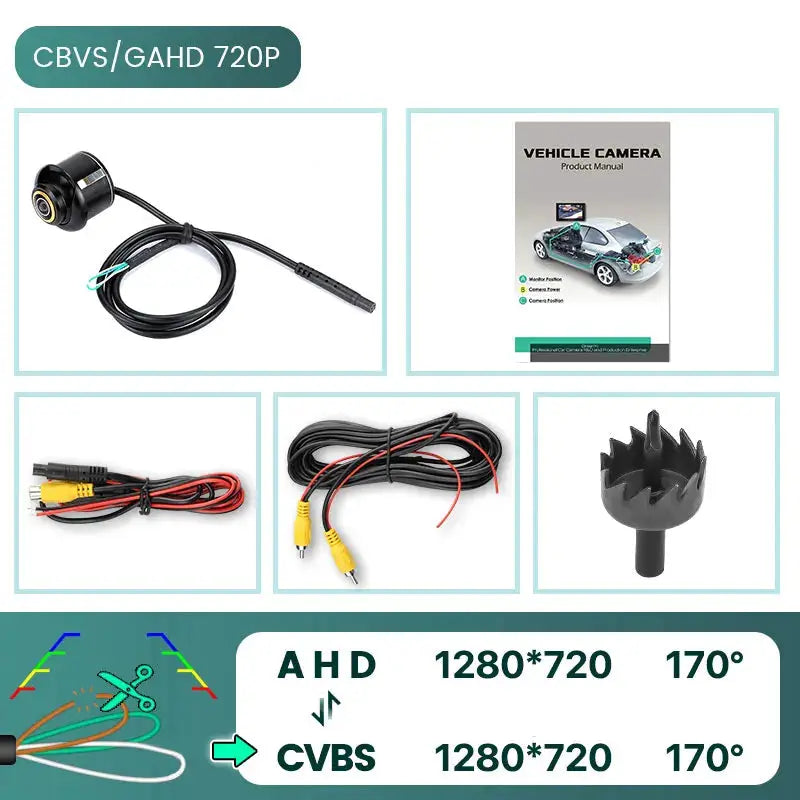

Package includes:
- GreenYi rear backup camera unit
- Drill installation diagram and quick reference card
- Vehicle power harness
- 6-meter pure copper video extension cable
Thread the wires neatly away from moving pedals and hot exhaust components before bolting the bracket. Double-check your monitor output setting if colors appear gray on initial startup. All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty. We have helped drivers upgrade their fleet safety quietly and reliably since 2002 at intercyprus.com.
