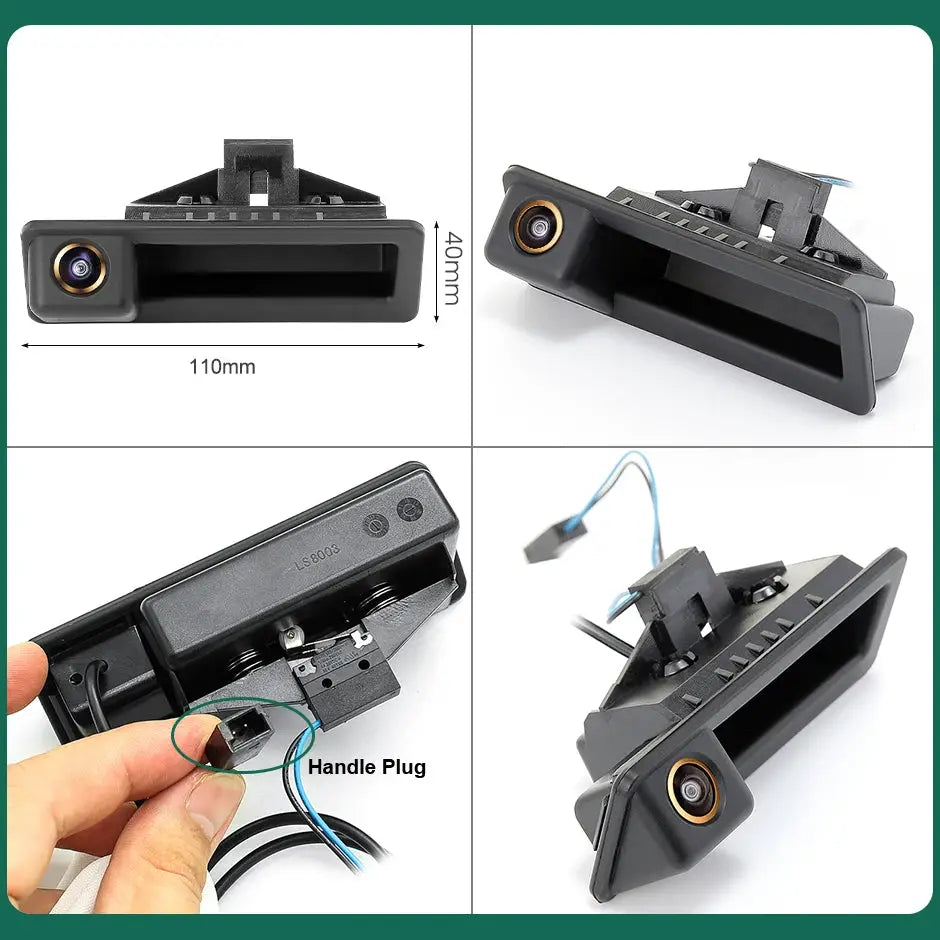

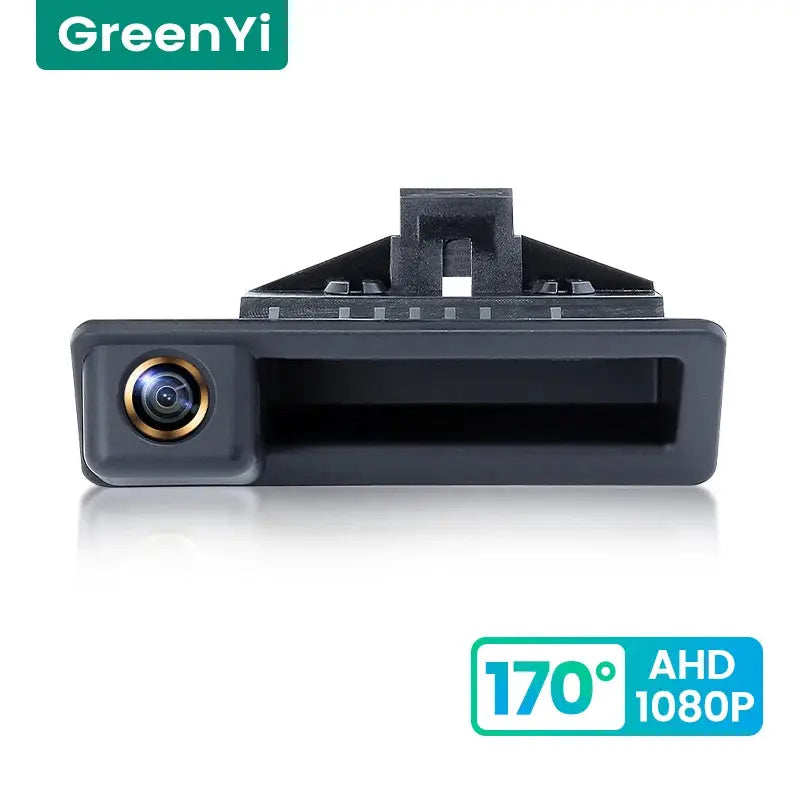

170° AHD 1080P Rear View Camera With Lines For BMW 3 5 Series X5 X6 E39 E90 E60

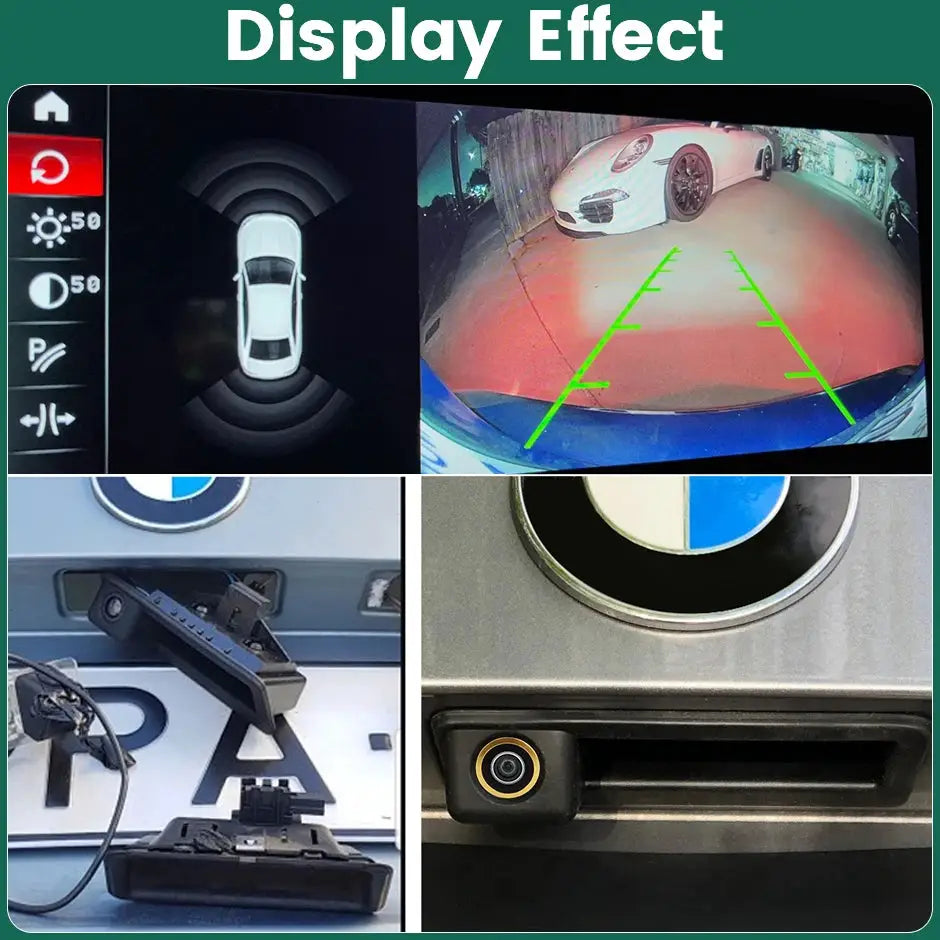

Park with confidence when your existing mirrors leave blind spots behind you. This rear view camera delivers a true 170 degree field of view. You will spot curbs, poles, and other vehicles clearly while reversing your BMW E39, E60, or X5. The AHD 1080P sensor captures sharp guidance lines on daytime streets and dark neighborhoods alike. Starlight night vision technology adjusts brightness automatically, which means you stop guessing and start backing into tight spaces smoothly. Your cargo area stays fully visible because those painted trajectories move naturally with your steering wheel.
Benefits & Tips

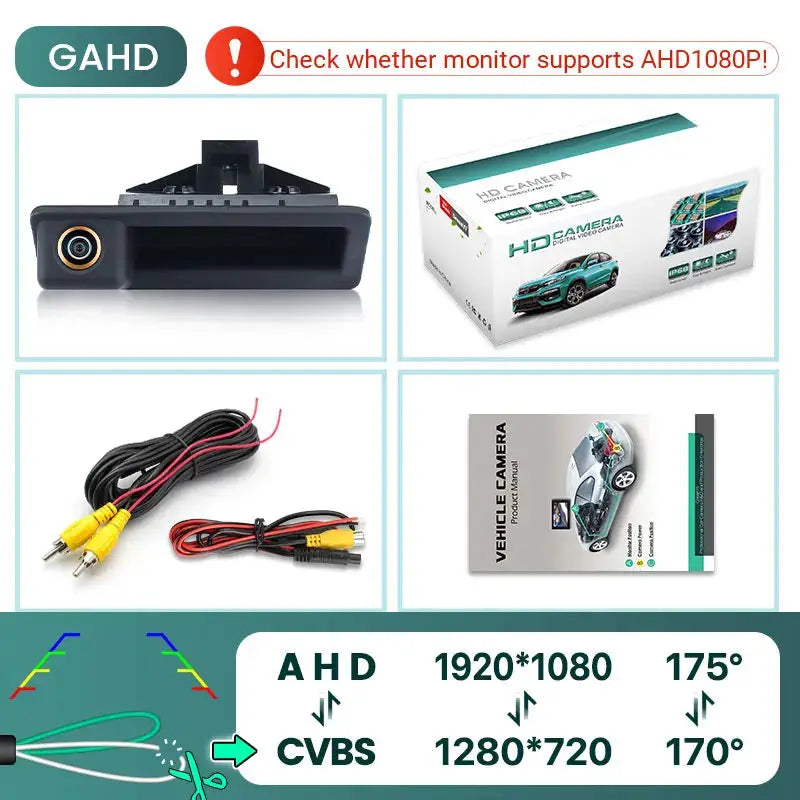

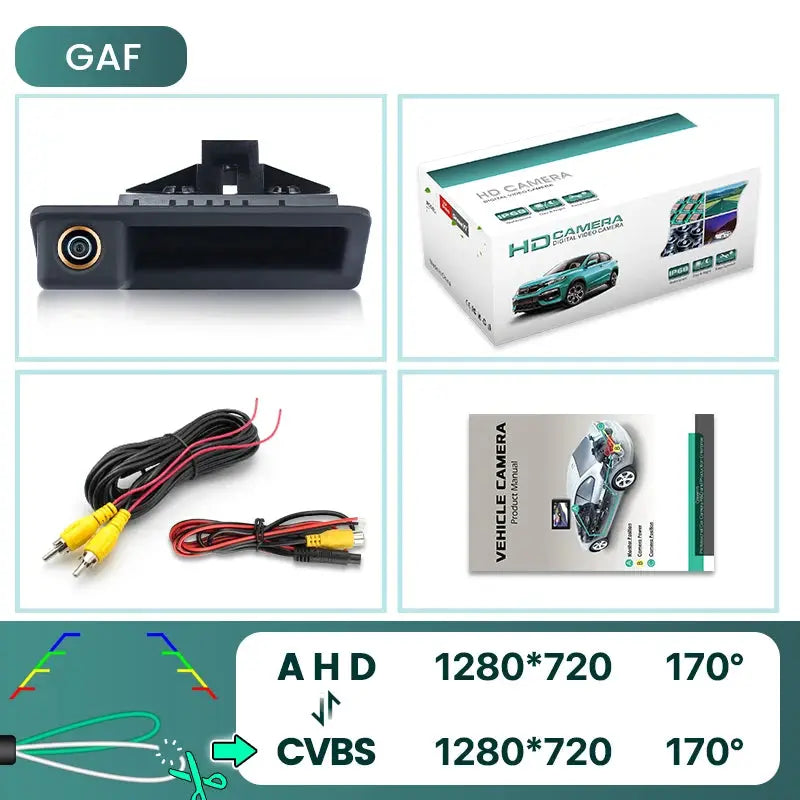

Mount the camera just above your rear license plate bracket for a clean look and steady coverage. Route the six meter pure copper cable through your door seams far away from high heat zones to preserve signal stability. Sync your factory head unit to the AHD input before your first drive for instant screen activation. If your aftermarket stereo only reads analog feeds, flip the internal toggle to CVBS mode using the bundled jumper wires.

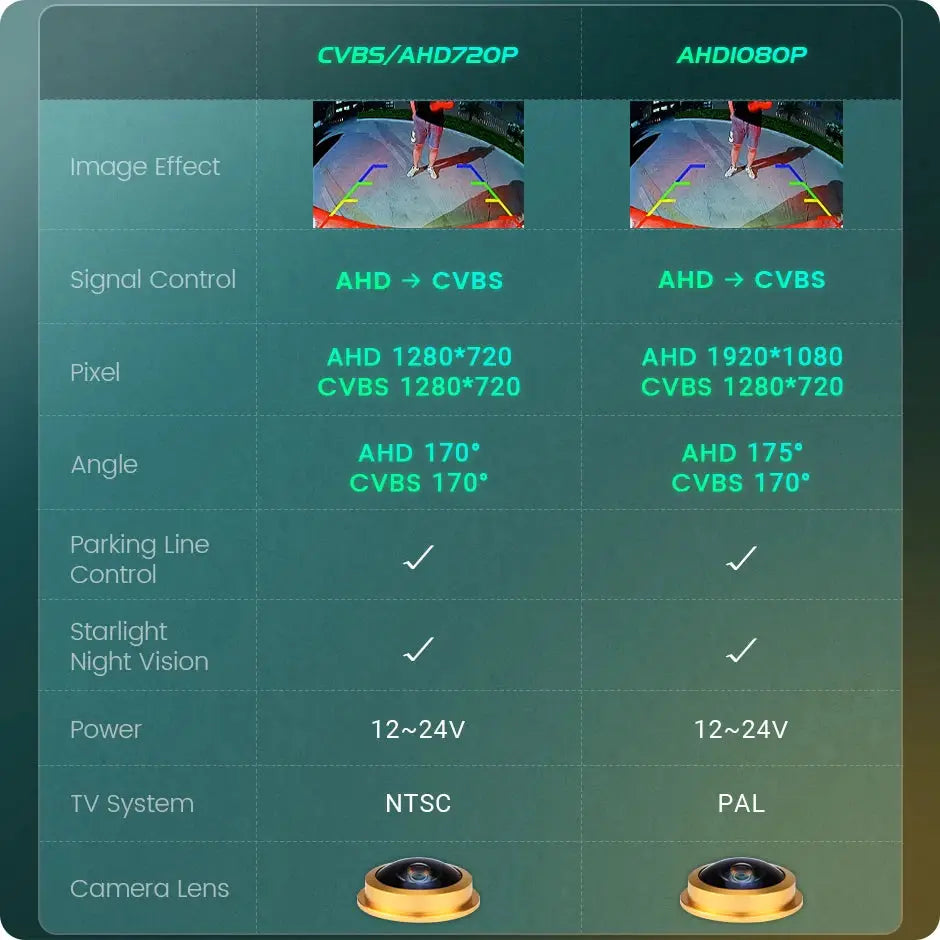

Product Specifications
- View Angle: 170 degree optical glass lenses capture your entire rear path.
- Night Vision: Automatic gain control and white balance adjust instantly in low light.
- Cable Length: A six meter wire made from pure copper transmits stable video.
- Power Rating: Supports DC 12V to 24V inputs with a maximum 3 watt draw.
- Weather Seal: Silicone-filled housing protects internal sensors against rain and road salt.

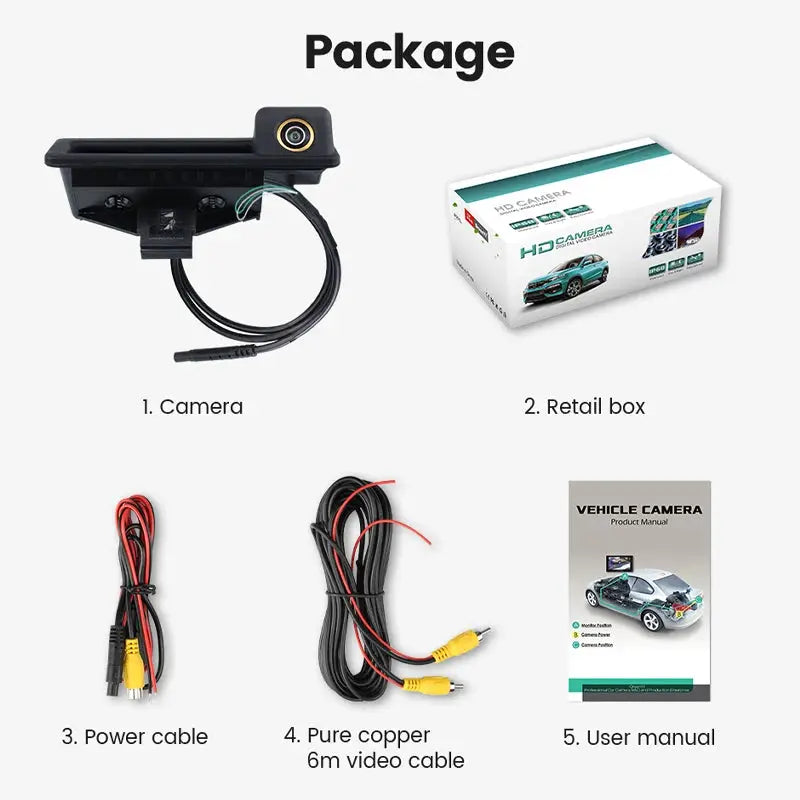

Package includes: Rear view camera unit, six meter wiring harness, mounting screws, and quick reference card.
Warnings & Reminders
Verify your exact bumper trim dimensions before purchasing, since regional factory batches vary slightly. Wire the red trigger line directly to the reverse lamp circuit to power the display safely. Operate the camera strictly between minus thirty degrees and plus seventy degrees Celsius to protect the image sensor.
