PVDF G3/8 Fitting Hall Effect Flow Sensor, Water Flowmeter

SKU: 1005011670408472-0.1-1.5L per min
Color
€53,56
-38% €85,70 €53,56

Main description

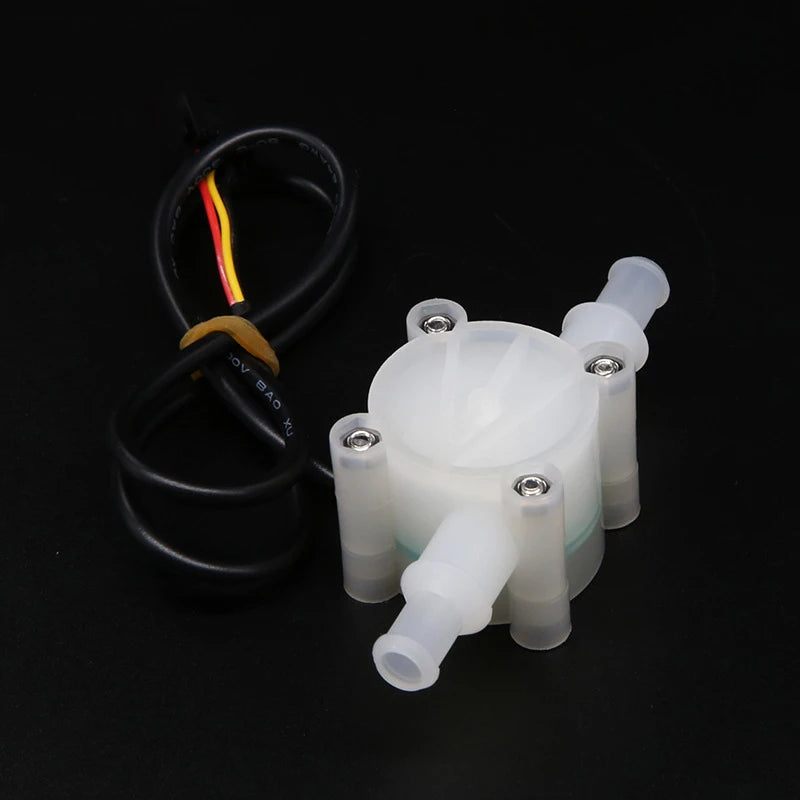

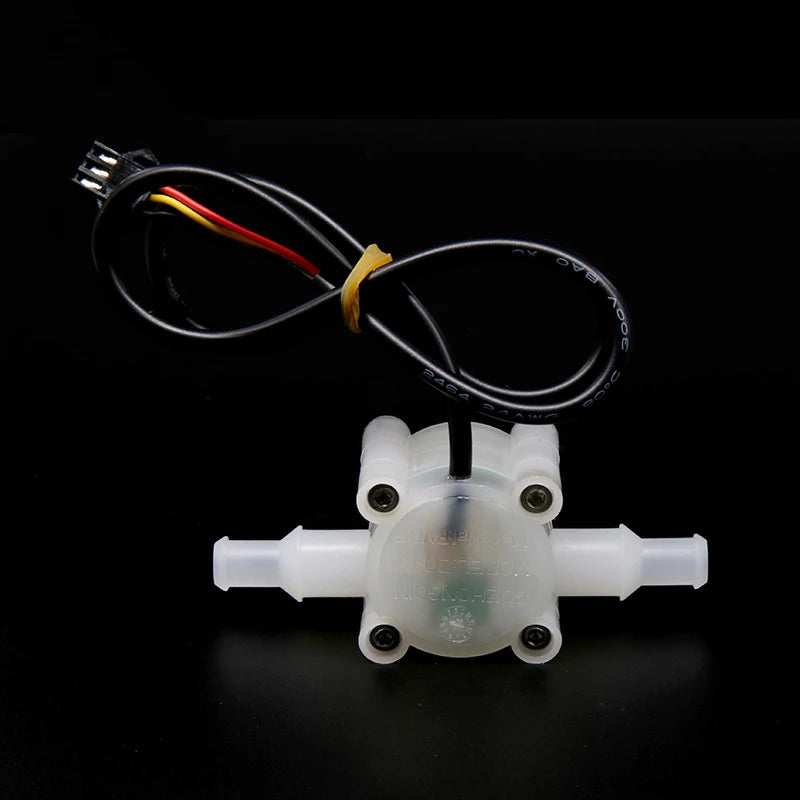

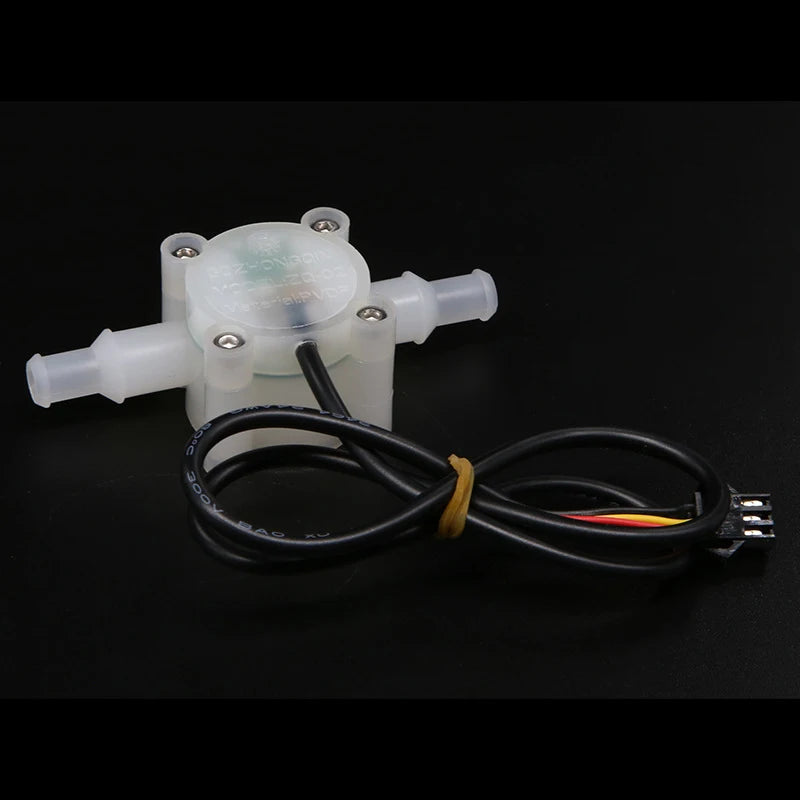

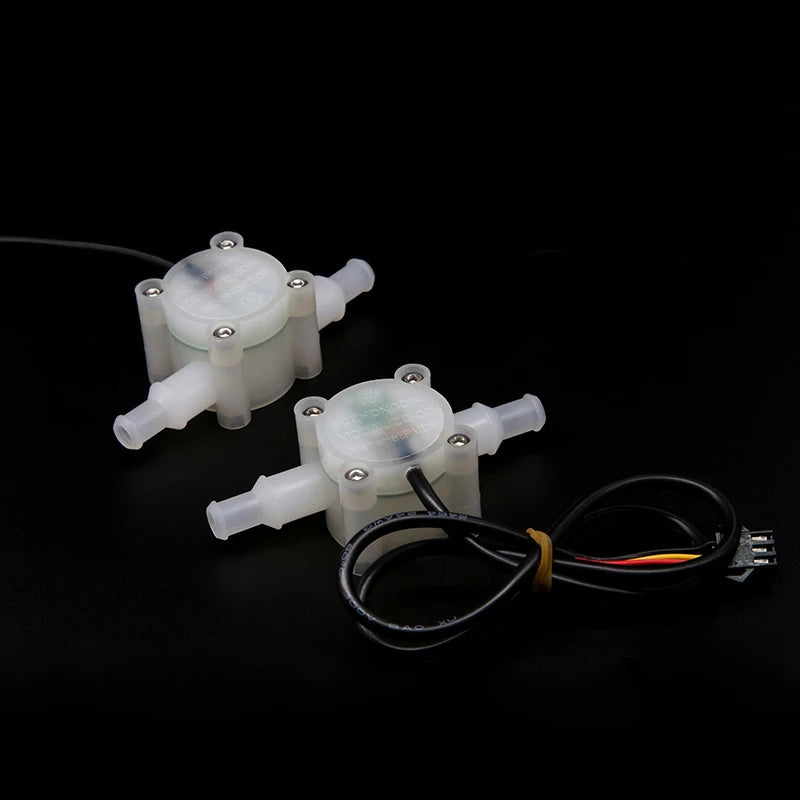

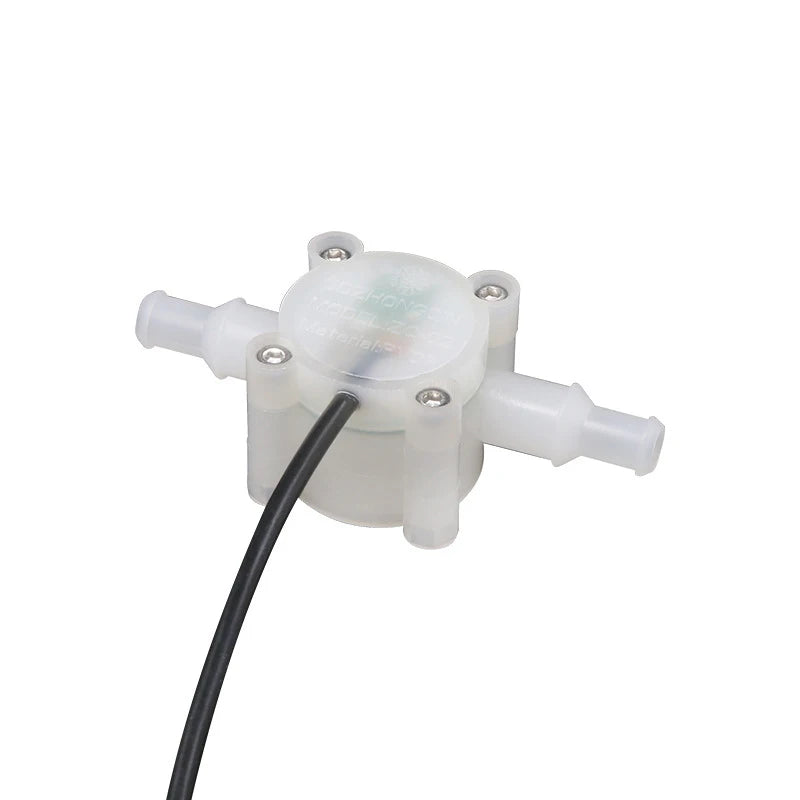

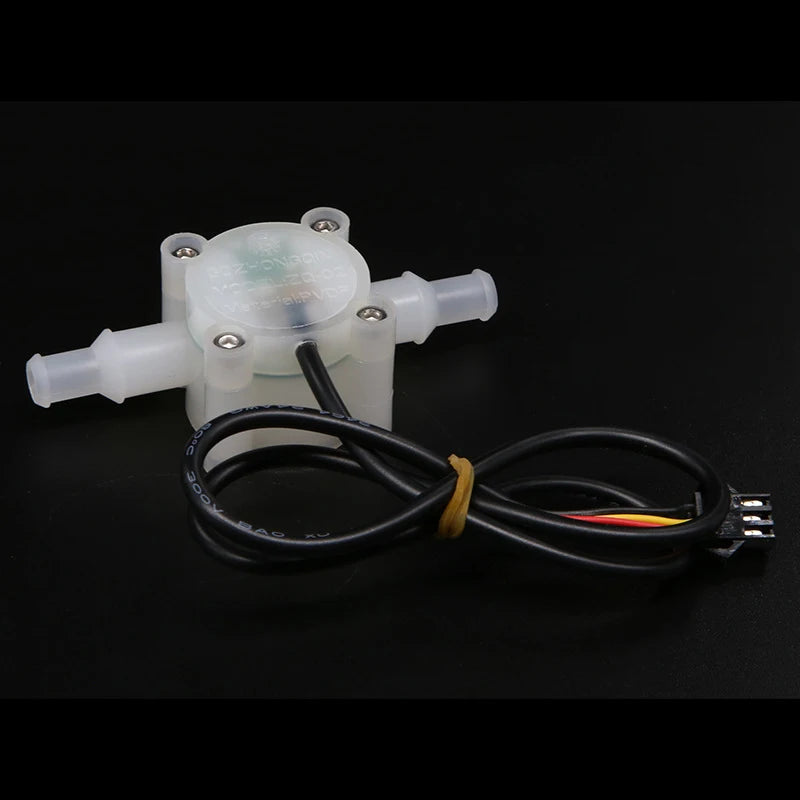

PVDF G3/8 Fitting Hall Effect Flow Sensor is a compact water flowmeter built for corrosive liquids. Its PVDF body resists acids and alkalis, while a ceramic shaft provides wear resistance for consistent performance. The waterproof Hall sensor is encapsulated to prevent water ingress. Available with large-hole or small-hole flow paths, it covers 0.3–8 L/min (large hole) or 0.1–1.5 L/min (small hole) with ±5% accuracy. The sensor outputs a pulse signal suitable for microcontrollers and data loggers; the large-hole version delivers about 810 pulses per liter, the small-hole version about 3300 pulses per liter. It operates on DC 3.5–20V (typical 5V) and draws up to 15 mA, with a withstand voltage up to 1.75 MPa. Temperature rating is up to 80°C and humidity range 35–90% RH (no frosting state). Model ZQ-02 (PVDF) uses a G3/8 Pagoda fitting and is ideal for tight spaces requiring durable, corrosion-resistant flow measurement.

Origin: Mainland China. PCB included: No.

All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.

At intercyprus.com since 2002 — trusted for quality and reliability.

Benefits & Tips

  • Compact design fits tight piping and DIY projects where space is limited.
  • Use the large-hole version for higher flow ranges (0.3–8 L/min) or the small-hole version for low flows (0.1–1.5 L/min).
  • Pulse output is compatible with microcontrollers and data loggers for real-time flow monitoring and automation.

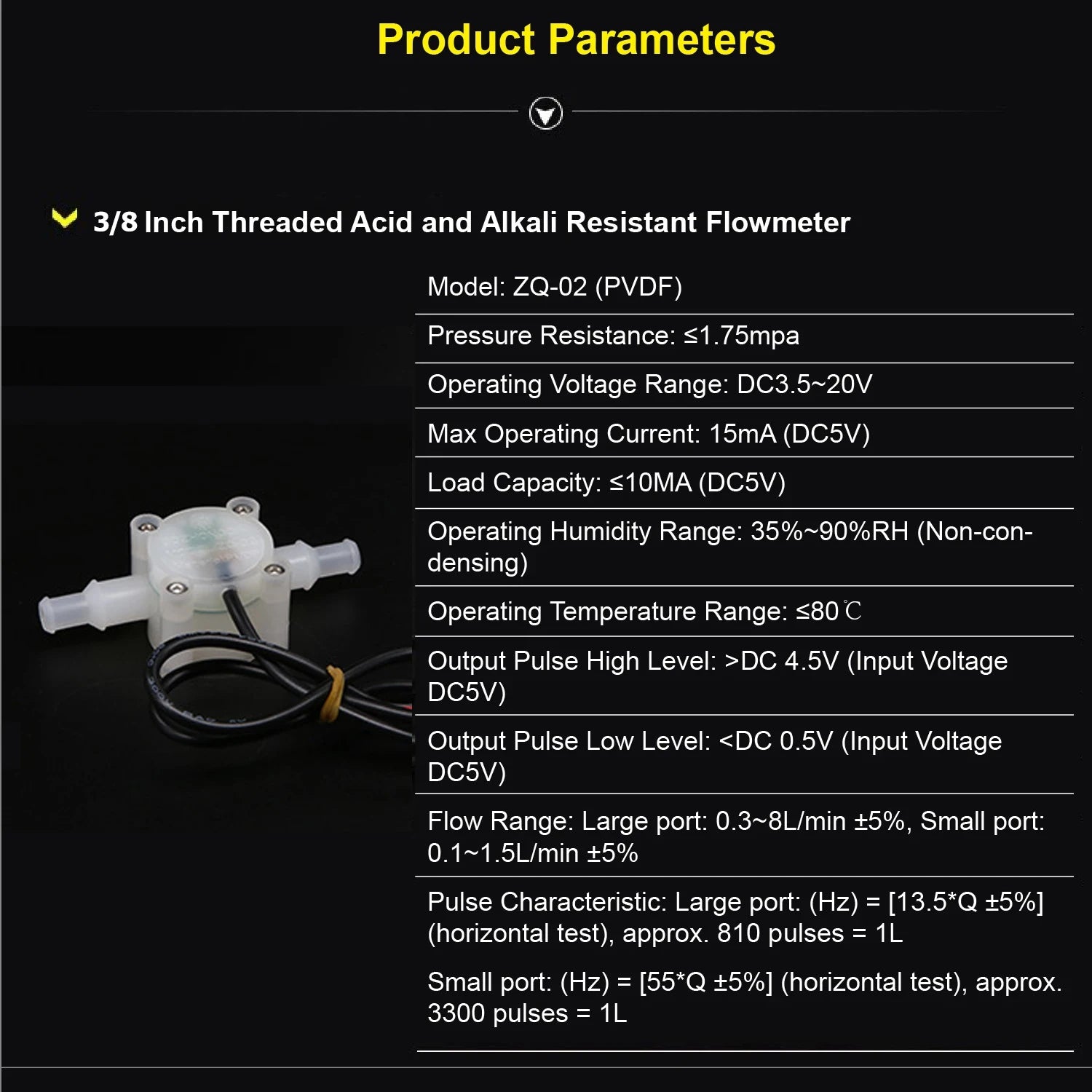

Product specifications

  • Model: ZQ-02 (PVDF)
  • Body material: PVDF
  • Fitting: G3/8
  • Type: Flow Sensor / Water Flowmeter
  • Flow range: Large hole 0.3–8 L/min; Small hole 0.1–1.5 L/min (±5%)
  • Pulse characteristics: Large hole ≈ 810 pulses per liter; Small hole ≈ 3300 pulses per liter
  • Output: Hall effect pulse
  • Supply voltage: DC 3.5–20V
  • Maximum current: 15 mA (at DC5V)
  • Load capacity: ≤10 mA (DC5V)
  • Withstand voltage: ≤1.75 MPa
  • Operating temperature: ≤80°C
  • Operating humidity: 35%–90% RH (no frosting state)
  • Output levels: High > 4.5V; Low < 0.5V (at DC5V)
  • Origin: Mainland China
  • Pcb included: No

Package includes:

  • Water Flow Sensor ×1

Warnings / Reminders

  • Choose the appropriate hole version based on the desired flow range (large hole for higher flow, small hole for lower flow).
  • Power with DC 3.5–20V; ensure supply does not exceed ratings and keep current under 15 mA at 5V.
  • Operate within the specified temperature and humidity range (≤80°C; 35%–90% RH; no frosting state).
