PVDF Water Flow Sensor, Hall Flowmeter, Corrosion-Resistant Industrial Grade

Main Description

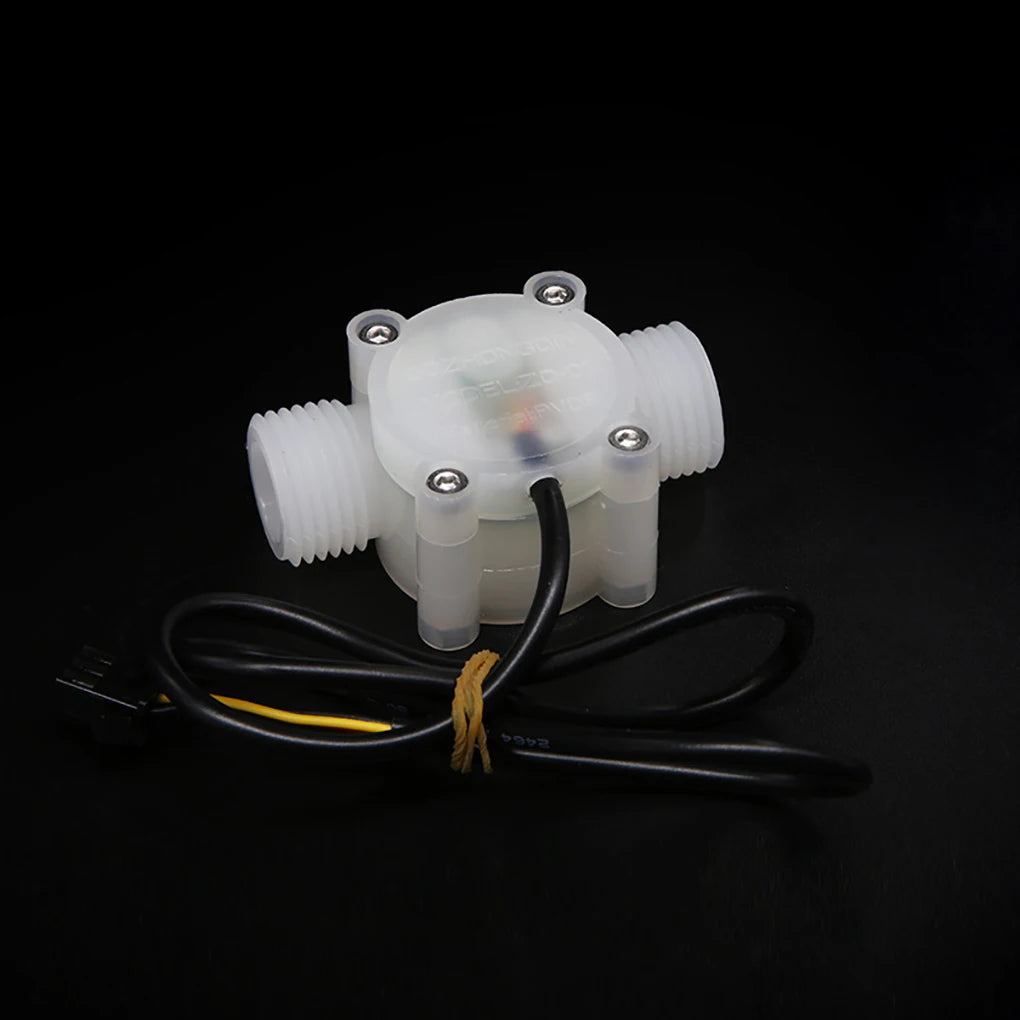

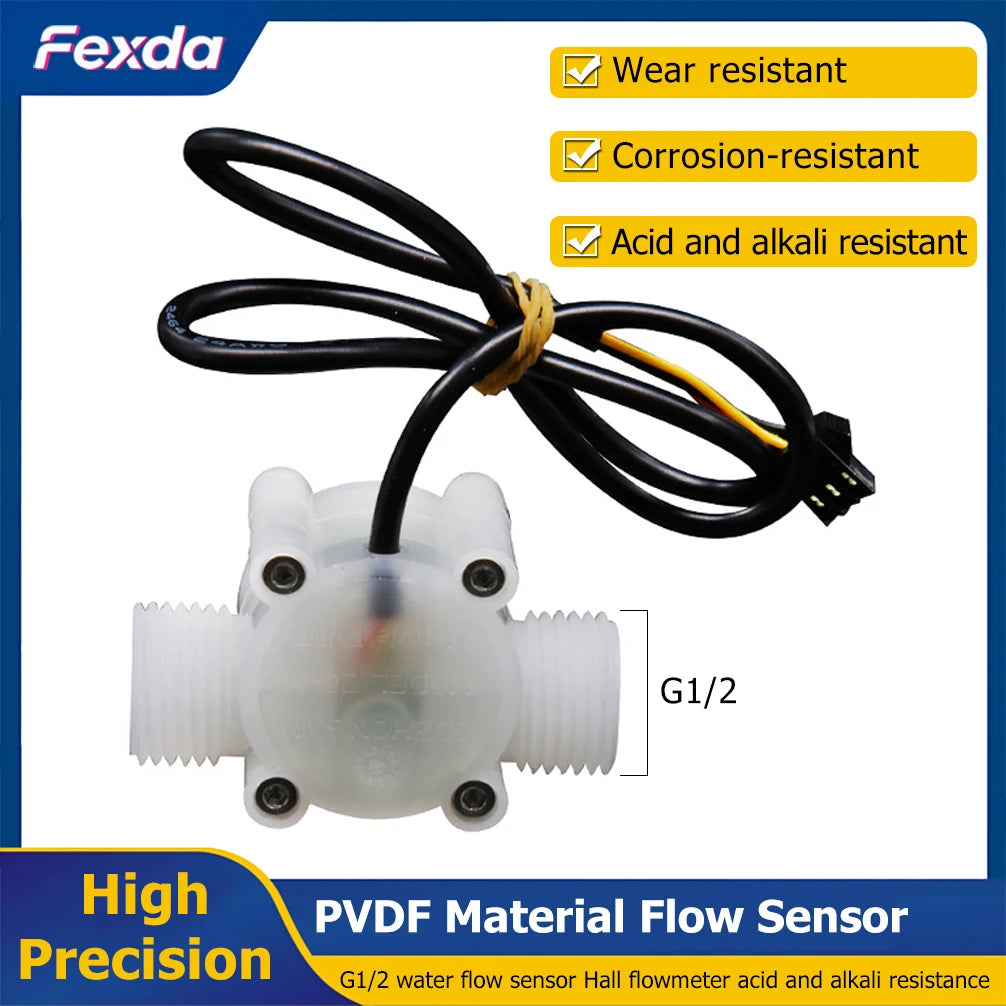

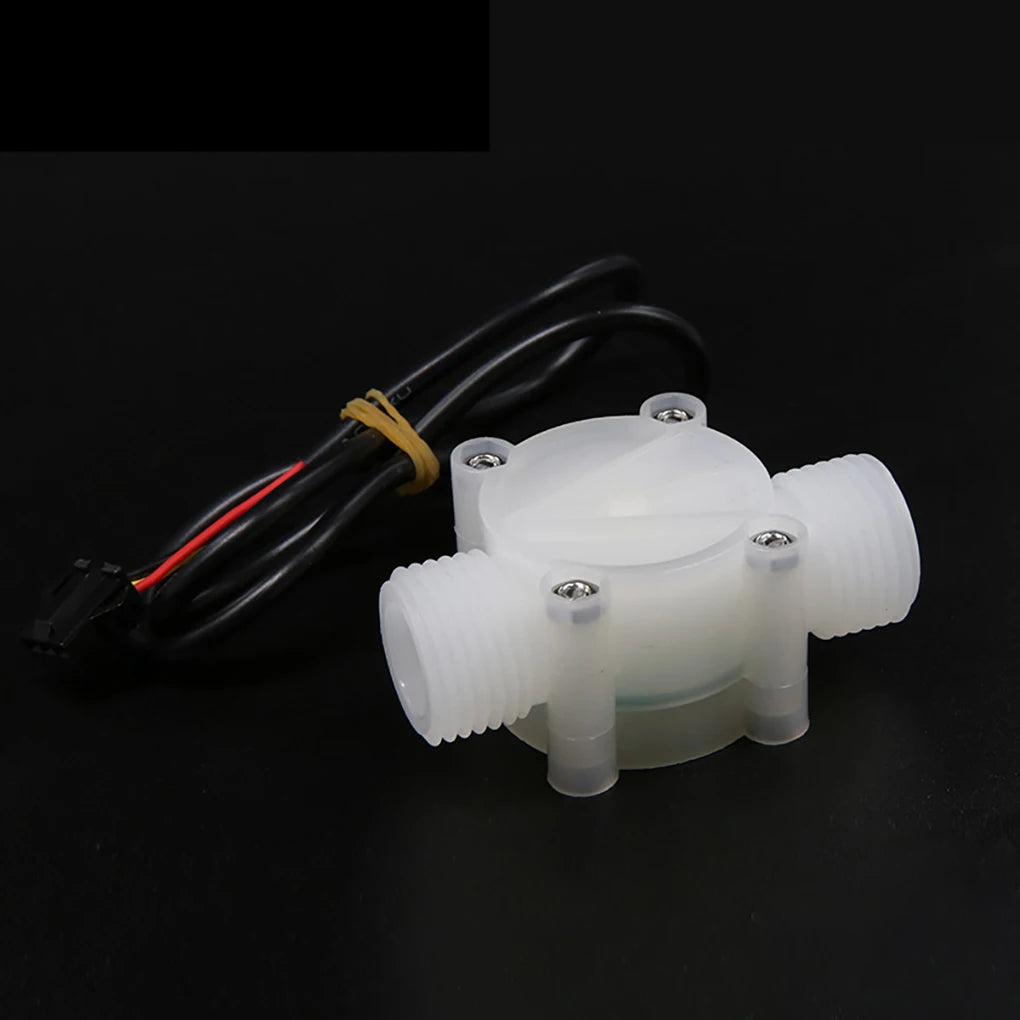

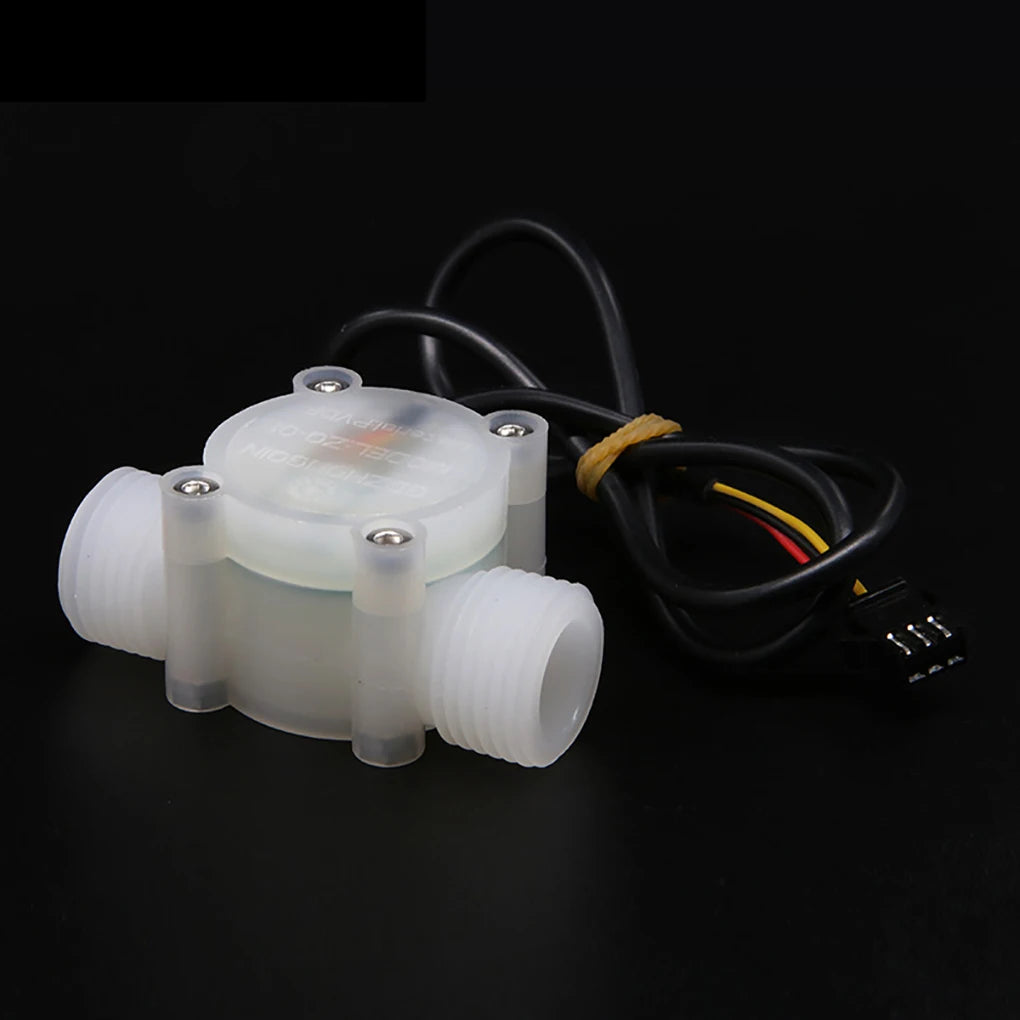

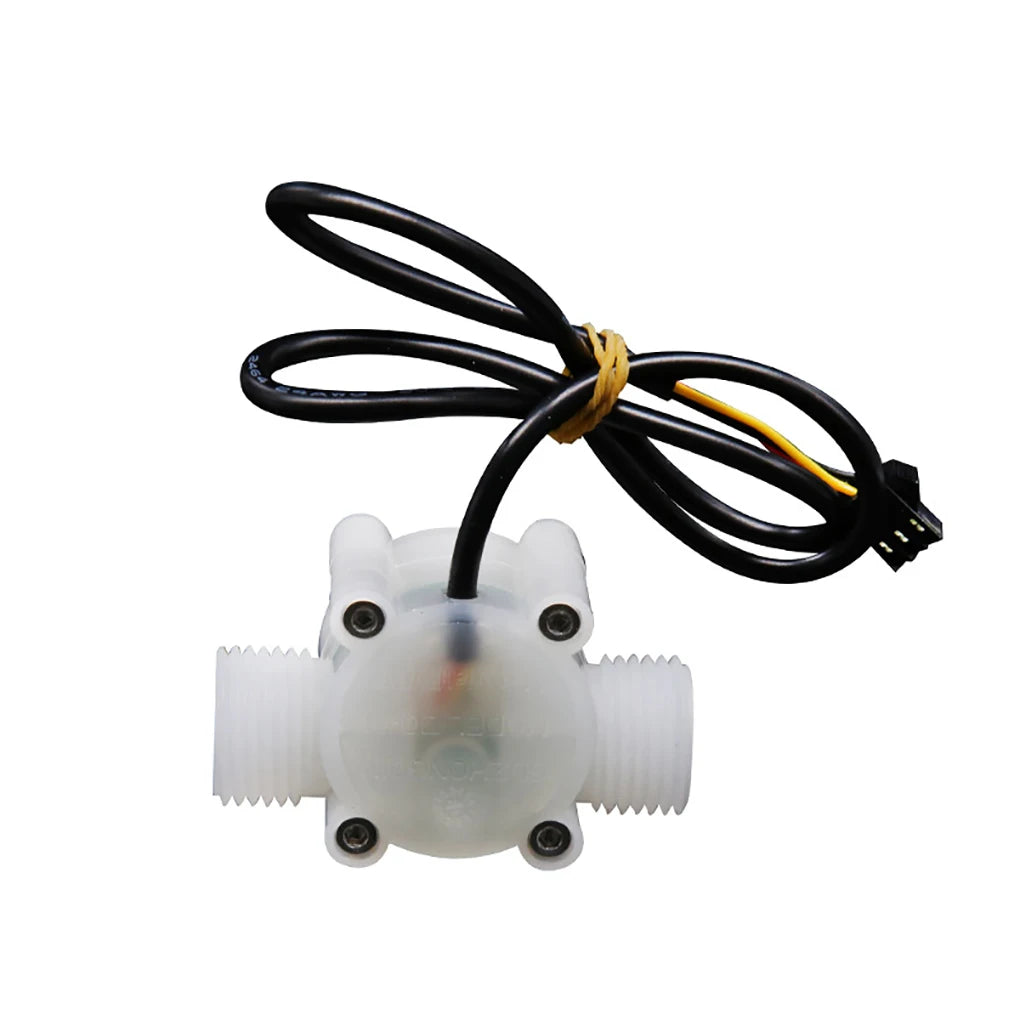

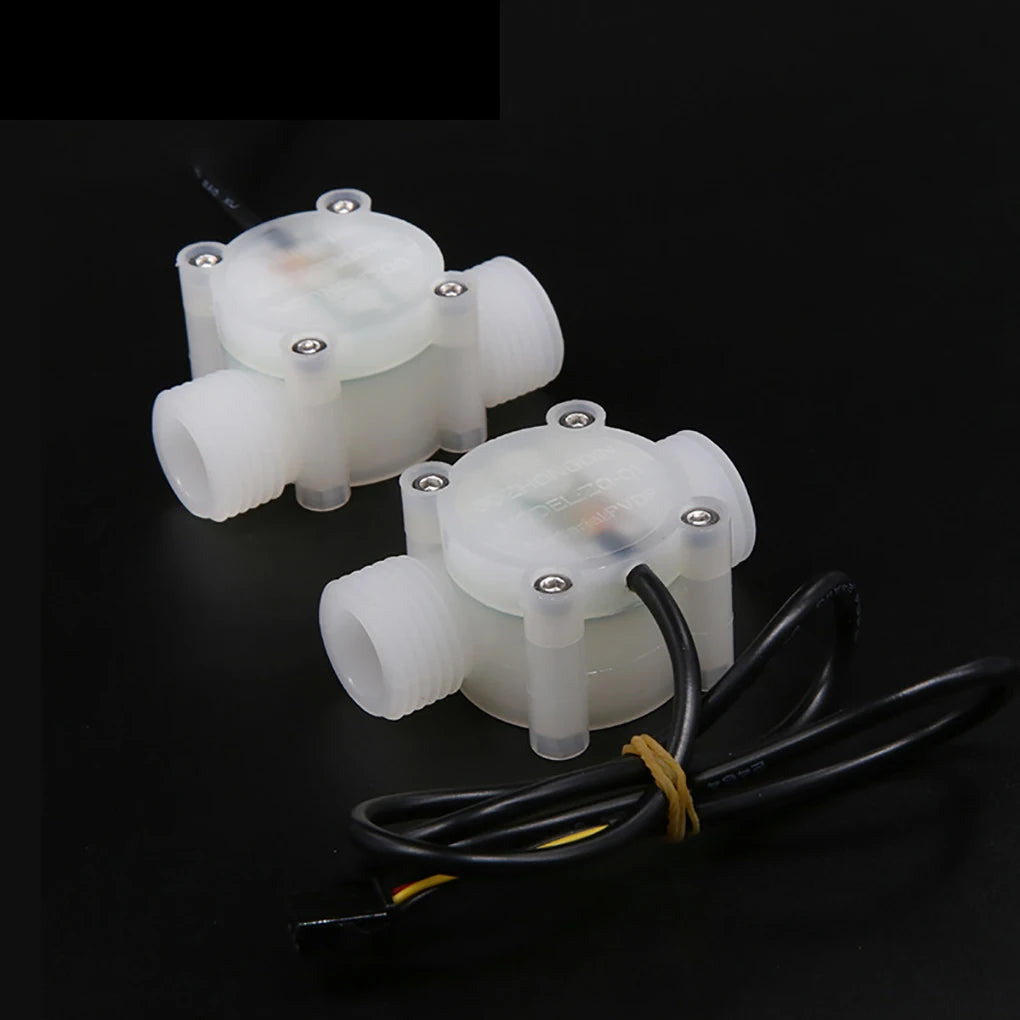

The PVDF Water Flow Sensor (G1/2, model ZQ-01) delivers precise, corrosion‑resistant flow measurement for industrial plumbing using a Hall‑effect flowmeter with a PVDF body. Its PVDF construction provides excellent acid and alkali resistance, suitable for challenging liquids. It operates from DC 3.5–20 V, draws up to 15 mA, and outputs a clean pulse signal: high level > 4.5 V at 5 V input and low level < 0.5 V. Flow ranges are 1–30 L/min for large holes and 0.5–8 L/min for small holes, each within ±5% accuracy. Pulse rates are 258 pulses per liter for large holes and 780 pulses per liter for small holes, enabling straightforward flow calculation with microcontrollers or data loggers. The sensor is rated for humidity 35–90% RH (no frosting) and operates up to 80°C, with a G1/2 thread for easy installation. Flow sensor model ZQ-01 is supplied without PCB, and the device carries multiple certifications for broad compatibility. All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.

Benefits & Tips

• Use with microcontrollers or data loggers by counting output pulses to determine flow in real time.
• Choose large‑hole or small‑hole configuration based on your required flow range (1–30 L/min or 0.5–8 L/min) for best accuracy.
• Install via G1/2 threaded connection for quick integration into existing piping systems.

Product specifications

• Model: ZQ-01 (PVDF)
• Material: PVDF; Acid and alkali resistant; Corrosion-resistant
• Type: Water flow sensor; G1/2
• Flow range: 1–30 L/min (large holes, ±5%); 0.5–8 L/min (small holes, ±5%)
• Pulse characteristics: Large hole ≈ 258 pulses per liter; Small hole ≈ 780 pulses per liter
• Output: Pulse high > 4.5 V (at 5 V input); Pulse low < 0.5 V
• Supply voltage: DC 3.5–20 V
• Max current: 15 mA; Load: ≤ 10 mA (at 5 V)
• Humidity: 35%–90% RH (no frosting)
• Operating temperature: ≤ 80°C
• Certifications: CE, DOT, EAC, EPA, FCC, GMP, RoHS, TGA, UL, KC, PSE, WEEE
• Origin: Mainland China
• PCB included: No
• Brand: NONE
• Quantity: 1

Package includes:

• Water Flow Sensor x1

Warnings/Reminders

• Operate within DC 3.5–20 V; at 5 V, expect output levels > 4.5 V (high) and < 0.5 V (low).
• Flow accuracy depends on hole size; calibrate in your application to ensure the correct flow readings.
