Digital Gear Flow Meter High-Precision Liquid Flow Sensor For Diesel Oil Water

SKU: 1005009469527925-G3-4
Color
€60,38
-38% €96,61 €60,38

Main description

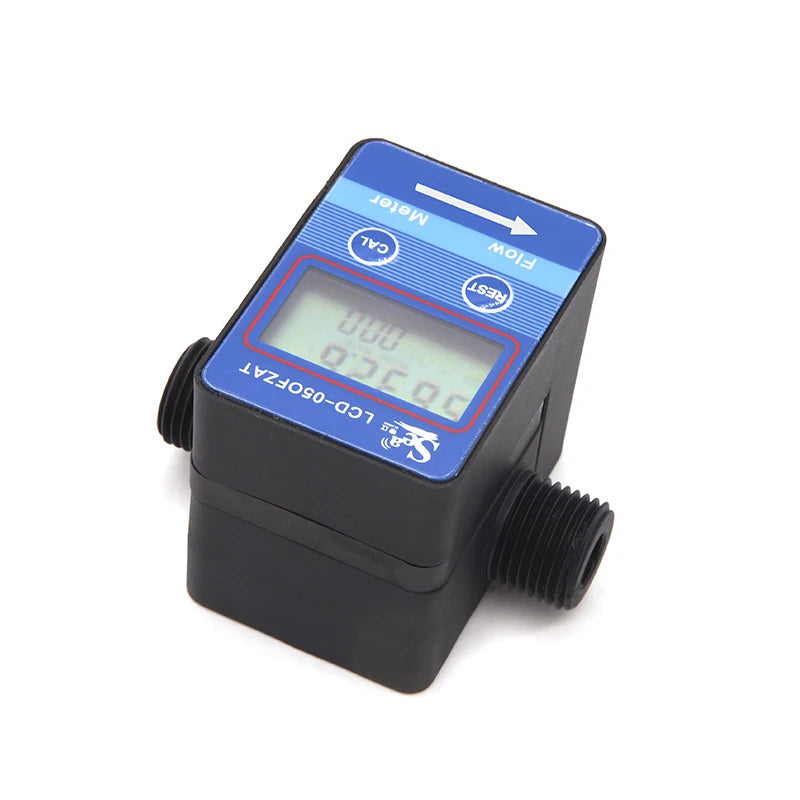

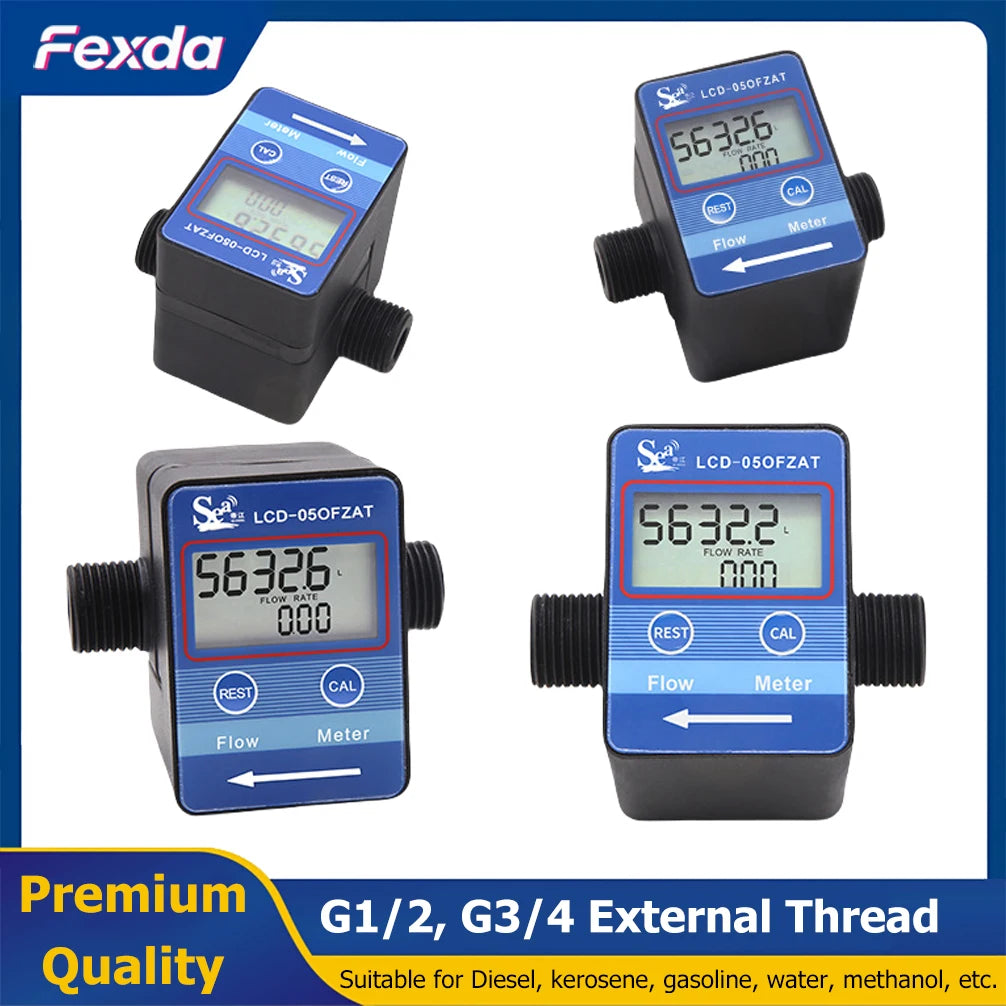

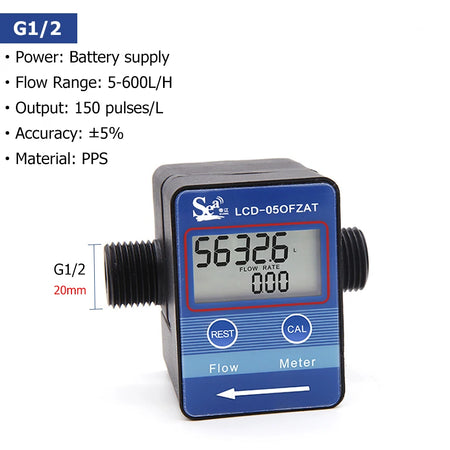

The Digital Gear Flow Meter is a compact, high-precision liquid flow sensor designed for diesel, oil, water, and related fluids. Available with G1/2 or G3/4 interface sizes, it suits tight installation spaces while delivering reliable, repeatable readings. Built from PPS, it withstands demanding environments up to 20 bar and temperatures from -25°C to +80°C.

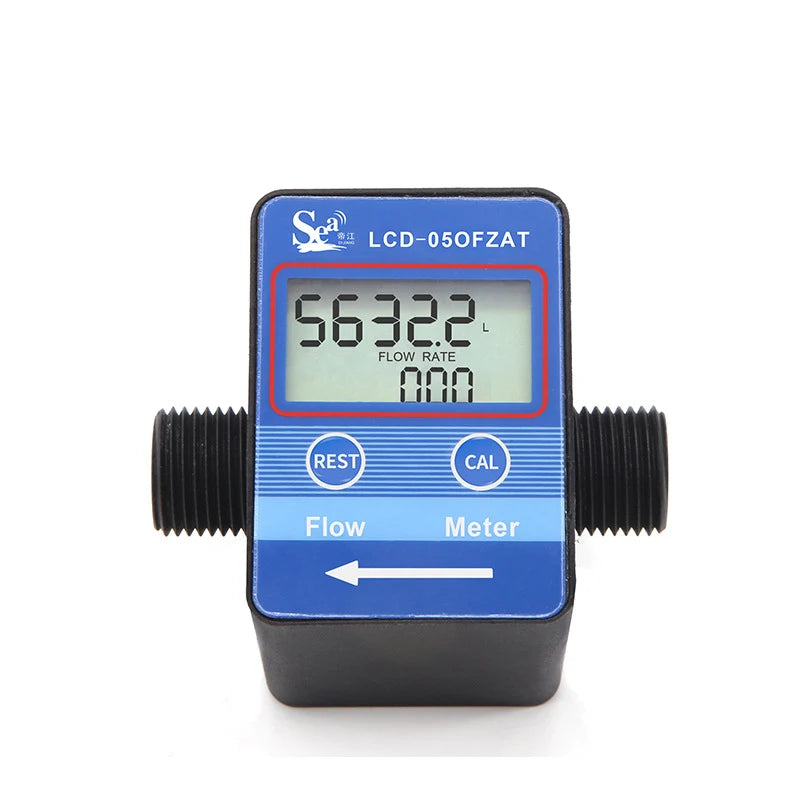

Flow is presented by a user-friendly display, and readings are generated in multiple units (L, GAL, PTS, m³) with a counting range of 0.00–9999 for single measurements and 0–999999 for totals. Pulse output correlates directly to flow: Hz = 2.5 × Q (G1/2) or Hz = 1.2 × Q (G3/4), with a high/low pulse voltage threshold of > DC4.5V / < DC0.5V. A replaceable battery (standard #7) powers the device, making field maintenance straightforward.

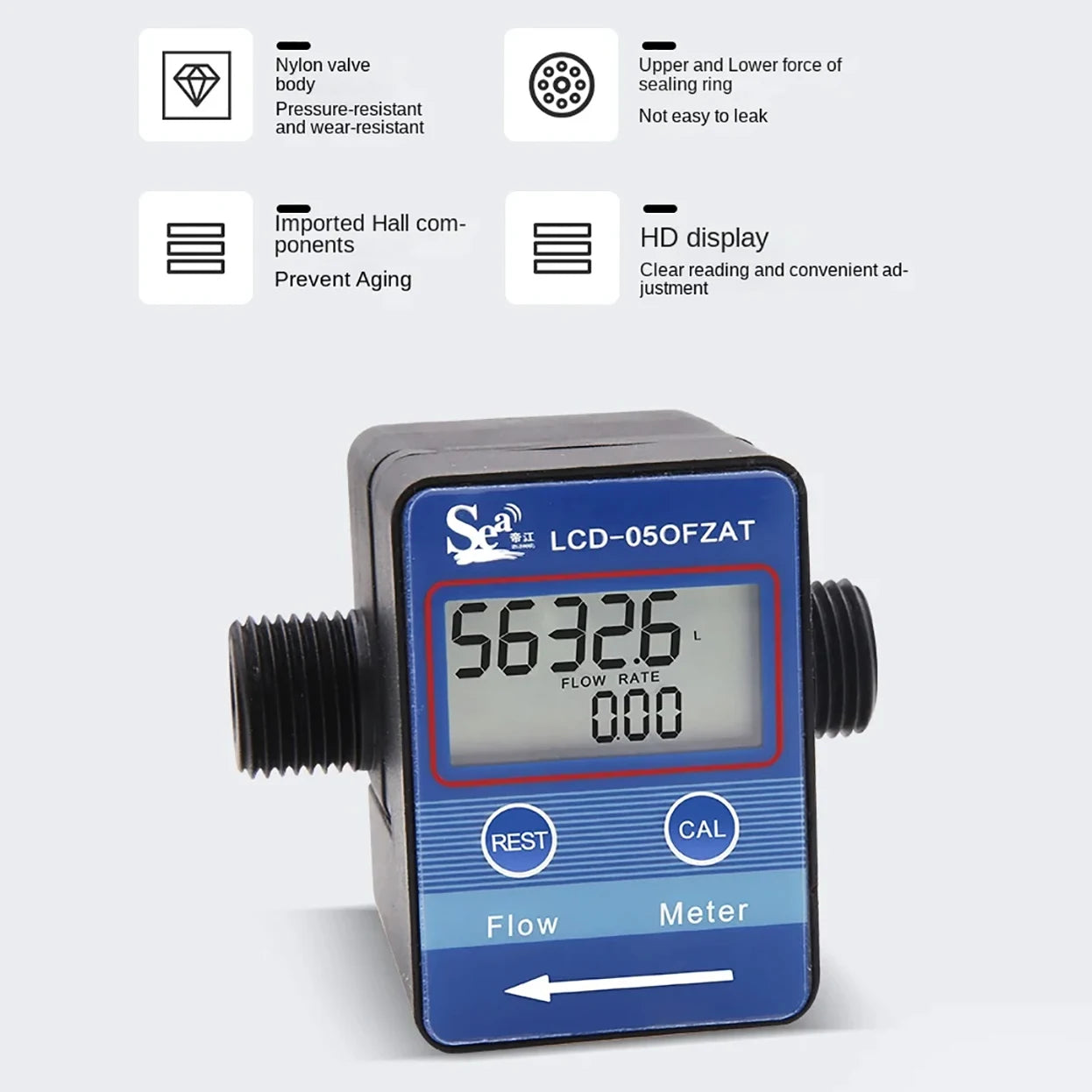

With proven accuracy of ±5% and robust sealing that minimizes leaks, this meter is ideal for monitoring diesel, ureа oil, water and similar liquids in flow-critical applications. It ships as a single Digital Gear Flow Meter ready to install.

Benefits & Tips

  • Easy-to-read, intuitive display for quick measurements on the go.
  • Choose the appropriate interface (G1/2 or G3/4) to match your existing tubing or fittings.

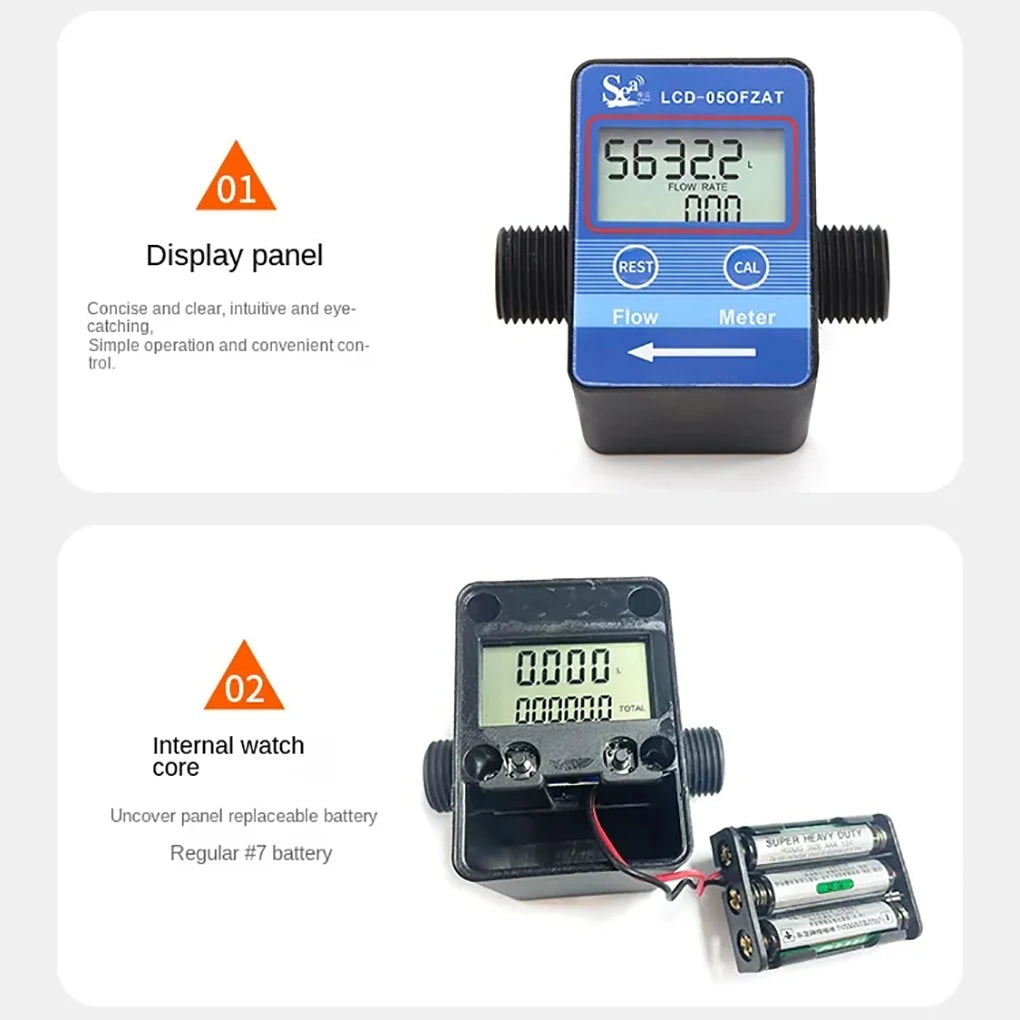

  • Keep operation simple by using the replaceable #7 battery to extend service life without tools.

Product specifications

  • Interface Size: G1/2, G3/4
  • Power: Battery supply (replaceable, standard #7)
  • Temperature Range: -25°C to +80°C

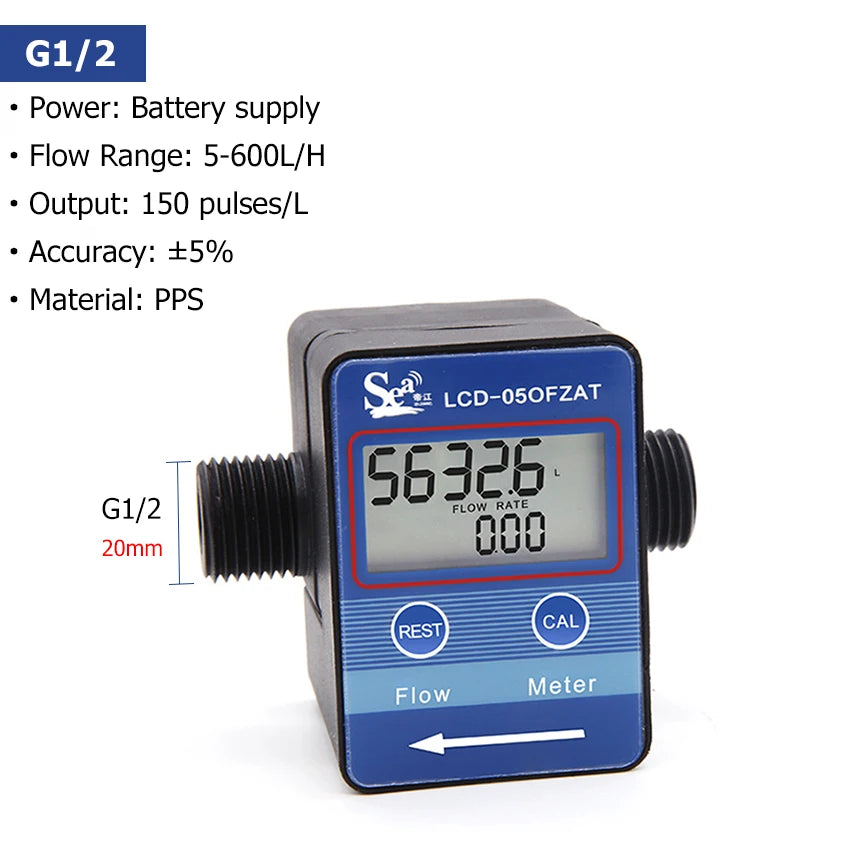

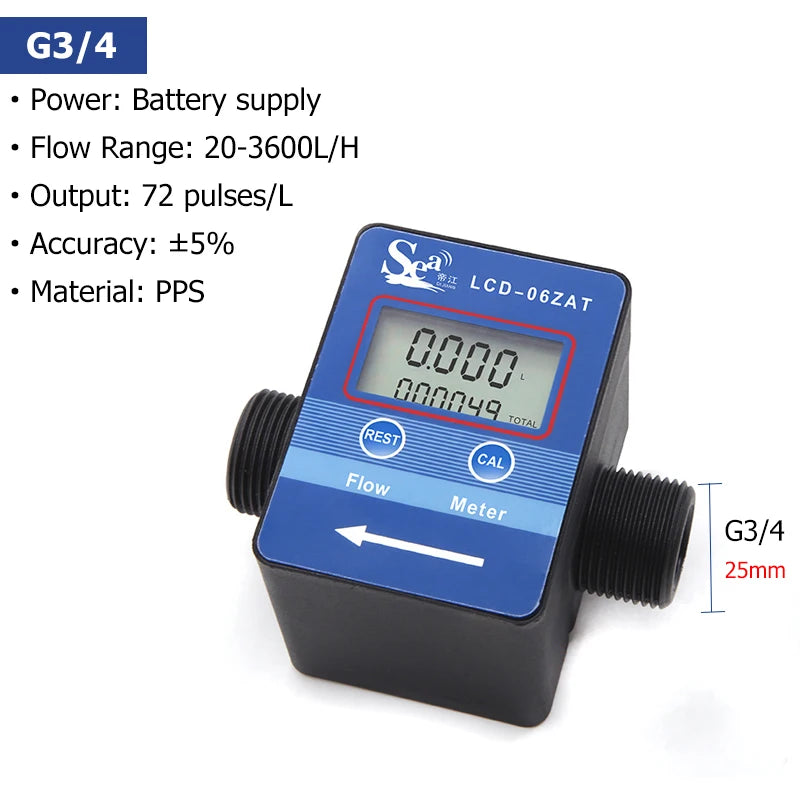

  • Flow Range: 5-600 L/H (G1/2); 20-3600 L/H (G3/4)
  • Pulse Characteristics: Hz = [2.5 × Q] ± 5% (G1/2); Hz = [1.2 × Q] ± 5% (G3/4)
  • High Pulse Voltage: > DC4.5V; Low Pulse Voltage: < DC0.5V

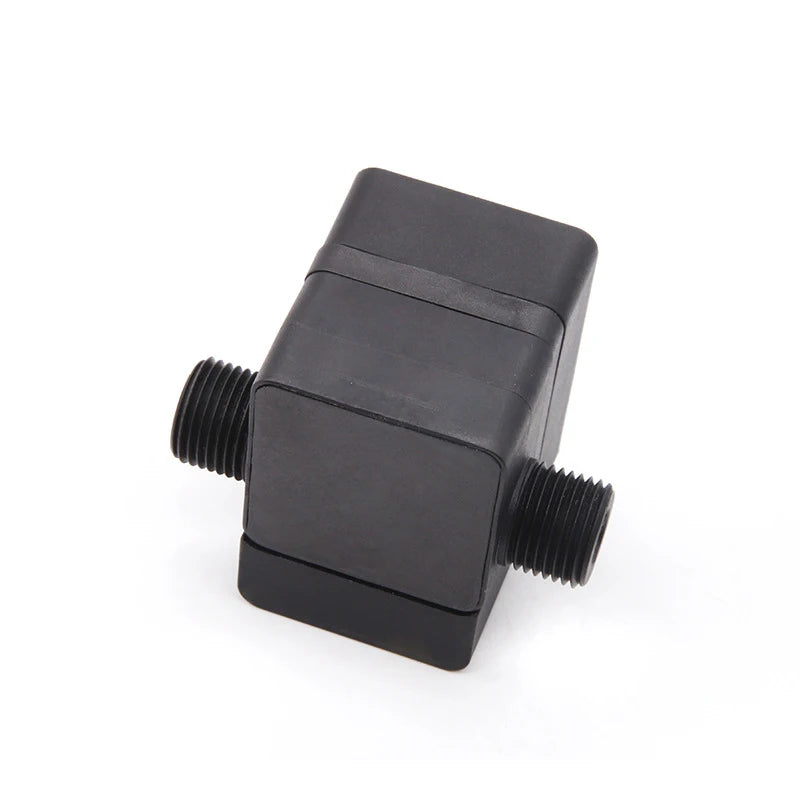

  • Material: PPS
  • Measurement Accuracy: ±5%
  • Counting Range: Single 0.00-9999; Total 0-999999
  • Units: L, GAL, PTS, m³
  • Maximum Pressure: 20 BAR

Package includes

  • 1 x Digital Gear Flow Meter

Warnings / Reminders

  • Use within the specified temperature range (-25°C to +80°C) and maximum pressure of 20 BAR for reliable operation.
