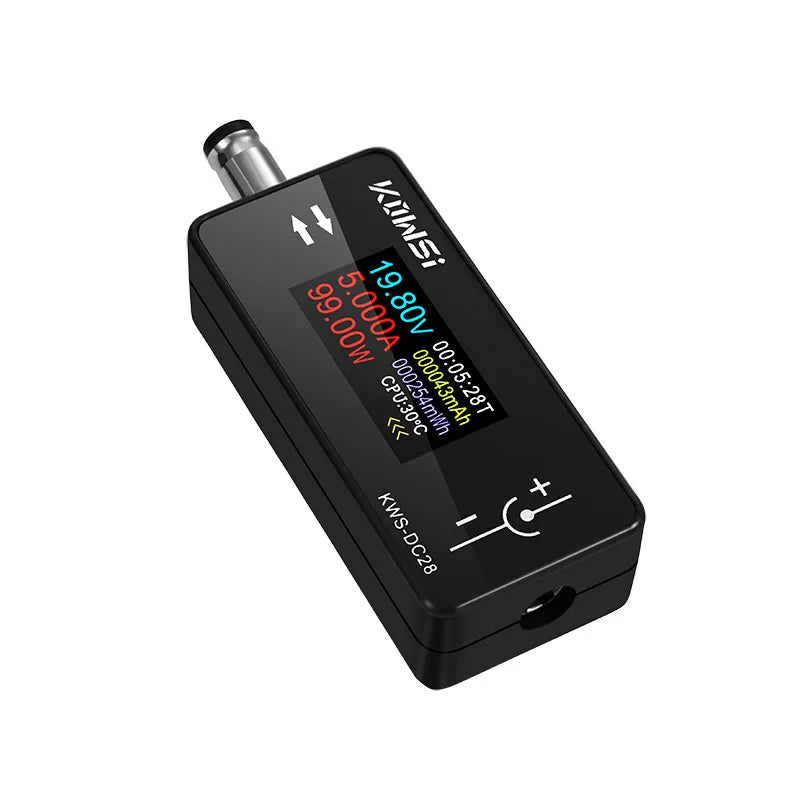

HD TFT Digital Voltmeter and Power Meter, 4-30V, 0-12A, 5.5x2.5mm Interface
HD TFT Digital Voltmeter and Power Meter delivers precise DC measurement from 4 to 30V and up to 12A in a compact 60x20x12mm package, ideal for monitoring power use across multiple devices.

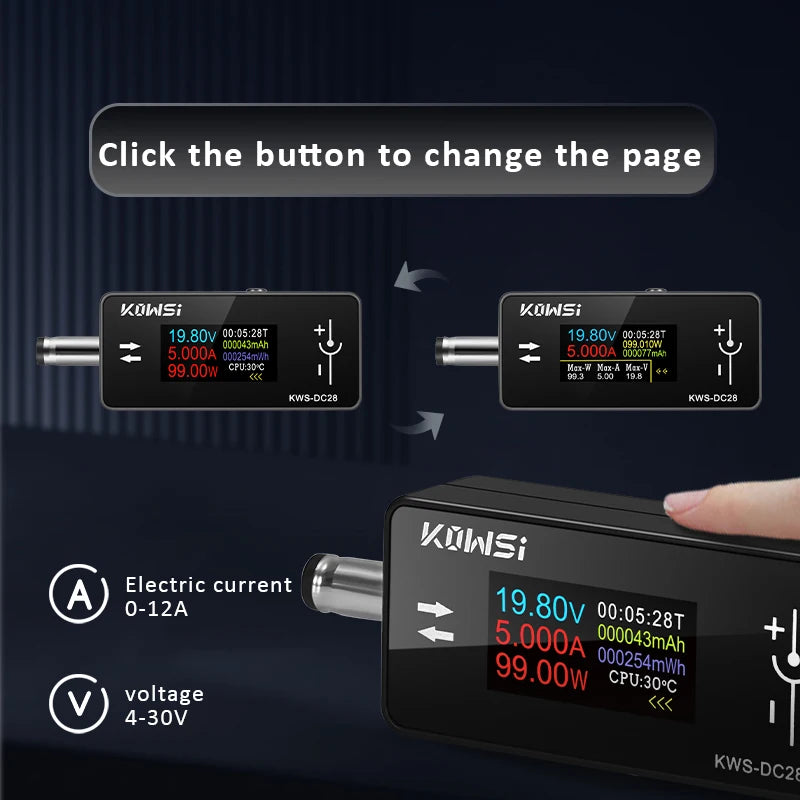

The 1.0.96-inch TFT high-definition display shows voltage, current, and energy metrics on a single screen. It supports bidirectional current detection and can record the highest power, maximum current, and peak voltage to help you understand device performance at a glance. Real-time status is continuously updated, and you can switch pages with a single click or flip the page with a double-click to suit different monitoring scenarios.

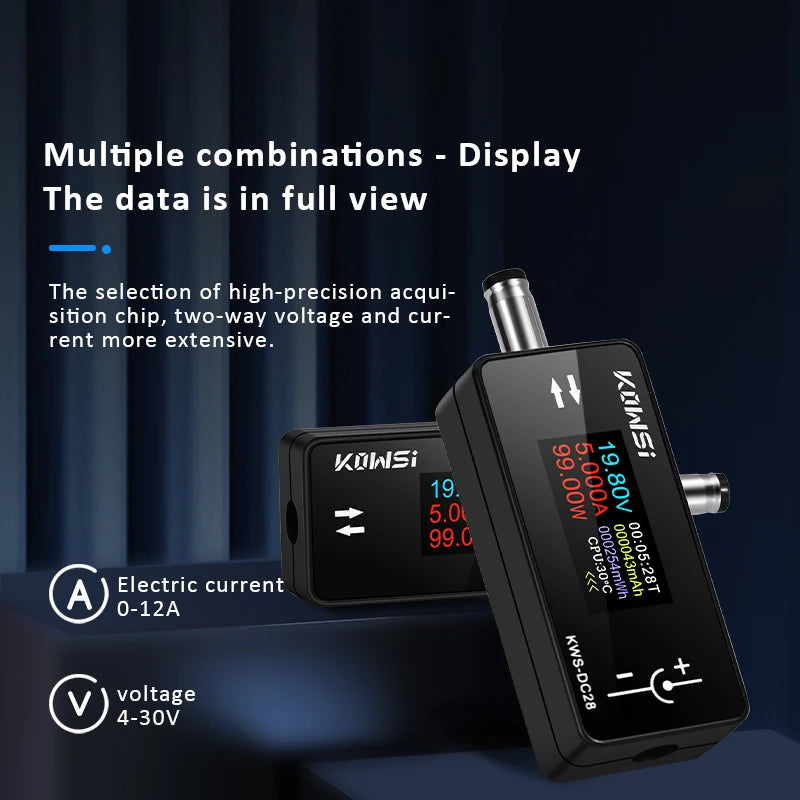

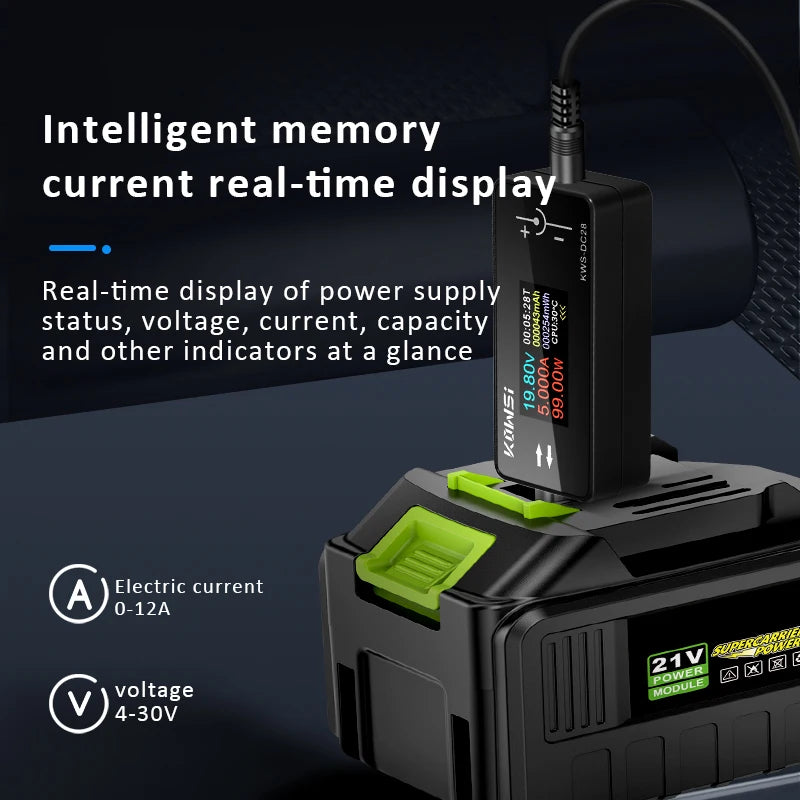

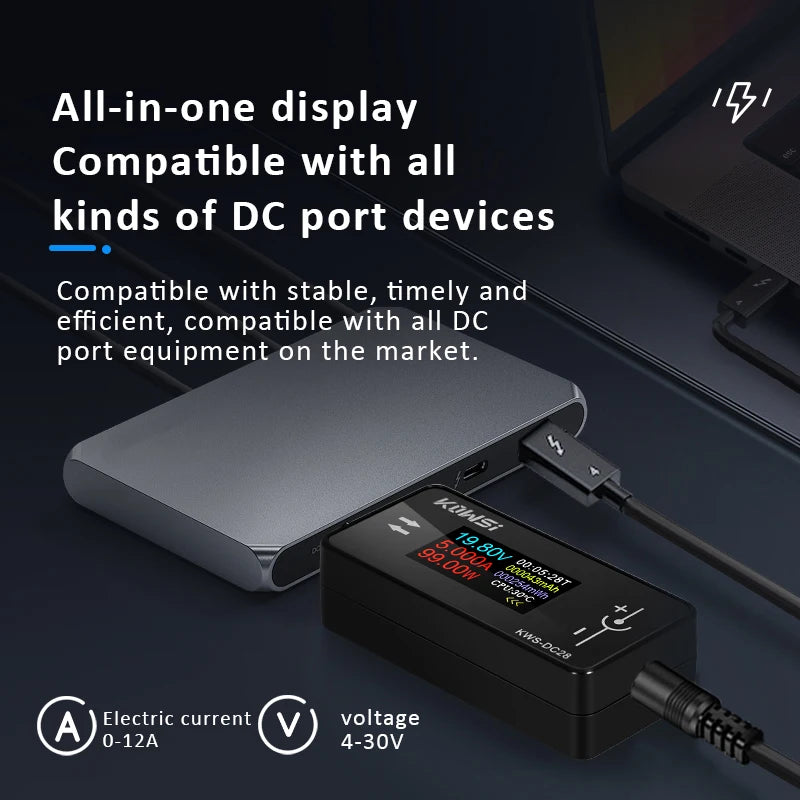

Designed for practical, on-the-spot measurement, this meter is compatible with various DC port devices and can log power-on data for equipment like monitors, routers, and power tools. The device uses a high-precision acquisition chip to ensure stable, timely readings even as loads vary.
Benefits & Tips
- Track both voltage and current together to prevent overloading and extend device life.
- Use the page-flip feature to compare current readings with peak data during different tasks.
- Ideal for DIY setups requiring compact, in-line DC monitoring with a clear visual readout.
Product specifications
- Voltage: DC 4–30V
- Current: 0–12A
- Power: 0–360W
- Capacity: 0–999999 mAh
- Energy: 0–999999 Wh
- Timing: 0–99 hours
- Size: 60×20×12 mm

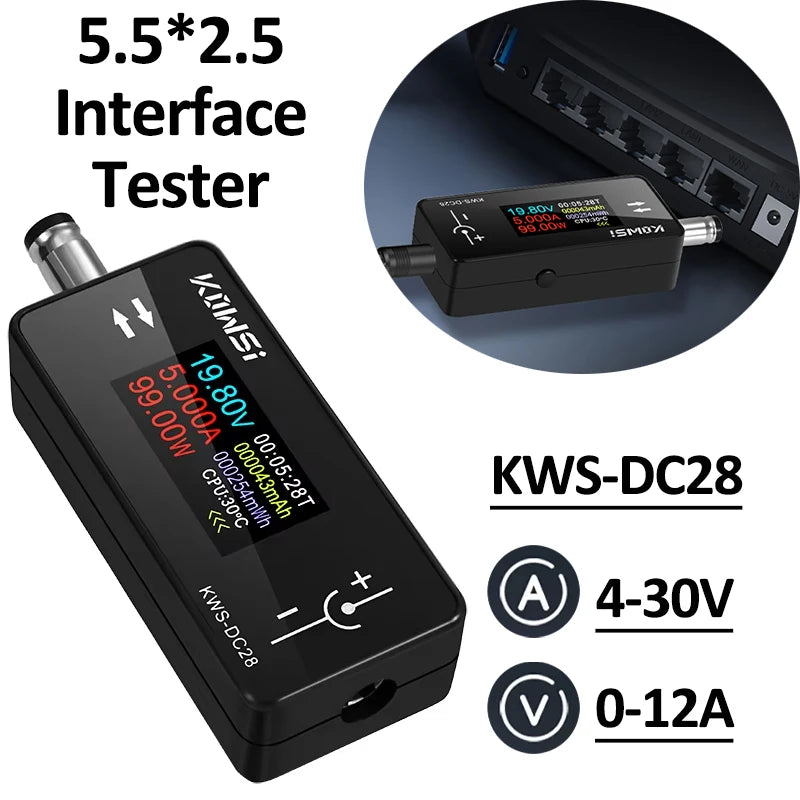

- Interface: 5.5×2.5 mm

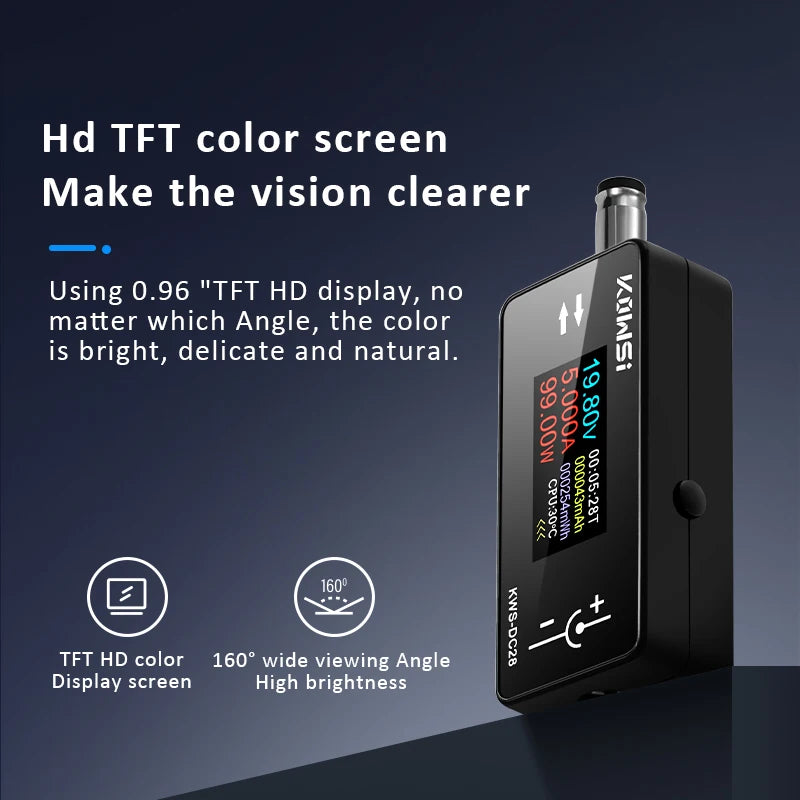

- Display: 1.0.96-inch TFT high-definition display
Package includes:
- DC Tester*1
Warnings/Reminders
- 12A is the peak current. Do not use it for a long time.
