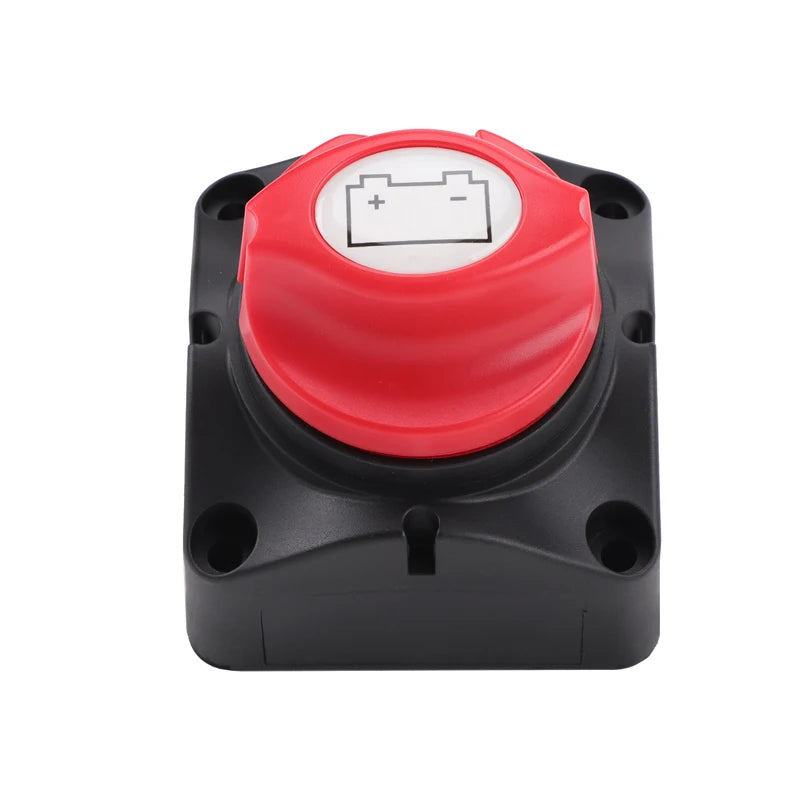

Battery Disconnect Switch 2 Position M10 for Cars, Boats, RVs with LED Display
Meet the Battery Disconnect Switch 2 Position M10, a rugged DC switch designed to isolate a vehicle’s electrical system quickly and safely. Built for cars, boats, RVs, trailers, and more, it provides reliable on/off control with a clear LED voltage display so you can monitor battery health at a glance.
The ABS plastic housing is tough, weather-resistant, and fully enclosed to shield wiring from dirt, corrosion, and rain. This 2-position switch accepts a 2-pin M10 battery connection and is rated for DC 12–48V systems. It handles demanding loads with a continuous rating of 275 A at 12V (455 A intermittent at 12V; 1250 A momentary at 12V). Terminals are 3/8 in (10 mm) in diameter and made from tinned copper for corrosion resistance. This switch is ideal for universal use in RVs, marine vessels, cars, boats, campers, travel trailers, trucks, ATVs, UTVs, and other engine applications.
Origin: Mainland China.
All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.
Providing quality and trusted service since 2002 at intercyprus.com.
Benefits & Tips
- Preserve battery life by isolating the electrical system when the vehicle or vessel is parked for extended periods.
- Facilitate safe maintenance: disconnect power quickly without removing the battery.
- Monitor battery health on the go with the LED voltage display to plan charging or replacement.
Product specifications
- Model: Battery Disconnect Switch 2 Position M10
- Material: ABS plastic housing
- Voltage range: DC 12–48V
- Continuous rating: 275 A at DC 12V
- Intermittent rating: 455 A at DC 12V
- Momentary rating: 1250 A at DC 12V
- Positions: 2-position On/Off
- Connection: 2-pin, M10

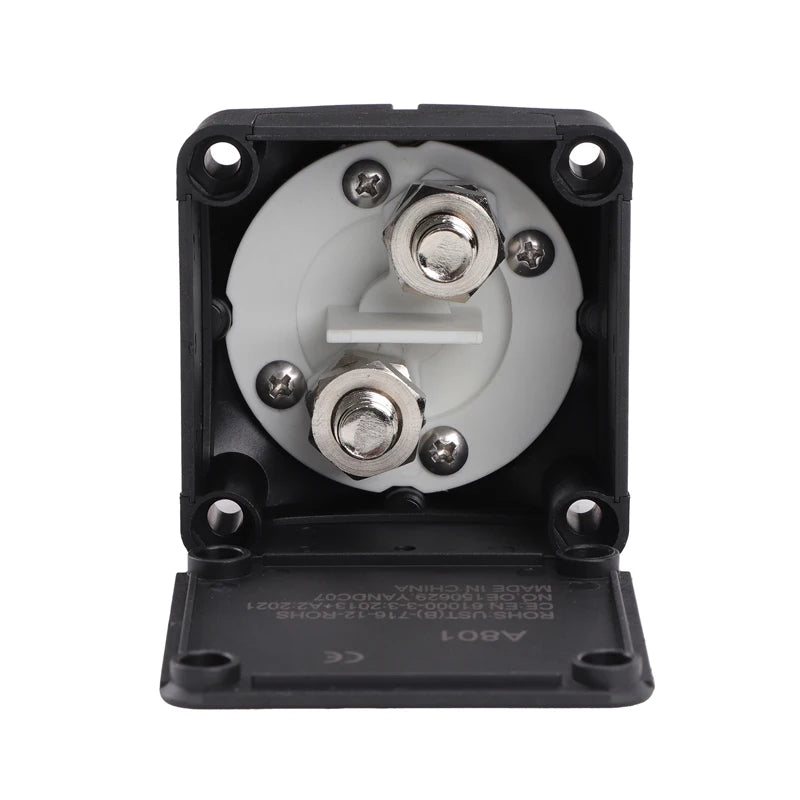

- Terminal diameter: 3/8" (10 mm)
- Terminal material: Tinned copper
- Display: LED voltage display
- Weight: approx 0.43 kg
- Origin: Mainland China
- Applications: RV, Marine, Car, Boat, Camper, Travel Trailer, Truck, ATV, UTV battery and other engine applications

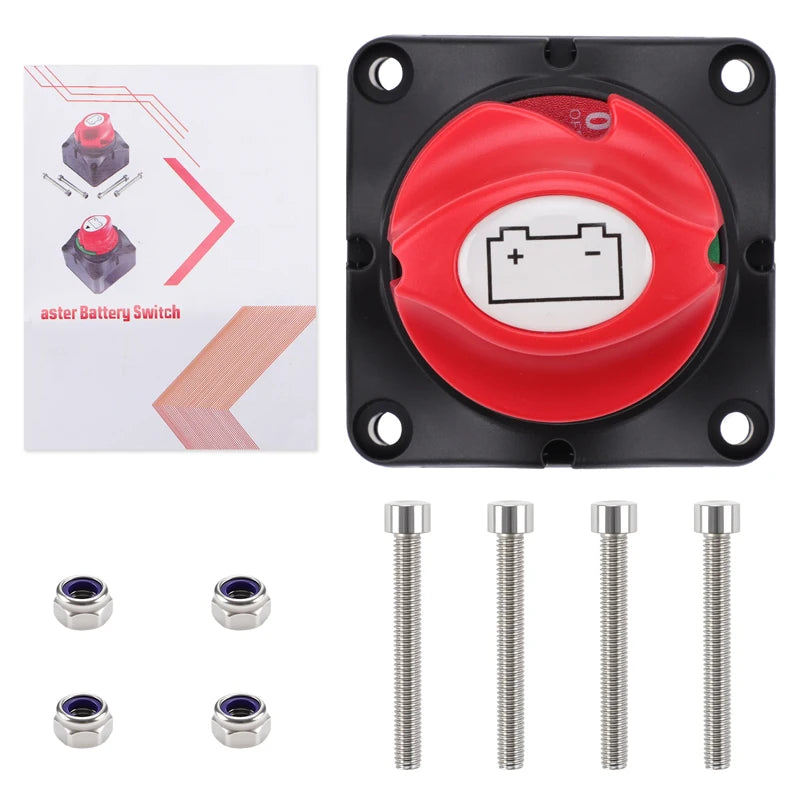

Package includes:
- 1 x Battery Disconnect Switch 2 Position M10 with LED voltage display
Warnings / Reminders
- Use with DC 12–48V systems only.
- Install with power fully off and follow proper wiring procedures to avoid short circuits.
- Ensure wiring and components are rated for the currents listed (275 A continuous, 455 A intermittent, 1250 A momentary at 12V).
