Home » N20 Micro Gear Motor With DC 3V 6V 12V Adjustable Speed

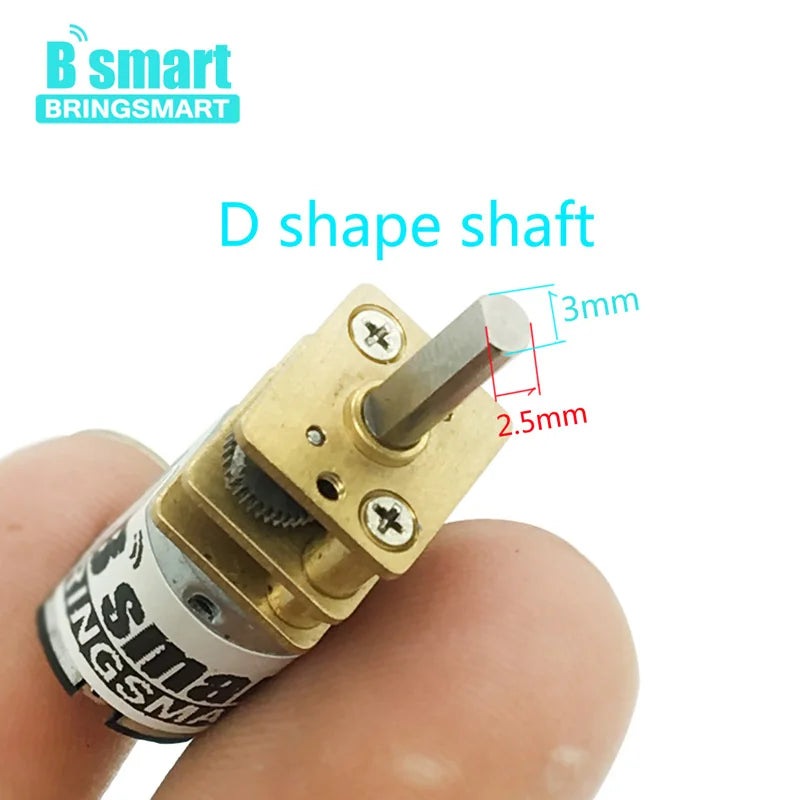

N20 Micro Gear Motor With DC 3V 6V 12V Adjustable Speed

SKU: 1005006538926882-12V-150rpm-Other
Voltage(V)
Speed(RPM)
Gear Count
€11,91
-41% €20,25 €11,91

The N20 micro gear motor delivers compact, reliable torque for precision motion projects and small home appliances. Built with a permanent magnet construction and totally enclosed protection, this brush-type DC gear motor safeguards internal components from dust and wear while maintaining consistent rotational force. Designed for flexible deployment, it accepts a wide input range from 3 to 12 volts, making it ideal for battery-operated gadgets, DIY robotics, conveyor mechanisms, and automated sliders that require steady performance across varying payloads.

Performance Adjustments & Practical Tips

Users can easily tailor the motor’s behavior across different setups without complex wiring changes. The rotating direction switches instantly when wiring polarity is reversed, simplifying integration into reversible mechanisms. Operating voltage directly influences output speed, allowing smooth scaling from low-torque holding positions to faster cycle times. Pairing the unit with an external speed controller enables fine adjustment down to approximately 0-10 RPM depending on the specific gear ratio selected.

  • Verify rotation direction before final mounting by applying brief power and swapping leads if backward motion is required.
  • Allow intermittent cooling during continuous heavy-duty cycles to preserve bearing lifespan.
  • Expect speed reduction under actual load conditions; design your mechanism around no-load baseline measurements.

Key Specifications

  • Type: Brush DC Gear Motor | Model: JGA12-N20
  • Rated Voltage: 6V (Compatible Range: 3V – 12V)
  • Output Power: Less than 18.65W
  • Commutation: Brush | Construction: Permanent Magnet
  • Protection Rating: Totally Enclosed | Efficiency: IE 1
  • Certifications: CE, ROHS
  • Typical No-Load Speeds: 1500, 500, 300, 150, 100, 71, 50, 30, 15 RPM (linear scaling applies)

Package Includes

1 × N20 Micro Gear Motor

Operational Warnings

Always match supply voltage to nominal ratings to prevent overheating or premature failure. Connecting 18 volts to a 12-volt unit will cause immediate component breakdown, while significantly undersupplying voltage reduces torque output and may stall the gearbox. This device supports customization requests for specialized parameters through direct factory coordination.
