Aqara Zigbee 3.0 Single Channel Relay Switch With HomeKit Support
Transform your standard fan, kettle, or lamp into a smart device instantly with the Aqara Zigbee 3.0 Single Channel Relay Switch.
This compact white module tucks neatly behind sockets or inside light fixtures. You keep full manual control while gaining automatic scheduling and remote operation through your phone.
The built-in energy monitor records every kilowatt-hour so you can spot wasteful appliances before they raise your bill. Overheat and overload sensors automatically cut power when limits approach, keeping your home safe during extended runs.
Benefits & Tips
- Track hidden usage: Check the electricity statistics monthly to identify which appliances draw standby power overnight.
- Schedule safely: Set timers for space heaters or fans that turn on automatically, so rooms reach comfort right when you arrive.
- Wire freely: Mount the slim relay behind wall plates or inside ceiling boxes to hide wires while keeping your existing switches fully functional.
Product Specifications

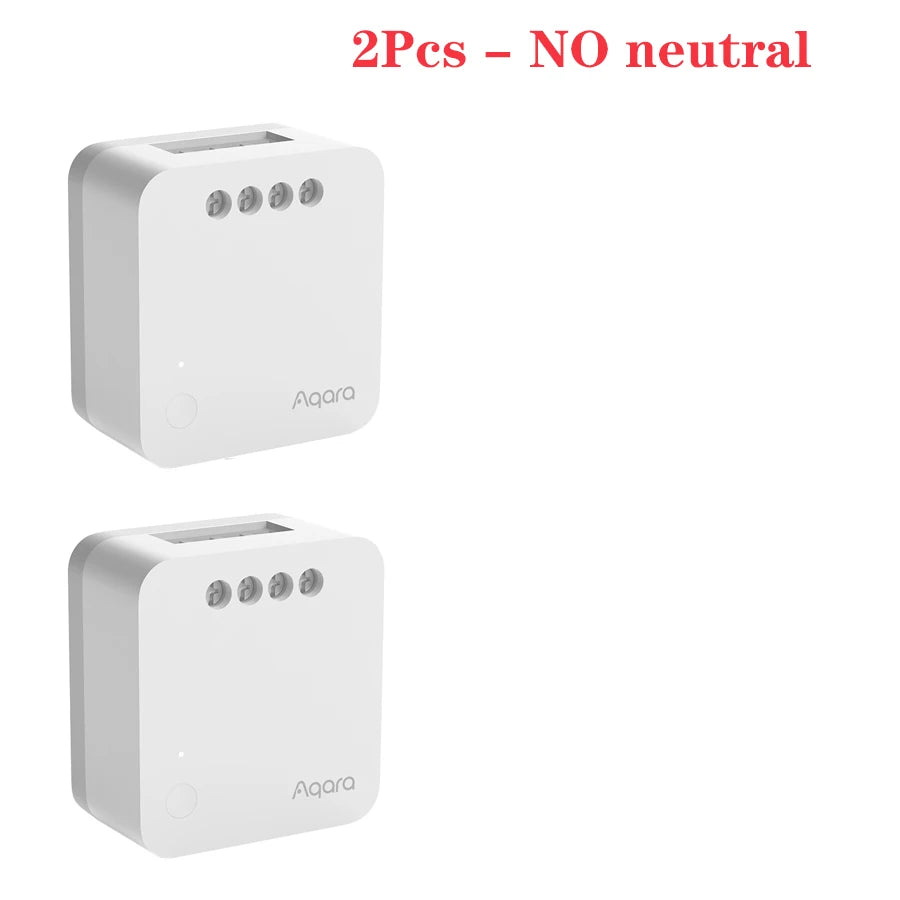

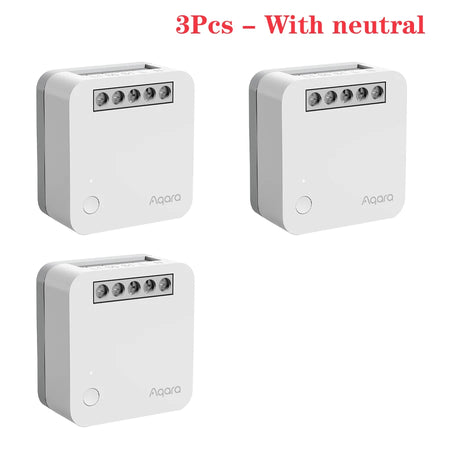

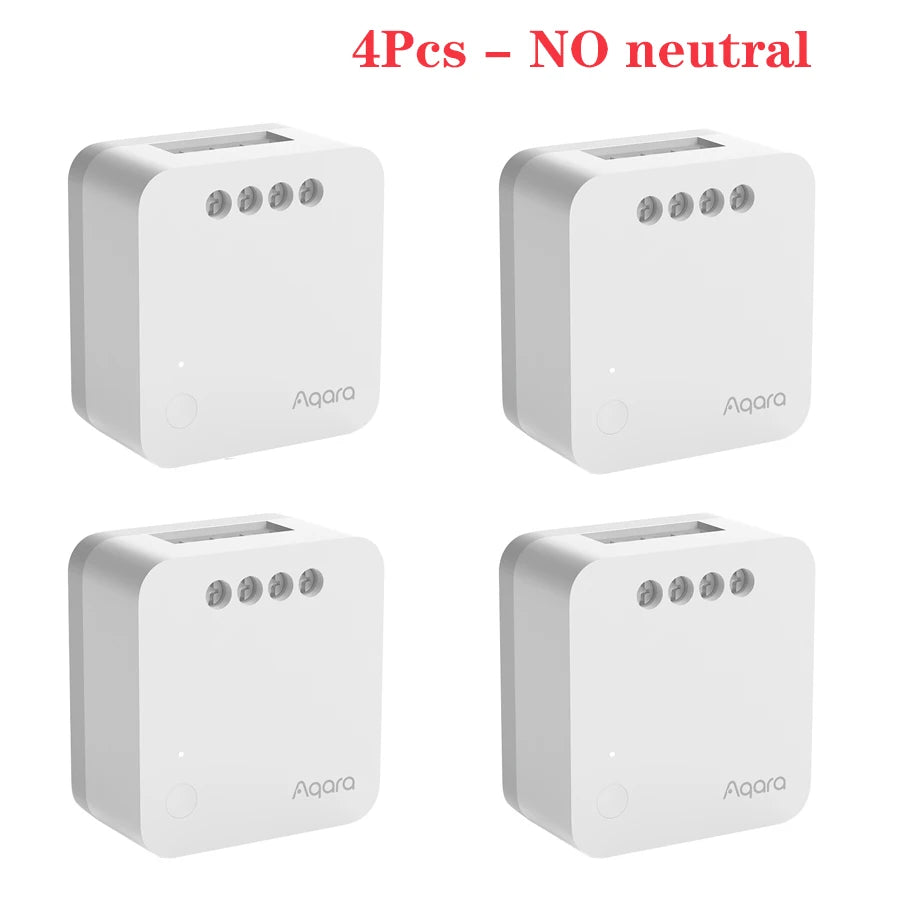

- Model: DLKZMK11LM (Neutral) or DLKZMK12LM (No Neutral)
- Dimensions: 42.9 × 40 × 21.4 mm
- Input Power: 100–250VAC, 50/60Hz
- Max Current: 5A resistive load
- Rated Load: 3W minimum to 1250W maximum
- Connectivity: Zigbee 3.0 at 2.4GHz
- Operating Environment: 5% to 95% RH, indoors only
- Language Support: English interface compatibility through supported hubs
Package includes:
- Aqara Zigbee 3.0 Single Channel Relay Switch Module
- Mounting screws and alignment guides
Important Reminders
This module requires a compatible Aqara Hub to connect to your phone or enable HomeKit automation. Use it strictly indoors away from moisture or direct heat sources. Keep wired connections away from water and ensure the load stays between 3W and 1250W.
