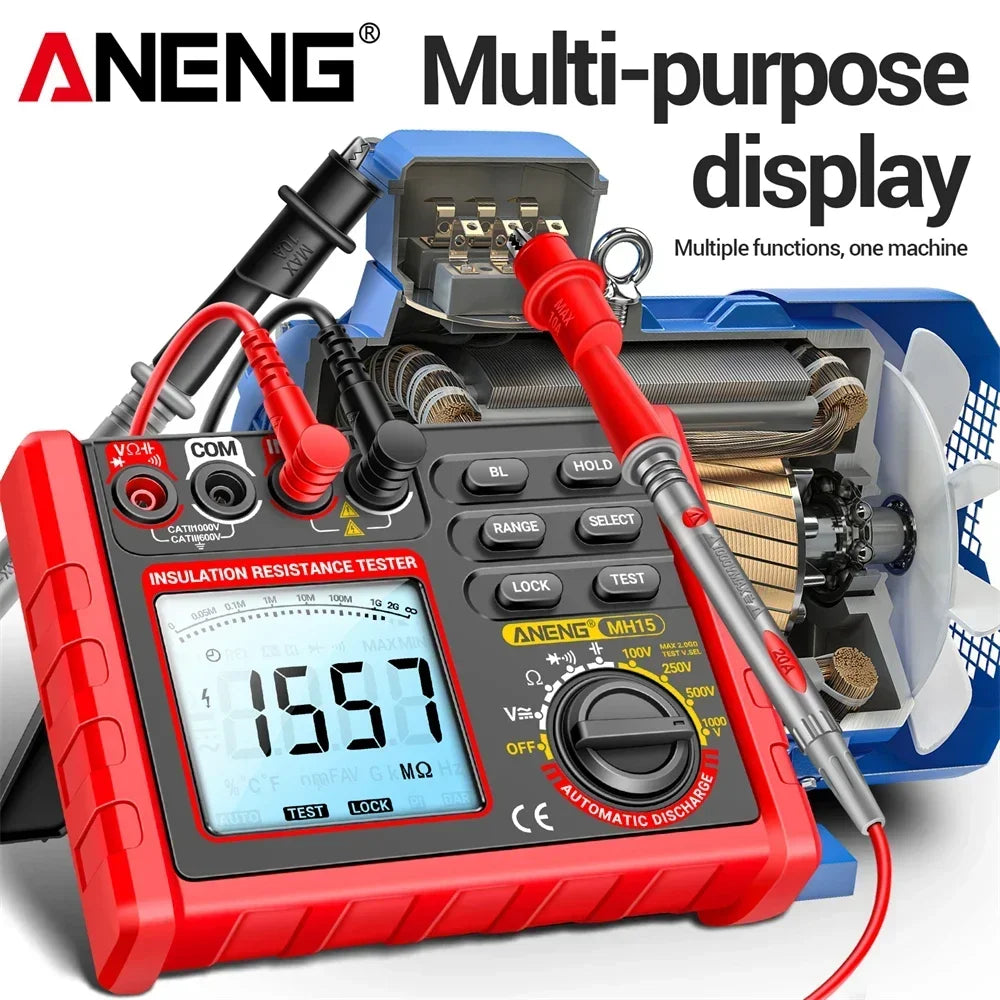

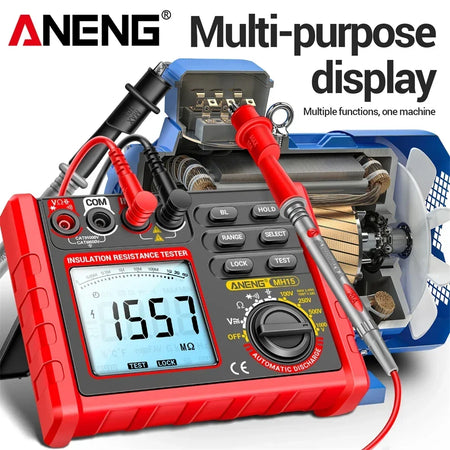

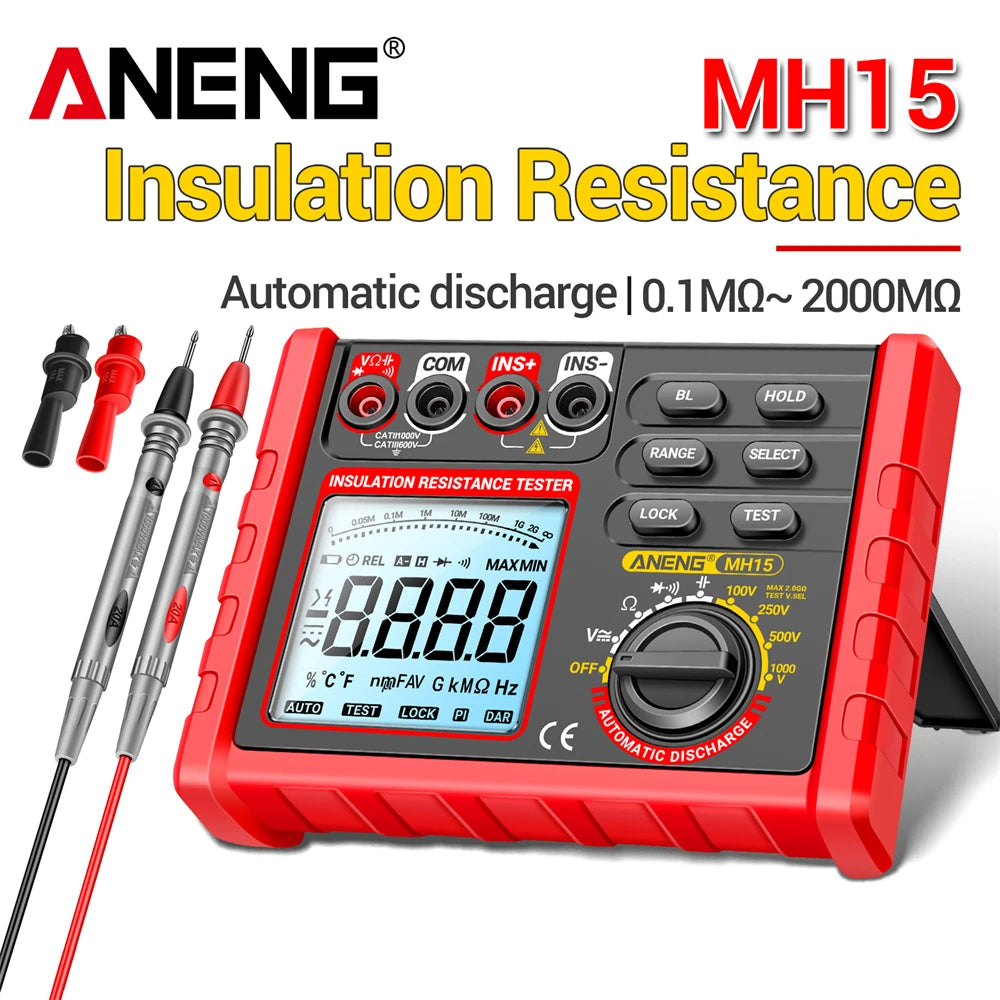

ANENG MH15 Ohmmeter Insulation Meter – Auto Discharge
ANENG MH15 Digital Ohmmeter Insulation Resistance Meter — A versatile 6000-count tester that measures resistance, insulation, diodes and capacitors with high-voltage megohm capability for electrical troubleshooting and component testing.
Features
- 6000-count digital display for clear readings
- Insulation resistance (megohmmeter) and resistor/capacitor test modes
- Diode test and audible buzzer for continuity checks
- Automatic discharge and 15-minute auto shutdown to protect the device and conserve power

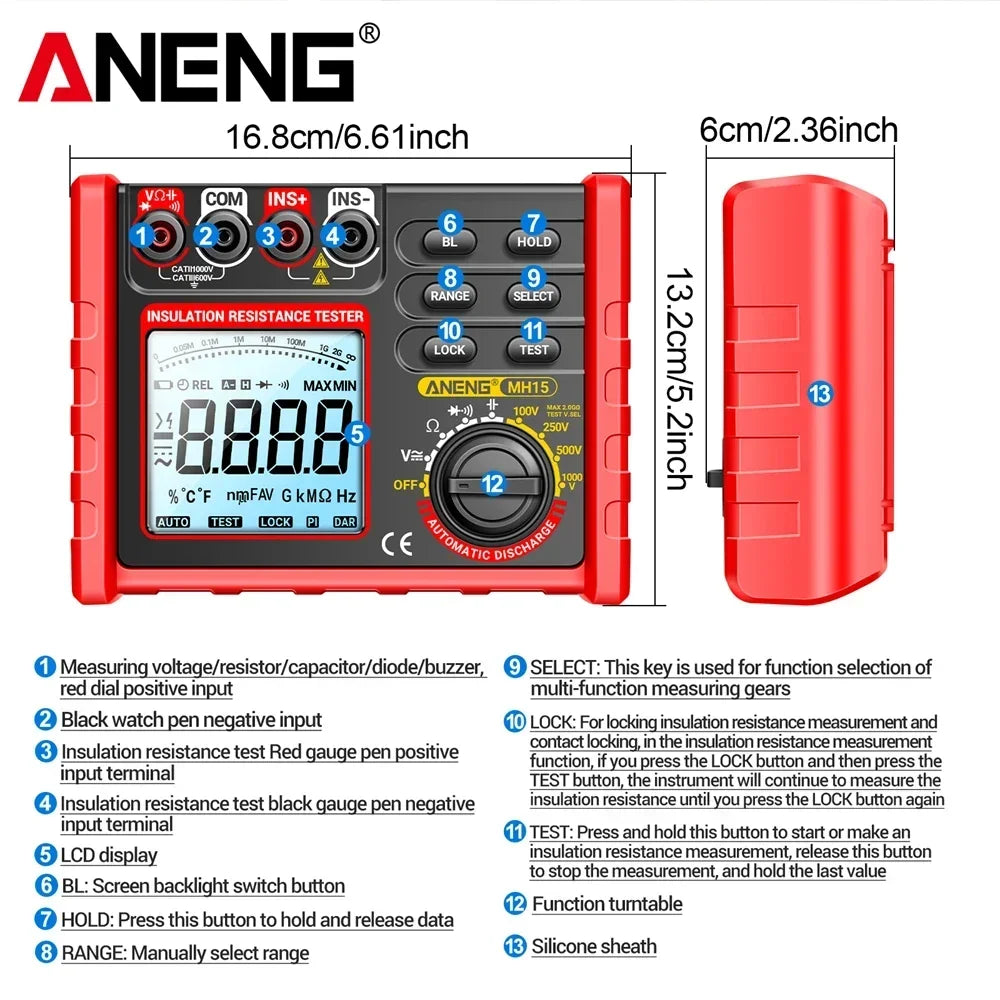

- Compact handheld design (23 × 20 × 7 cm) for field and bench use
Technical Details
- Automatic discharge: Yes
- Automatic shutdown: 15 min no operation
- Battery model: 1.5V AA × 6 (batteries not included)
- Buzzer: Yes
- Data retention: Yes
- Diode test: Yes
- Certification: CE

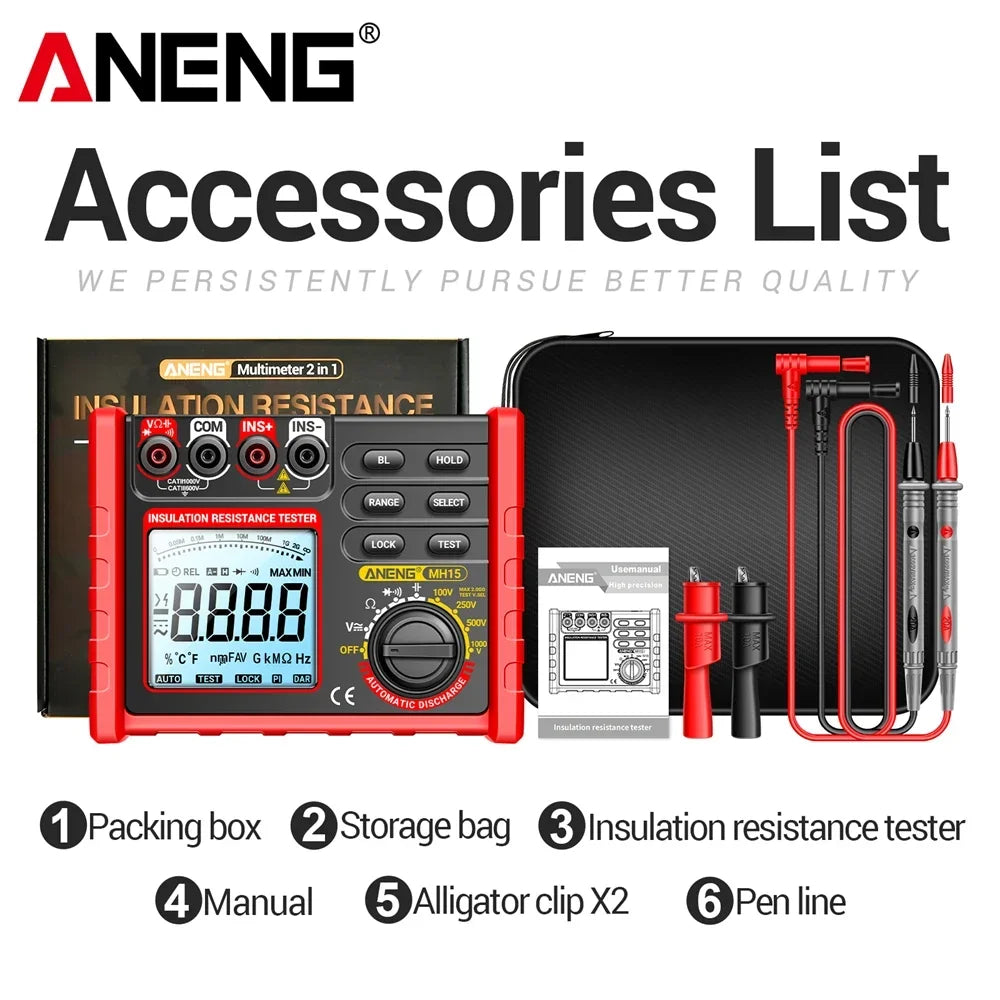

Package includes: ANENG MH15 unit (batteries not included).
Warning: Use appropriate safety procedures when measuring high voltages. Ensure the unit is powered off and discharged before connecting to sensitive circuits.
This meter streamlines troubleshooting by combining insulation testing, resistance, capacitance and diode checks in one tool—reducing trips, saving time and improving diagnostic accuracy. Durable and easy to operate, it suits electricians, maintenance technicians and hobbyists who need reliable measurements in the field or workshop.
Perfect for electrical technicians, maintenance teams and DIY enthusiasts, backed by a satisfaction guarantee. Add the ANENG MH15 to your toolkit today to speed up diagnostics and complete projects with confidence.
Ideal for on-site service and laboratory testing; used whenever fast, accurate resistance and insulation readings are required.

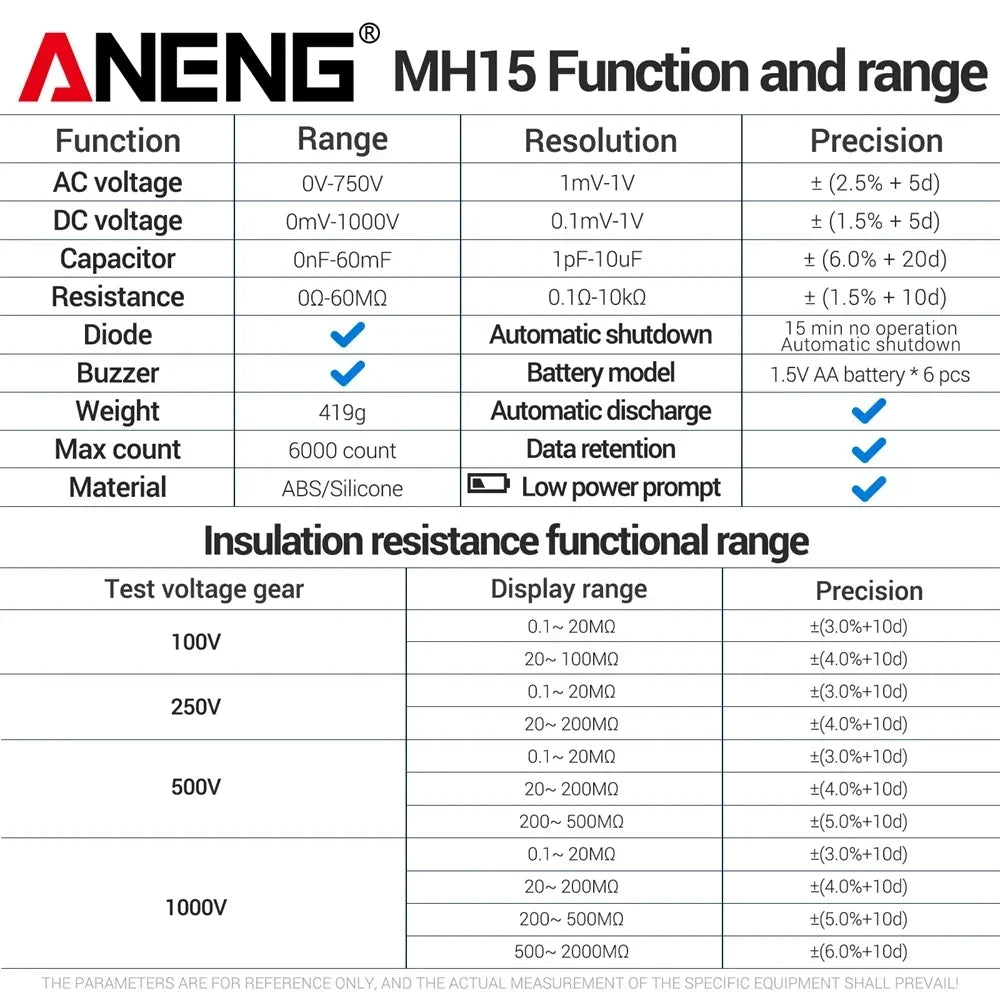

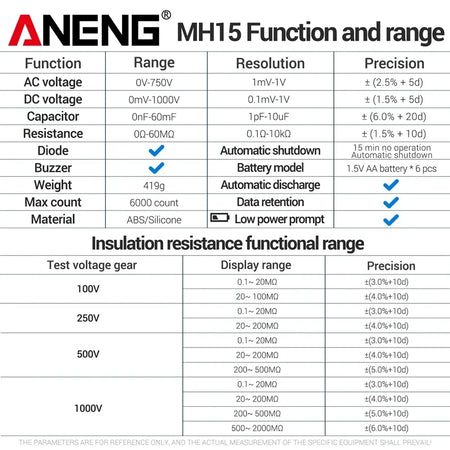

Function |
Range |
Resolution |
Precision |
AC voltage |
0V-750V |
1mV-1V |
±(2.5%+5d) |
DC voltage |
0mV-1000V |
0.1mV-1V |
±(1.5%+5d) |
Capacitor |
0nF-60mF |
1pF-10uF |
±(6.0%+20d) |
Resistance |
0Ω-60MΩ |
0.1Ω -10kΩ |
±(1.5%+10d) |
Diode |
√ |
Automatic shutdown |
15 min no operation Automatic shutdown |
Buzzer |
√ |
Battery model |
1.5V AA battery*6 pcs (without shipment) |
Weight |
419g |
Automatic discharge |
√ |
Max count |
6000 count |
Data retention |
√ |
Material |
ABS/Silicone |
Low power prompt |
√ |
Test voltage gear |
Display range |
Precision |
100V |
0.1~20MΩ |
±(3.0%+10d) |
20~100MΩ |
±(4.0%+10d) |
|
250V |
0.1~20MΩ |
±(3.0%+10d) |
20~200MΩ |
±(4.0%+10d) |
|
500V |
0.1~20MΩ |
±(3.0%+10d) |
20~200MΩ |
±(4.0%+10d) |
|
200~500MΩ |
±(5.0%+10d) |
|
1000V |
0.1~20MΩ |
±(3.0%+10d) |
20~200MΩ |
±(4.0%+10d) |
|
200~500MΩ |
±(5.0%+10d) |
|
500~2000MΩ |
±(6.0%+10d) |
Please note: All electronic and mechanical equipment, devices and machines sold to EU countries are CE certified and carry a two year warranty.
