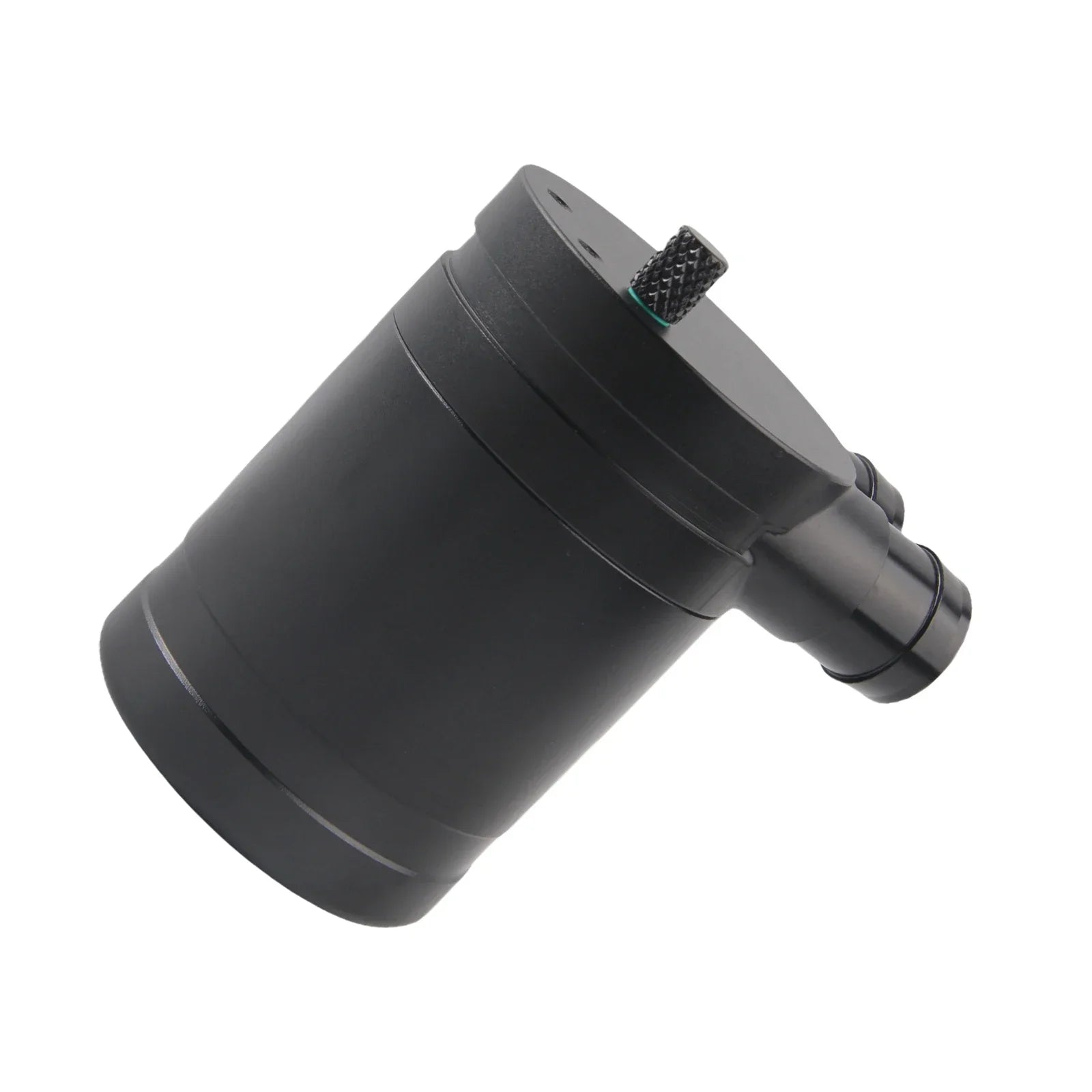

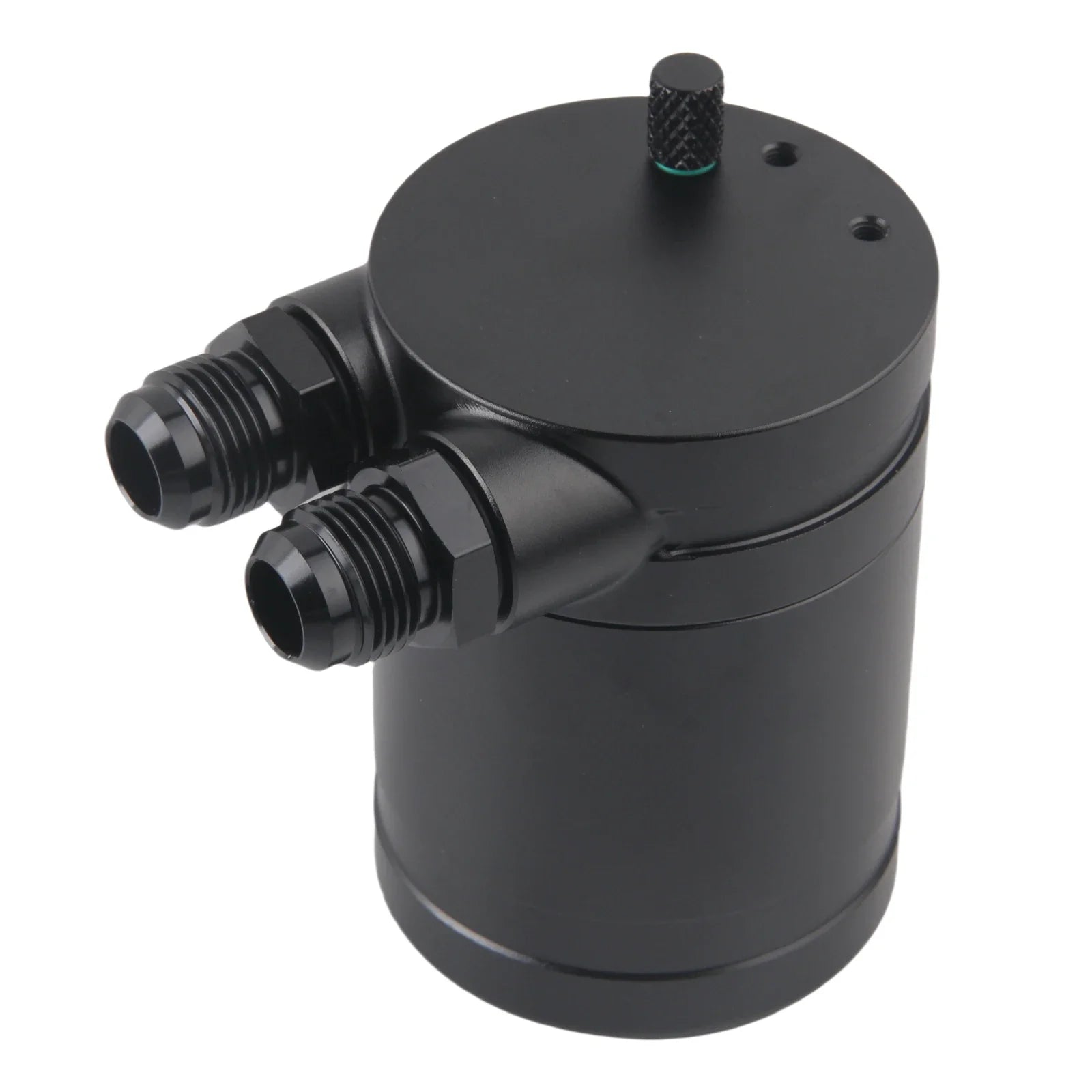

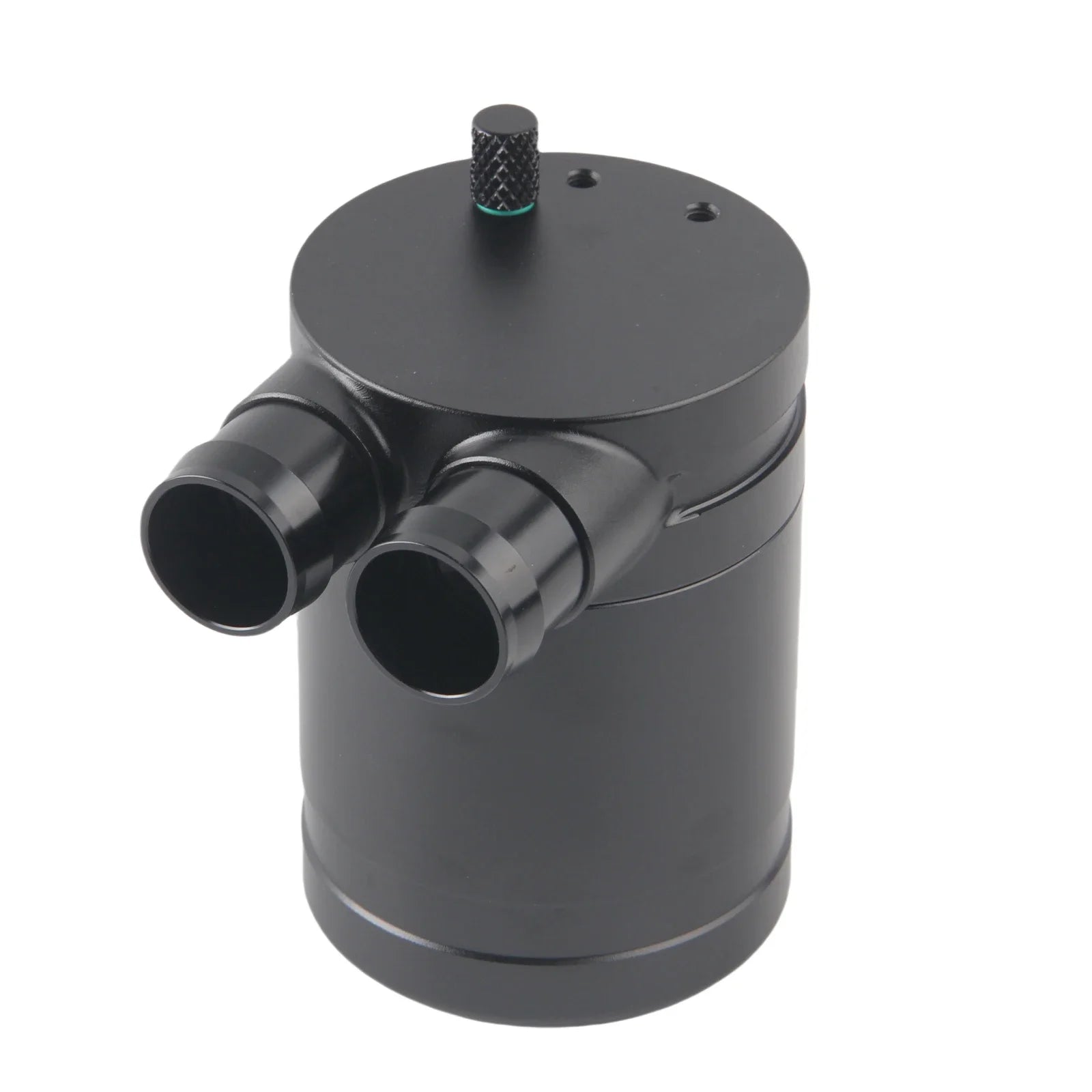

An10 Aluminum Oil Catch Tank Round Racing Turbo Universal Reservoir

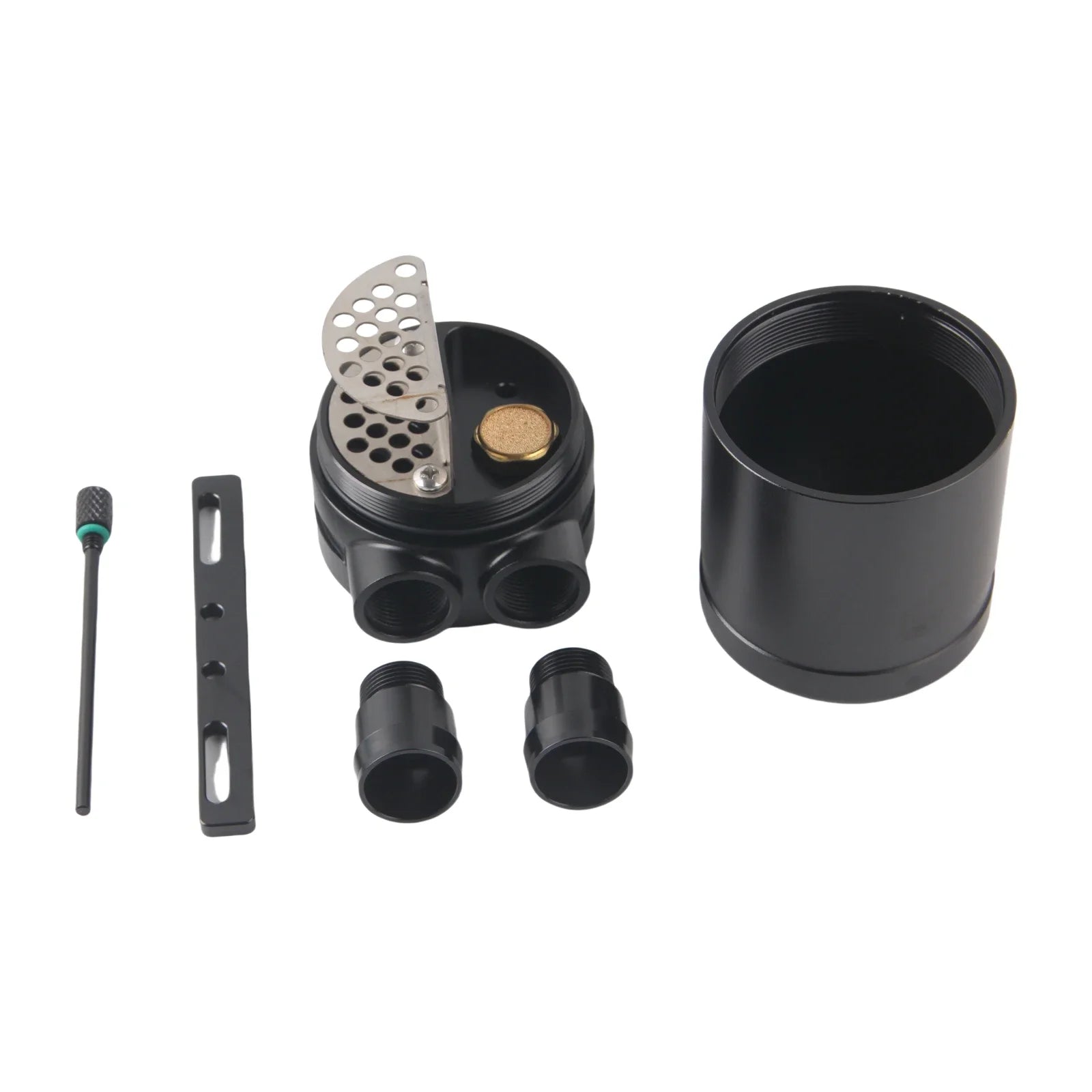

This 200ml round reservoir actively separates crankcase blow-by contaminants before they pollute your induction system. CNC-milled from 6061 billet aluminium and finished with an anodized coating, the unit utilizes a dual-stage condensing chamber equipped with a reusable stainless steel mesh baffle. As pressurized vapors travel through the housing, temperature drop and directional flow cause heavy oil droplets to collapse into liquid form. Cleaner, oxygen-rich charge air then exits via the secondary port, protecting turbos, intercoolers, and throttle plates from sticky carbon residue while maintaining higher octane retention.

Benefits & Practical Tips

Maximize separation efficiency by positioning the catch can on a flat, vibration-dampened surface away from exhaust manifolds. Check the integrated anodized dipstick after hard driving to gauge ring wear or positive crankcase ventilation flow. Flush the internal steel mesh periodically with aerosol brake cleaner to remove sludge buildup, and always verify fitting alignment to prevent restrictive kinking in flexible breather hoses.

• Dipstick readings increase noticeably when engine seals age early, offering an easy diagnostic baseline without teardown.
• Route inlet tubing slightly downward to encourage natural gravity drainage into the collection well.
• Schedule monthly baffle inspections if tracking frequently or operating sustained high-boost conditions.

Technical Specifications

• Primary Material: Machined 6061-T6 billet aluminium
• Internal Capacity: 0.2 litres (200ml)
• Port Configuration: AN10 input/output standard
• Vapor Separator: Washable stainless steel filter media
• Hardware: Powder-coated laser-cut mount with stainless fasteners
• Sealing: Heavy-duty O-rings rated for pressurized circuits
• Finish: Anodized exterior with precision-machined fluid dipstick

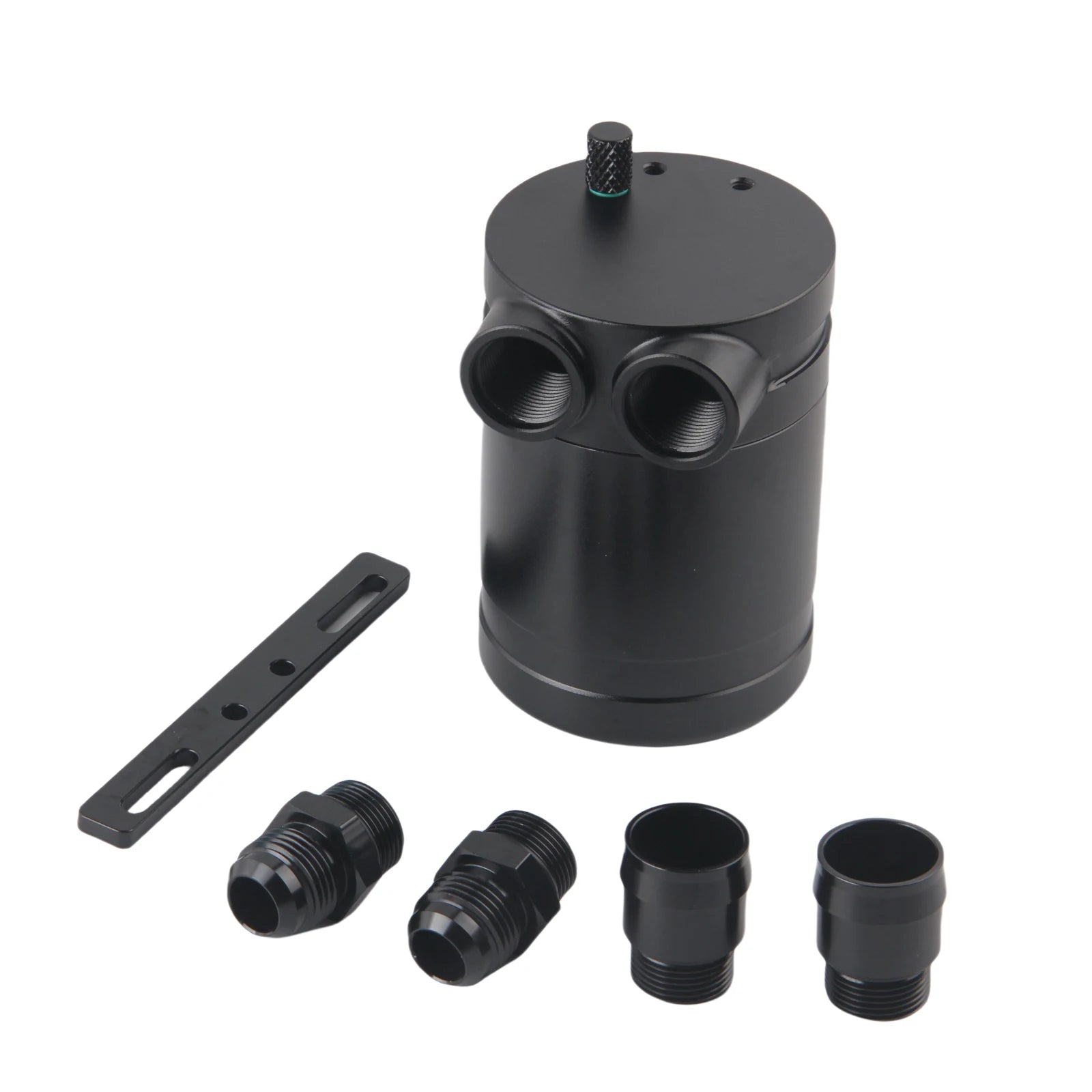

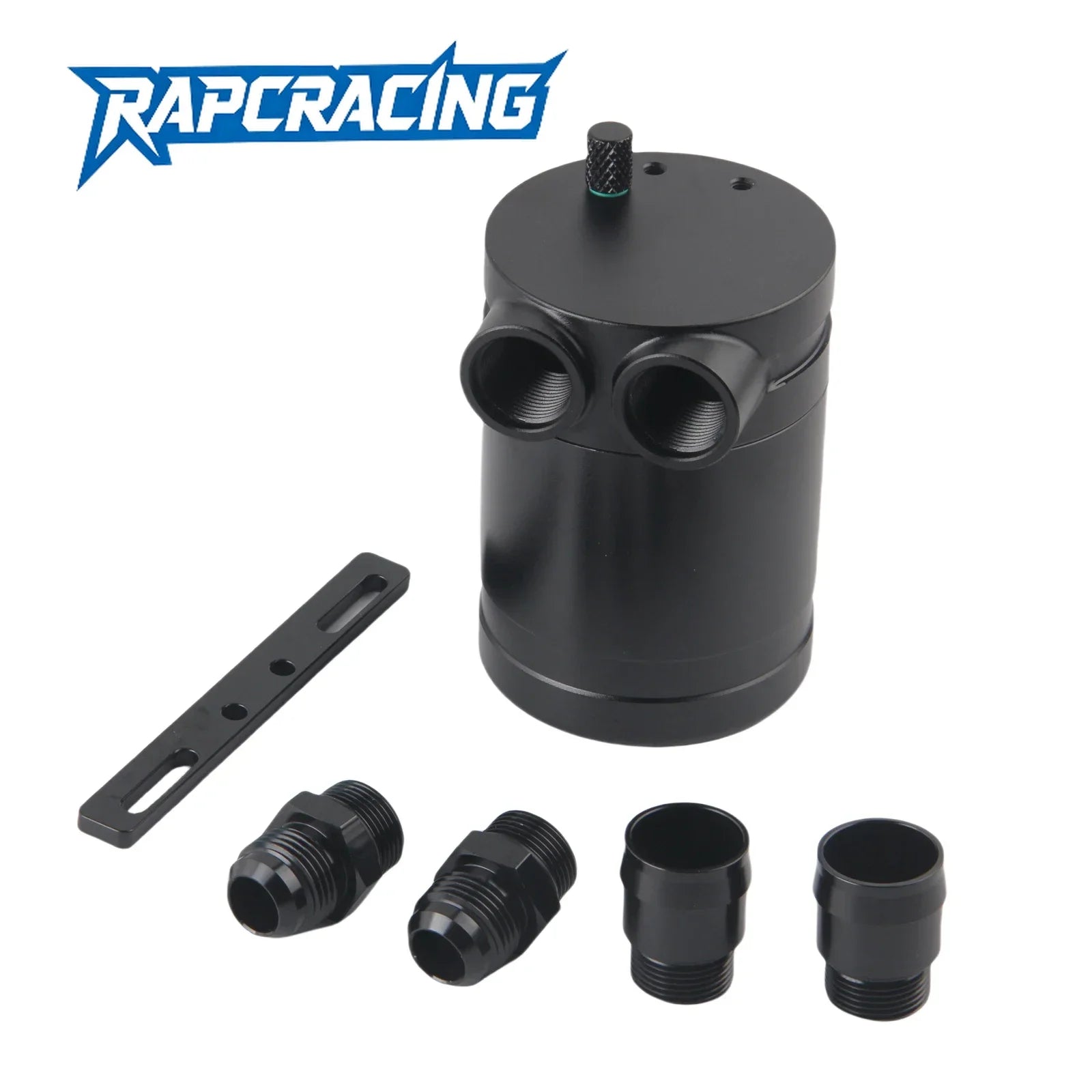

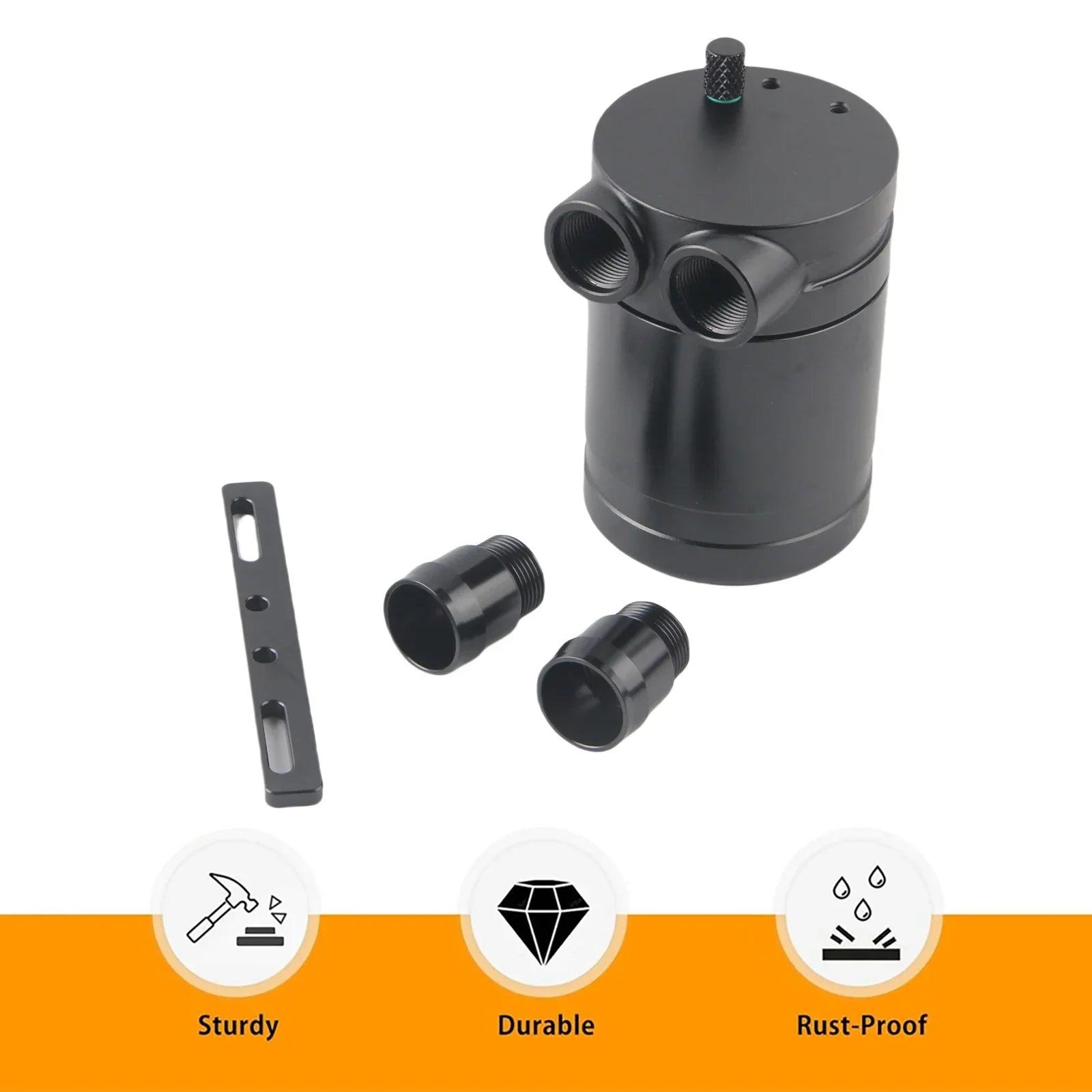

Package includes:

• 1x Round Aluminium Catch Tank Reservoir
• 1x Precision Laser-Cut Mounting Bracket
• 1x Stainless Steel Bolt Kit
• 1x Fixed Fluid Level Dipstick

Operational Reminders

Professional installation is strictly recommended due to vehicle-specific routing demands and pressure management requirements. Technical assembly guides are not supplied; verify fitting pitch, hose clearance, and thermal boundaries prior to permanent mounting to preserve seal integrity.
