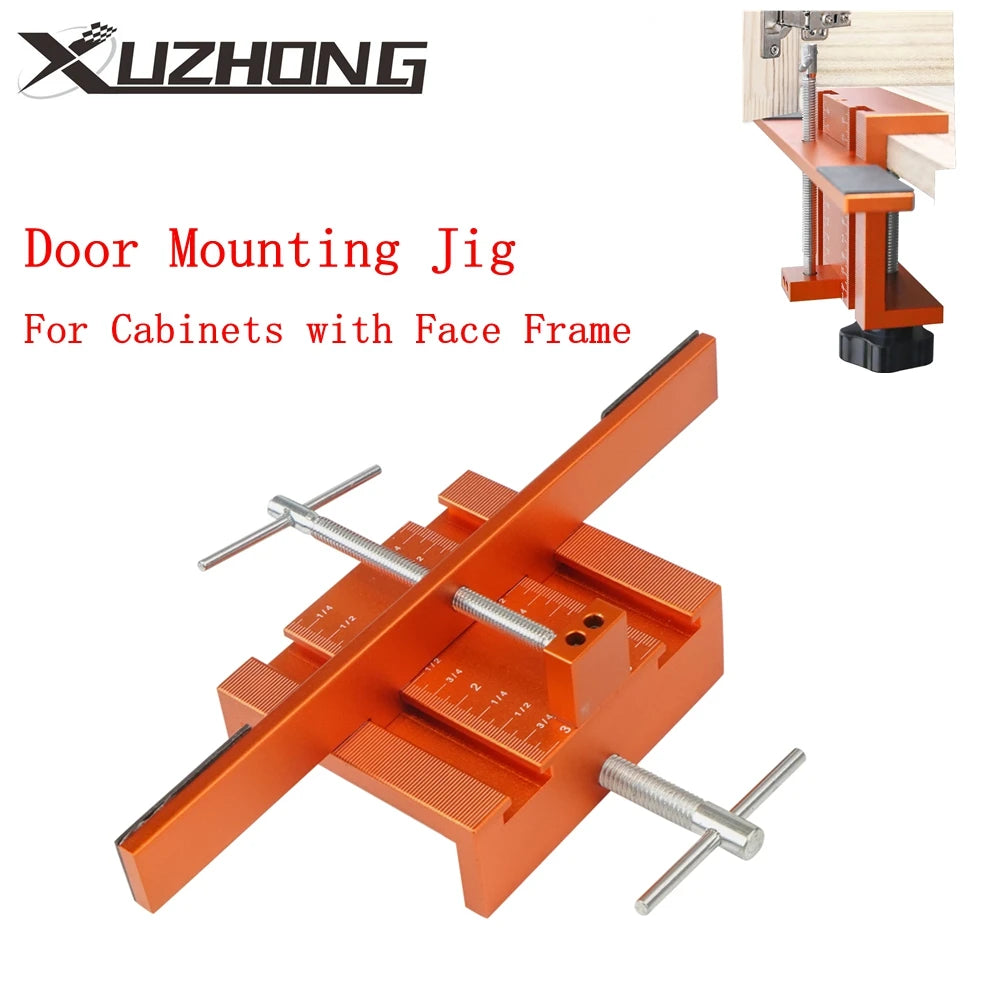

Heavy Duty Aluminum Alloy Cabinet Door Mounting Jig with Face Frame Clamp

SKU: 1005006787062209-IT-1023A-OR
Color
€48,82
-37% €78,11 €48,82

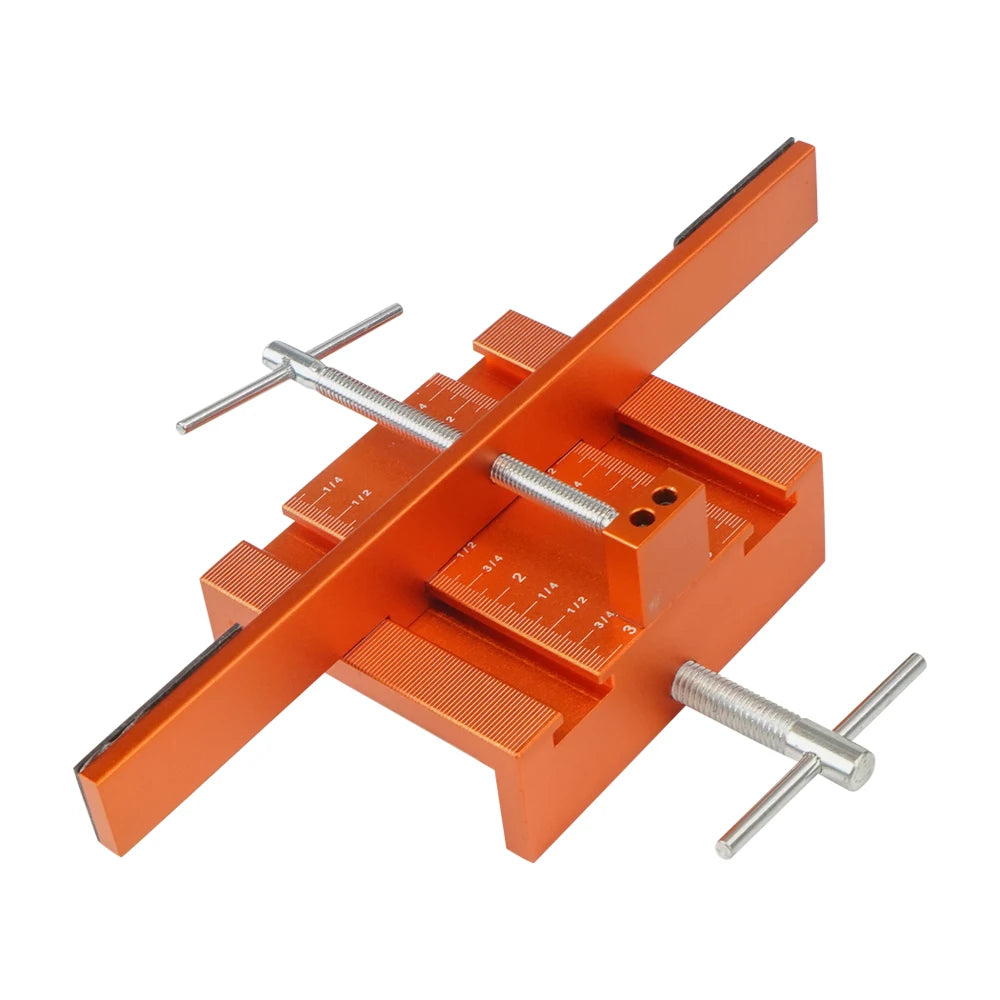

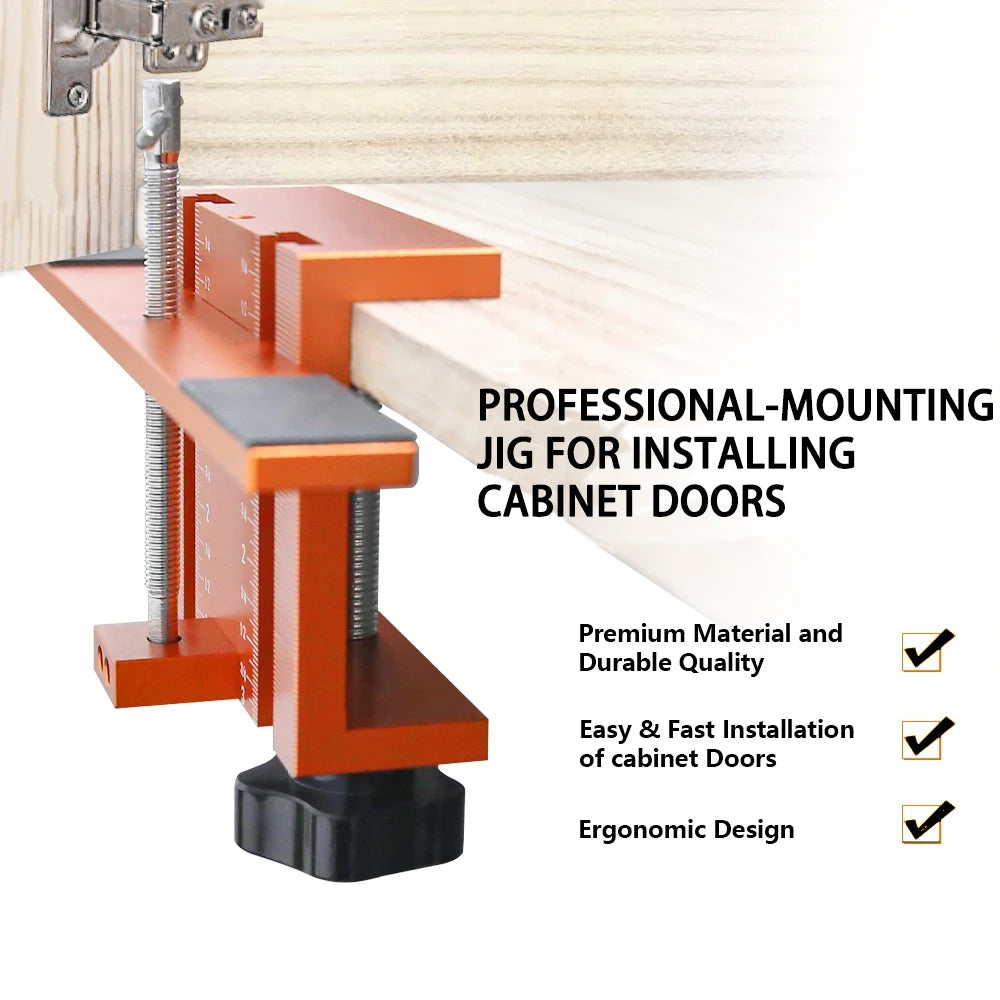

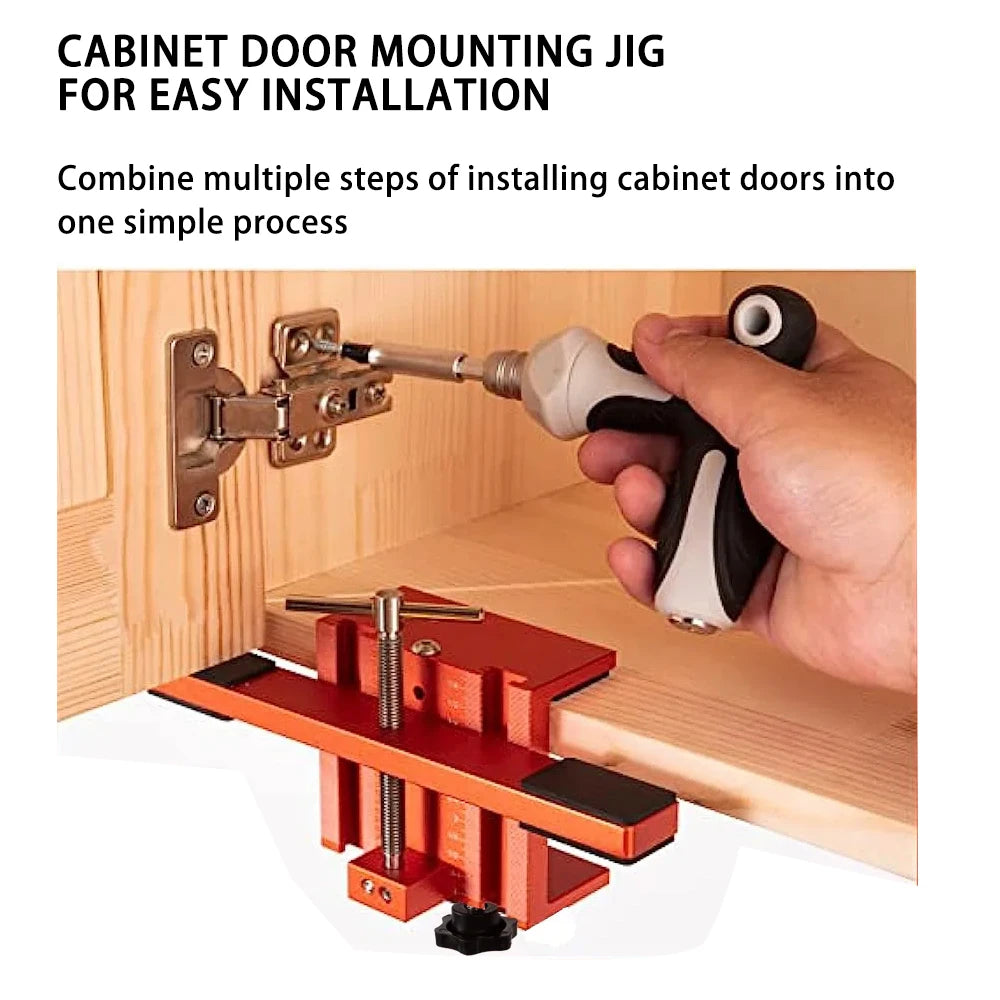

Heavy Duty Aluminum Alloy Cabinet Door Mounting Jig with Face Frame Clamp is a purpose-built tool for professional cabinet installation, delivering precision, speed, and protection in one compact setup. Designed for cabinets with face frames, it uses a rugged aluminum alloy body paired with durable stainless steel and carbon steel hardware to hold doors securely while you attach hinges. The integrated face frame clamp and support arm keep the door steady, so you can clamp, align, and screw hinges with one hand free for smoother workflows. Fixing rubber protection pads shield cabinet surfaces from scratches, even if you reverse the jig during setup. The widened, solid support arm reduces wobble for stable operation, and the tool is suitable for both left- and right-handed doors. With a height-adjustable arm that covers a 2-1/2" range, you can position doors exactly where you want them, even for thicker panels up to 2" thick. The easy-to-see orange body makes it quick to locate in busy workshops, and the installation steps are straightforward: clamp the jig in place, adjust the arm to align the door, pre-drill holes, and screw in the hinges for a clean, reliable fit. This fixture supports both face-frame and frameless cabinet setups via its integrated clamp. All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty. At intercyprus.com since 2002 — trusted for quality and reliability.

Benefits & Tips

  • Practical use: Clamp the jig once, position the door with the adjustable arm, and attach hinges with both hands free for fast, repeatable installations.
  • Practical tip: Use the height-adjustable arm to line up hinge holes across multiple doors, ensuring uniform gaps and consistent results on every cabinet run.
  • Practical use: The rubber protection pads prevent surface scratches during alignment or if the direction of the jig changes mid-install.

Product specifications

  • Material: Aluminum alloy body with stainless steel and carbon steel hardware
  • Color: Orange
  • Model: IT-1123A-OR
  • Origin: Mainland China
  • Suitable For: Non-metal; For Cabinets with Face Frame
  • Application: Cabinet door mounting with a face frame support arm and integrated clamp

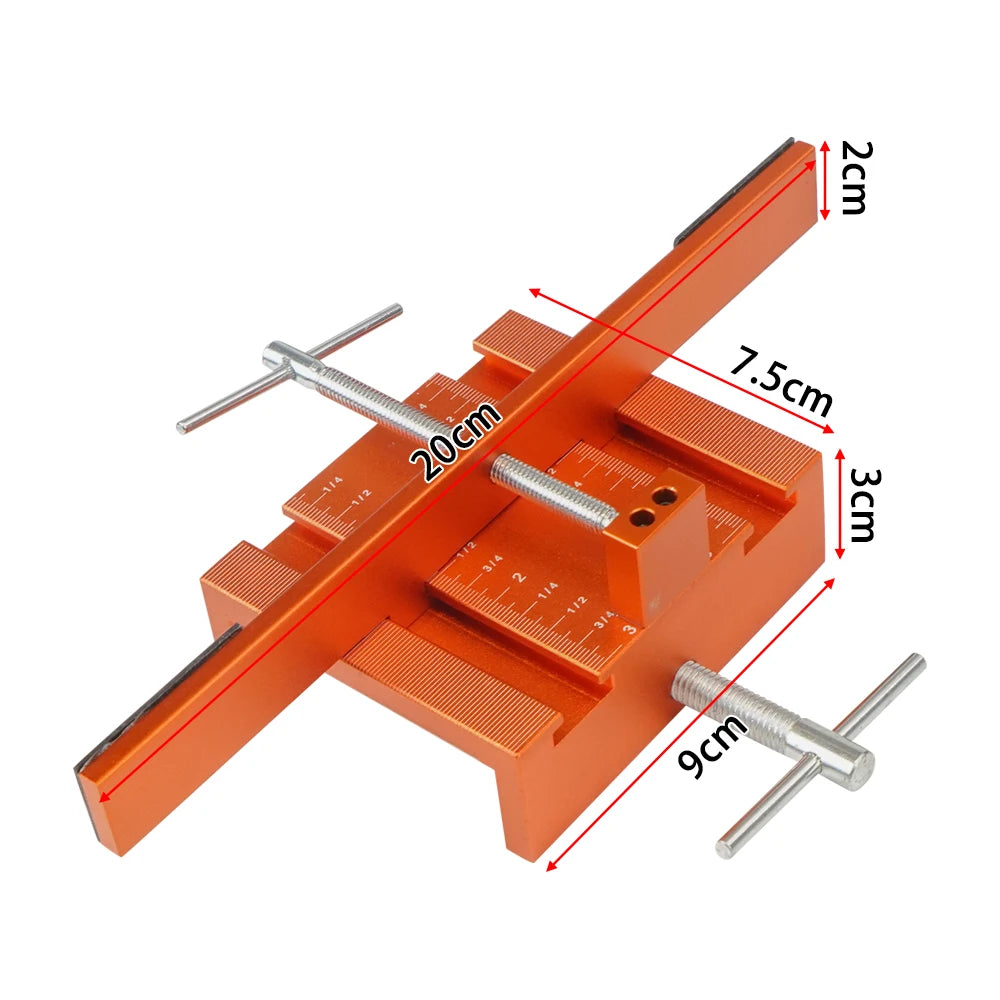

  • Support Arm: Width-upgraded for greater stability; Height adjustable within a 2-1/2" range
  • Door Thickness: Compatible with cabinet doors up to 2" thick
  • Left/Right Handed: Suitable for both left- and right-handed doors

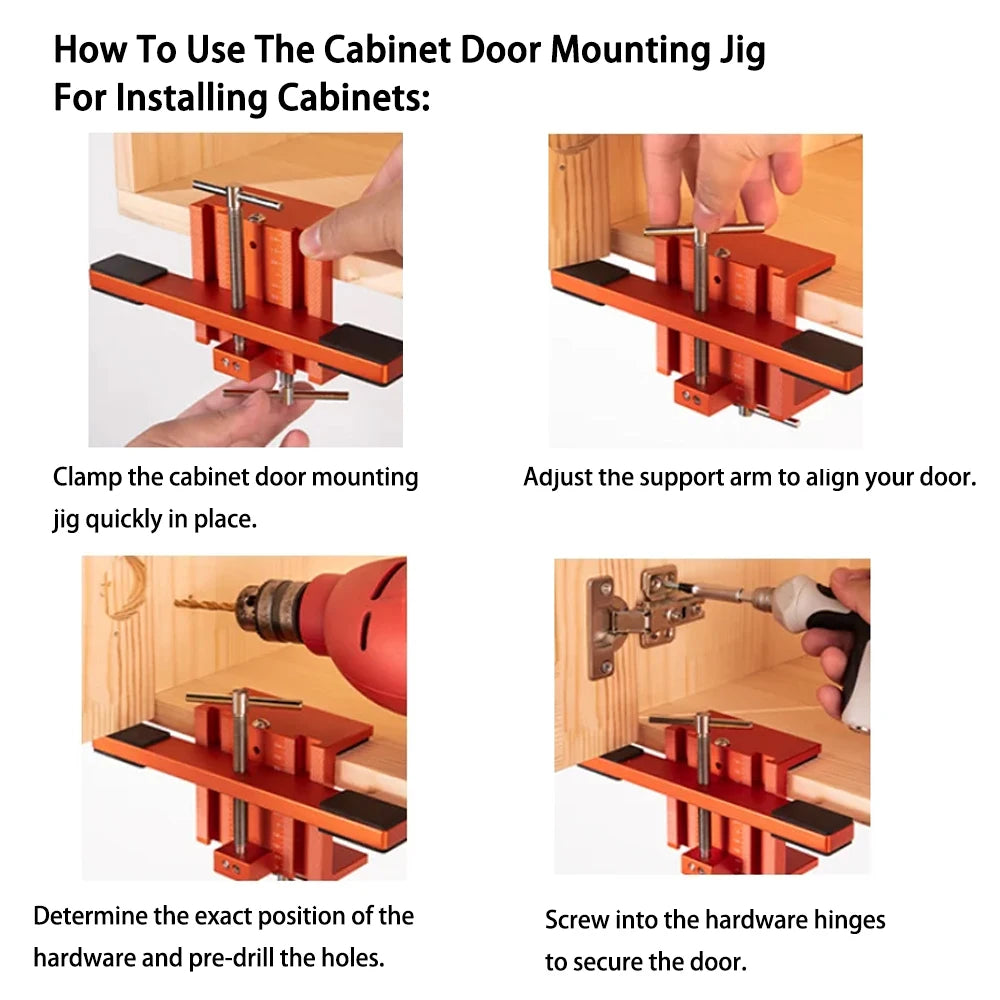

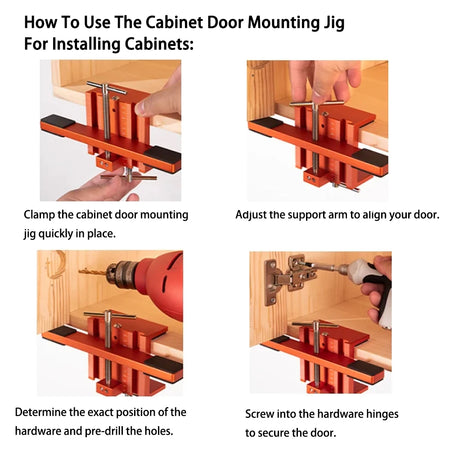

  • Installation steps: Clamp in place, adjust arm, determine hinge positions, pre-drill, and secure hinges

Package includes:

  • 1 Set Cabinet Door Mounting Jig

Warnings / Reminders

  • Clamp surfaces may scratch finishes if over-tightened; use the rubber pads and apply gentle, controlled pressure.
  • Ensure the cabinet door is firmly clamped before drilling or screwing hinges.
  • Wear appropriate eye protection and gloves when drilling or driving screws.
  • Follow the installation steps in sequence to achieve accurate hinge placement and door alignment.
