9038A Relay Bypass Switch Kit for Fuel Pump Testing, Fits 9036A 9037A

Test and control an automotive fuel pump without working through a complicated relay setup. The 9038A relay bypass switch kit plugs in to help you check pump operation and troubleshoot automotive 12V systems.

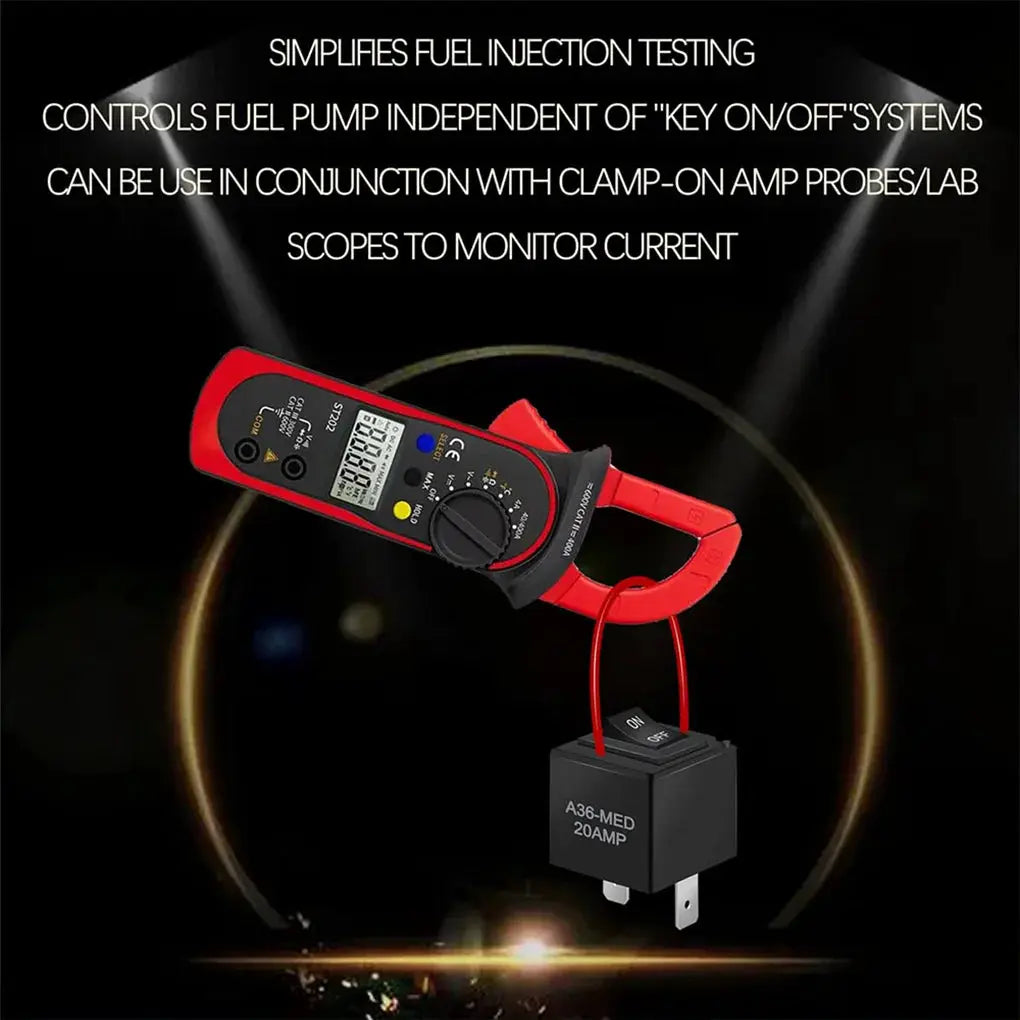

Use the switches with a clip-on probe or lab oscilloscope for current checks. They fit 9036A and 9037A, and suit testing applications involving fuel pumps, cooling fans, window motors, headlight switches, and air conditioning compressors.

Benefits & tips

• Quick setup: The plug-in design makes it easier to bypass a relay during troubleshooting.

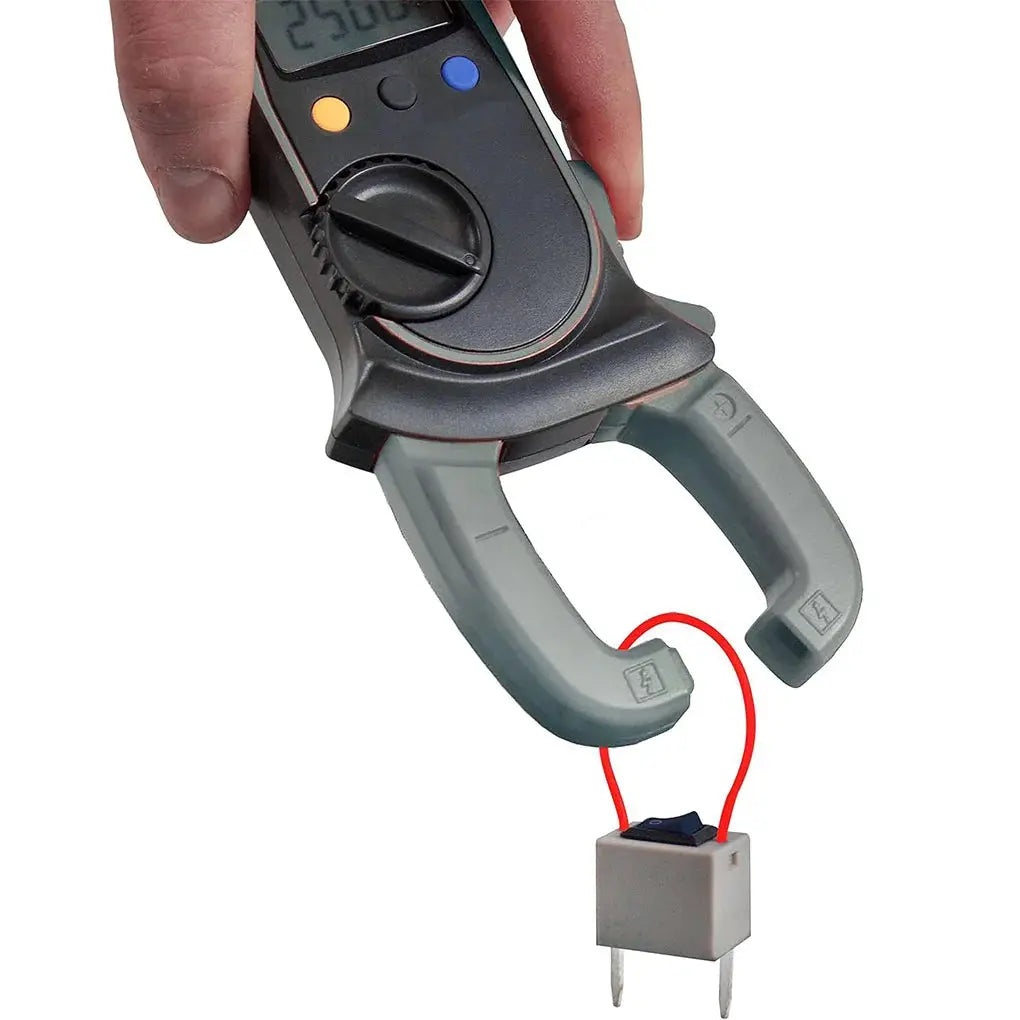

• Current checks: Pair a switch with a clip-on probe or lab oscilloscope when checking current.

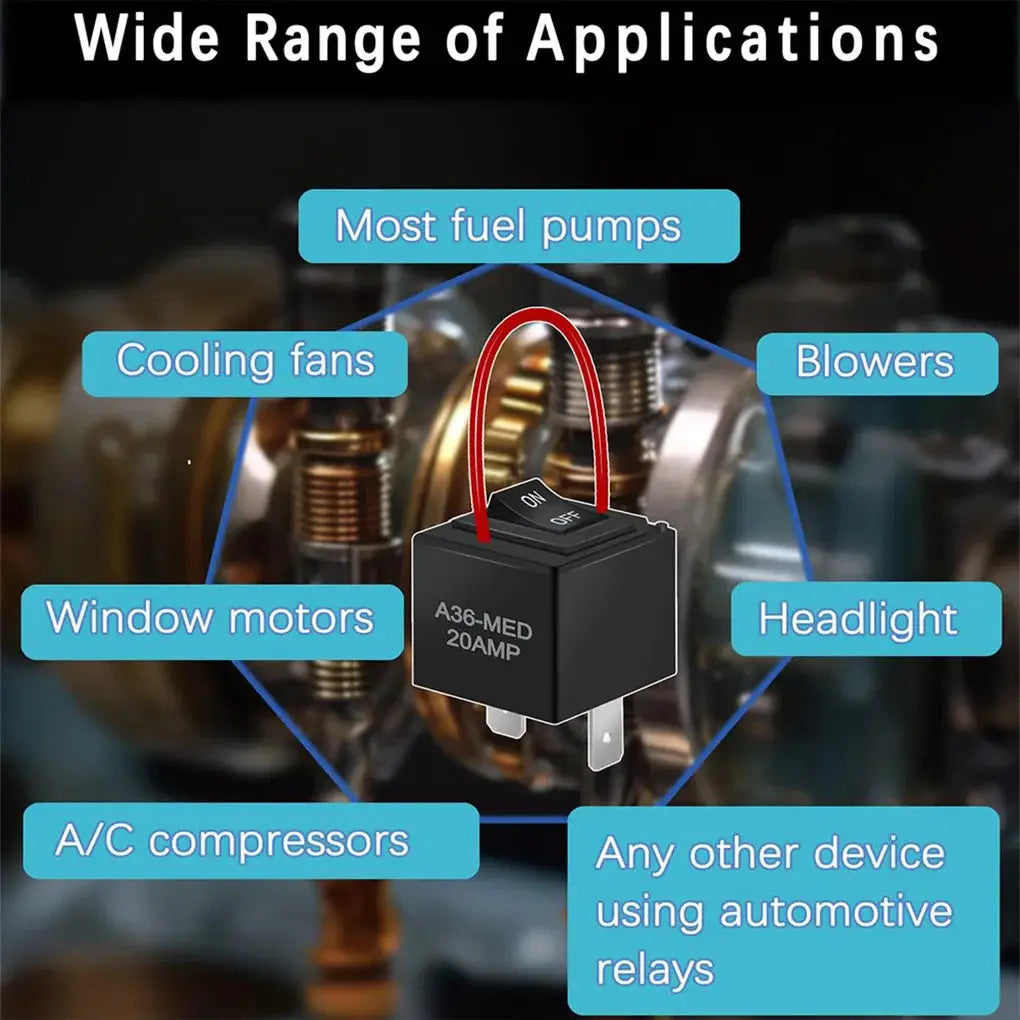

• Versatile testing: Use the kit with devices that use automotive relays, including fuel pumps and cooling fans.

Product specifications

• Type: Relay bypass switch with amp loop.
• Material: Plastic and metal.
• Connector and mounting: Plug-in.
• Contact type: Normally open.

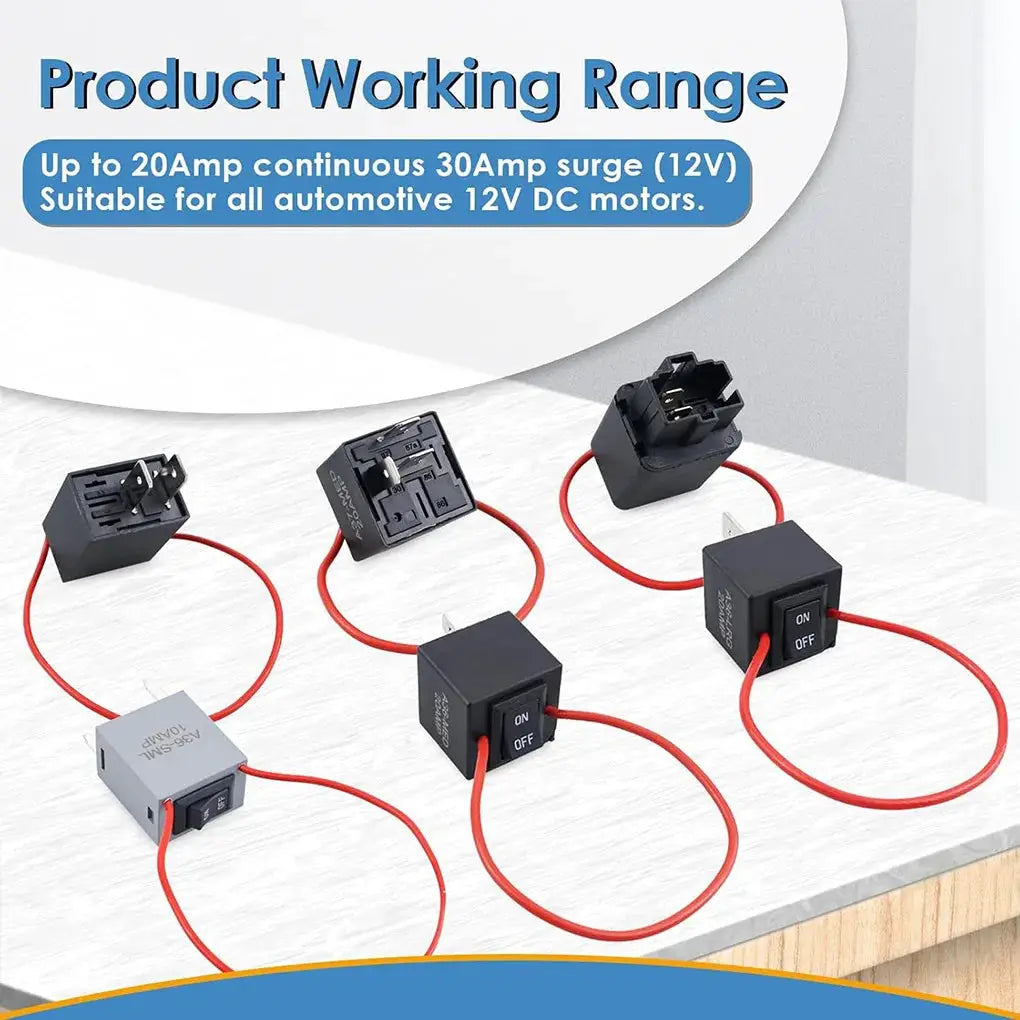

• Operating range: Maximum 20 amps continuous or 30 amps surge at 12V.
• Application: Automotive 12V DC motors.

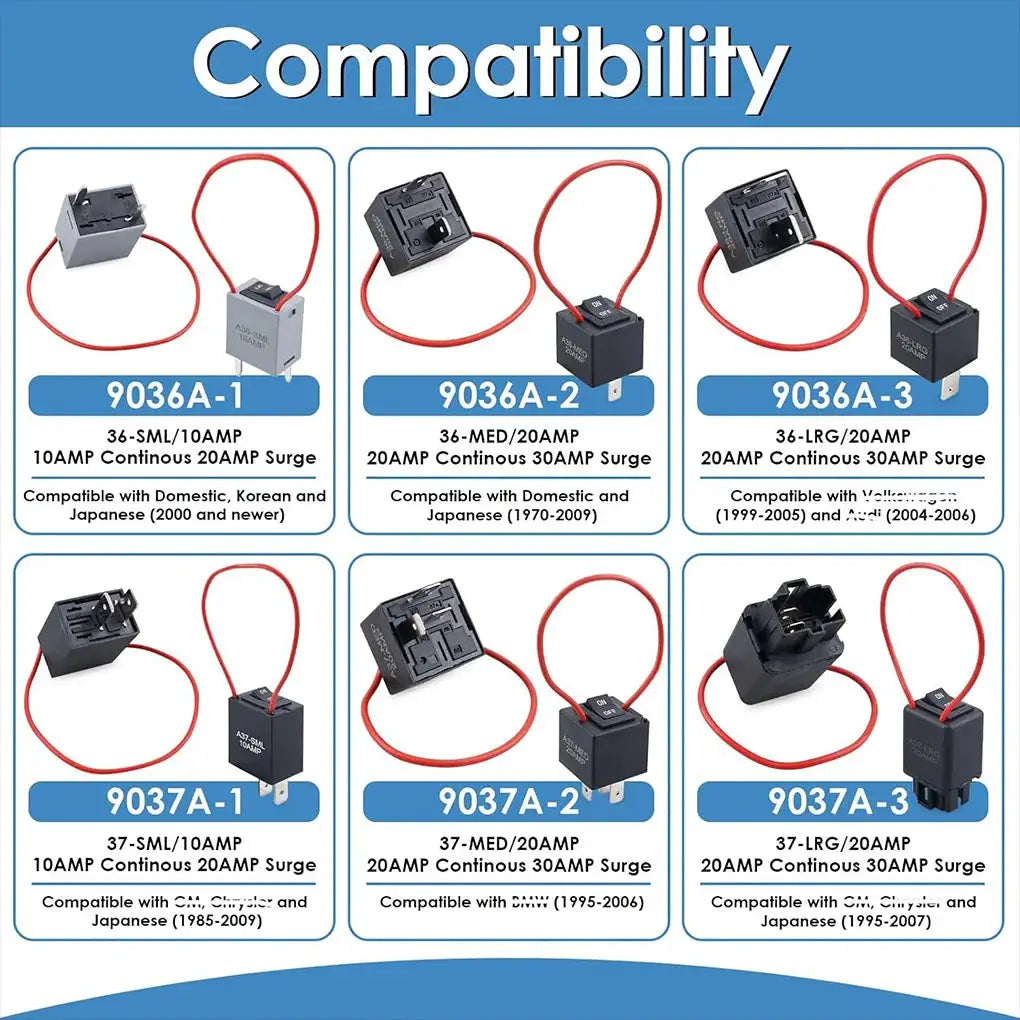

• Compatibility: Fits 9036A and 9037A; suitable for most fuel pumps and other devices using automotive relays.

Package includes:

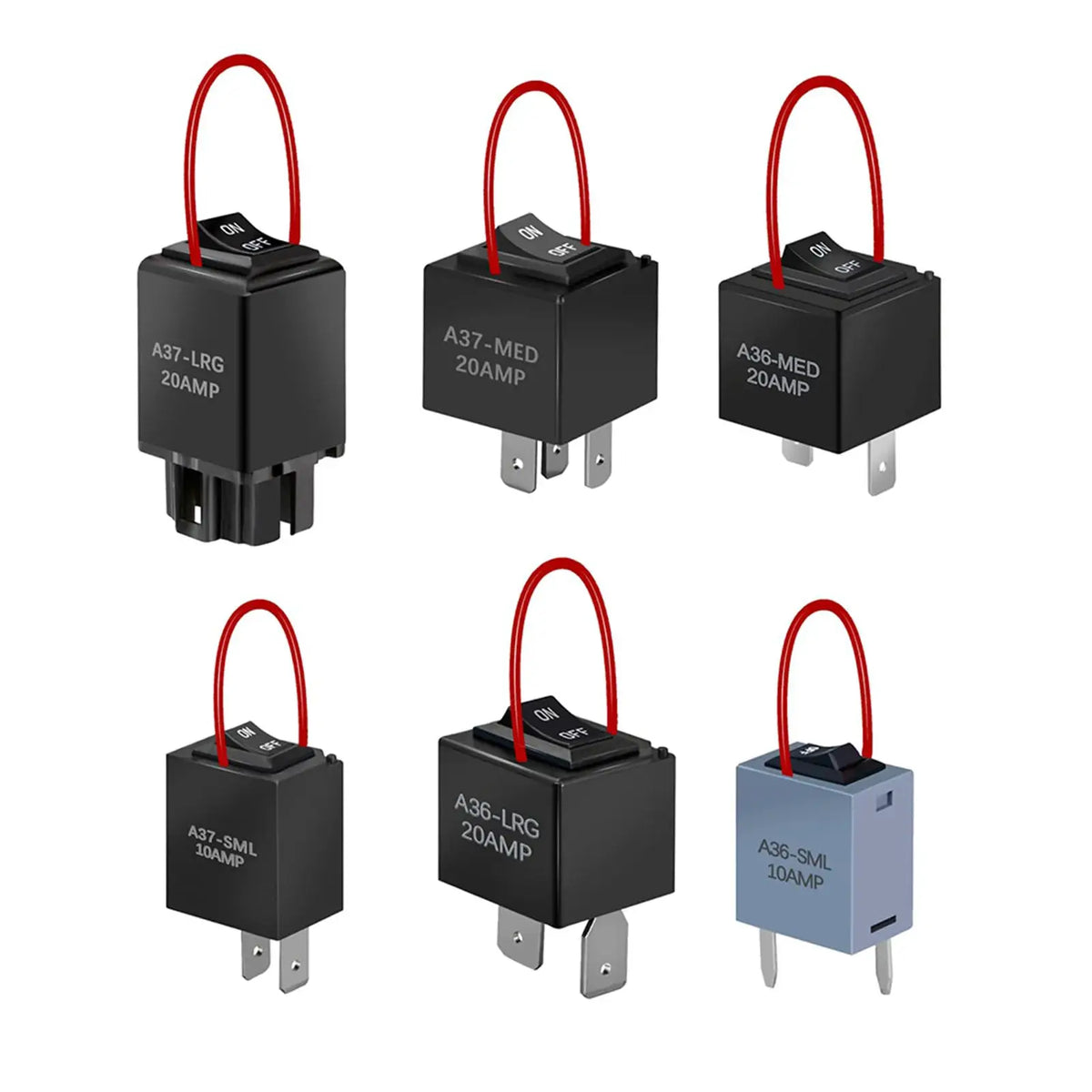

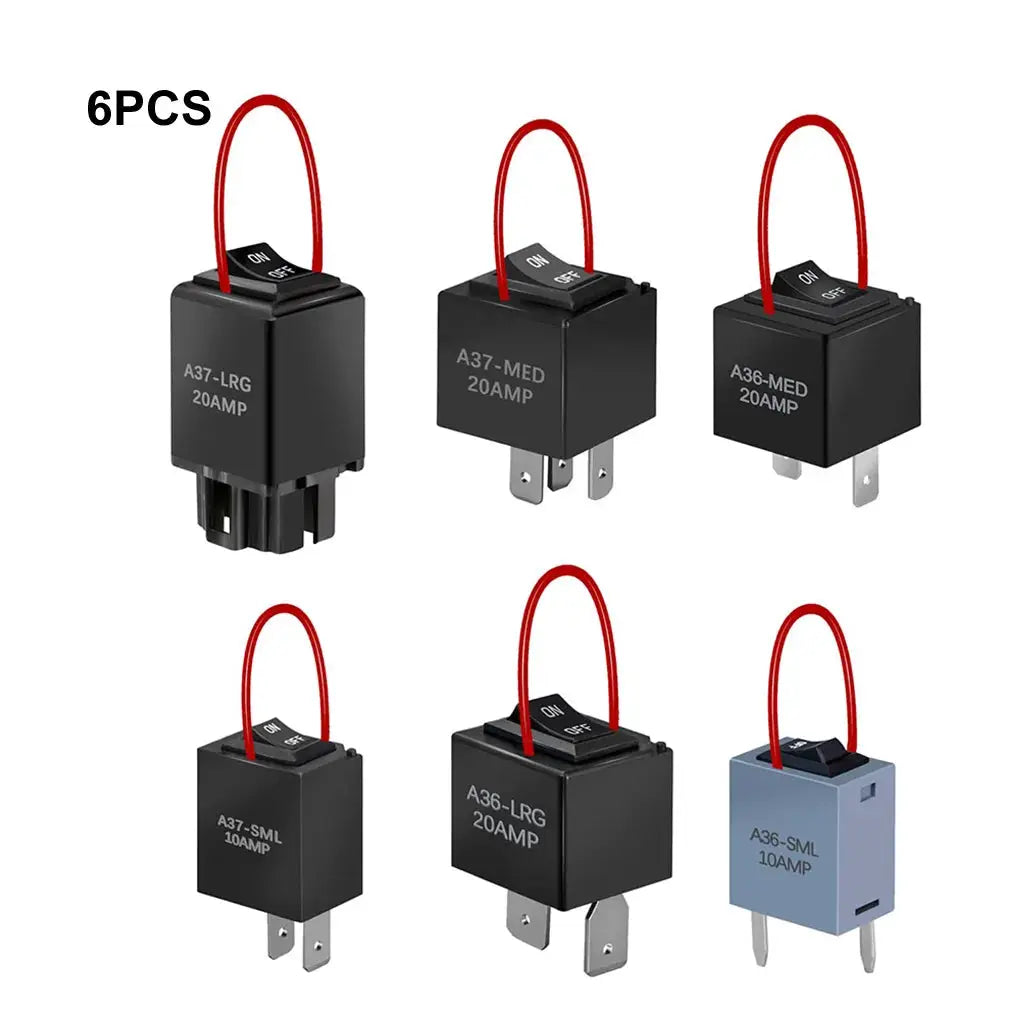

• 6 × 9038A relay bypass switches

Use within the stated current limits and with automotive 12V DC motors. At intercyprus.com, shoppers have found reliable service since 2002.
