900W 15A Boost Converter Constant Current Voltage Module 60V

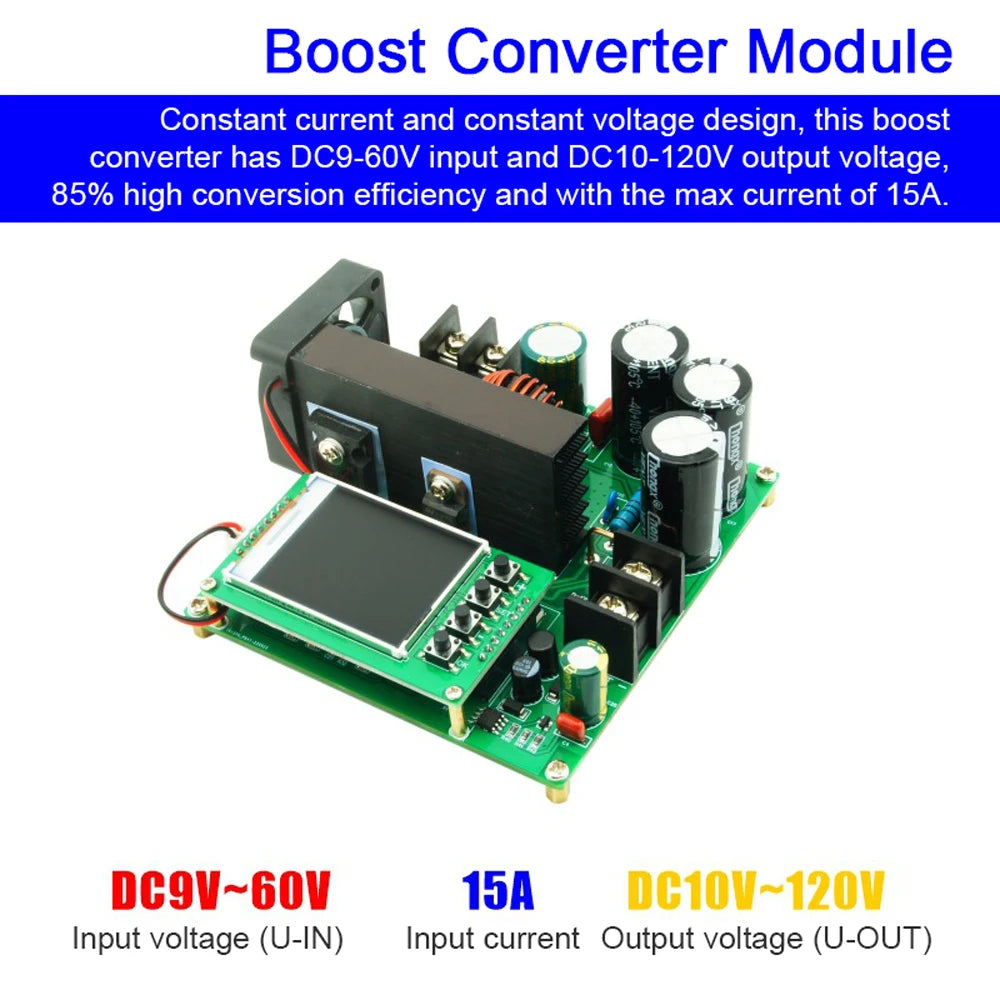

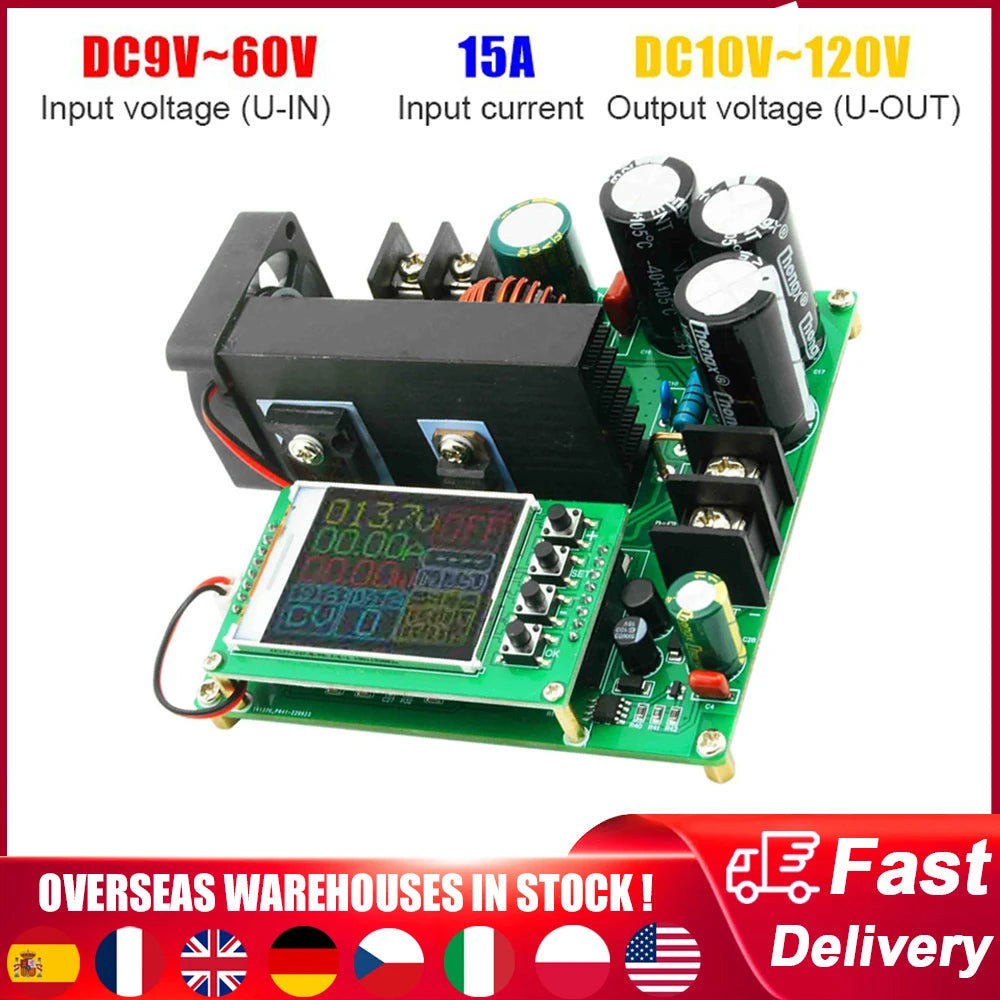

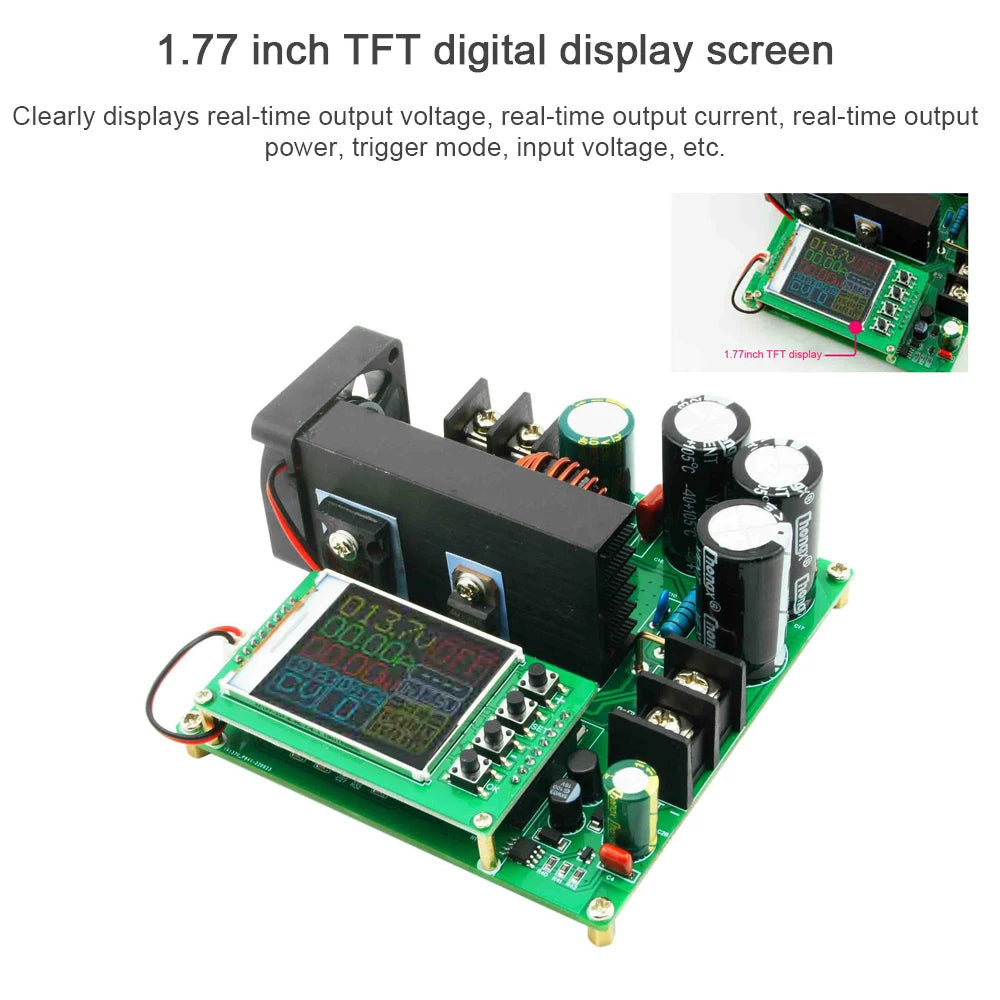

This 900W 15A Boost Converter Module is a compact, reliable solution for precise DC power boosting with both constant current and constant voltage control. It accepts a DC input from 9V up to 60V and delivers a boosted DC output from 10V up to 120V, enabling up to 15A of current and up to 900W of boosted power. With an impressive 85% conversion efficiency, it’s designed for steady performance in a wide range of applications, from DIY electronics to portable power projects. The 1.77-inch TFT display provides clear, real-time feedback on output voltage, current, power, input voltage, and more, so you can monitor performance at a glance.

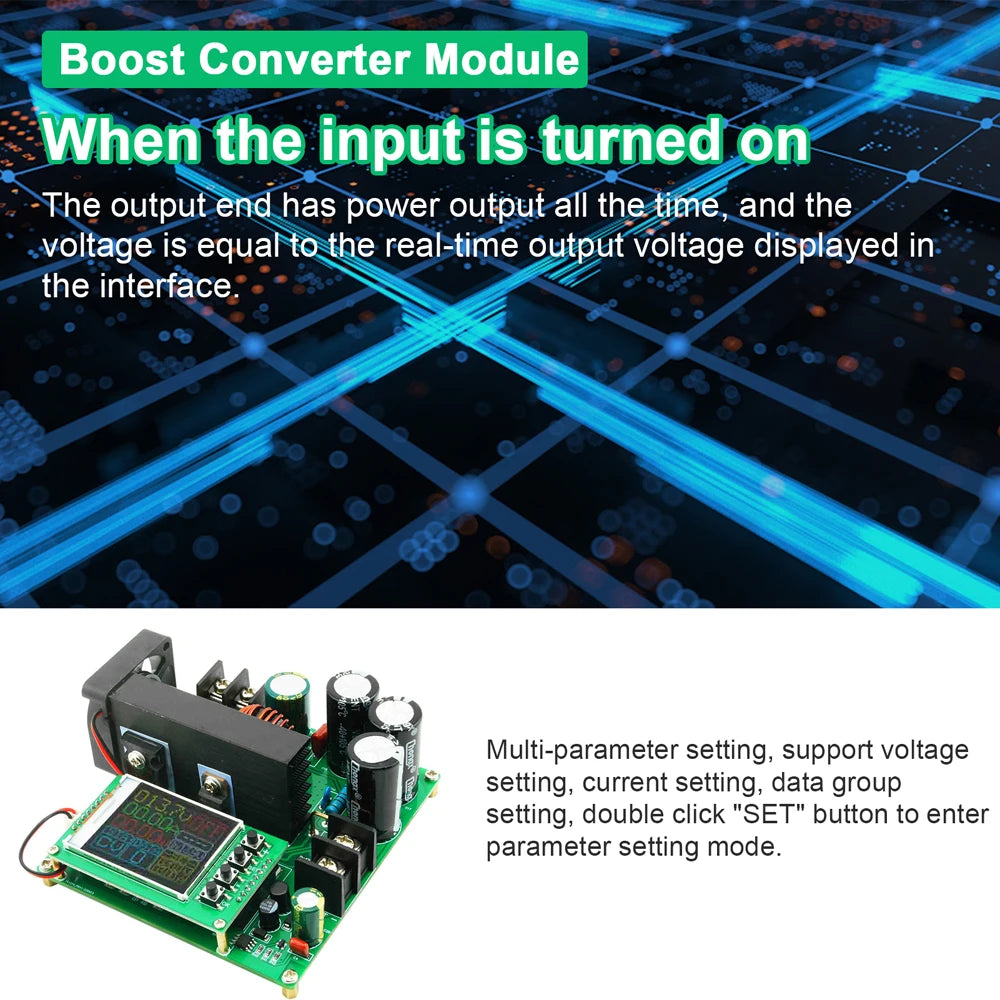

Designed for practicality, this module combines constant current and constant voltage control in one robust board. The output voltage is shown in real time on the display, and the system is engineered so that once the input is on, the output remains powered at the set level while the ON/OFF indicator only reflects whether the boosting program is actively running. Two power-on trigger modes give you flexible startup behavior: AUTO mode starts boosting automatically on power-up, or you can disable automatic boosting and start it manually by using the control buttons.

The module supports multiple parameter settings for fine-tuning, including voltage and current adjustment, data group management, and quick parameter access by double-clicking the SET button. You can switch between data groups with ease and observe the values without starting the boost sequence. This makes it ideal for lab work, prototyping, or field installations where precise control and visibility are essential.

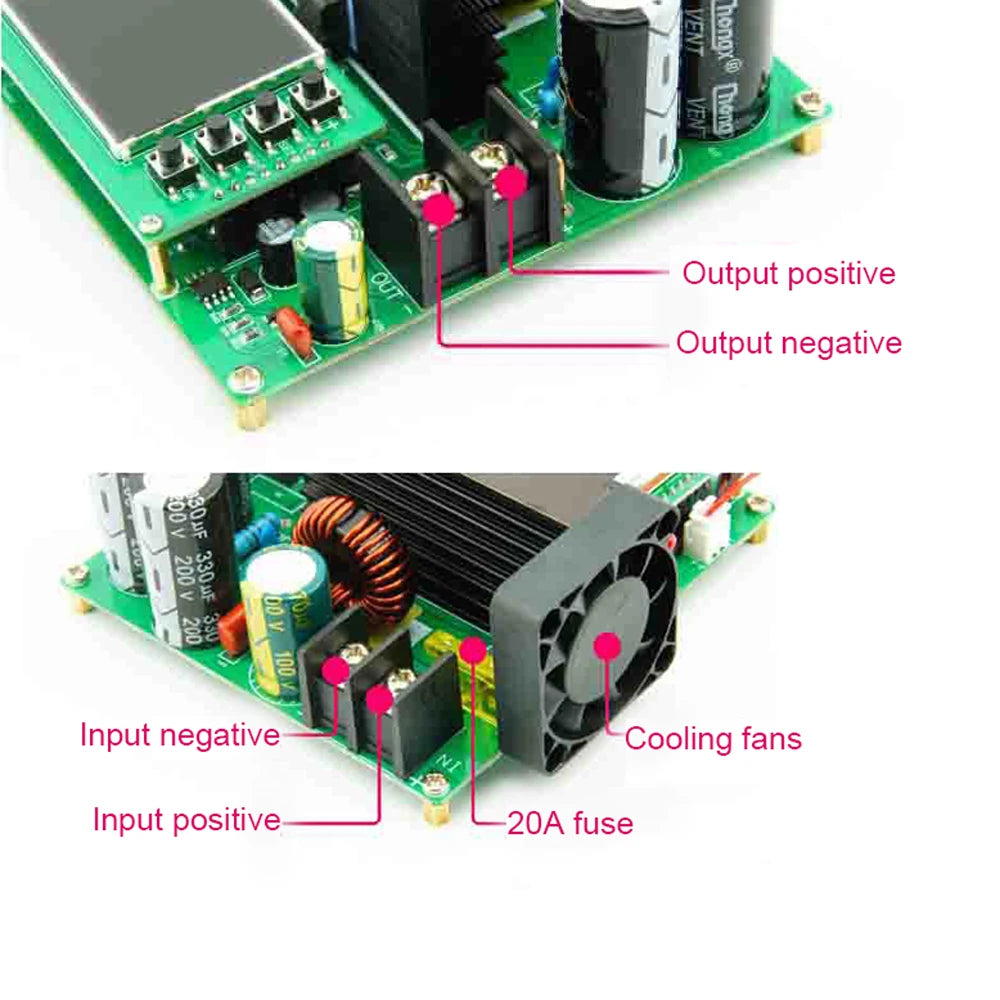

Built to endure demanding conditions, it features active cooling to maintain performance during continuous operation and a 20A fuse for short-circuit protection. The device is housed on a compact PCB with strong thermal management, making it suitable for integrated projects where space is at a premium.

Benefits & Tips

• Use for stable CV/CC power supplies: achieve a steady output voltage with adjustable current up to 15A for demanding loads.
• Ideal for battery charging, LED drivers, motor control, or DIY power projects that require voltage boosting from 9–60V input to 10–120V output.
• Take advantage of the TFT display to monitor real-time voltage, current, and power; use the trigger modes to automate startup or manual control as needed.

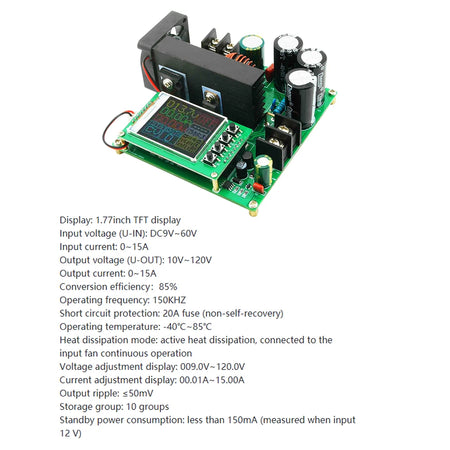

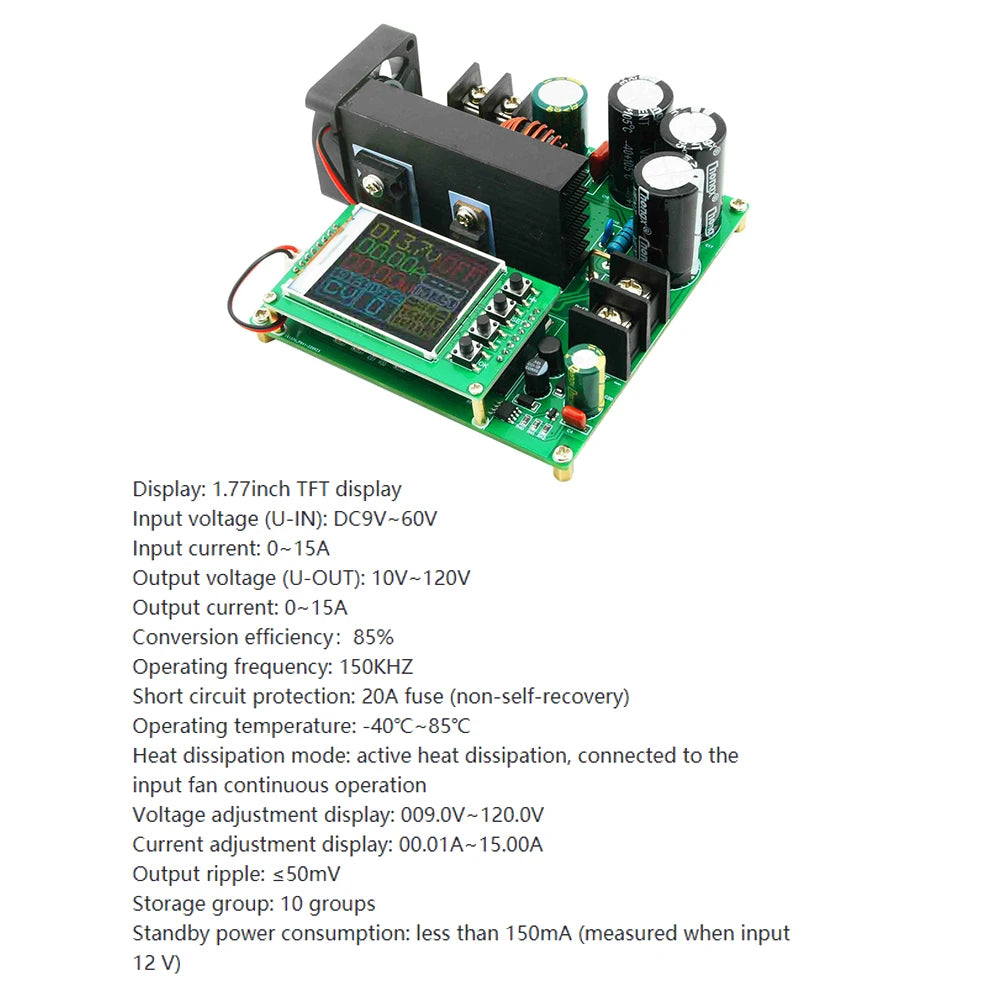

Product specifications

• Name: Boost Converter Module
• Model/Type: Constant Current & Constant Voltage Boost Module
• Material: Printed Circuit Board
• Display: 1.77-inch TFT display
• Input voltage (U-IN): DC 9V–60V
• Input current: 0–15A
• Output voltage (U-OUT): 10V–120V
• Output current: 0–15A
• Conversion efficiency: up to 85%
• Operating frequency: 150 kHz
• Short circuit protection: 20A fuse (non-self-recovery)
• Operating temperature: -40°C to 85°C
• Heat dissipation: Active cooling with input fan for continuous operation
• Display ranges: Voltage adjustment display up to 120.0V and current display up to 15.00A
• Storage group: 10 groups
• Standby power consumption: < 150 mA (measured at input 12V)
• Item size: 110 × 105 × 48 mm (4.33 × 4.13 × 1.89 in)
• Item weight: 235 g (8.29 oz)
• Package size: 90 × 110 × 120 mm (3.54 × 4.33 × 4.72 in)
• Package weight: 280 g (9.88 oz)

Package includes

• 1 × Boost Converter Module

Warnings/Reminders

• Do not exceed the input or output voltage/current limits specified above.
• The output can remain live when the input is present; the ON/OFF indicator reflects whether the boosting program is running.
• Maintain adequate cooling; use the recommended input fan for continuous operation.
• Ensure the 20A fuse is properly installed to protect against short circuits.
