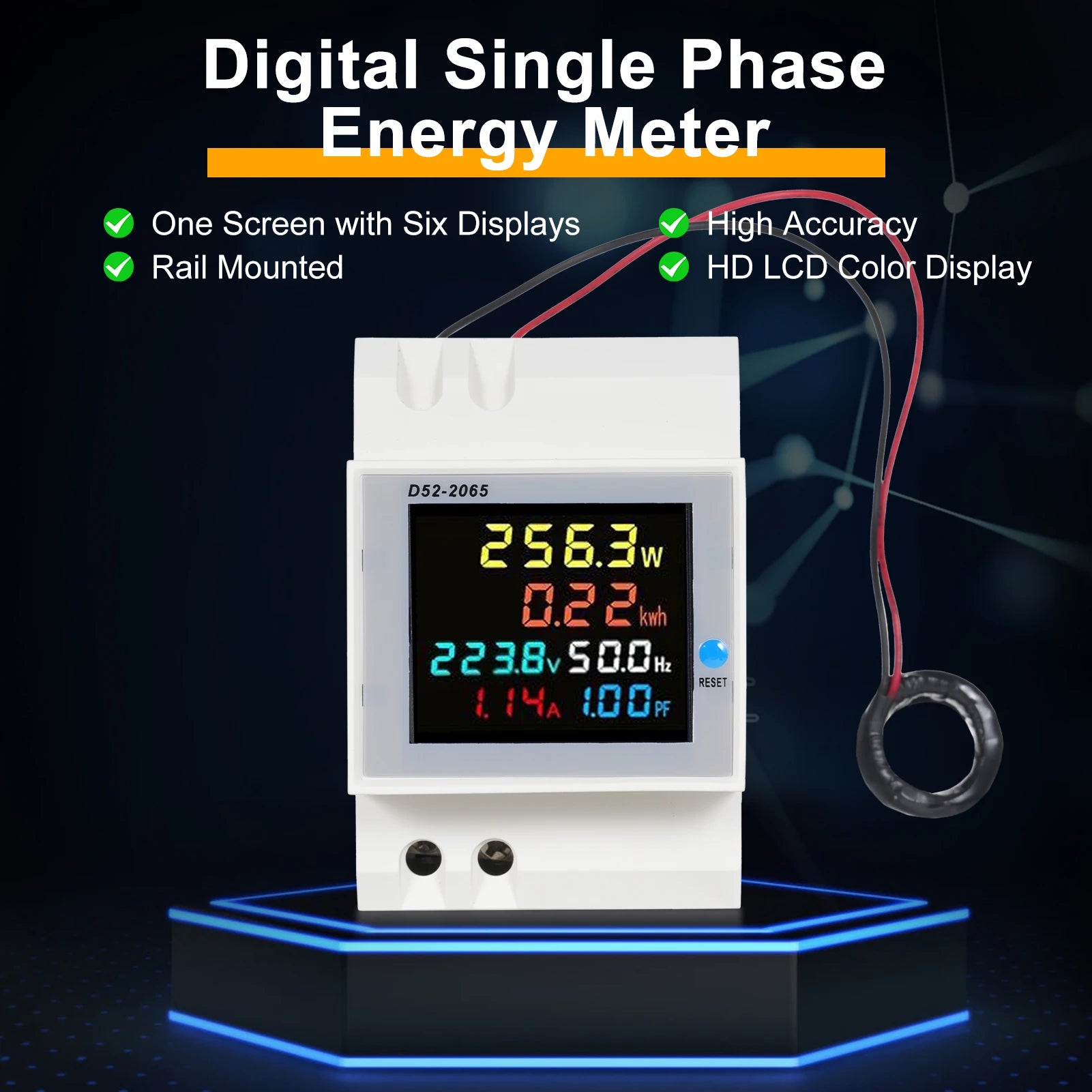

6 In 1 Digital Energy Meter Din Rail 100A AC Monitor

Meet the 6 In 1 Digital Single Phase Energy Meter Din Rail 100A AC Monitor from KKMOON. This compact DIN rail meter brings six essential power readings into one easy-to-use device, helping you monitor energy usage, optimize efficiency, and quickly spot anomalies in electrical systems. With a bright color LCD, 178° viewing angle, and backlight, clear readings are available day or night—directly inside your control cabinet or panel.

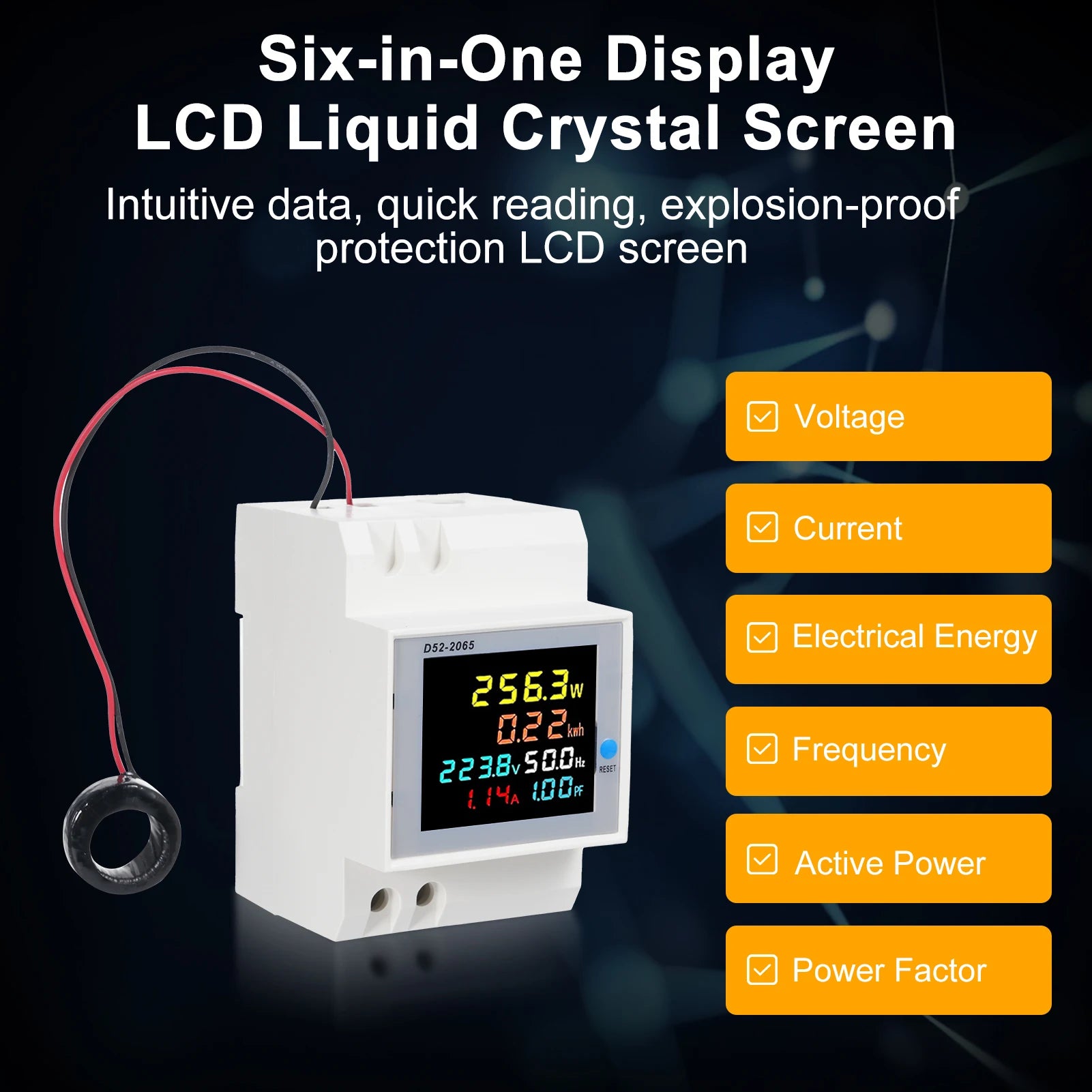

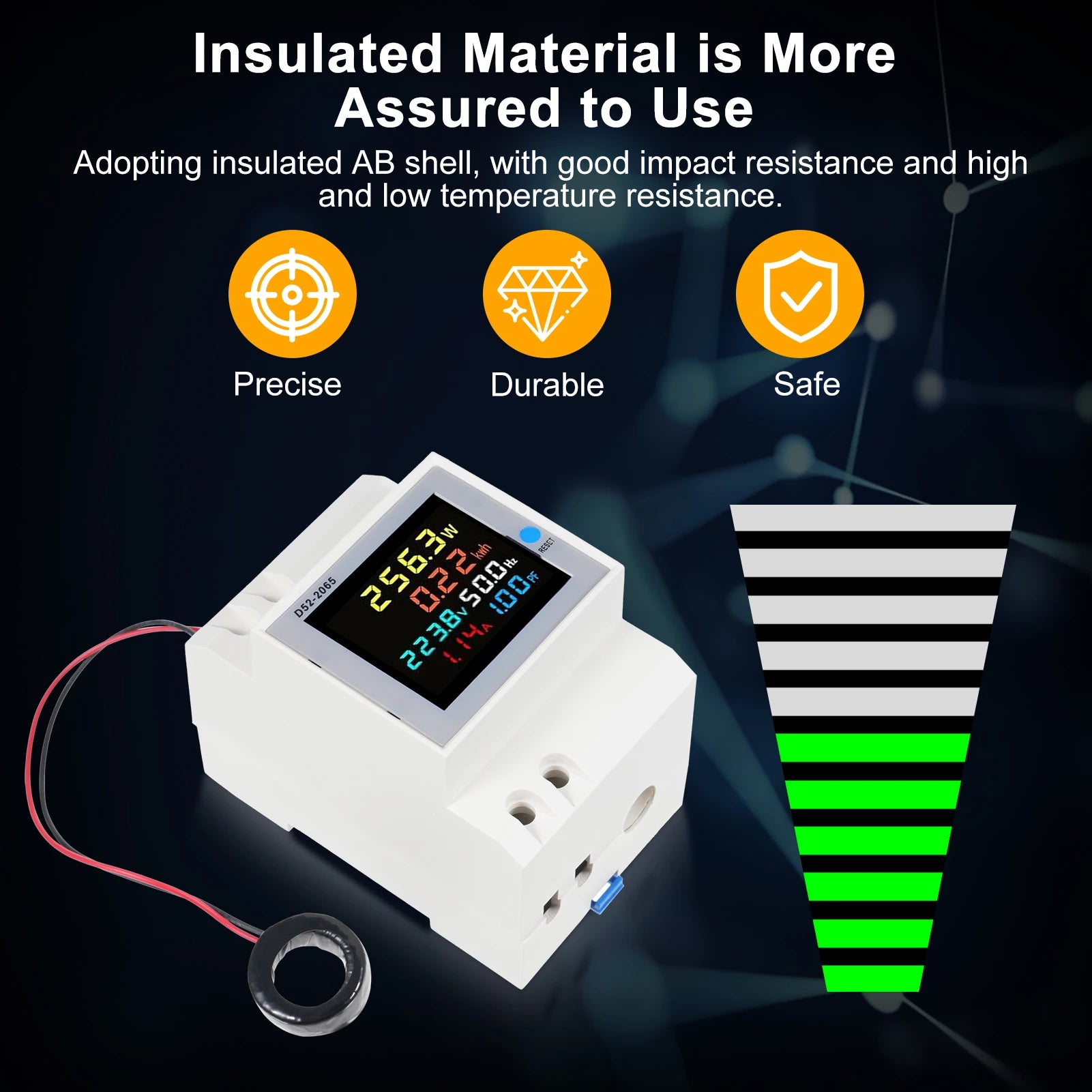

Built from ABS flame-retardant material, the meter emphasizes safety while delivering reliable performance in demanding environments. It displays six parameters simultaneously: AC voltage, AC current, active power, power factor, frequency, and electrical energy (kWh), so you can keep tabs on overall performance without juggling multiple instruments. A user-friendly reset feature lets you start fresh by holding the Reset button for 5 seconds, and an Auto Save Data function protects measurements during power interruptions, resuming from the last saved value when power returns.

Ideal for a range of setups—from industrial automation and power plants to DOS systems and electromechanical equipment—this 6-in-1 meter fits neatly onto standard DIN rails to streamline electrical monitoring in compact spaces.

Benefits & Tips

• Quick overview: Monitor six critical electrical parameters at a glance to identify waste, overloading, or efficiency opportunities.
• Reliable readings: The high-contrast color LCD with backlight ensures legible data in low-light cabinet environments.
• Simple maintenance: Use the zero-reset function when starting new measurements and rely on auto-save to protect data during outages.

Product specifications

• Material: ABS (flame-retardant)

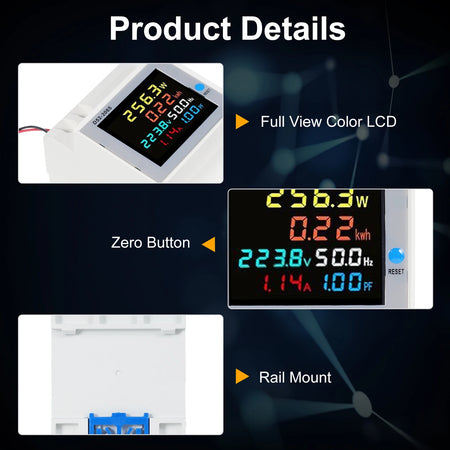

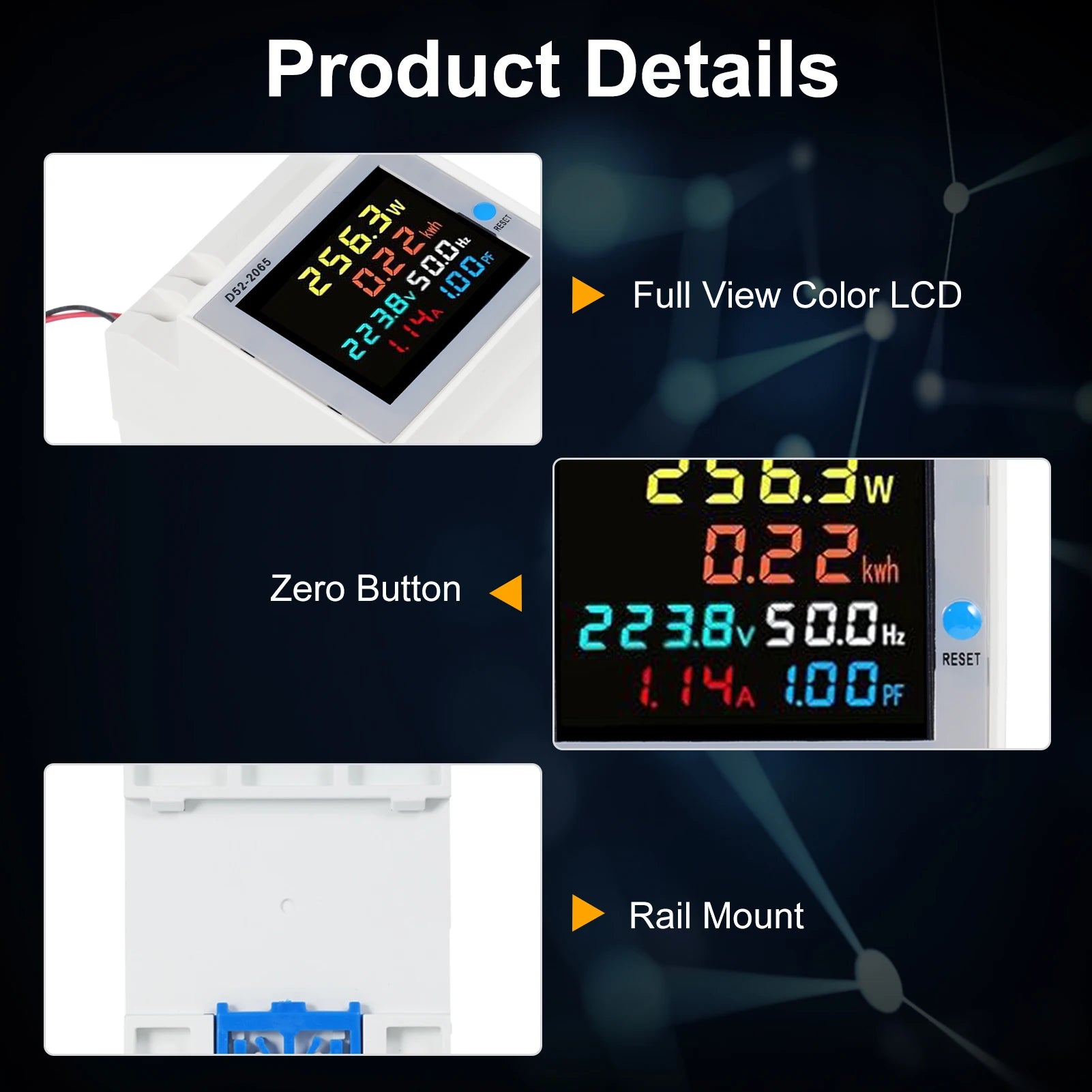

• Display: Color LCD HD, 178° viewing angle, backlight
• Measurement accuracy: 1% ± 2 digits

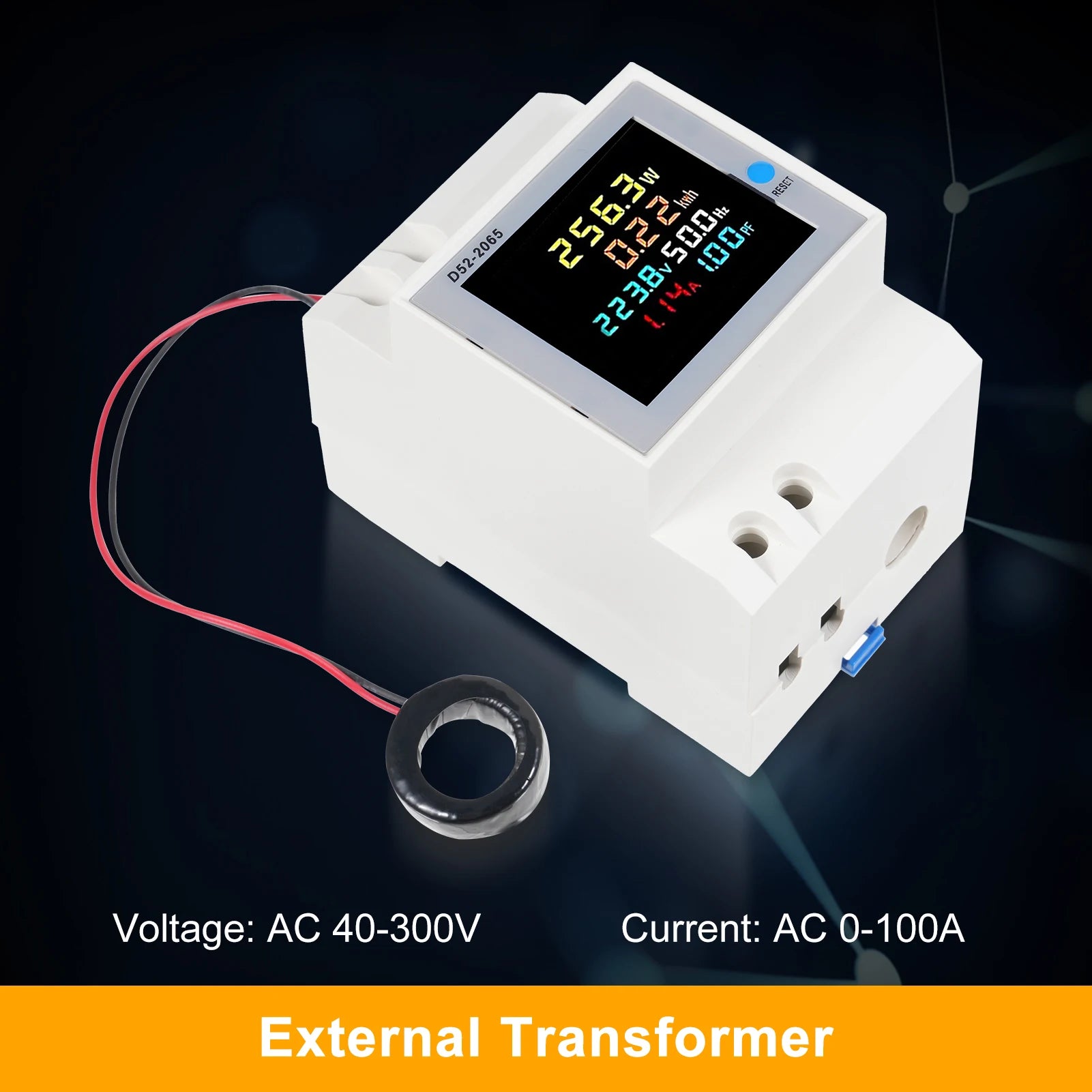

• AC range: 0–100 A, current display resolution 0.01 A
• Power frequency: 45.0 Hz – 65.0 Hz
• Power factor: 0.00 – 1.00 PF
• Active power: 0–30000 W; resolution 0.1 W (0–9999.9 W), otherwise 1 W
• Energy: 0–99999 kWh; 0–999.99 kWh minimum display resolution 0.01 kWh
• Measuring speed: ≈ 2 readings per second
• Mounting: DIN rail
• Size: 80 × 54 × 64 mm (L × W × H)
• Weight: 122 g
• Package weight: 143 g
• Package size: 9 × 7 × 6 cm

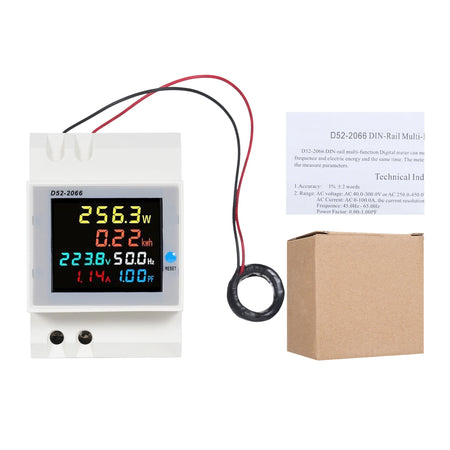

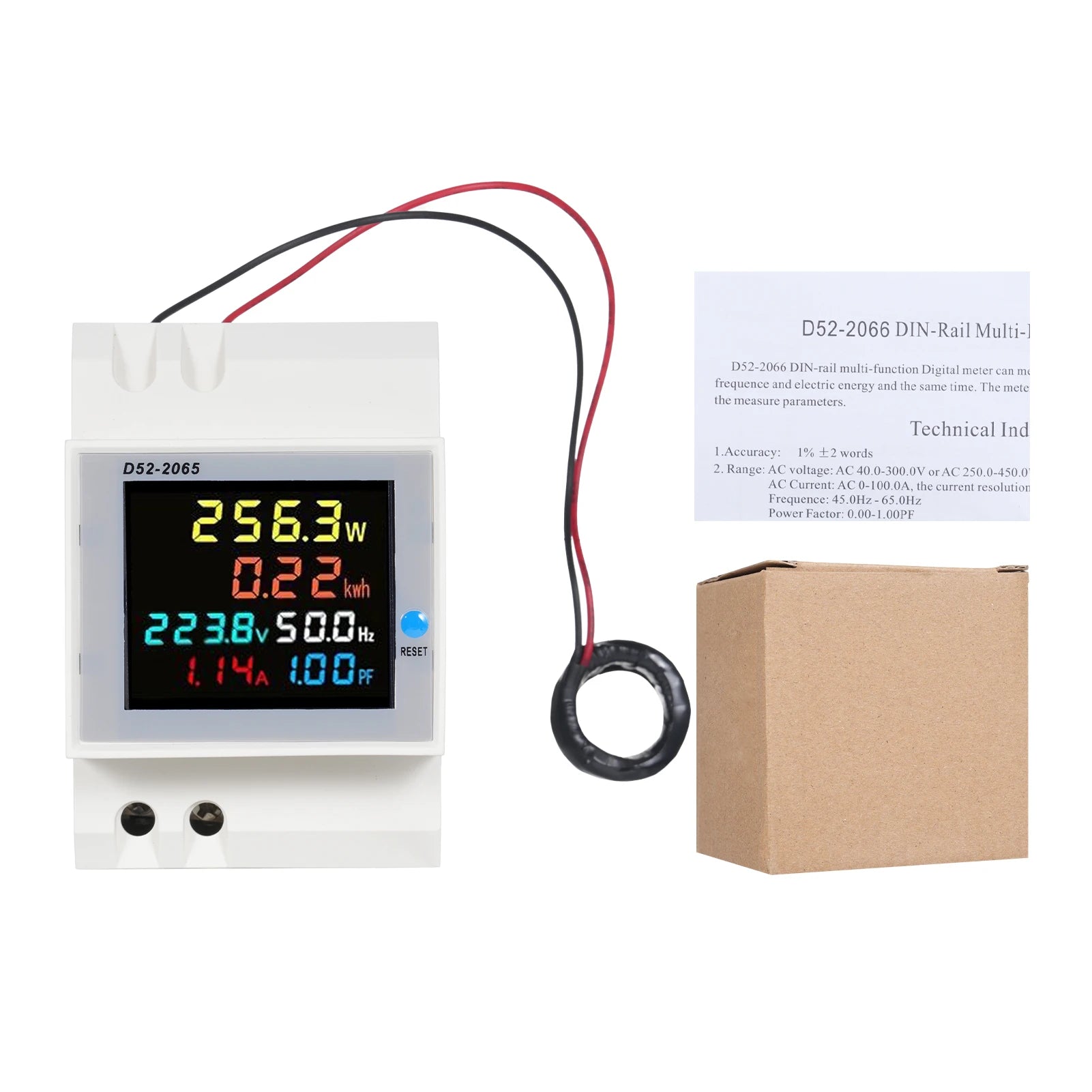

Package includes:

• 1 × Watt-Hour Meter
• 1 × User Manual (English)

Warnings/Reminders

• Install and wire by a qualified electrician. This device measures high voltages and current.
• Do not exceed the specified current rating (0–100 A) to prevent damage.
• Ensure power is off or safely isolated before wiring or maintenance.
• The RESET function resets the displayed value to zero; use when starting a new measurement session.

Language support

Language support: English (manual included with the package).
