2x Rear Tailgate Gas Struts 360mm Lift Supports For Kia Sorento JC 2002-2009
Restore smooth, secure operation to your 2002–2009 Kia Sorento JC rear window with this pair of replacement gas struts. When original lift supports weaken, the tailgate sags, rattles, or refuses to maintain an open position, making daily access frustrating and leaving the cabin exposed to drafts and rain. These aftermarket units deliver consistent 100N lifting force to keep the boot flap steady at any angle while maintaining a tight weather seal.
Built with stainless steel cylinders and reinforced polymer end caps, these struts replicate factory mounting geometry and bolt directly into place using existing hardware. Engineered to interchange with OEM numbers 87170-3E000, 87170-3E010, 87180-3E000, and 87180-3E010, the system requires zero fabrication. The precise 360 mm extended measurement guarantees balanced tension and proper clearance throughout the full swing arc.
Benefits & Installation Tips
- Degrease anchor points before seating the ball studs to eliminate binding and extend service life.
- Lightly coat the polished stem with white lithium grease during first compression; this primes internal seals and eliminates early-stage squeaking.
- Cycle the rear window fully open and closed three times after fitting to distribute nitrogen pressure evenly across both units.
Technical Specifications

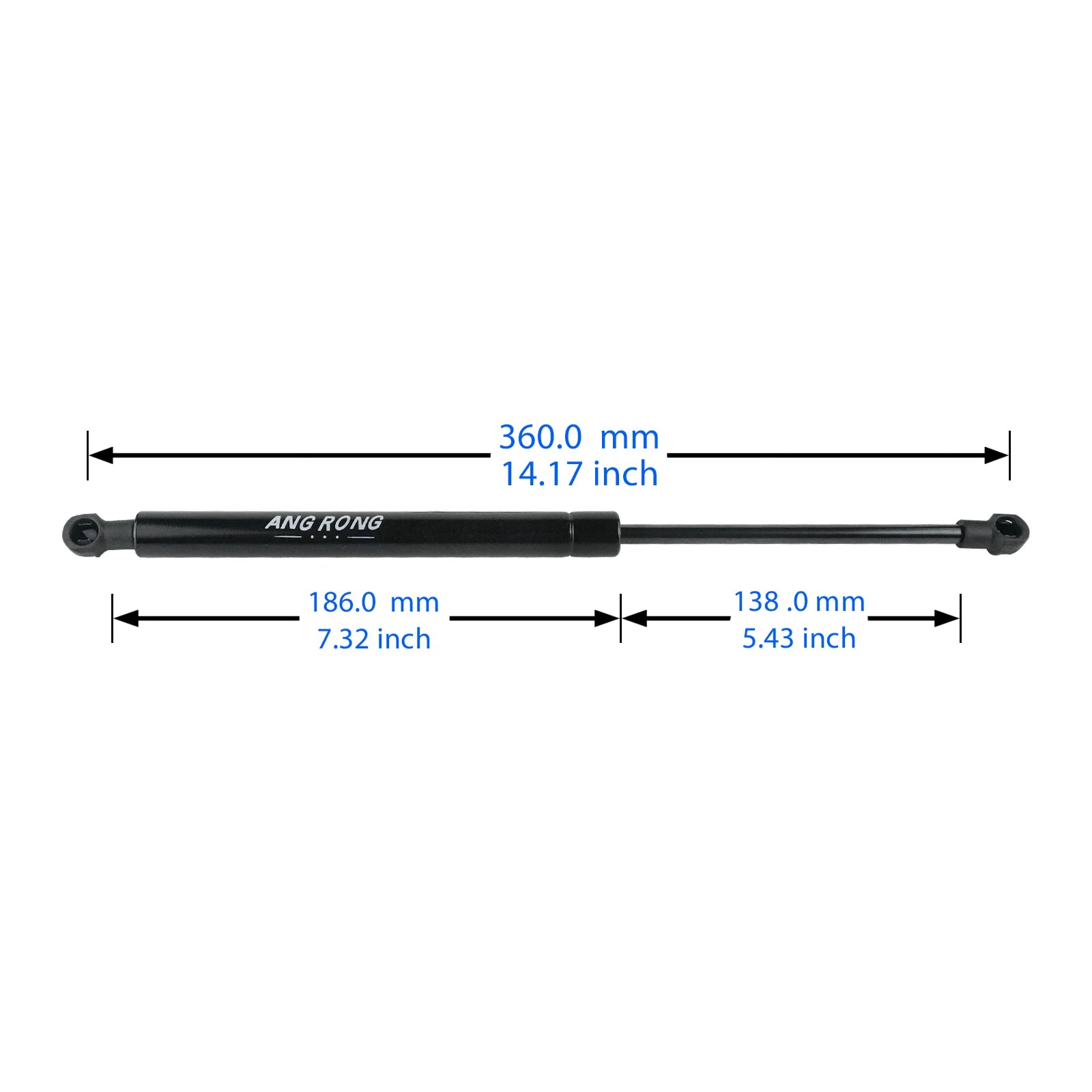

- Extended Length: 360 mm ±2 mm (centre hole to centre hole)
- Eject Force: 100 N
- Construction Materials: Metal shaft and body with plastic housing caps

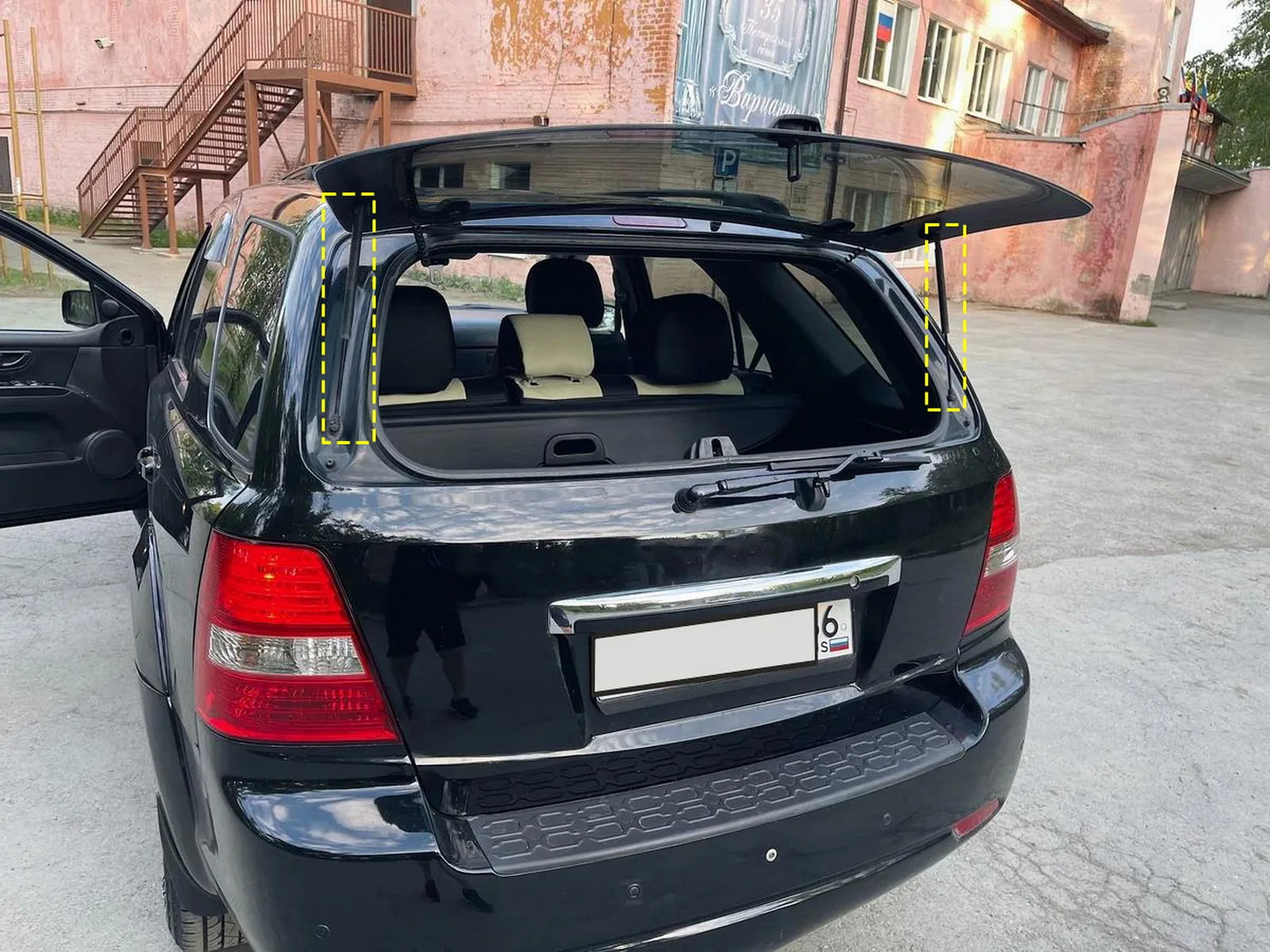

- Mounting Position: Rear window / tailgate (driver and passenger sides)
- Direct Replacement Codes: 87170-3E000, 87170-3E010, 87180-3E000, 87180-3E010

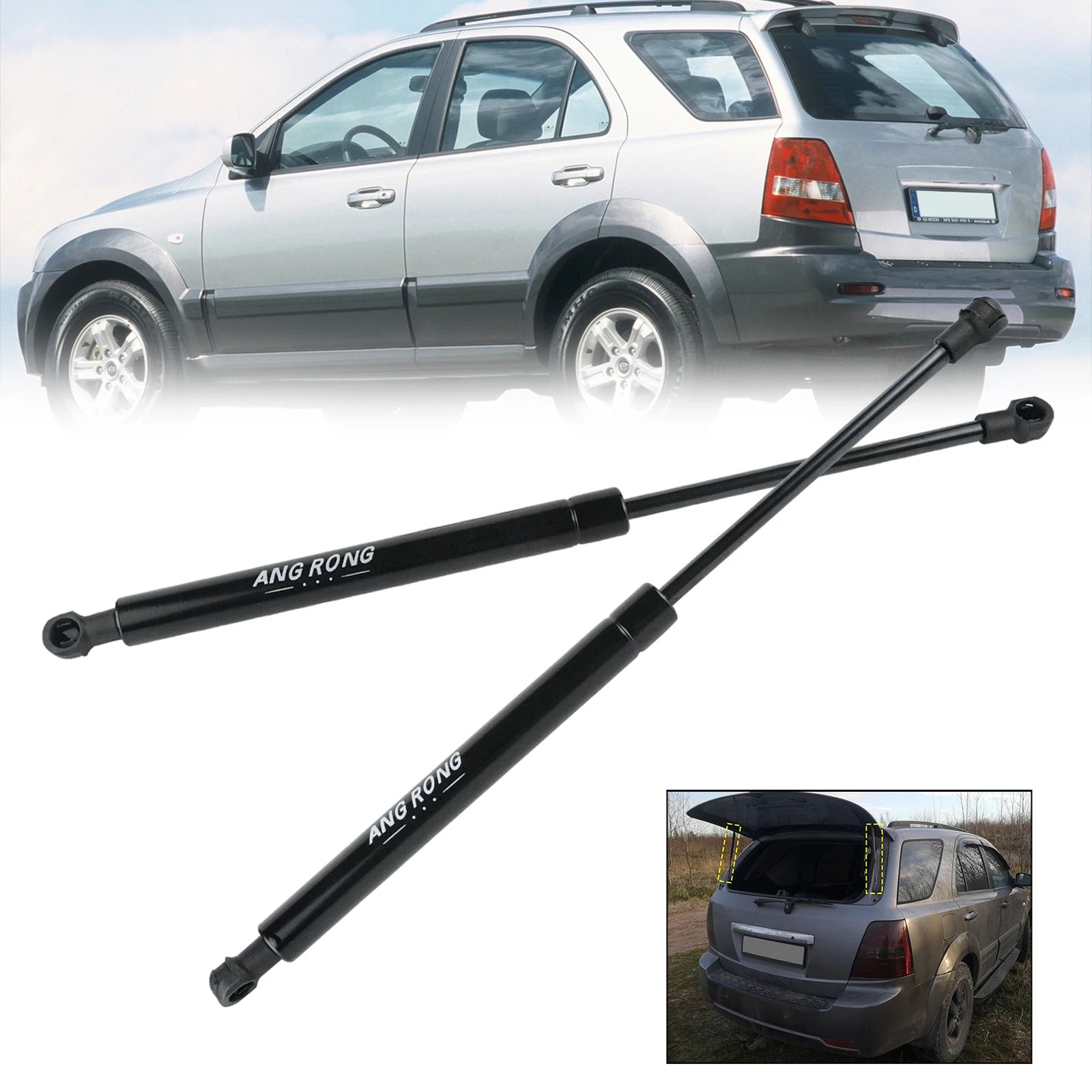

- Vehicle Application: Kia Sorento JC 2002–2009
Package includes:

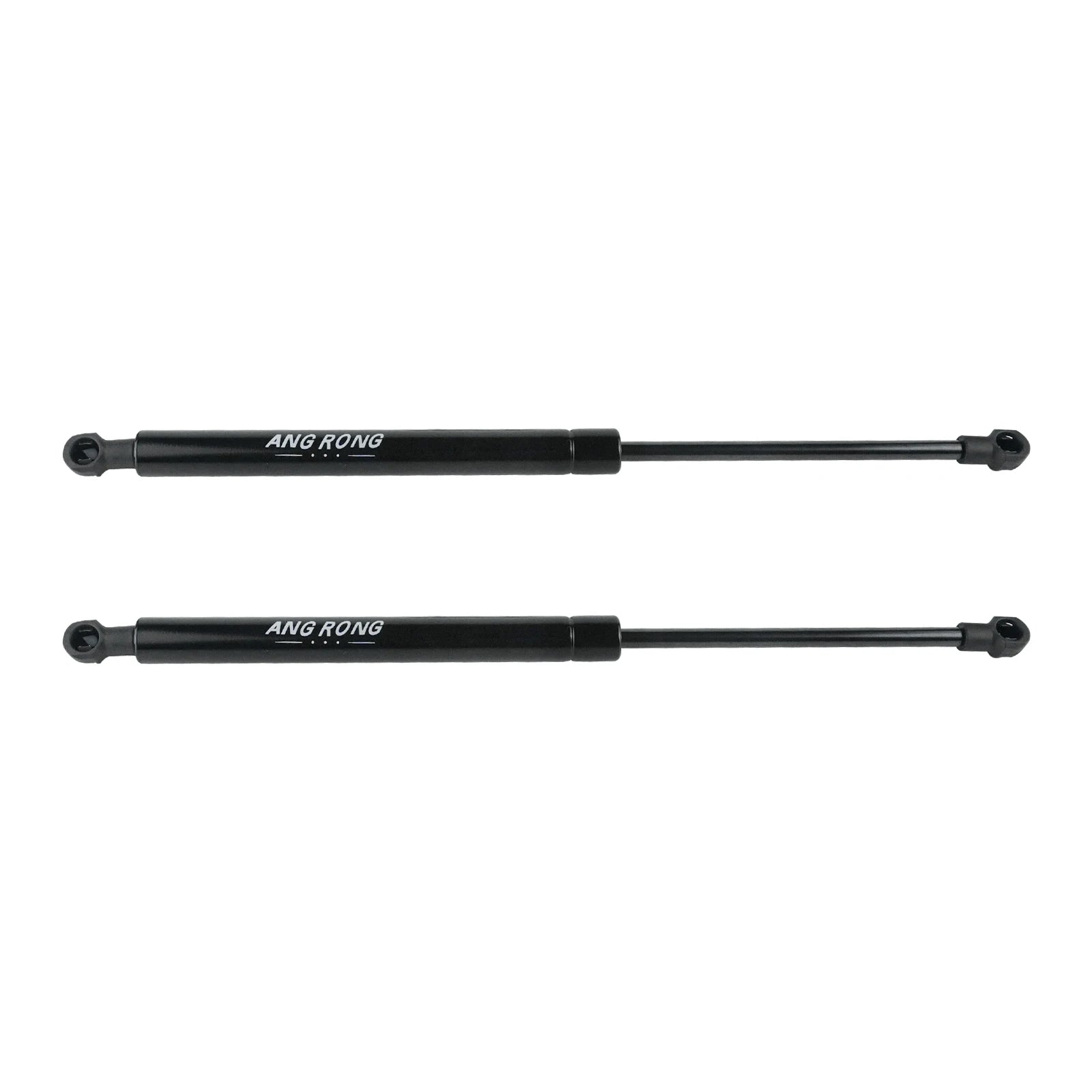

- 2× Rear Tailgate Gas Struts (Left and Right Pair)
Important Reminders
These lift supports contain sealed inert gas and must never be drilled, heated, or forcefully dismantled. Verify your existing component’s compressed and extended dimensions before installation to confirm proper fit. Keep fingers clear of pivot joints when unloading tension from worn units.
All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.
Trusted automotive supply since 2002 — rely on intercyprus.com for tested parts and transparent customer service.
Information and labeling provided in: English.
