High-Precision Oval Gear Flow Meter 1in/1.5in/2in for Water, Fuel, Diesel

SKU: 1005009253266887-2inch
Color
€607,12
-29% €849,97 €607,12

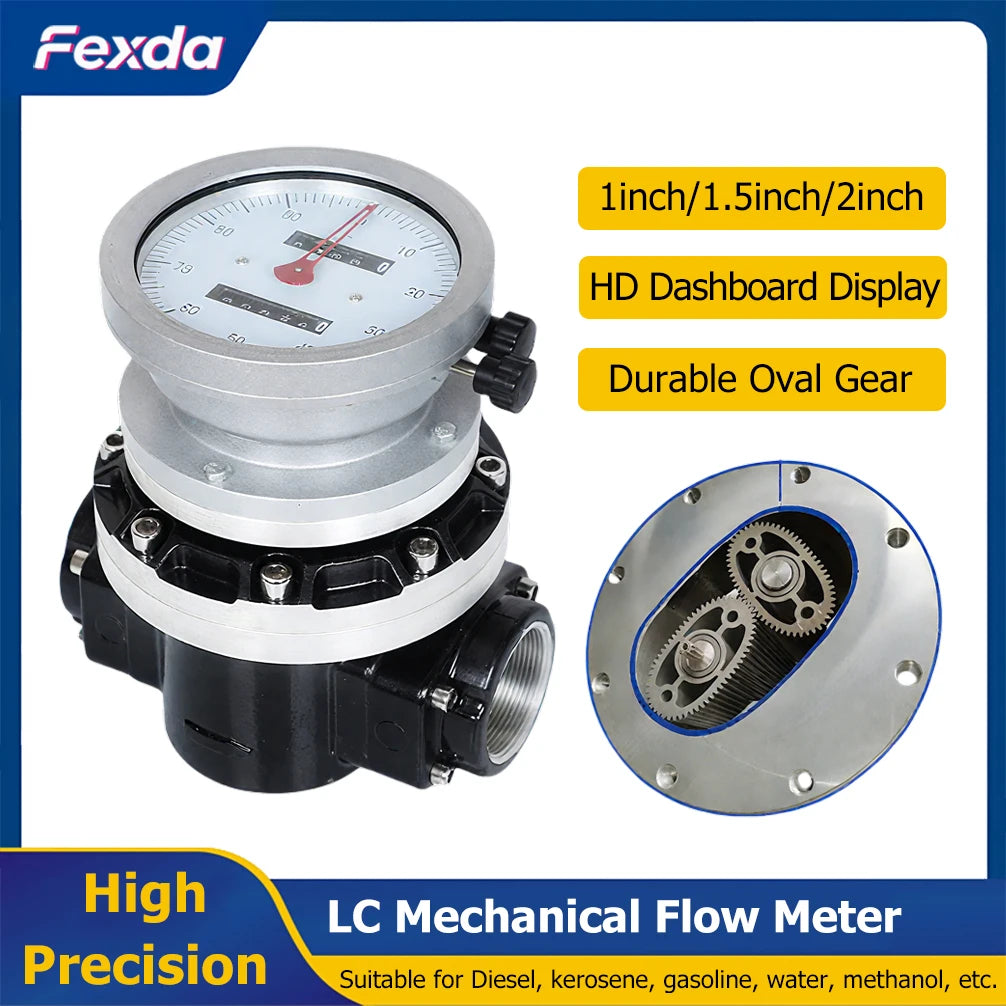

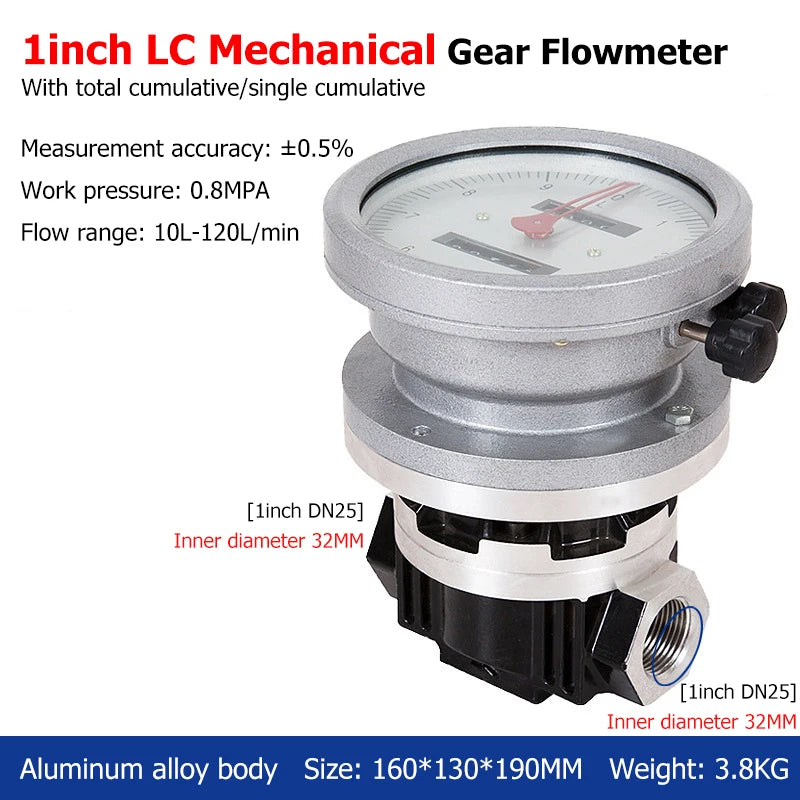

LC Mechanical Oval Gear Flow Meter – 1", 1.5", 2" for Water, Fuel, Diesel

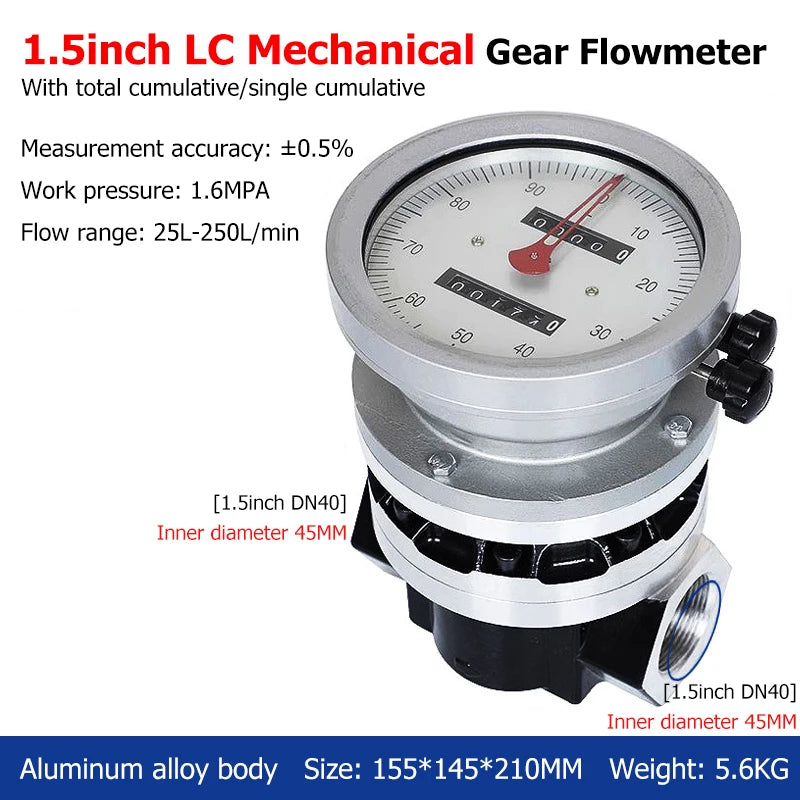

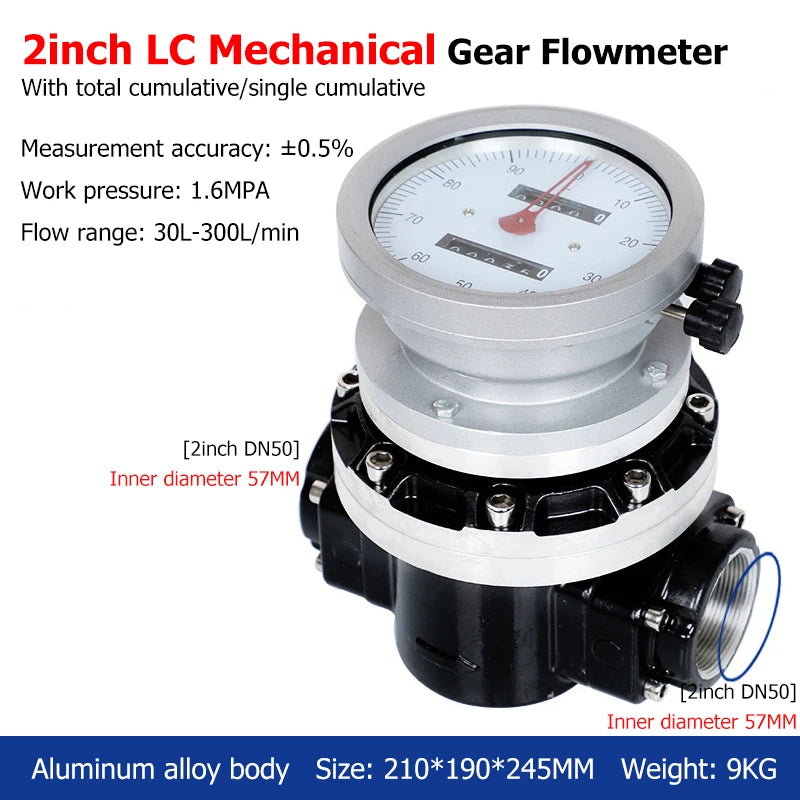

Achieve precise, reliable flow measurement with the LC Mechanical Oval Gear Flow Meter. Available in 1", 1.5", and 2" nominal sizes, it delivers high-precision readings with a compact aluminum alloy body and threaded connections for quick installation in diesel, gasoline, engine oil, and other fluids in industrial and commercial settings. Flow ranges are 10–120 L/min (1"), 25–250 L/min (1.5"), and 30–300 L/min (2").

Key specs include ±0.5% measurement accuracy, ±0.3% repeatability, maximum viscosity 1000 CPS, and maximum work pressures of 0.8 MPa (1") or 1.6 MPa (1.5" & 2"). Mediums include diesel, engine oil, gasoline, etc. Certifications include CE, Dot, EAC, EPA, FCC, GMP, RoHS, TGA, UL, KC, pse, weee. Origin: Mainland China. Connection method: internal thread.

All electronic and mechanical equipment, devices and machines sold by InterCyprus to EU countries are CE certified and carry a two year warranty.

Benefits & Tips

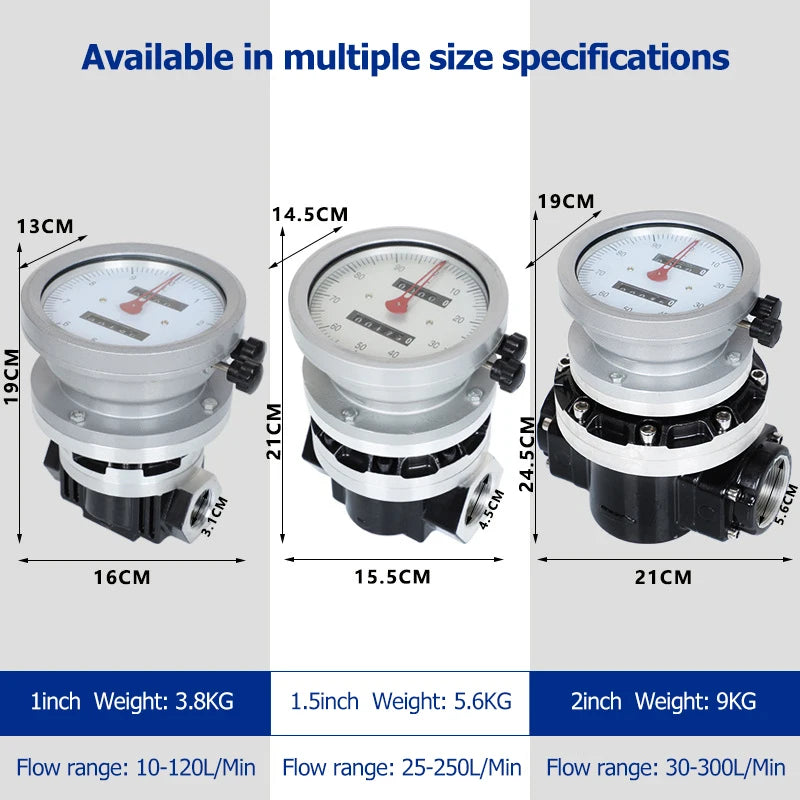

  • Choose the right size for your flow range: 1" for 10–120 L/min, 1.5" for 25–250 L/min, or 2" for 30–300 L/min to ensure optimal accuracy.
  • Use in diesel, fuel, and engine-oil workflows. The aluminum body provides durability in demanding industrial environments and simplifies maintenance.

Product specifications

  • Model: LC Mechanical Oval Gear Flow Meter

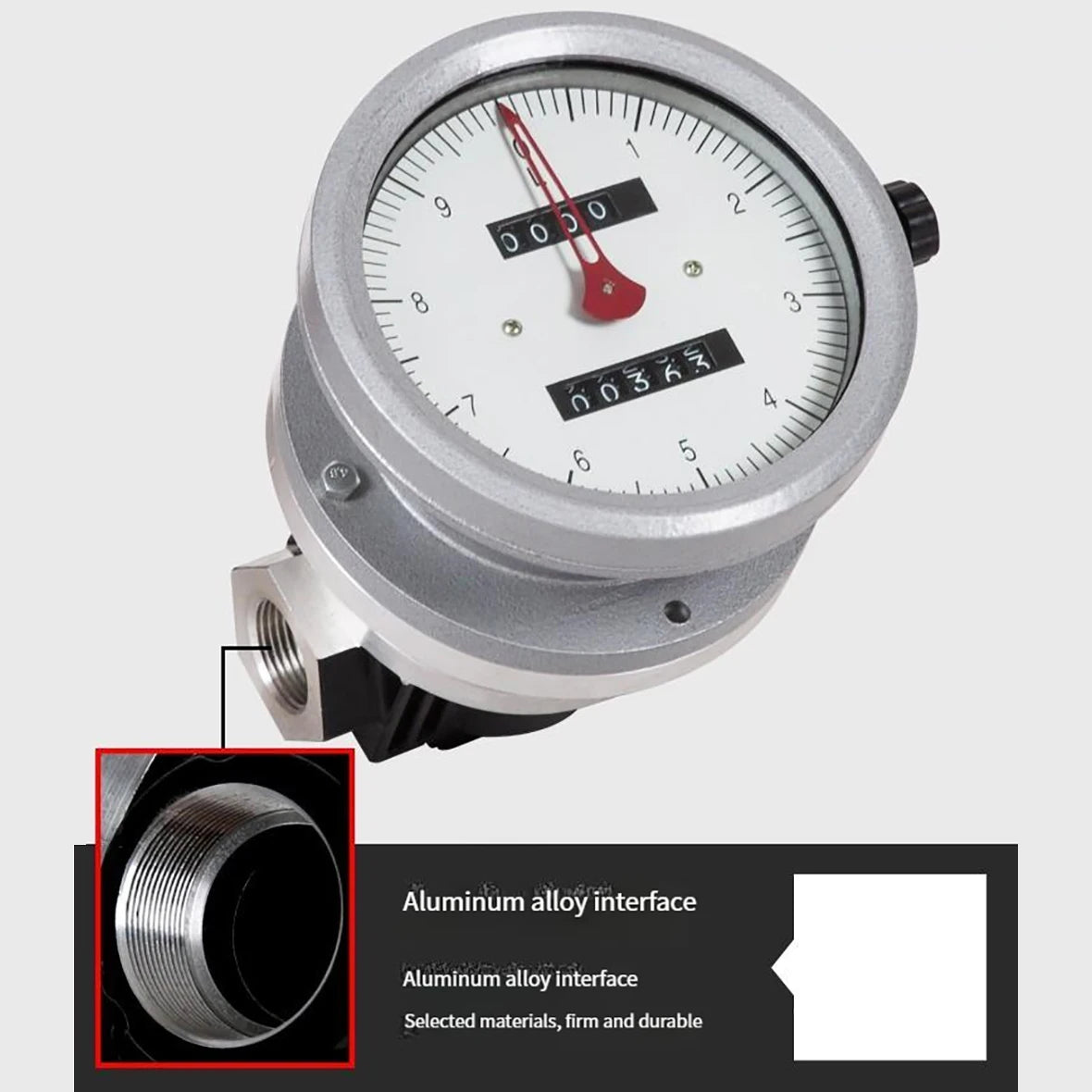

  • Connection method: Internal thread
  • Nominal diameter: 1", 1.5", 2"
  • Flow range: 10–120 L/min (1"), 25–250 L/min (1.5"), 30–300 L/min (2")
  • Measurement accuracy: ±0.5%
  • Repeatability: ±0.3%
  • Maximum viscosity: 1000 CPS
  • Maximum work pressure: 0.8 MPa (1"), 1.6 MPa (1.5" & 2")
  • Medium: Diesel, engine oil, gasoline, etc.

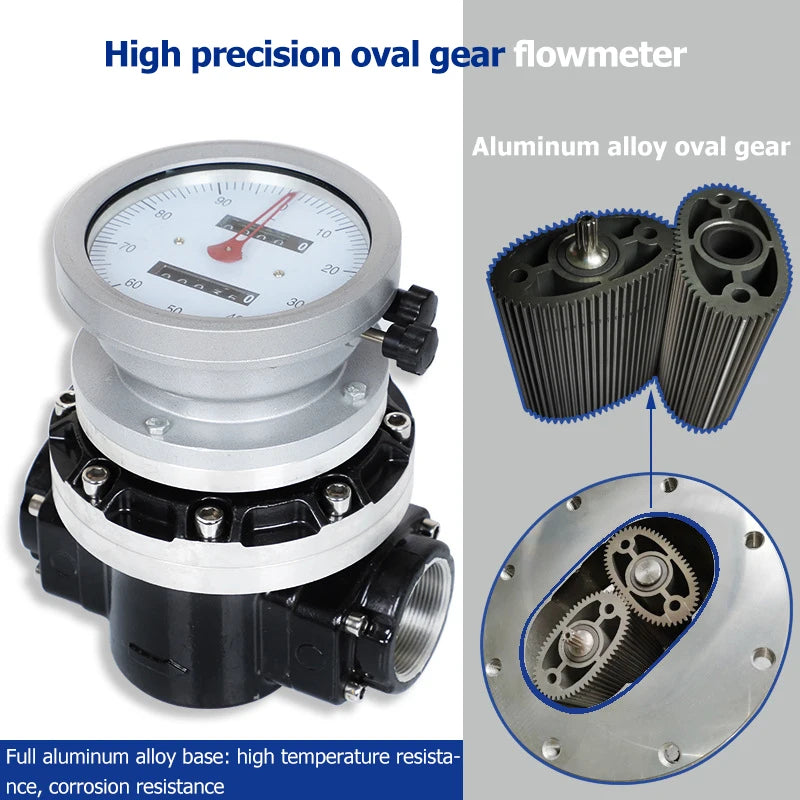

  • Body material: Aluminum alloy
  • Origin: Mainland China
  • Certifications: CE, Dot, EAC, EPA, FCC, GMP, RoHS, TGA, UL, KC, pse, weee

Package includes:

  • 1 x LC Mechanical Oval Gear Flow Meter

Warnings / reminders

  • Do not exceed the maximum work pressure for the selected nominal diameter.
  • Operate with fluids within the specified maximum viscosity (1000 CPS) and approved mediums (diesel, engine oil, gasoline, methanol, etc.).
