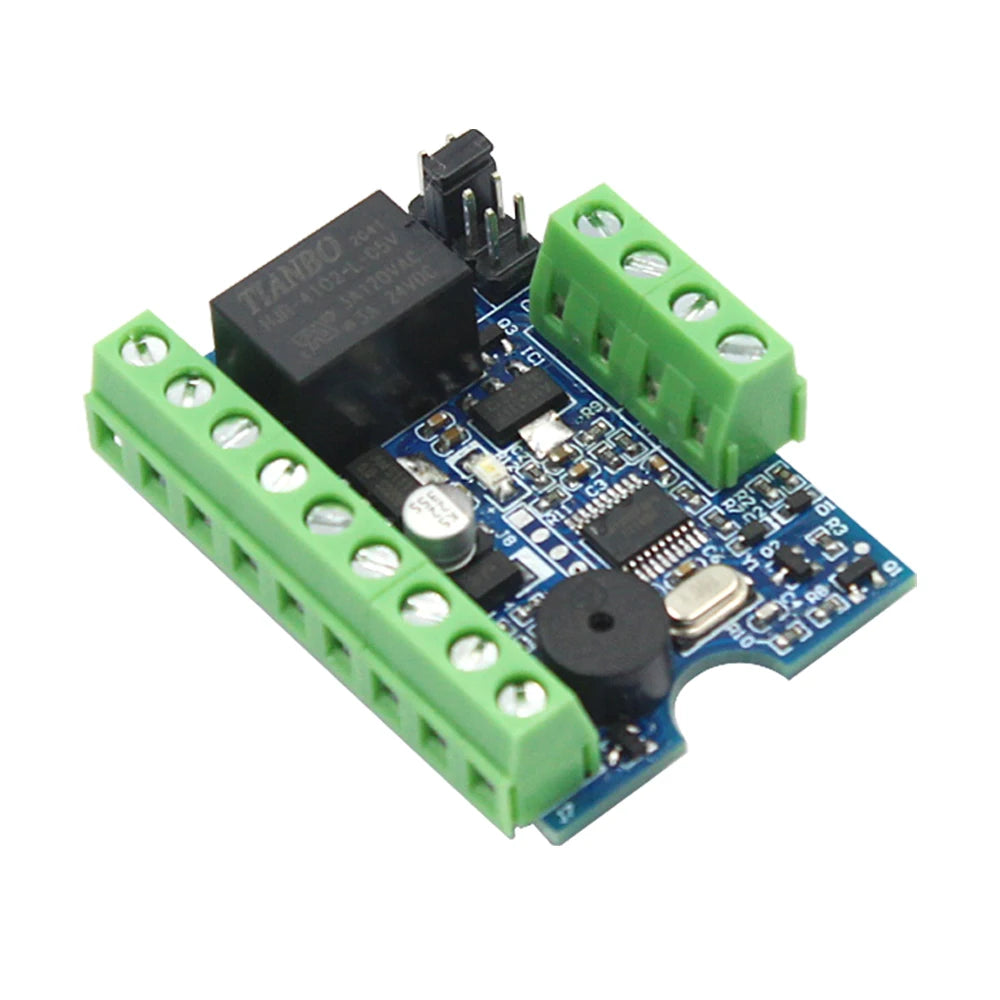

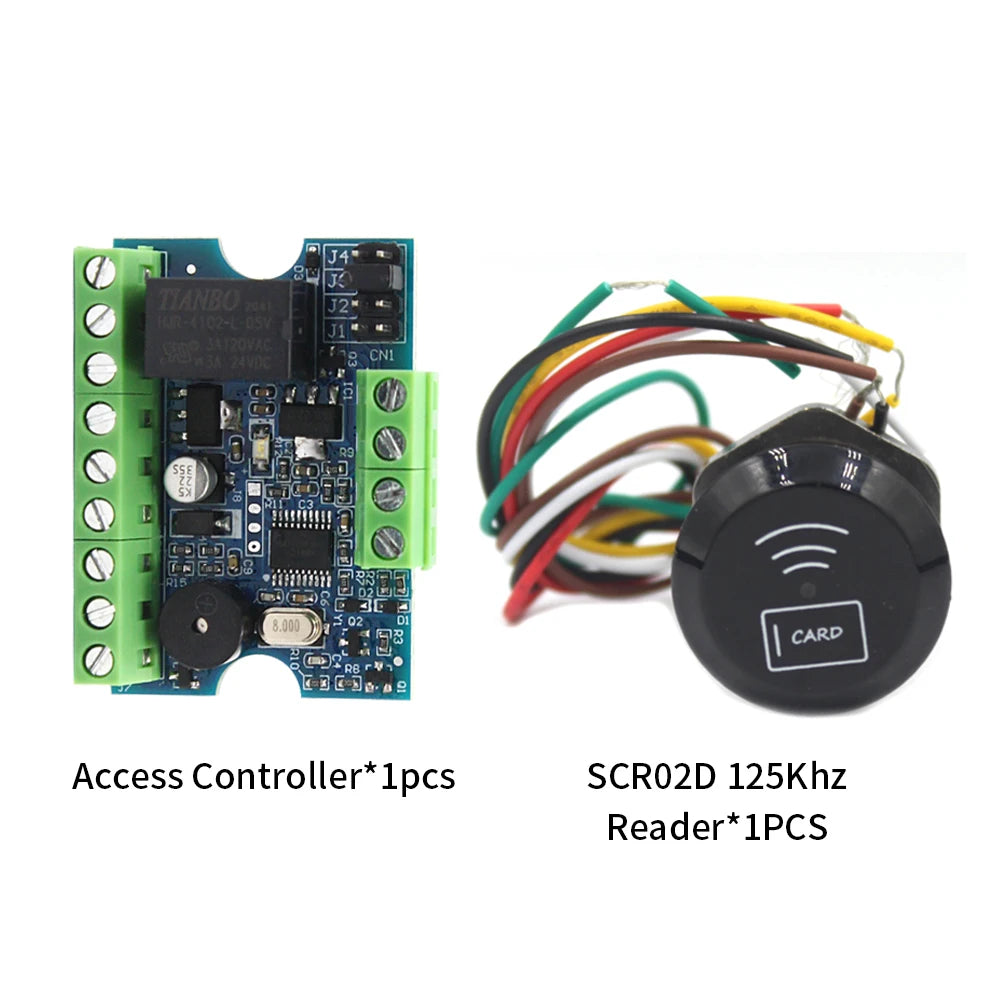

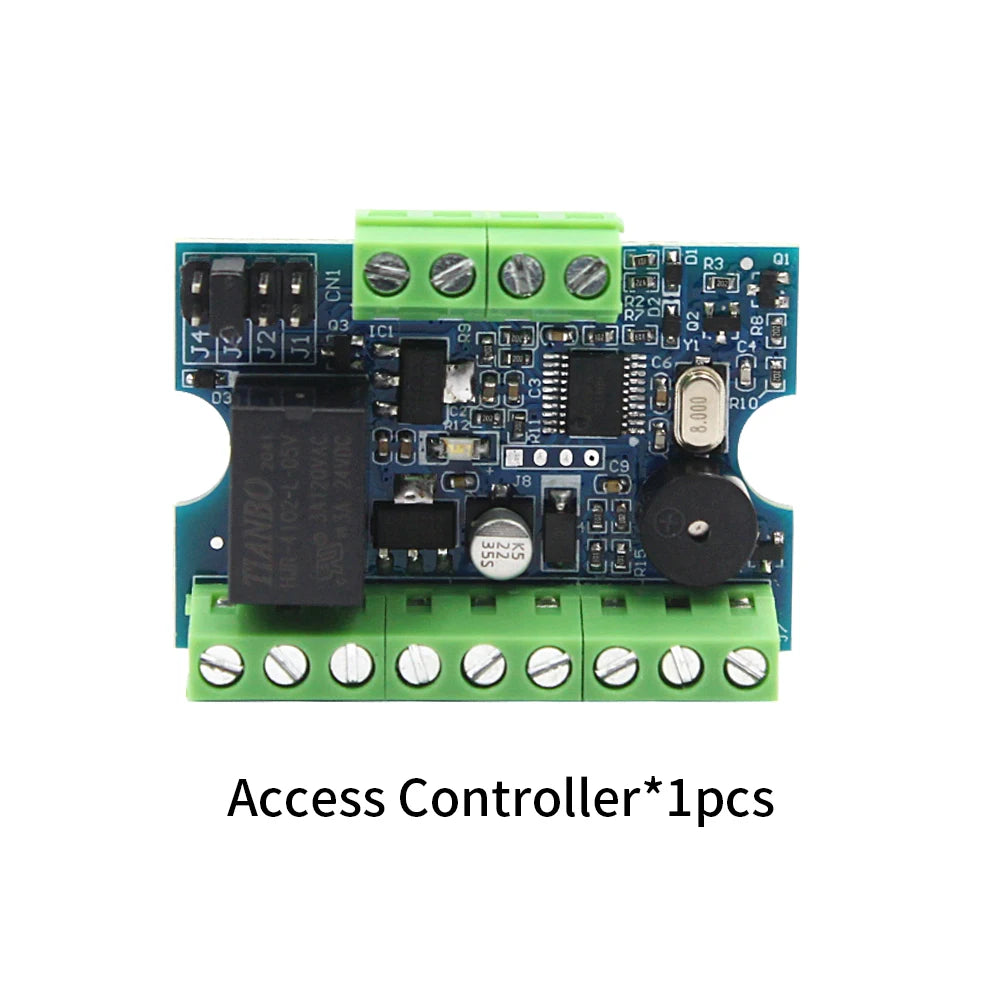

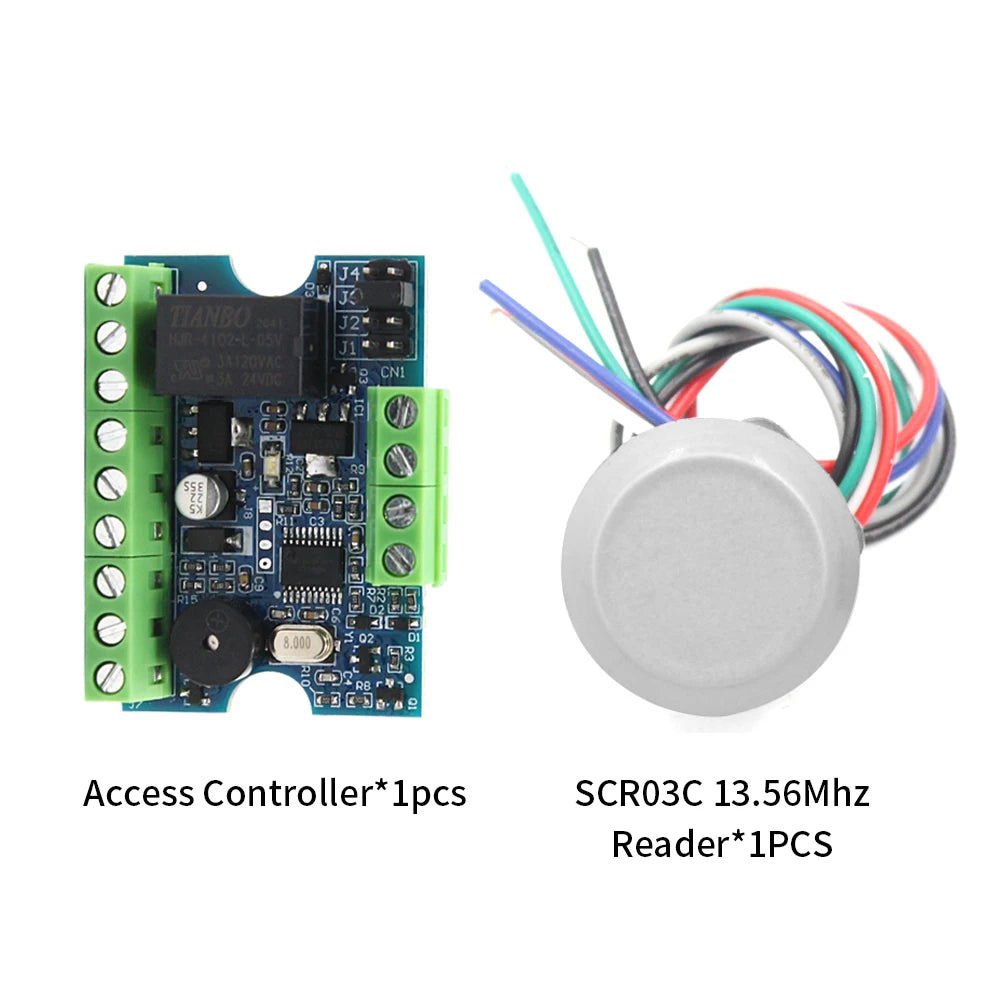

12V Access Control Mini Relay – Wiegand RFID Card Reader

12V Access Control Mini Relay – Wiegand RFID Card Reader — Compact 12V access control relay designed for Wiegand and Touch memory RFID systems, delivering reliable relay output for electric locks and simple integration into door access setups.

Features

• Supports Wiegand reader communication up to 100m and Touch memory up to 15m
• Relay output for electric lock control with up to 3A current
• Compact, low-voltage DC12V operation (±20%) for safe, efficient use
• CE, FCC, RoHS certified for compliance and reliability

Technical Details

• Model: 12V Access Control Mini Relay
• Input Voltage: DC12V ±20%
• Electric Lock Output Current: ≤3A (Relay output)
• Communication Distance (Wiegand): ≤100m
• Communication Distance (Touch Memory): ≤15m
• Direction: None
• High-concerned Chemical: None
• Certifications: CE, FCC, RoHS

Package Includes: 1 x 12V Access Control Mini Relay.

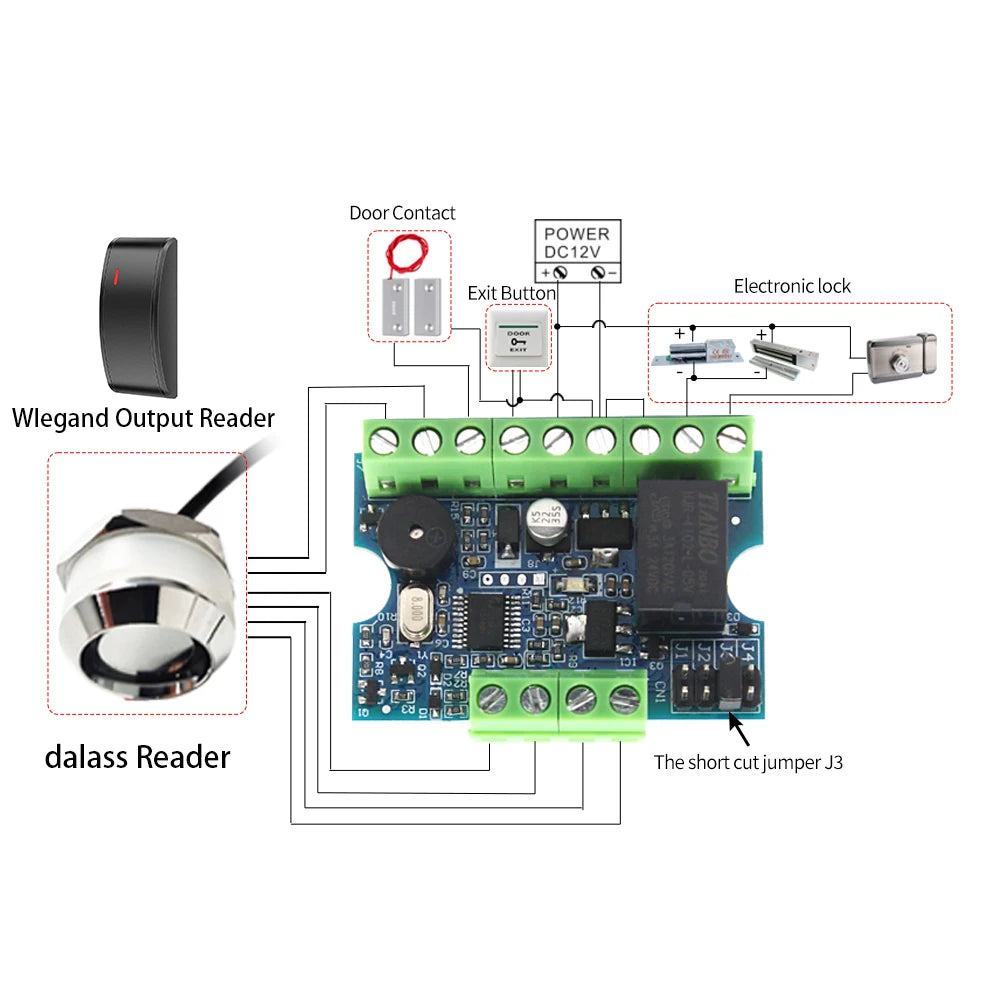

Note / Advice: Ensure correct DC12V power supply and wiring polarity; verify lock current does not exceed 3A. Install in a dry, ventilated enclosure and disconnect power before wiring.

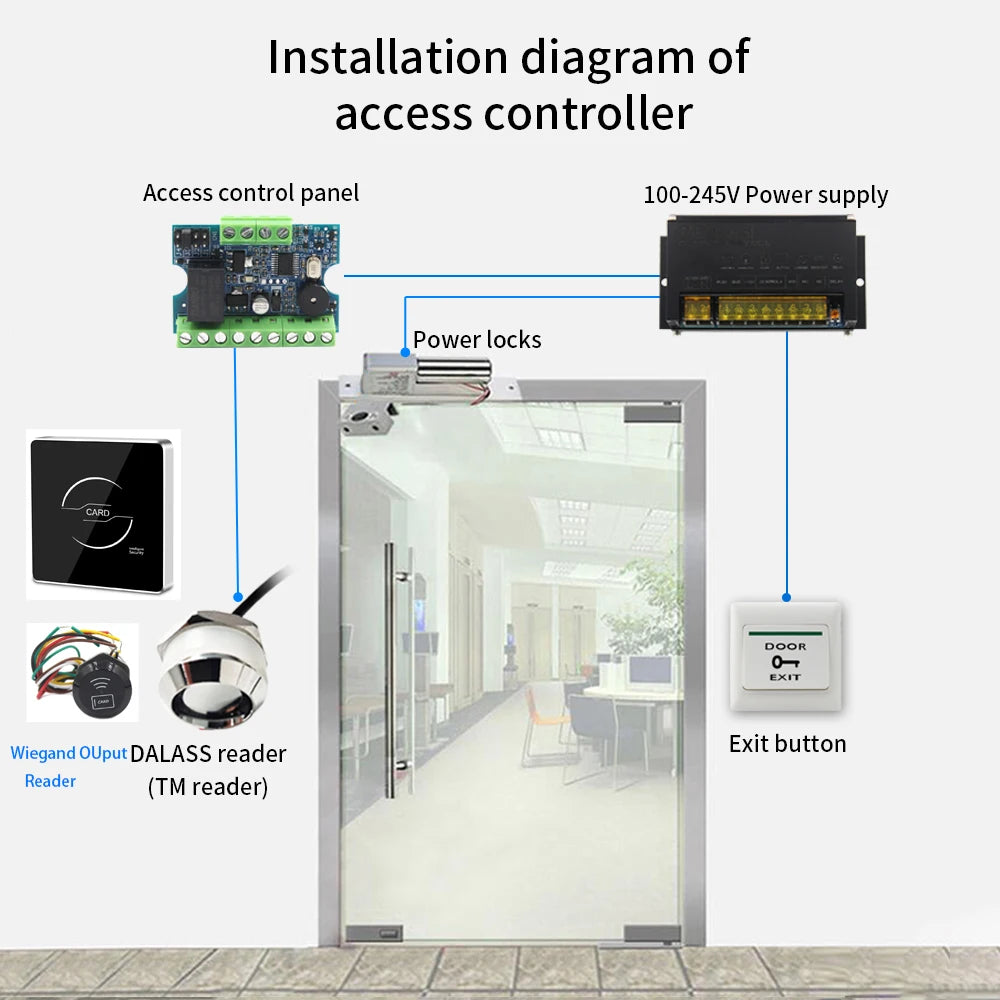

The mini relay improves access control setups by simplifying lock switching and extending Wiegand/RFID reader range without bulky controllers. Ideal for retrofit door systems, small offices, kiosks, and secure entry points, it reduces installation complexity and delivers consistent relay switching for electric locks.

Perfect for installers and small business owners upgrading access control or integrating Wiegand/RFID readers, backed by a 1-year warranty. Add this compact relay to your project to achieve reliable, cost-effective door control.

Order now to streamline your access control installation — use indoors with a DC12V supply; supports continuous operation and dependable relay switching backed by warranty support.
